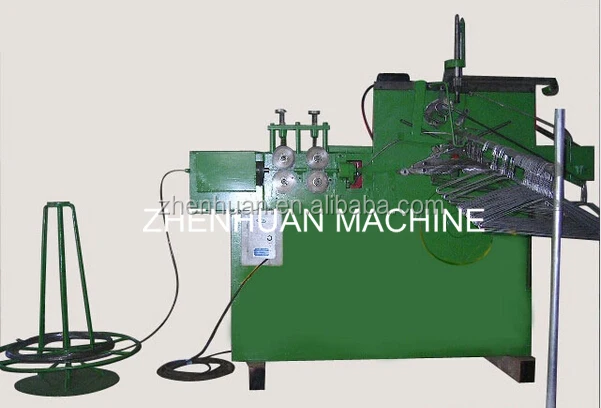

Semi-auto clothes wire hanger making machine for laundry

  • 1 - 1 Sets
    $3,500.00
  • 2 - 4 Sets
    $3,100.00
  • >=5 Sets
    $2,900.00
Model Number:
YJJ-28
Samples:
$0.10 /Set | 1 Set (Min. Order) | Buy Samples
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 5 >5
Est. Time(days) 20 30 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

hanger size (Min. Order: 1 Sets)
hanger style (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Zhenhuan
Condition:
New
Machine Type:
wire bending
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Bearing, Motor
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Sustainable
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
none
Applicable Industries:
Garment Shops, Manufacturing Plant
Showroom Location:
none
production speed:
40 pieces per minute
wire dia.:
1.8~3.0mm
Main driving motor power:
1.5 kW
power:
380V,3 phase, 50Hz
dimension:
1700x900x1600mm
weight:
about 650kg (including the wire decoiler)
Hanger size:
28-48 cm
Raw material:
steel wire, iron wire
Supply Ability
Supply Ability:
50 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Wire hanger making machine will be bare loaded in wooden case
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 5 >5
Est. Time(days) 20 30 45 To be negotiated
MACHINE DESCRIPTION
1)  Gears are made by 40Cr, adjusted and quenched, HRC 52-55, shafts are made by 45# steel, adjusted 2)  Feeding & straightening and forming rollers are made by good steel alloy, heat treated HRC 58-62l  Gears are made by
PRODUCT SPECIFICATIONS
NO.
Item
Data
1
Suitable wire thickness
1.8-3.0mm
2
Production speed
About 40 pcs/min
3
Motor power
1.5kW
4
Machine dimension
1700x900x1600mm
5
Machine weight
Around 650Kg
6
Power supply
380V, 3Phase, 50Hz or as required

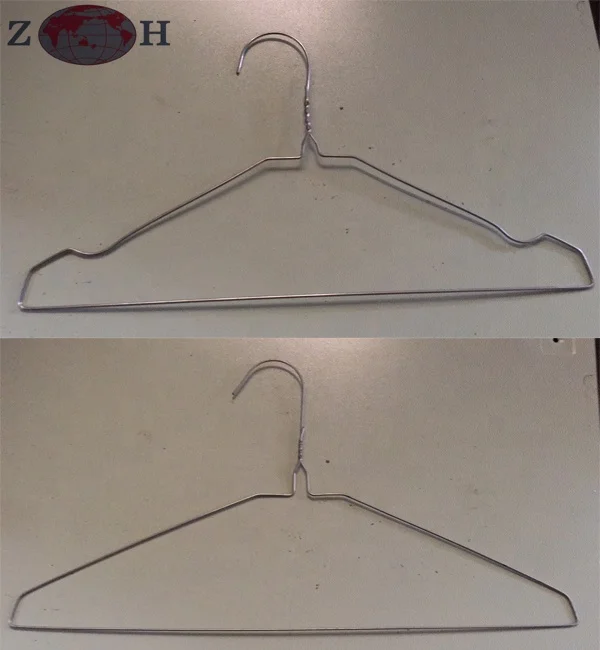

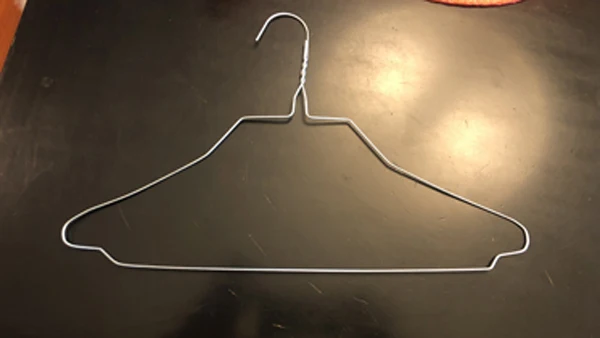

SAMPLE PHOTO
