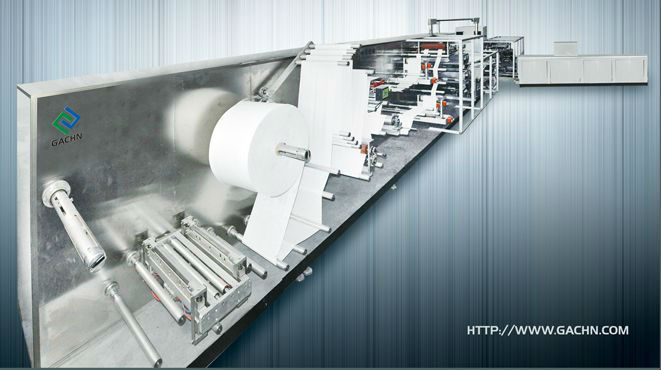

Servo multi purpose high speed wet tissue making and packing machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Application:
Machinery & Hardware
Packaging Material:
Paper
Type:
Other, Packing Machine
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
GACHN
Model Number:
GC-081
Power:
40KW
Weight:
18000KG
Automatic Grade:
Automatic
Packaging Type:
paper
Driven Type:
Electric
Dimension(L*W*H):
16150*1550*2000
Material specification:
40g/m2_80g/ m2
Supply Ability
Supply Ability:
5 Set/Sets per Year
Packaging & Delivery
Port
xiamen
Lead Time :
120 days





 Technical parameters



Power supplyThree-phase 380V 50HZ
Applicable material

A) spunlace non-woven fabrics

B) hot-rolled non-woven fabrics

Material specification40g/m2_80g / m2
Product size(mm)

L (100-220) × W (100-220)

Host speed

A) 1000 pieces/ min for economic speed

B) 1500 pieces/ min for maximum speed

Packing machine speed100 packs/ min for economic speed and 150 packs / min for maximum speed
Base paper diameter100mm-1200mm
FoldingZ,W,C
Installed power40KW
Wetting and mixing systemquantitative spray system
Control system

A) Servo motion control system

B)10.4-inch color touch screen

C)auto-correcting for material skew

D)non-woven fabric /packaging film roll changing system

Machine Size (mm)

L (2000) × W (1100) × H (1900)

Tank size (mm )L (16150) × W (1550) × H (2000)
Weight (kg)18000







A.   servo electronic principal axis to achieve the synchronous operation



B.   designed with  with high precision, stable speed, automatic paper feeding and receiving



C.   automatic paper receiving for coating, high-precision automatic quantitative potion spraying to avoid secondary pollution of

       the potion



D.   automatic correction of materials skew and servo fixed-length cutting



E.   With servo electronic principal axis to achieve the synchronous operation, the vulnerable components such as traditional

       mechanical shaft gear box
