Shanghai Dazhang Program controlled automatic filter press machine for water treatment filter machine price

FOB Reference Price:Get Latest Price
$12,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
XG70/870
Processing Capacity:
96.8%
Lead Time:
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Place of Origin:
Shanghai, China
Brand Name:
DAZHANG
Material:
Wooden case, Stainless Steel,carbon steel
Weight:
5136kgs
Size:
5830*1350*1230mm
Power:
2.2kw
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support, No after-sales service
Warranty:
1 Year, 1 year
Application:
Chemical, medicine, Chemical mine industry
Function:
Solid-liquid separation
Product name:
automatic filter press
Certification:
CE Certificate , ISO9001
Production Capacity:
High Efficiency
Type:
Automatic Filter Press Machine
Voltage:
Customer Requirement
After-sales Service:
Engineers available to service machinery oversea
Supply Ability
Supply Ability:
10000 Set/Sets per Year
Packaging & Delivery
Packaging Details
Wooden case / Container Securing / Customized
Port
Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Program controlled automatic filter press machine for water treatment


(Model: XG70/870)


Automatic chamber/recessed filter press use micro computer processor , PLC and touch screen to control every part's actions , such as : cylinder , plate shifter , cloth washing etc. and remote control ports are left .


High efficiency filter press expended the length of cylinder and can discharge several cakes every time . the advantages : stable performance , high efficiency and lower running cost .

 The fast open system can increase the cake discharging efficiency  3-6 times , especially for the filter press that have a large quantity of plates and need frequent operations .
Design feature
Advantages
Automatic chamber
Stable performance
Micro computer processor
High efficiency
PLC
Lower running cost
Touch screen
Fast open system
Remote control ports
Especially applicable to frequent operations


Key Parameters

Detailed Images

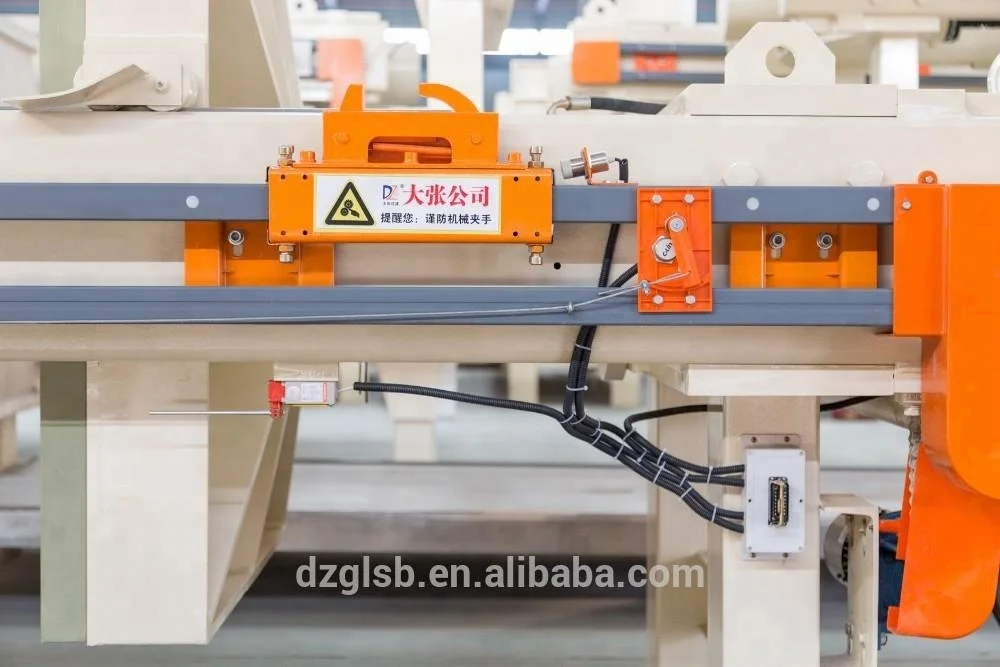

Automatic plate shifting part

The automatic plate shifting mechanism consists of hydraulic motor, manipulator, transmission mechanism, pause device etc..The hydraulic motor drives the driving chain in order to drive the manipulator to move. Filter plate will be shifted one by one by the plate shifting manipulator


Hydraulic system

Function: to provide pressing power and ensure oil cylinder open/close and manipulator normally work Makeup: oil tank, oil pump system, manifold block, hydraulic valves, oil pipes, pressure displayer and driving system.

Cloth washing system

Filter cloth washing part composite by the cleaning car, cleaning pipe rack and other components. Pull plate cake unloading cake residue on the filter cloth is difficult to fall off, affecting the filter effect, the user should be wash the filter cloth based on the use of the scene.


Filter plate

Function: to install filtering medium and ensure filter press can filter normally work at rated pressure.
Material: New reinforced polypropylene material+TPE elastomer type white
Working(filtering/ blowing) pressure: ≤1.0MPa temperature: 80℃





Application
Related Products
Certifications
Our Company
Shanghai Dazhang environment protection Co., Ltd is a professional manufacturing company of solid-liquid separation equipment. We are specialized in design, manufacture and sales of various filtration equipment, as well as comprehensive filtration solutions and projects. Our factories cover 250,000 square meters with advanced production line and precise testing equipment.  With top-class R&D personnel, experienced workers and high qualified sales team, we are all devoting to provide best products for our clients.
