Shaped surface primer polishing sander automatic polish machine

FOB Reference Price:Get Latest Price
$22,500.00 - $25,400.00 / Unit | 1 Unit/Units (Min. Order)
Model Number:
ZY-QMS-1300-6S
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Shanghai Exhibition
Condition:
New
Warranty:
1 Year
After-sales Service Provided:
Video technical support
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works , Woodworking machinery
Name:
Sanding Machine
Application:
Woodworking machinery
Type:
Automatic
Usage:
woodworking sanding
Function:
wood polishing machine
Keywords:
woodworking polishing machine
Operating Voltage:
380V;50hz
Total power:
16kw
Dimensions:
3300*2100*2300MM
weight:
4000KG
Supply Ability
Supply Ability:
30 Unit/Units per Month
Packaging & Delivery
Packaging Details
Conventional way:
Wooden packing/Wooden pallet packaging
Port
Shanghai/Guangzhou
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Video Description
Product Description

Product Application

1. We are a new type of practical and efficient wood surface grinding equipment independently researched and developed, mainly for white blank polishing and primer sanding on the surface of wood products.

 2. It is suitable for the regular surface, special-shaped surface, flat surface, fine sanding and polishing of various solid wood, MDF, multi-layer board and other conventional plates. It is an ideal sanding equipment for furniture such as cabinets, wardrobes and wooden doors.

Main Features

1. This model adopts spiral sand sticks in the right and left direction, swinging the left and right discs, and swinging the horizontal sand rollers from side to side to polish the plane and groove of the product from different directions, which makes the grinding of the products more in place.
2. The material feeding device adopts rubber wheel type pressing material, which is reliable in pressing and does not hurt the workpiece.
3. The height of each set of sanding rolls can be adjusted, which can be adjusted according to different modeling depths of the products, so that the sanding at the bottom of the product groove is more in place.
4, the inverter device with the machine, so that the speed of each set of sanding roller and the feeding speed of the conveyor belt can be adjusted by frequency conversion. Different materials can choose different speeds to achieve better sanding effect.
5. The sanding roller on the sanding machine is made up of a unique sisal brush and abrasive cloth strip. It can provide you with a variety of different types of abrasive cloth and brush combination, and can be replaced separately, which greatly saves consumables. cost.
6, production practice case: wooden door - shaped door panel - photo frame - table and chair parts - hangers - plate sand edge carvings - outdoor furniture - toys and so on.

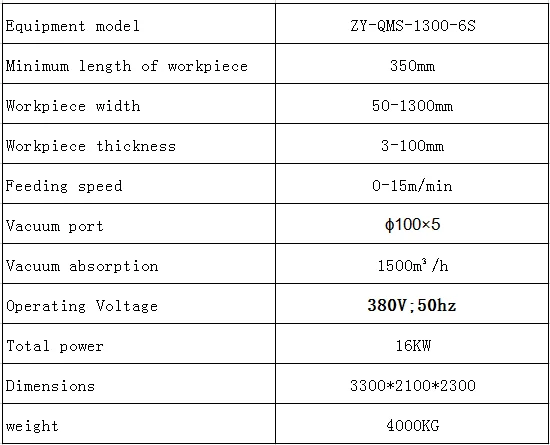

Technical Parameters

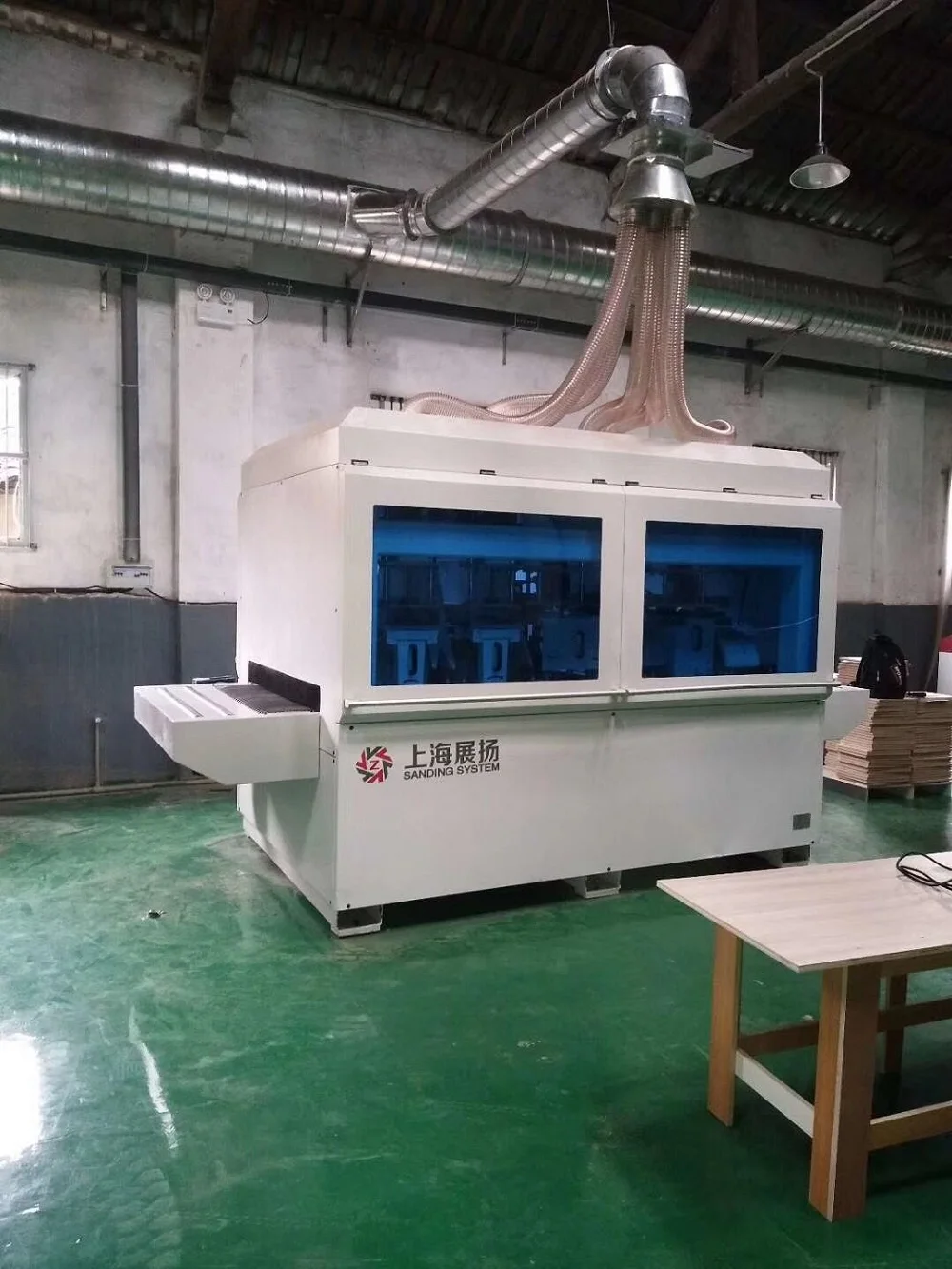

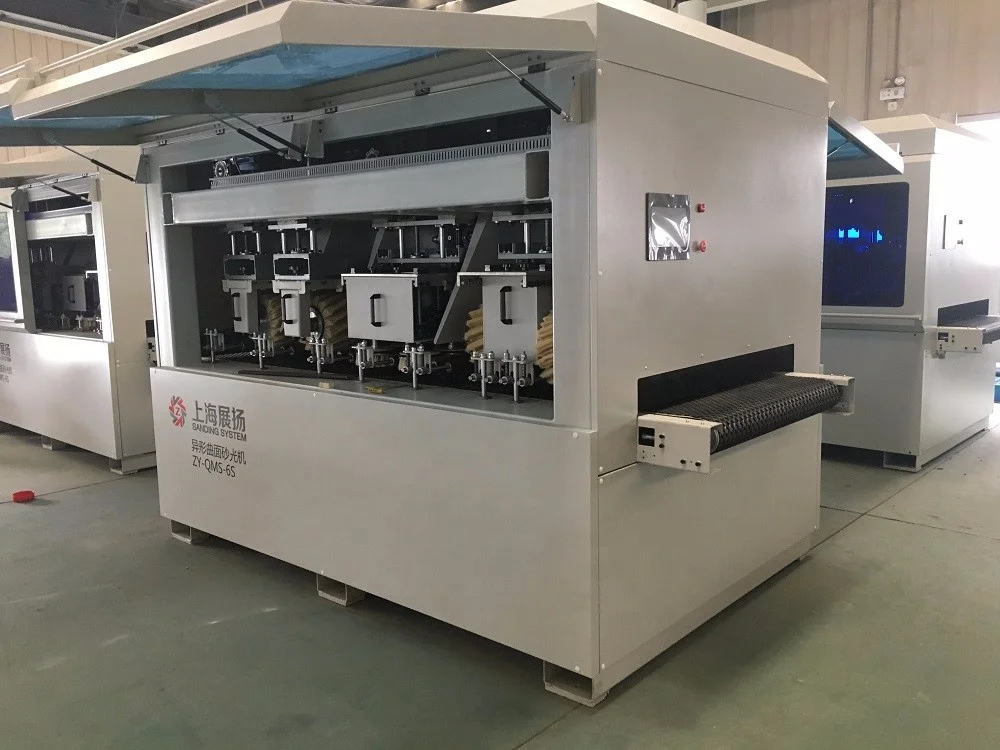

Detailed Images

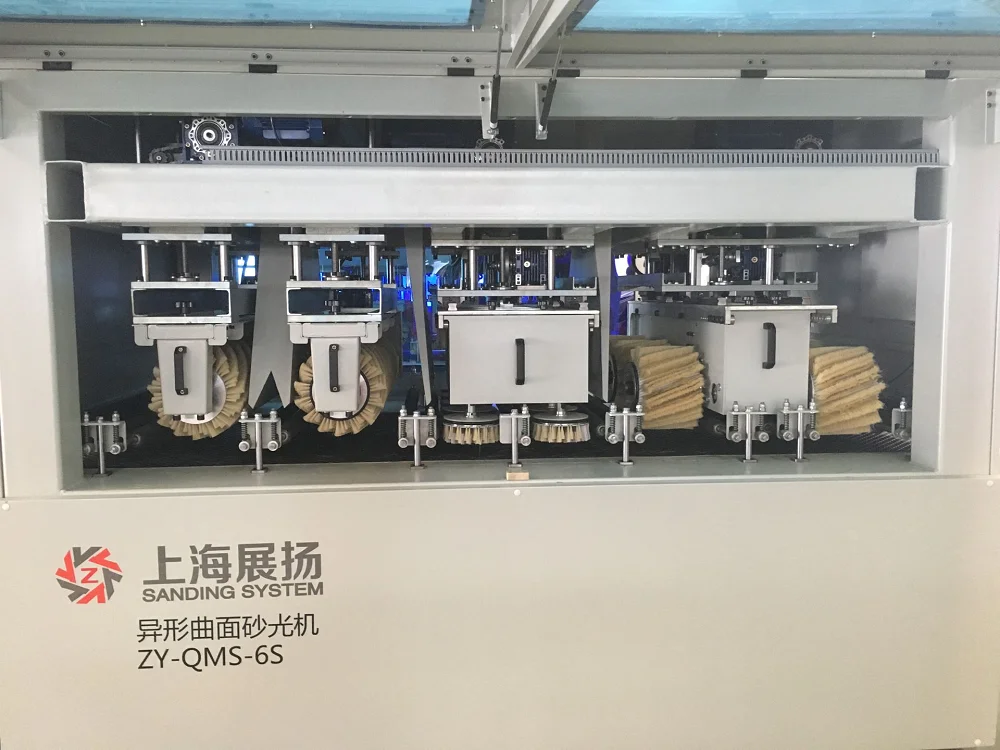

Detailed introduction:

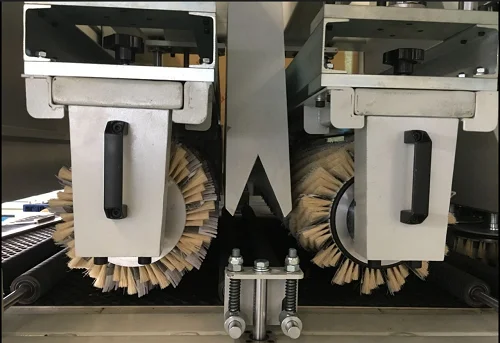

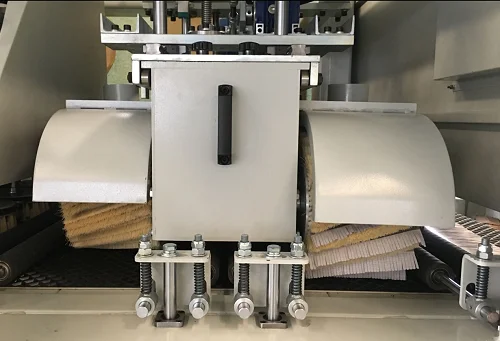

1, two groups of swinging horizontal sand sticks.

①The sand roller is in two sets of lateral rotation, and moves left and right during operation, and the frequency conversion is adjustable. The board can be laterally sanded for better sanding of surfaces and grooves.
②extractable sand frame, sand cloth strip and sisal split type, can be replaced separately, saving time and money.

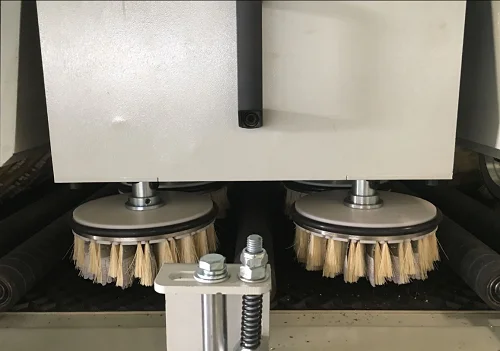

2, two groups of swinging disc shaped sand sticks。

① brush plate moves at a constant speed to the left and right, and the two groups are rotated at the same time when the brush plate is working.
Adjustable. The sheet can be sanded horizontally and longitudinally to provide a good sanding effect on the surface and the bottom of the groove.
② Abrasive cloth strip and sisal split type, can be replaced separately, saving time and money.
③ imported linear guides, stable operation and long service life.


3, two sets of spiral roller in the opposite direction。

① Retractable sand frame, customers can customize two or more sets of sanding rolls. The specifications of the sanding strips on the sanding rolls can be different, which can change the gauze more quickly for different sizes of plates.
② The installation of the combined abrasive cloth strip has excellent polishing effect on the surface of the sheet, and the sanding of the groove is more delicate.

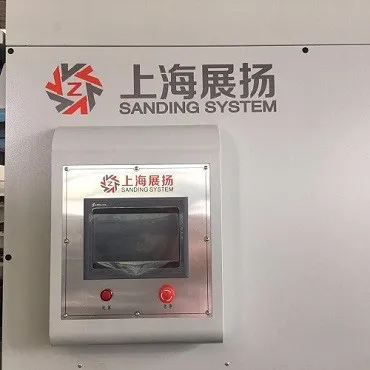

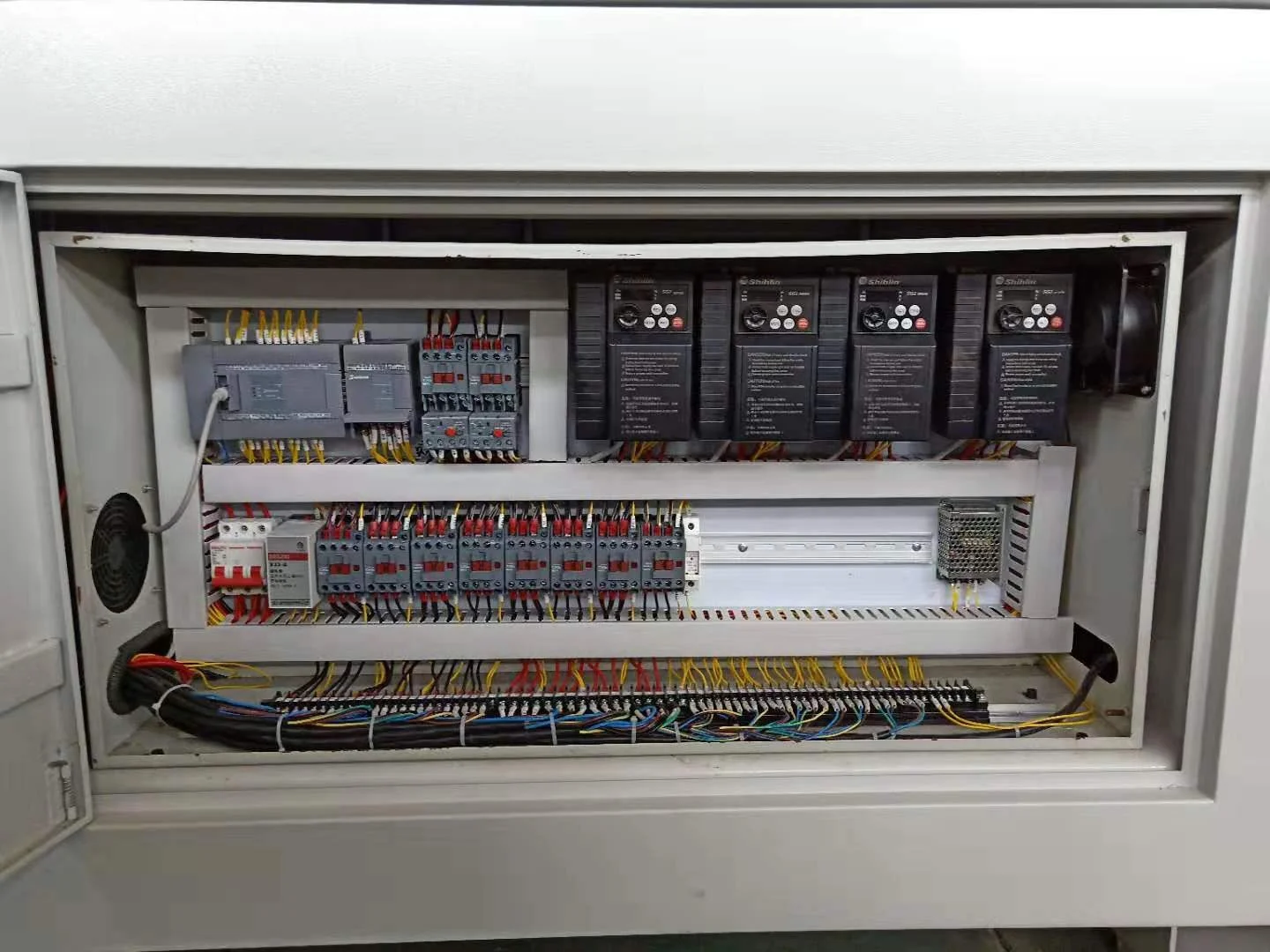

4, PLC system control, touch screen man-machine interface。

① touch screen operation, easy to learn and high degree of automation.
②With Taiwan brand electrical appliances, safety, stability and reliability are guaranteed for a long time.


Polished products
Use contrast

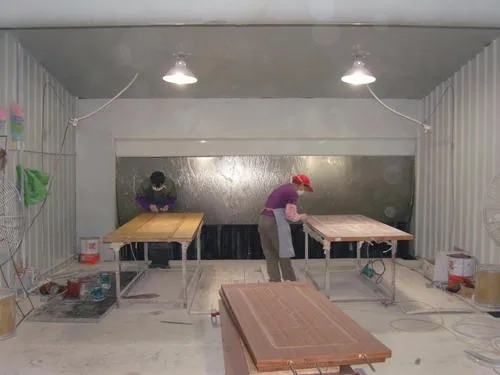

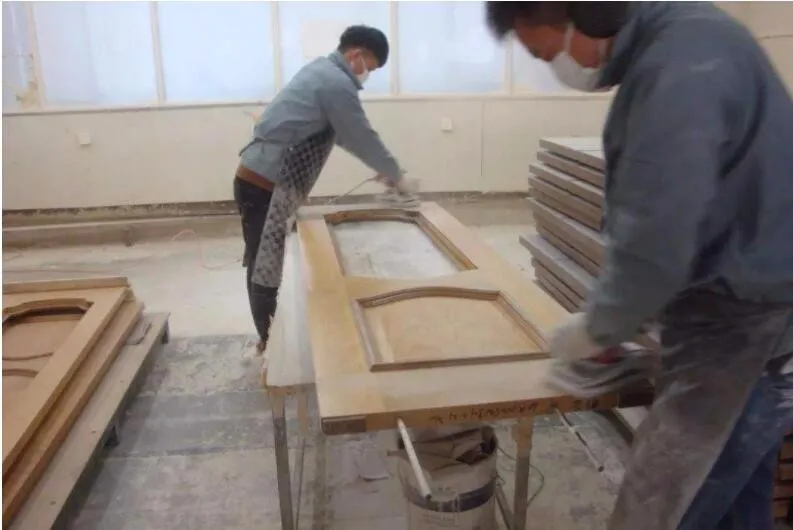

Before use.

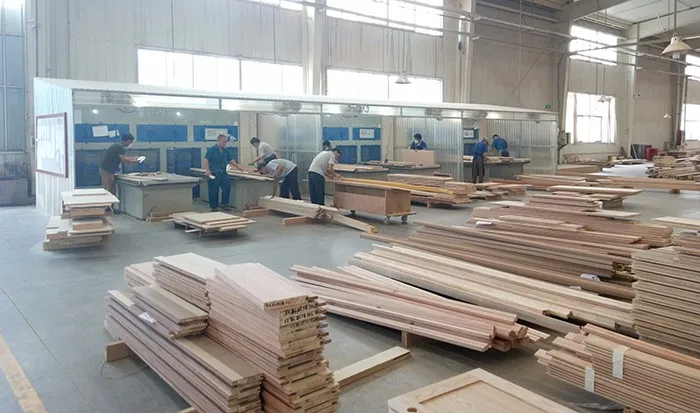

Low manual grinding efficiency.

Before use.

More labor costs.

Before use.

Grinding takes up more dust on the site.

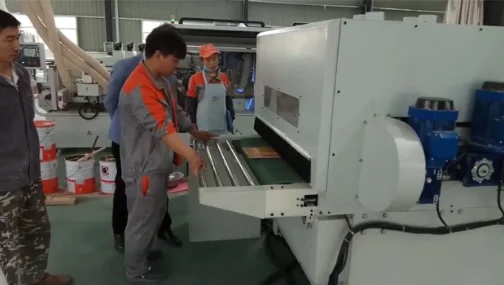

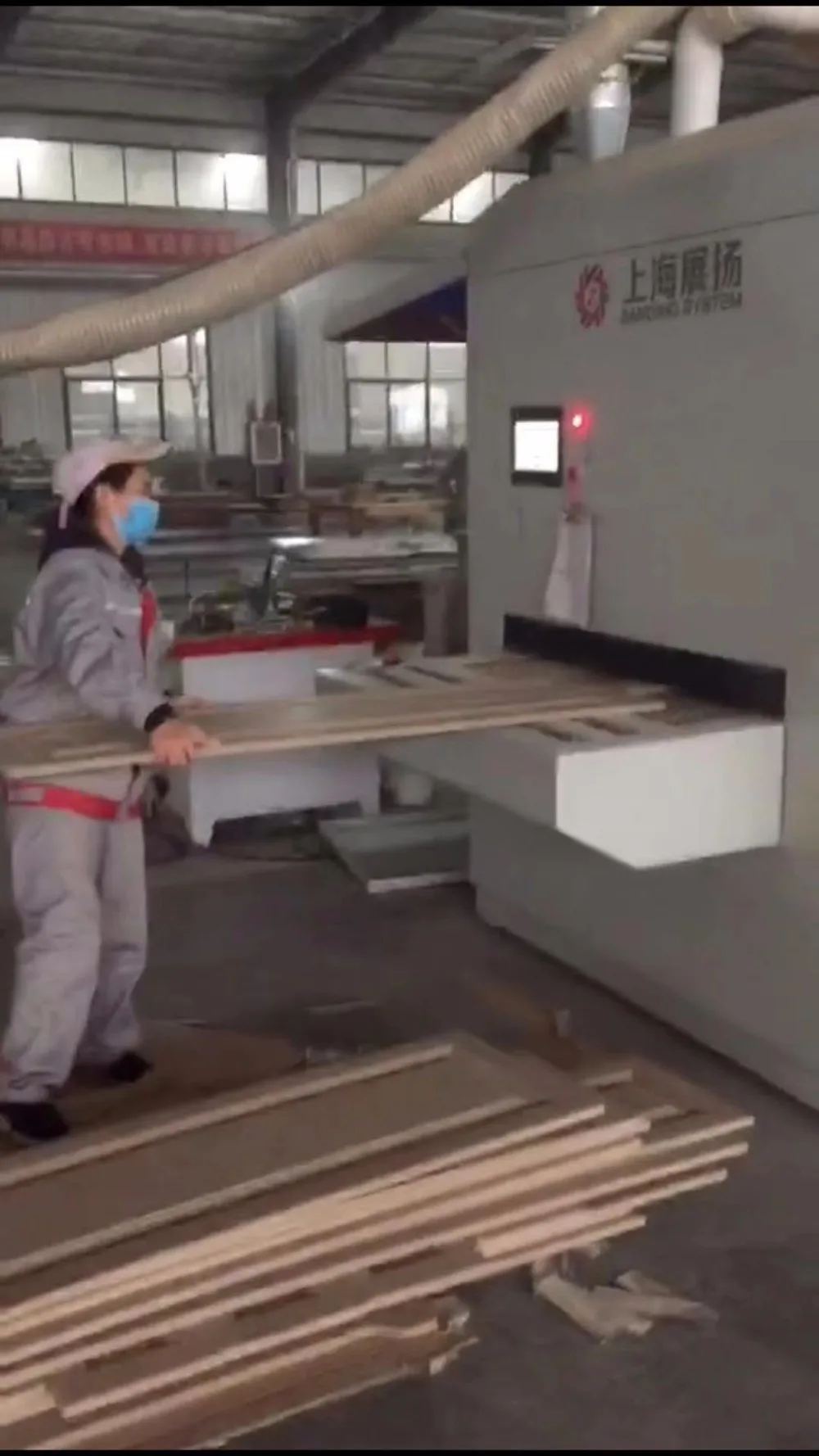

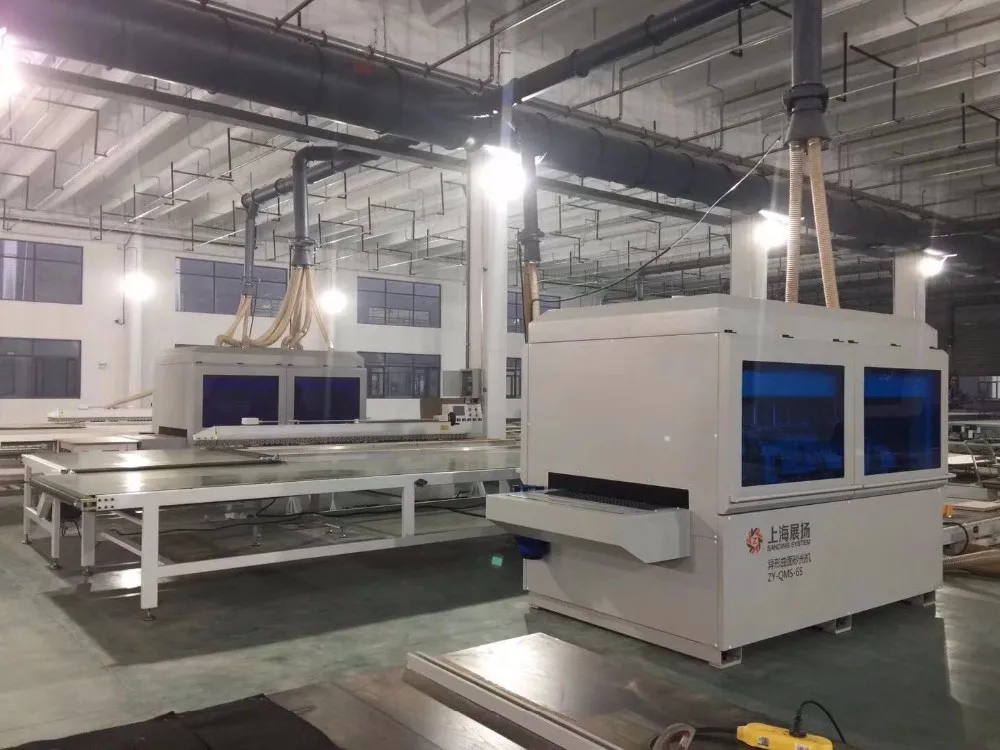

After using the machine.

 Save labor.

After using the machine.

Increased efficiency and increased production capacity.

After using the machine.

Save space and polish more environmentally friendly.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

*Customer on-site training how to use the machine.
* How to maintain the machine in the future.
* How to replace consumables.

Exhibition
Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.8 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.8 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
1. Can I visit you? Of course, our factories are located in Shanghai, China and Dongguan, Guangdong. We warmly welcome you to visit our factory. If it is convenient, please contact us to make an appointment, provide free pick-up service and hotel reservation service. 2. Can I negotiate the price of the machine? Yes, we may consider a large number of discounts on the purchase quantity. The more we buy, the lower our price. Please contact our sales staff for a catalogue and quotation for your request. 3. How many days do you need to ship? Some of our machines are in stock and will be delivered as soon as you order and pay. If there is no stock, we may need about 20-40 days to make new production. Of course, the delivery time depends on the order you purchased. If your schedule is urgent, we will try our best to increase production. 4. What is your price period and payment term? Price terms: EXW, FOB, CIF, etc. , payment terms: T / T and so on. 5. How much is the shipping cost? This depends on the number of machines purchased and the destination port. We would be grateful if you could tell us your destination and the items you want to order. 6. Can you provide a warranty for the product? Yes, we have a 6-12 month warranty on our products. If you encounter any problems, please contact us immediately. When we load the spare parts of the machine at the factory, the warranty will start and the quality of the spare parts will be damaged. After 1 year, the part is paid by the customer. 7. How to install and operate the machine? Most machines are fully assembled in our factory, so just open and remove the package and connect to the power supply. For some machines, the main components are well assembled and you may need to install some components that are easy to install. If you have more information about the installation, you may have any questions. For operating the machine, we provide instructions for you. If you need our company to provide installation and guidance, all costs are paid by your company: this includes tickets from China to your company, hotels in your country, all food costs in your country are in the after-sales service and installation and commissioning process.
