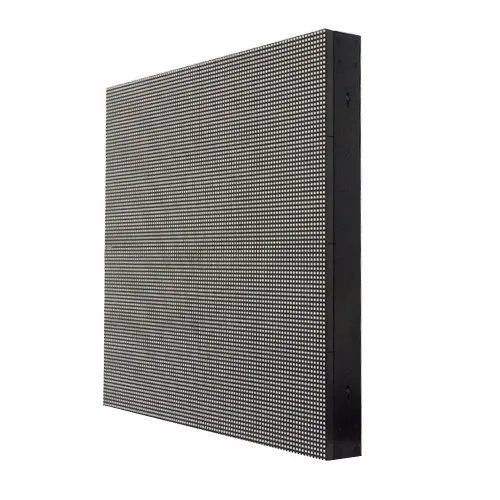

Shenzhen P6 outdoor led display/big tv advertising screen/led tv advertising

FOB Reference Price:Get Latest Price
  • 1 - 9 Square Meters
    $823.00
  • >=10 Square Meters
    $780.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Allenson
Model Number:
P6
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
6mm
Screen Dimension:
Customized Size
LED chip:
Nationstar SMD3535
Module size:
192x192mm
Brightness:
5500cd/sqm
scan mothod:
1/8
Application:
Outdoor Advertising Led
Cabinet size:
1152x768mm
Certificate:
CE RoHS FCC Certifications
Warranty:
2 Years
Life span:
100000 Hours
Product name:
P6 outdoor led display
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Wooden case for outside packing.
Port
shenzhen
Lead Time :
15-20days
Specification
Pixel Pitch
6mm(H*V)
Pixel Density
27889dots/m2
LED Shape
SMD3535
LED Configuration
1R1G1B
Module Size
192mmx192mm
Driving Mode

1/8Scan,constant current

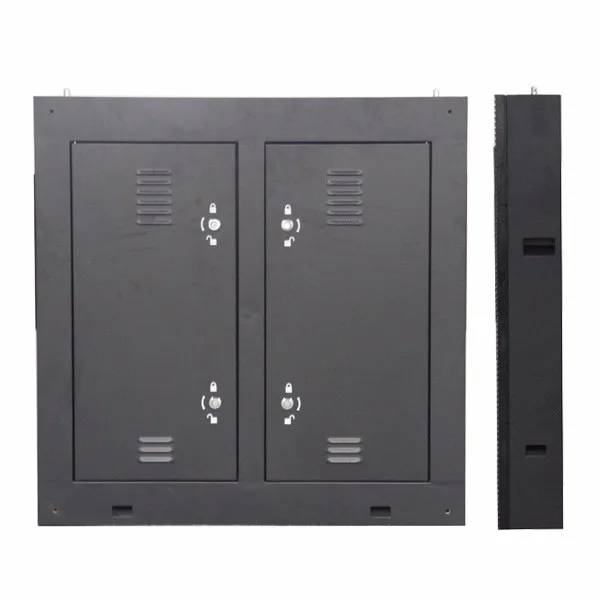

Cabinet Size
customized as the module size
Cabinet Weight
58kg/㎡
Brightness After Calibration
≥5500cd/m2
Service access
Rear
Contrast
2000:1
View Angle
140°(horz.), 140° (vert.)
Max Power Consumption
900 W/sq.m
Average Power Consumption
300 W/sq.m
Best viewing distance
6m-50m
Gray Scale
12-16bits for red,green,blue
Colors
16777216
Input voltage (AC)
110V ~ 240V
Frame Frequency
50Hz-75Hz
Refresh Rate
≥600Hz
Brightness Adjustment
0-100%
Gamma Correction
( -0.5 -- 5.0 )
Color Temperature
6500-9000K
Operation System
Win7&XP
Control Mode
Synchronization with PC or asynchronous wifi /3G
Stock Temperature
(-40℃~+85℃)
Operating Temperature
( -30℃~+50℃ )
Operating Humidity
10-90% RH
Life Span
100,000Hours
MTBF
≥10,000Hours
IP Rating(Front/Rear)
IP65
Flatness of the screen
≦1mm
Control Distance
UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km for Nova contorller,if 3g/wifi no distance require
Product Description

Led display introduction:

1) High intensity and can be adjusted, so can meet the request of the customers according the application environment. 2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light 3) To pictures and character, have clear, exquisite and real display effect 4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion 5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

Products Advantages:

1) Price Advantage: we have the best competitive price at the market, also have the same even better quality. 2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps 3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability. 4) Service advantage: Better service at same situation, better cooperation at same service!

Products application area:

1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display 2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment

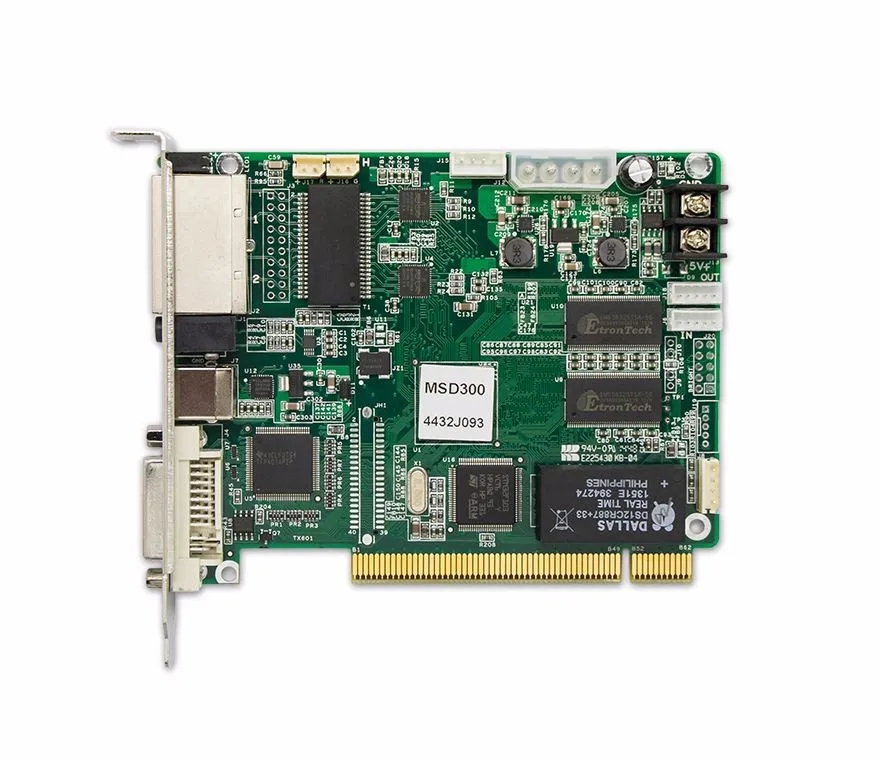

Led display controller of NOVA,Synchronous system

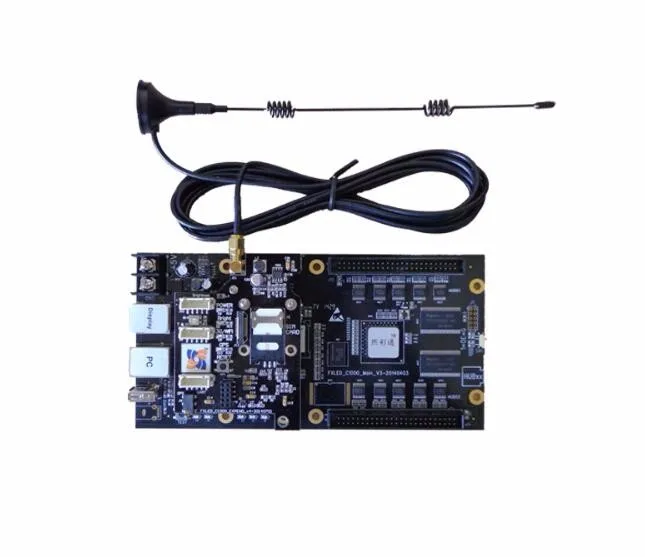

Led display control system with WIFI/3G/4G ,Asynchronous system

Installation way

Remark:


1.The Mosaic: suitable for smaller indoor screen. Due to the small space, in order to do not take up space, according to the screen size on the wall to dig out the area of the same size, the LED display embedded in the wall. Wall for the solid wall. With the method of before the maintenance, the cost is higher.

2. The wall: more suitable for the installation of indoor LED display, smaller (below 10 square meters), wall is solid walls, hollow bricks or simple retaining wall are not suitable for the installation.

3. Hanging: more suitable for the station LED display, LED display at the airport and other places of large signage. Request screen area is lesser. (below 10 square meter) requirements and must have the appropriate installation location, such as beams or columns above, and the screen body in general to add back cover.

4. Pillar type: used for the installation of outdoor advertising LED display, eye shot is open, around the place empty, such as square, parking lot, etc. According to the size of the screen area and can be divided into the installation of single column and double column type.

5. Roof type: mainly applied to outdoor advertising LED display, the installation location is mainly the roof of the building, with the increase of building height to consider windproof level along with the increase.

Applications

Project case for outdoor led display


Project cases of indoor led display


Projects case for outdoor renta led display


Project cases of indoor rental led display


Curved led display cases


Taxi led display,truck led display

Certifications
Company Information
FAQ

What are the considering factors of the Outdoor LED display screen?

Main questions of outdoor led display as below:

(1)display installed in the outdoor, solarization and drench, blow and dust, bad working environment, electrical equipment being wringing and damp will cause short circuit, even fire, cause conk out, even fire, result in loss.

(2)the display may be attacked by the strong electromagnetism made by the thunder and lighting.

(3)The big change of the environment temperatures. The Operating LED display will emit a lot of heating, if the environment temperature is too high, the molectron of the LED screen maybe operating un-normally to damage for its bad giving heating out, finally the LED display system will not operate normally as usual.

(4)The display has a wide range of angle, long viewing distance, big change of the environment light, especially the direct to the sunshine.

With these special requirements, the outdoor LED displays needed:

(1) The parts connecting the body of the LED display with the building must be waterproof and anti-leaking strictly as the display. The display must have the measurements for water giving out. Once leaked, it will be given out smoothly.

(2) The lightning rod should be installed on the LED display or the building. The body and the frame of the display must to keep connecting with the earth, the resistor of the earth wire should under 3 Q , so as to the heavy current from lightning can be discharged in time.

(3) Install the ventilator equipment to lower the temperature, keep the inner cabinet temperature in the range of -10 ~ 40 centigrade degree. The back top of the display must install the rolling electronic fans to give the heating out.

(4) Choose the industrial using IC with the working temperature range of -10 ~ 40 centigrade degree for fear the LED display can not start in the low temperature of the winter.

(5) To be seen form a long distance in the high brightness environment, it must be using the extra high brightness LED lamps.

(6) Choosing the new large angle LED lamps as medium, the LED display will have a larger angle, vivid colors, consistent operation and a long life of more than 100 thousand hours. The medium has a popular package with the hat-edge and square shape in cylinder, sealed by Silicon glue, assembly without metal. Also the display has an unique exterior outface, solid and durable, has the characteristics of anti-dazzle, waterproof, impurity proof, protection from high temperature and short circuit.
