Simple operation paper jumbo roll slitting machine with CE certification

FOB Reference Price:Get Latest Price
$4,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DP-S-800
Power(W):
4KW
Report Suspicious Activity
Overview
Quick Details
Type:
Slitting Rewinder
Dimension(L*W*H):
2500*2000*1400mm
Weight:
2000KG
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Online support
Condition:
New
Computerized:
Yes
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
LIANHUA
Voltage:
380V
Certification:
CE
Name:
Simple operation paper jumbo roll slitting machine with CE
Product name:
Paper slitting rewinding machine
Function:
Slitting Rewinding JUMBO Paper Roll
Raw material:
Jumbo Roll Paper
Application:
Paper Industry
Machine type:
Full Automatic
Usage:
Paper straw/paper tube
Cutting precision:
±0.2mm
Cutting way:
Round Knife
Key word:
Paper slitting machine
Supply Ability
Supply Ability:
30 Set/Sets per Month Simple operation paper jumbo roll slitting machine with CE
Packaging & Delivery
Packaging Details
High quality sea worthy wooden case
Simple operation paper jumbo roll slitting machine with CE certification
Port
Ningbo/Shanghai

Simple operation paper jumbo roll slitting machine with CE certification

Product Description

Description:

1.Max Unwind Diameter is 600/800/1000mm

2.Frequency Drive, PLC centralized control+Touch Screen

3.Auto Taper Tension Control (The taper control can make the inner layer of the coiling film tighter and the outer layer looser, so that there is no slip between the layers of the coiling film and prevent the material from being too tightly wound and the coiling material from skewing.)

4.Hydraulic System Automatically Uploader Lifter (Max load is 1500kgs)

5.Material Platform

6.Web Guide System

7.All Bearing Use Germany NSK

8.Gas up sliding shaft winding



Parameter Table:

Model

DP-S-600

DP-S-800

Max. Web Width

600mm

800mm

Max. Diameter of Unwind Material

600mm

800mm

Max. Diameter of Roller Material

600mm

500mm

Printing Speed

10-180 m/min

5-180 m/min

Slitting Precision

±0.2mm

±0.15mm

Min Slit Width

12mm

10mm

Diameter of Air Shaft

75mm

75mm

Total Power

4 kw

7 kw

Machine Weight

2000kg

2000kg

Overall Dimension

2500*1800*1400mm

2900*2200*1400mm

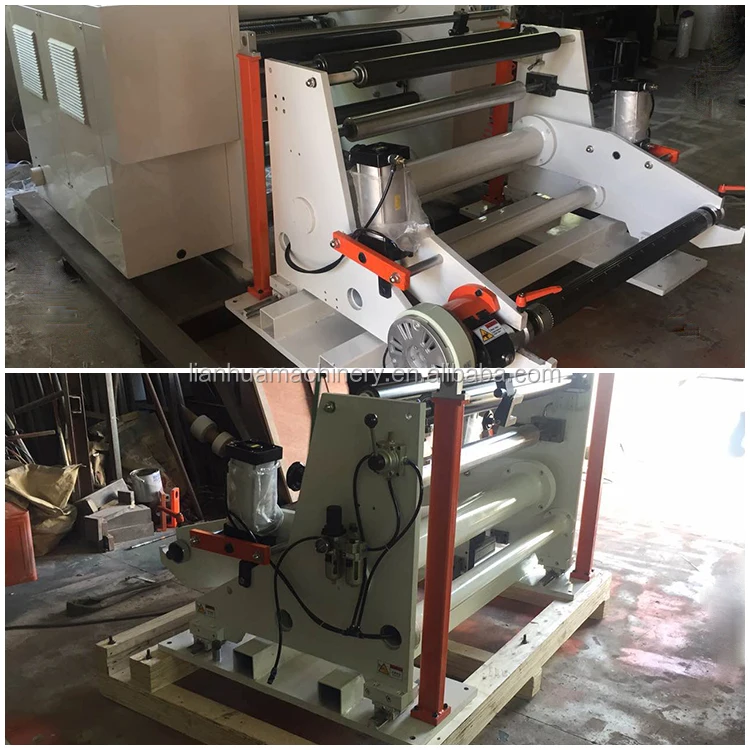

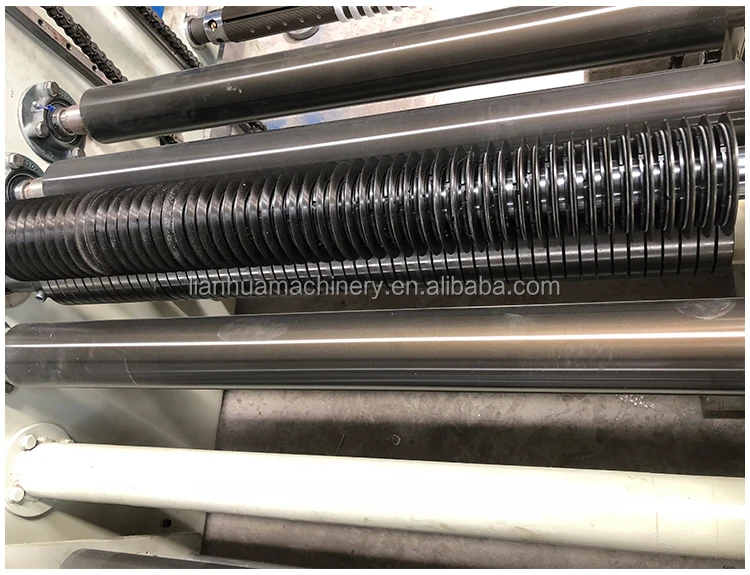

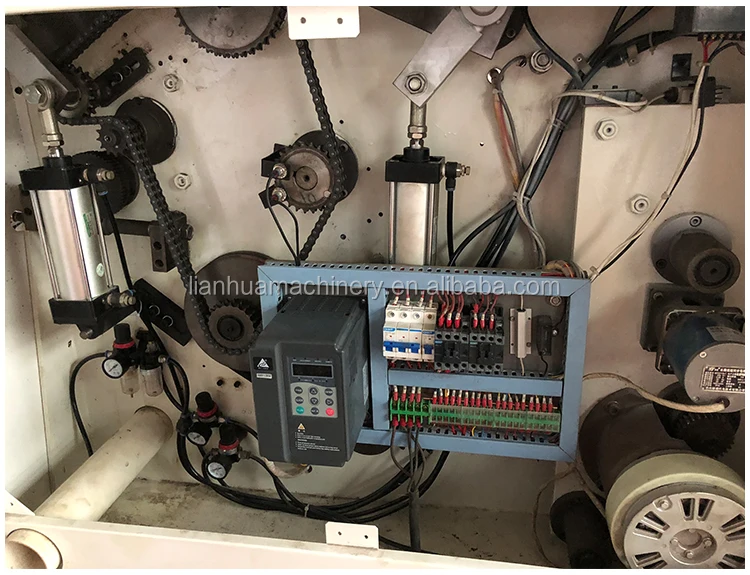

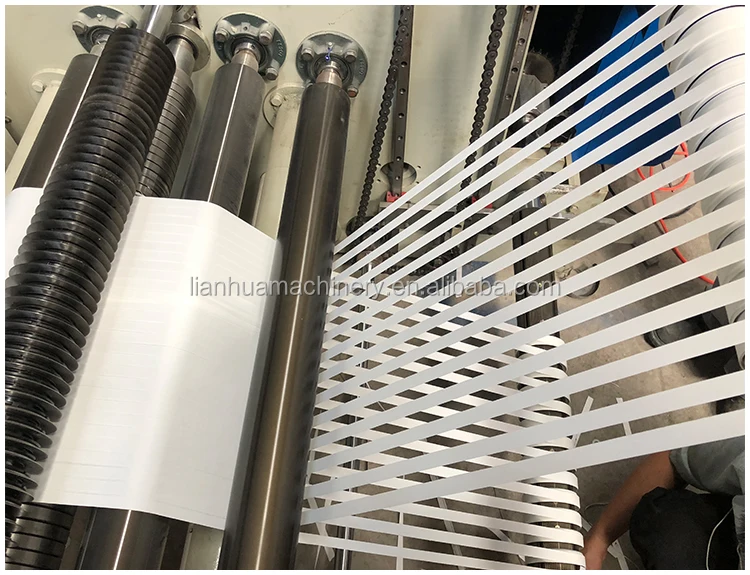

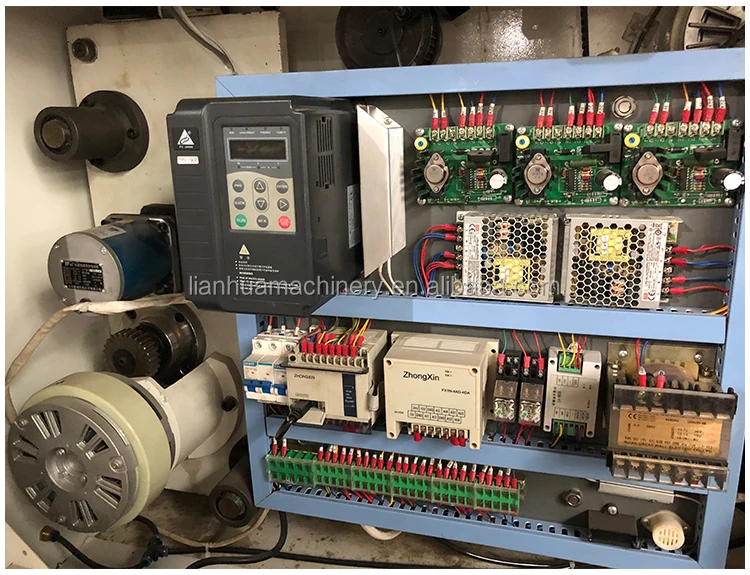

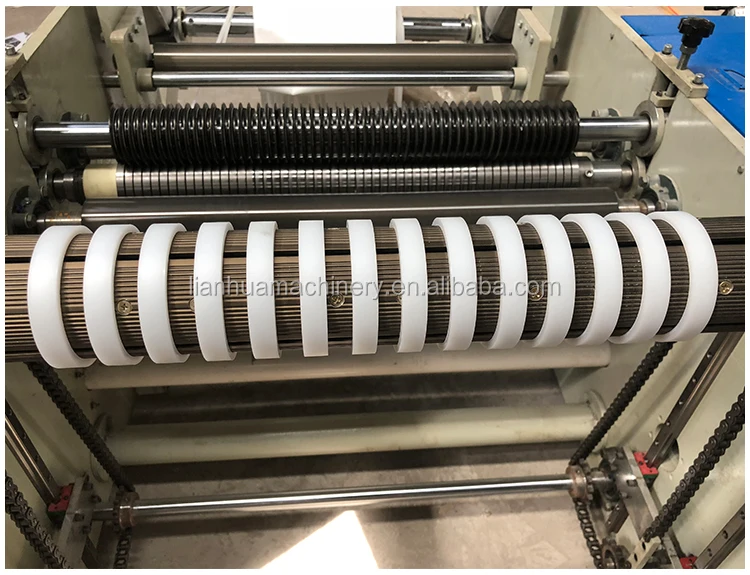

Detailed Images
Independent Feeder (optional part)
Packaging & Shipping





Our Factory

Finished products

FAQ

1. Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.



2. Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.


3. Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.



Contact

If you have any interest, please feel free to send inquiry to me now.
