Single Zone Horizontal Tube Furnace

$440.00 / Set | 1 Set (Min. Order)
Quantity:
- + Sets available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
JC
Model Number:
JC-H-220-2
Place of Origin:
Shandong, China
power consumption:
1500watts
insert test tube:
silica tube,alundum tube
Max temperature:
1200C(2192F)
Heating Rate to 1100C:
15mins
Furnace chamber:
1600 type Polycrystal alumina fiber
Application:
laboratory test sample
Heating Diameter:
63 or 80mm
Feature:
Single Zone
Heating Length:
165 330 or 495mm
Size:
180x215x395mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
22X23X42 cm
Single gross weight:
24.0 kg
Package Type:
Woden box is available
Lead Time :
3
Descripation

Single Zone Horizontal Tube Furnace Application

The JC-H-220-3 Single Zone Horizontal Tube Furnace use free radiating wire elements

embedded within the insulation of the furnace body.

The benefit of this design is its flexibility; with the use of

tube adapters the same furnace can be used with a variety of tube diameters.
The use of a separate work tube has the advantage of protecting the heating elements from

damage or contamination.

This model Horizontal tube furnace apply for workpiece, test sample heat experiment in laboratory.

Classification
H Models
Model
JC-H-220-3
    Power
3000W
Working Temperature
0C to 1150C
Furnace body Size without furnace cover
Ø63*330mm  Ø80*330mm
Optional Fitting parts
Tray that assist take out convenient the heating test sample
Application
aboratory test sample thermal conduction Heat treatment experiement, liquid, reagent hydronic heating experiement that needs equips with test tube or silica tube.

Main Features

1.Horizontal Tube furnace chamber adopts advanced composite material,

which extends effectively the furance working life .

The furnace chamber with advanced composite material, has gone through heat shock experiment that the chamber heats up to 1300C then immediately put into 15 degrees centigrade cold water, with the test result of no cracking,no distortion,
heating wire with iron-chromium-nickel alloy, laboratory imiting temperature can up to 1600C ,it can be guaranteed by long-period steady working under 1200°C.

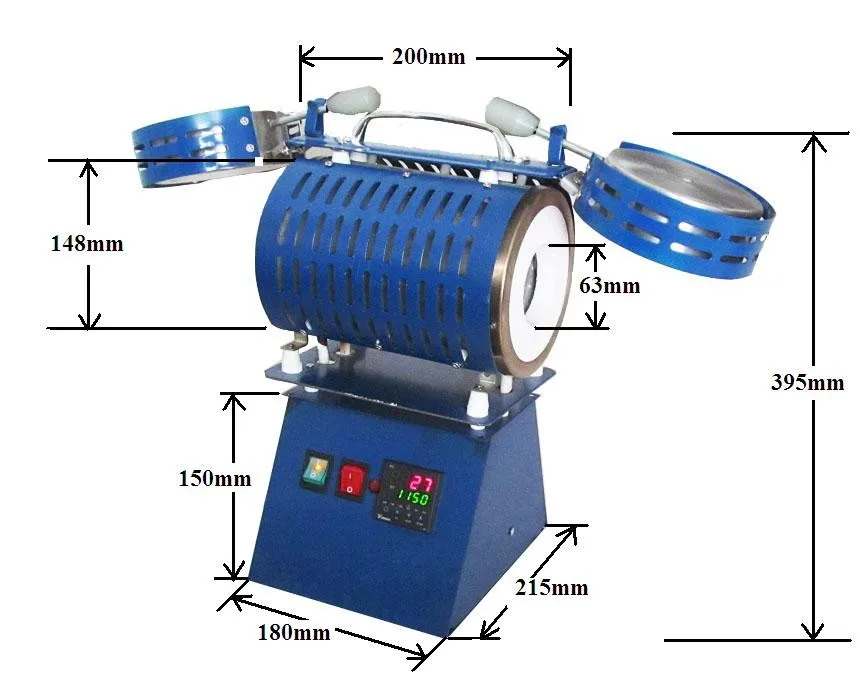

2.This furnace has small size with 180x215x395mm ,light weight with Net.Weight 12kg,easy to operation,User can freely insert test tube,silica tube into the furnace chamber. which has settled the problem that test sample can not take out from vertical-type furnace after its heat.

Certifications

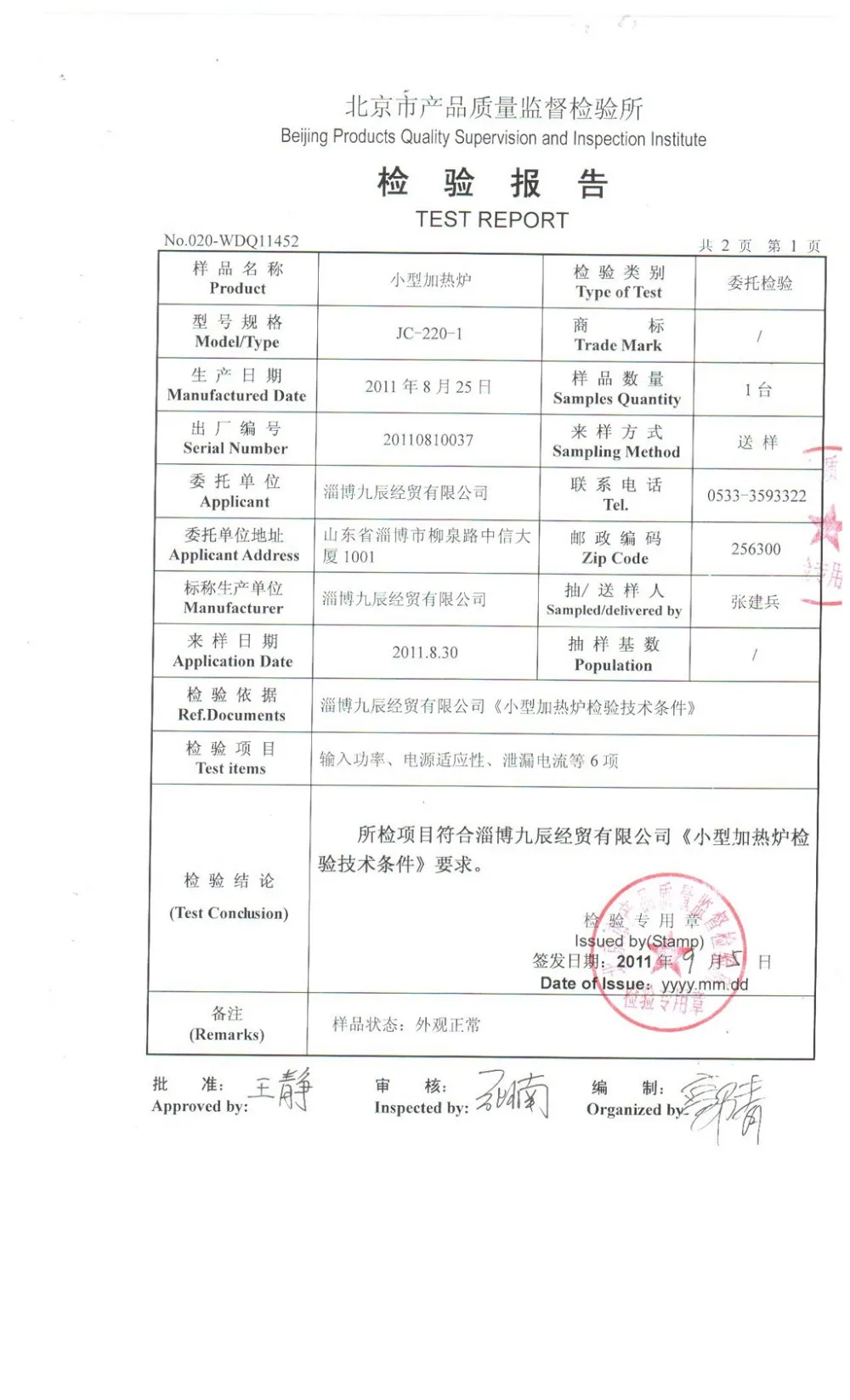

                 CE                                       Test Report                           ISO9001                                Patent

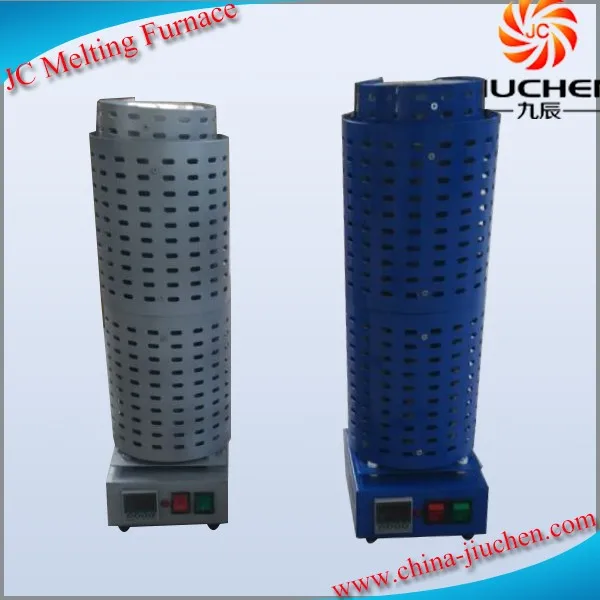

Customized Model

Main Features

Name: JC-H-220-3
Brand: JC
Original: China
JC-H-220-3 Tube furnaces has a maximum operating temperature of 1200C. Heating is provided by a resistance wire element wound on to the ceramic work tube, which is an integral part of the furnace.

Contact Way
Packing & Delivery
Packaging
Size
220x230x480mm
Weight
24kgs



Packaging Details
The normal package is wooden box(Size: L*W*H). .If container is too tigher,we will use pe film for packing or pack it according to customers special request.
