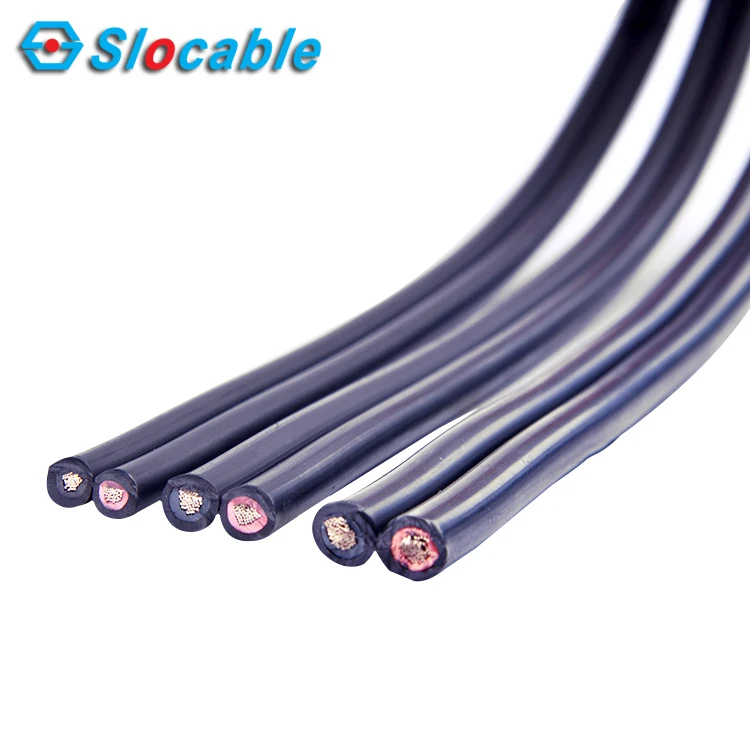

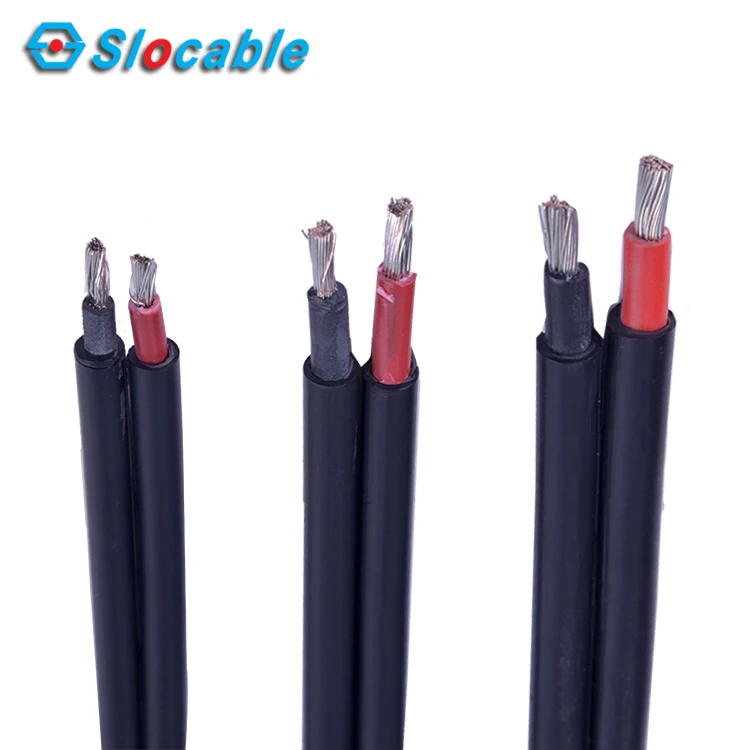

Slocable Dual Cores Copper DC Solar PV Cable 4mm

FOB Reference Price:Get Latest Price
$0.90 - $1.20 / Meter | 100 Meter/Meters (Min. Order)
Samples:
$1.20 /Meter | 1 Meter (Min. Order) | Buy Samples
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Meters) 1 - 500 501 - 5000 >5000
Est. Time(days) 3 7 Negotiable
Customization:
Customized logo (Min. Order: 5000 Meters)
Customized packaging (Min. Order: 10000 Meters)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Slocable
Model Number:
CA204B-PE 2x4mm2 solar cable
Insulation Material:
Xlpe
Type:
High Voltage
Application:
Power Station
Conductor Material:
Copper
Jacket:
PE
Product name:
Dual Cores Solar PV Cable 4mm
Rated voltage:
1000/ 1500V DC
Rated current:
50A
Strand design:
56x0.3mm
Conductor diameter:
2.6mm
Outer diameter:
6.90x11.30mm
Company:
BV, ISO9001
Certificate:
TUV, CE, ROHS
Exprience:
11 Years
Warranty:
5 Years
Product Certification certification
TUV Certified.
Supply Ability
Supply Ability:
800 Kilometer/Kilometers per Month
Packaging & Delivery
Packaging Details
100m/roll
2rolls/carton
0.02cbm/roll, 0.04cbm/carton
N.W. 136g/m; 27.2kg/carton
G.W. 28.2kg/carton
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Meters) 1 - 500 501 - 5000 >5000
Est. Time(days) 3 7 To be negotiated
Video Description
Our advantages

of 2 core power cable 2*4.0mm2

① Dual wall insulation, Electron beam cross-linked

② Excellent resistance to U.V., water, ozone, fluids, salt, general weathering

③ Excellent resistance to abrasion

④ Halogen free, flame retardant, low toxicity

⑤ Excellent flexibility and strpping performance

⑥ High current carrying capacity

⑦ TUV approved


Company Introduction

Dongguan Slocable Photovoltaic Technology Co., Ltd.

Slocable company is a modern management in combination of design, production and sale system with strength of manufacturing Solar Cable, Solar connectors, Fuse holder and other accessories for many years. If choosing us, you can get the products from raw material to finished products with TUV approval in the most competitive price.


Product Parameters

of 2 core power cable 2*4.0mm2

Type
Cross section
Strand design
Conductor diameter
Conductor resistance
Outer diameter
Rated voltage
Rated current
mm2
No.x∅(mm)
mm
Ω/km
mm
V DC
A
PV-2*4.0mm2
4.0
56x∅0.3
2.6
4.97
6.90x11.30
1500
50
Wire : Class 5, tinned
UV resistance
Insulation material: XLPE
High wear and abrasion resistance
Double insulated
Flame test according to: UL 1571(VW-1)
Halogen-free
Smallest permissible bending radius: 5xD
High resistance against oils, greases, oxygen and ozen
Temperature range : -40℃~+50℃
Microbe-resistance
Colors: Black&Red

All kinds of power cable

Type

Cross section

mm2
Strand design

No.x∅(mm)
Conductor diameter

mm
Conductor resistance

Ω/km
Outer diameter

mm
Rated voltage

V DC
Rated current

A
PV-1*2.5mm2
2.5
48x∅0.25
2.0
8.06
5.3
1500
30
PV-1*4.0mm2
4.0
56x∅0.3
2.6
4.97
6.2
1500
50
PV-1*6.0mm2
6.0
81x∅0.3
3.3
3.52
7.2
1500
70
PV-1*10.0mm2
10.0
74x∅0.4
4.4
2.12
8.3
1500
95
PV-2*2.5mm2
2.5
48x∅0.25
2.0
8.06
6.20x9.90
1500
30
PV-2*4.0mm2
4.0
56x∅0.3
2.6
4.97
6.90x11.30
1500
50
PV-2*6.0mm2
6.0
81x∅0.3
3.3
3.52
7.1x14.50
1500
70

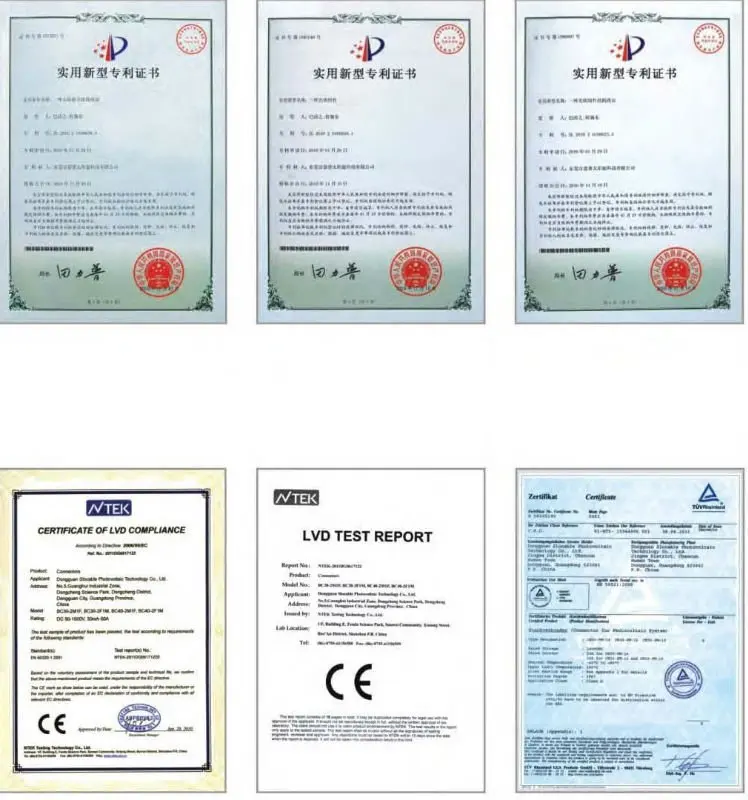

Certificates
More pictures

of 2 core power cable 2*4.0mm2

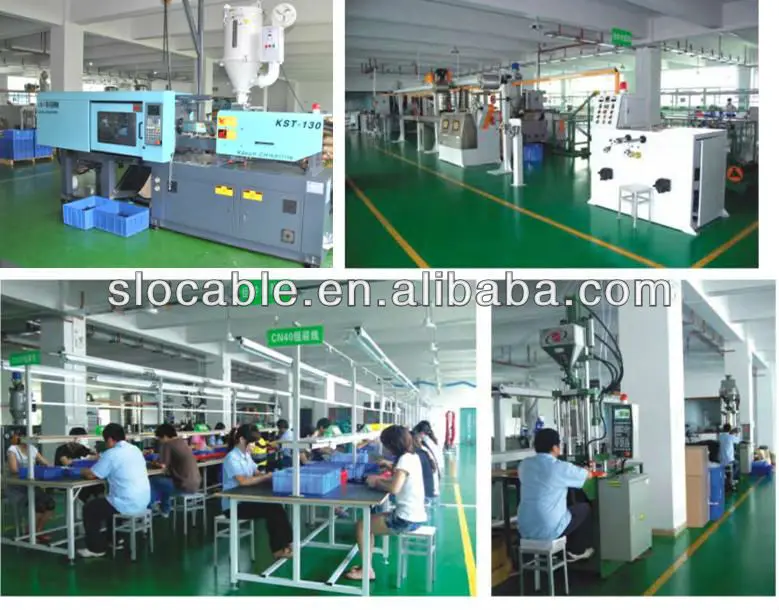

Product Processing

of 2 core power cable 2*4.0mm2

Product Packing
Exibition
