Small Automatic PE film Beverage Bottle Shrink Wrapping Packing Machine

  • 1 - 1 Sets
    $16,000.00
  • >=2 Sets
    $8,000.00
Power:
16KW
Model Number:
UTP-150
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Wrapping Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam, Colombia, Nigeria
Showroom Location:
Viet Nam, Colombia, Nigeria
Condition:
New
Application:
Food, Beverage
Packaging Type:
case, PE Film
Packaging Material:
Wood, wooden case
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
Jiangsu, China
Brand Name:
U Tech
Dimension(L*W*H):
5500mm*3200mm*2100mm
Weight:
130KG
Certification:
CE,SGS
Warranty:
2 years, 2 Years
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Key Selling Points:
Easy to Operate
Capacity:
8-13pcs/min
Suitable object:
Plastic Bottle Beer Can shrink packing
Sutiable for:
pet bottle aluminium can
Product name:
automatic bottle can shrink packing machine
Function:
bottle packing
Feature:
High Speed
Product Certification certification
CE Certified.
Valid from 2016-12-07 until 2021-12-06
SGS Certified.
Supply Ability
Supply Ability:
15 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case for Automatic plastic bottle PE film packing machine price/pet bottle shrink packing machinery/beer can shrink wrap machine
Port
shanghai port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Video Description
Product Introduction
Specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, juice, and dairy product).During the product forward conveying process, it can automatically group the product into package, so as to save time and enhance packing efficiency.Touch-screen operating panel with user-friendly interface and convenient parameter setup, absolutely an easy-to-operate machine.The ideal model of middle-speed heat-shrinking packager in the domestic market.
Technical Parameters
UTP-150
Technical Parameters
Dimension for The Whole Unit
L5500mm x W3200mm x H2100mm
Thermal Shrinkage Passage Dimension
L1800mm x W650mm x H450mm
Max. Package Dimension
L600mm x W400mm x H350mm
Packaging Speed
8-13Pcs/min
Transfer Belt Dimension
800-1200mm
Sealing and Cut Time/Temperature
0.5-1.5s 140??-160??
Operating Power Supply/Power
(TN-S) 380V 19kw
Operating Air Pressure
0.6-0.8Mpa
Air Consumption
0.5m3/min

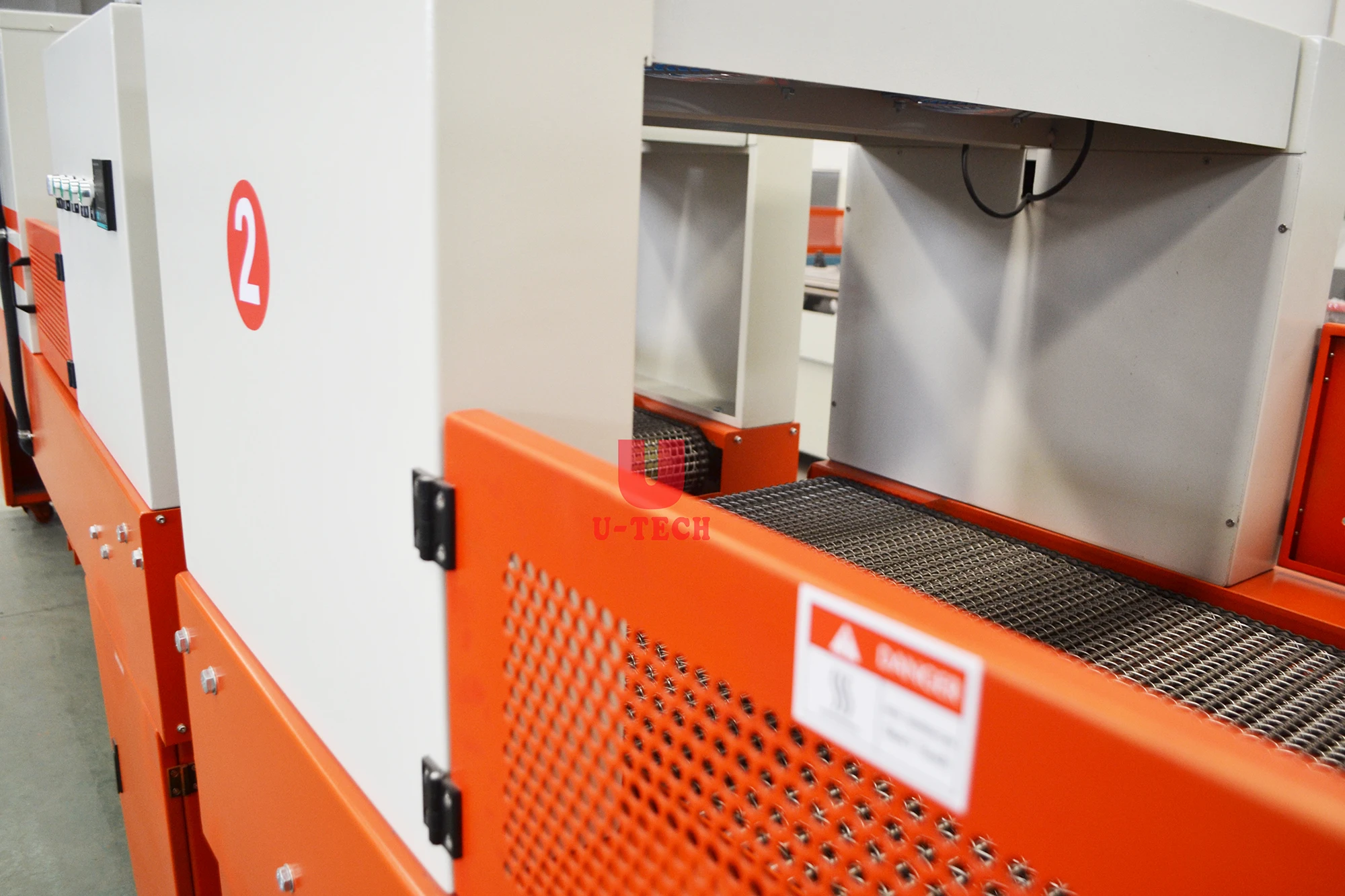

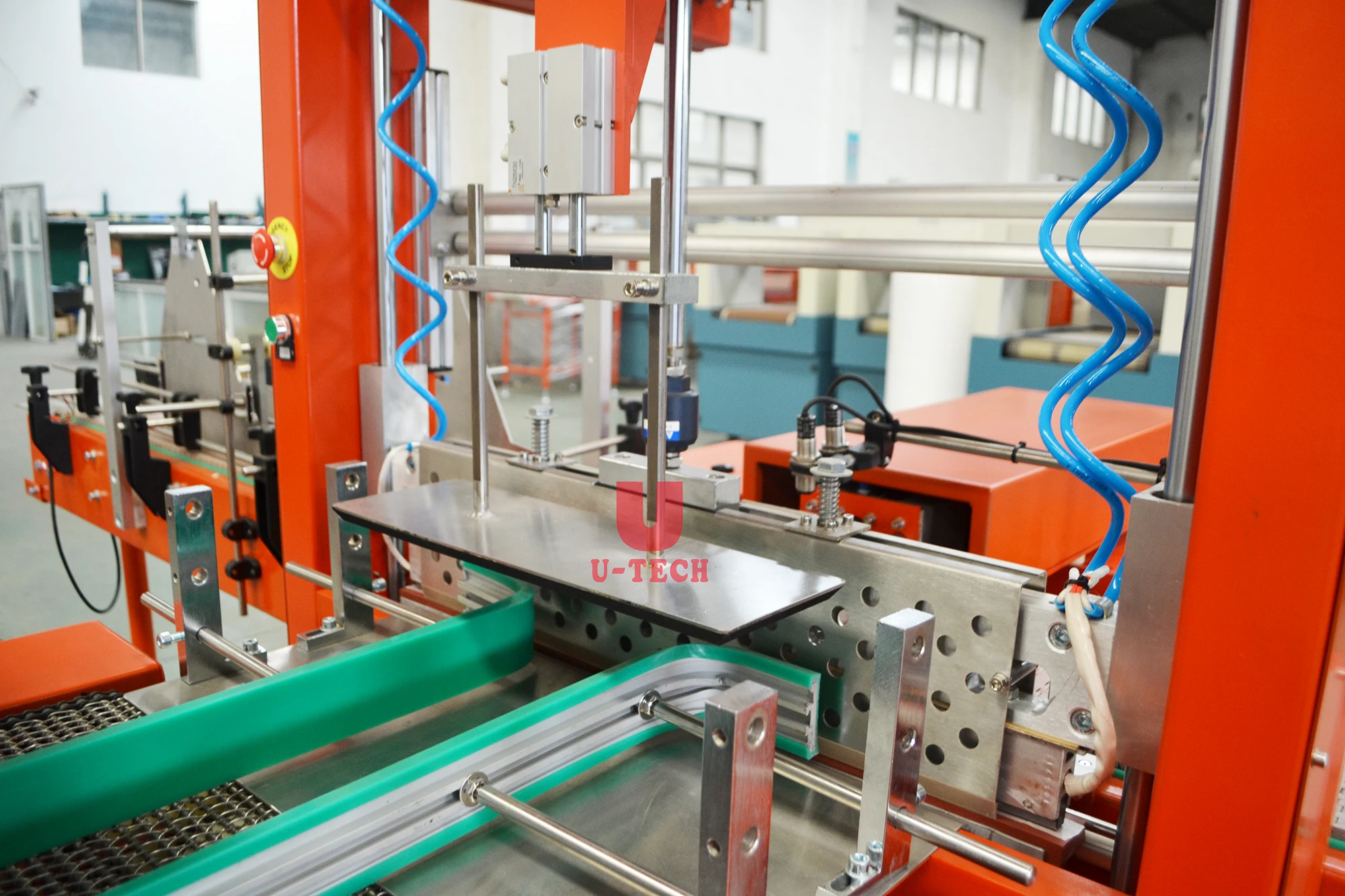

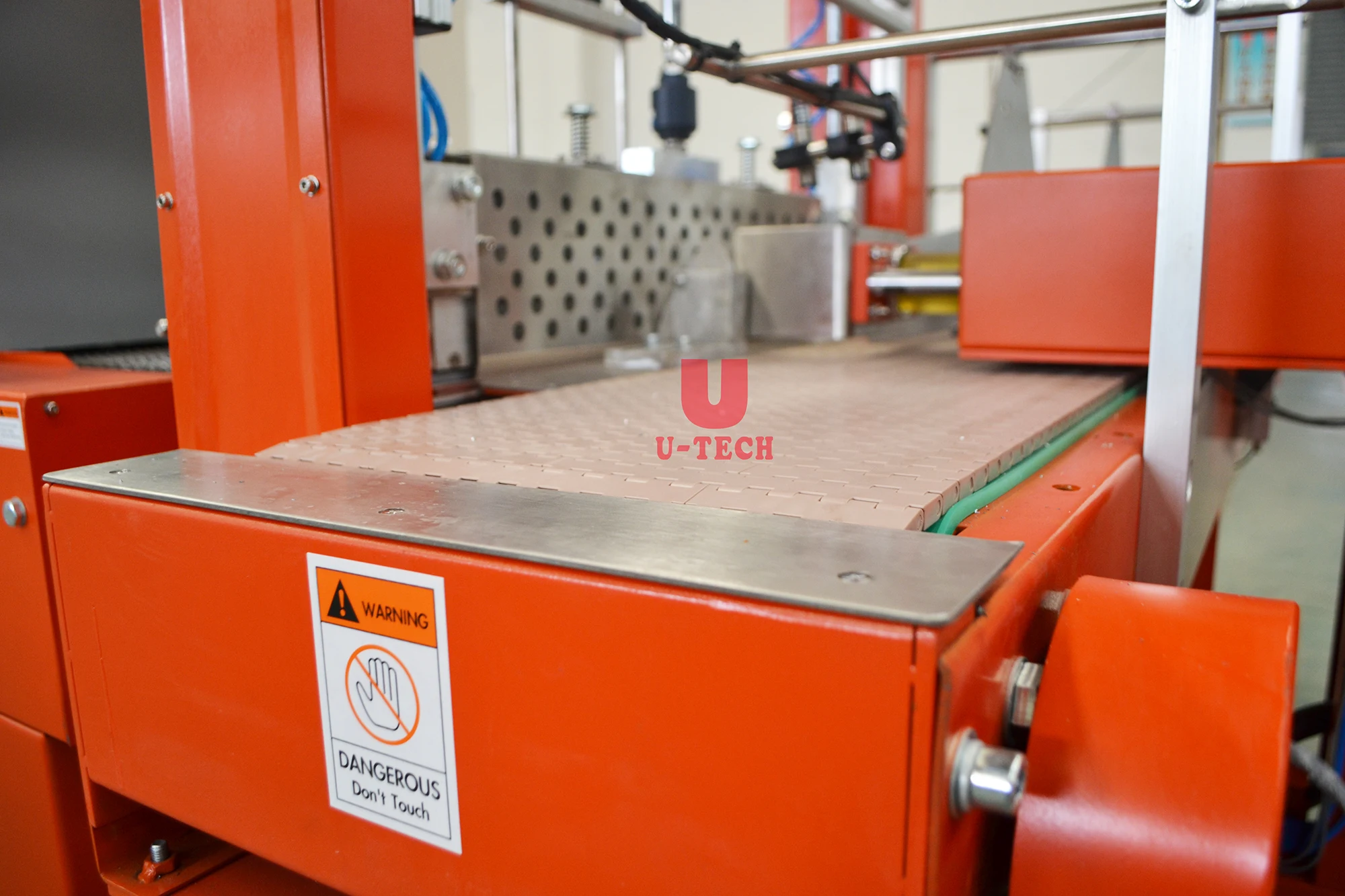

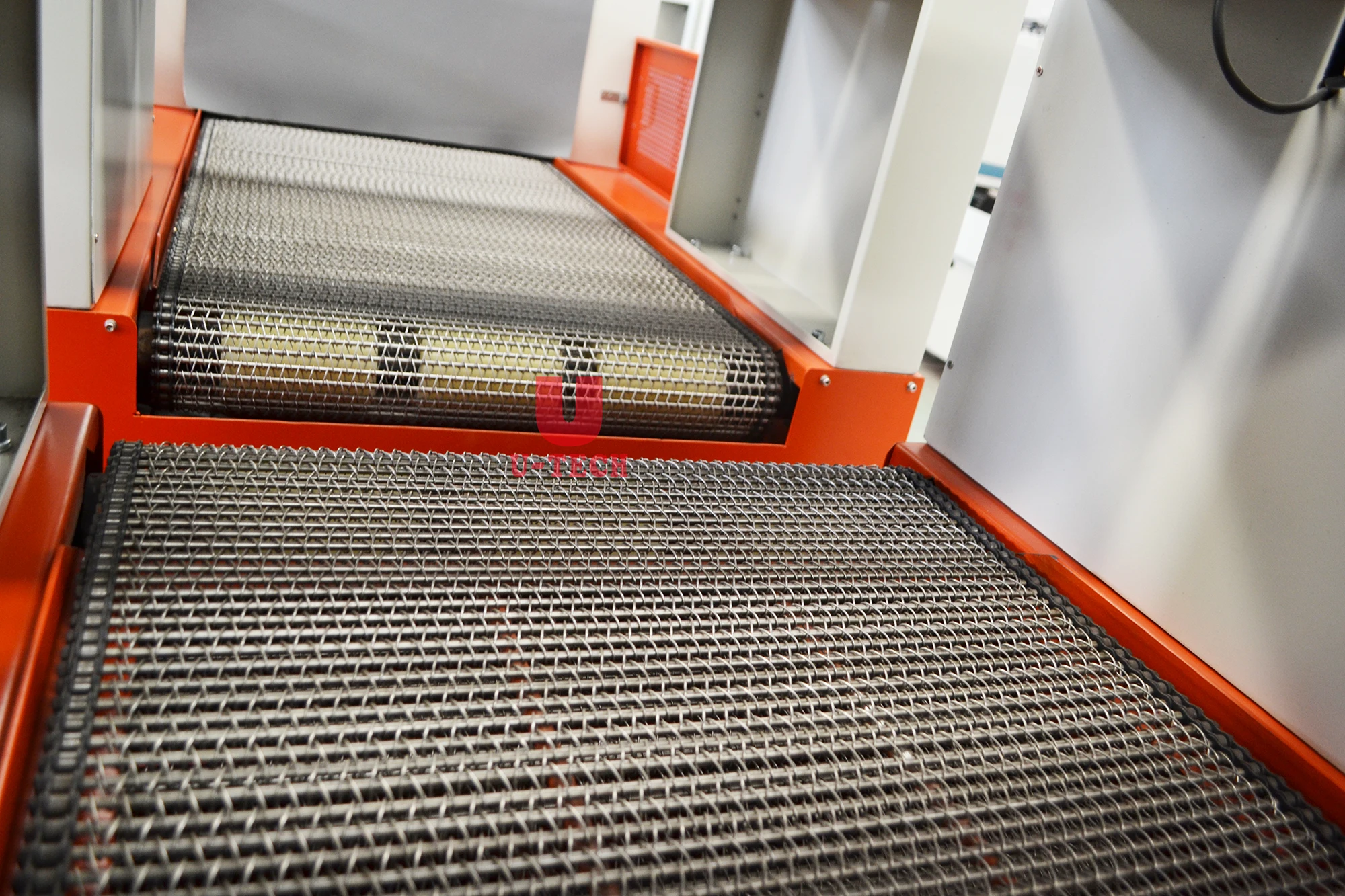

Machine Details

Main Features

1.Adopt with PLC automatic program circulation control with stable and reliable performance.

2.The original imported guide bar cylinder guarantee correct operation and durable.

3.The inductive switch controls the membrane transfer system to reliably adjust and control the membrane transfer length with less loss.

4.All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.

5.Unique thermal passage with 2 sets of centrifugal thermal air circulation system that has an equal heat distribution with beautiful and secure shrinkage effect.

6.three layers of heat insulation treatment with good insulating property,quick temperature rise and energy saving.

7.The enhanced cooling shaping passage can quickly turn the packaging membrane into high strength status that is conveniently stored and transported.

8.It is easy to change the packaging combination and bottle type to integrate the multi-function into one machine.

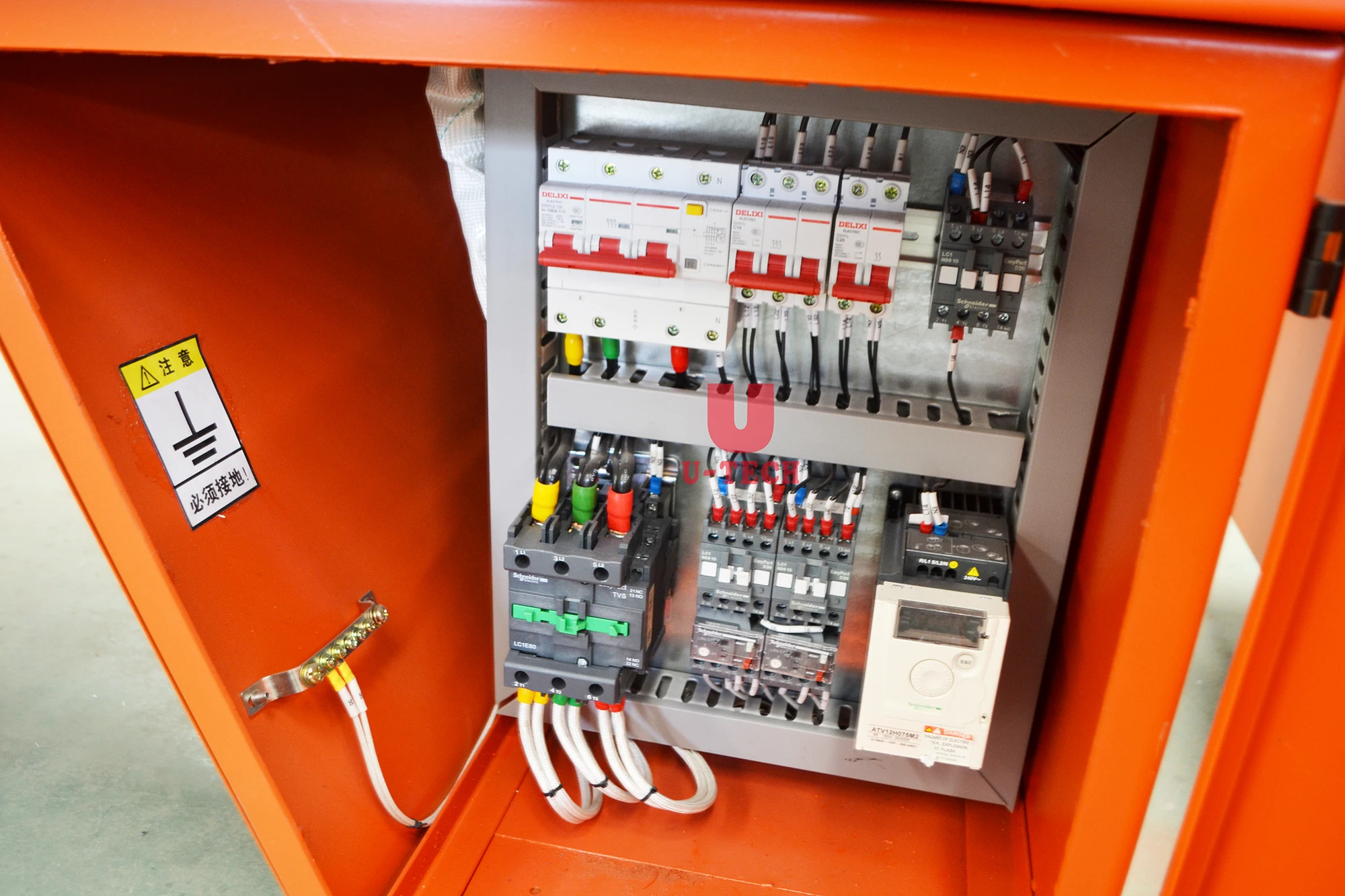

Control System
S/N
Name
Brand
country
1
Main motor
ABB
Switzerland
2
 Inverter
MITSUBISHI
Japan
3
PLC
OMRON
Japan
4
Touch screen
MITSUBISHI
Japan
5
Contactor
SCHNEIDER
France
6
Thermo- relay
SCHNEIDER
France
7
Air-break switch
SCHNEIDER
France
8
Proximity switch
TURCK
USA
9
Photoelectric switch
BANNER
USA
10
Air circuit system
SMC
Japan
11
Water pump
Southern
China
