Small Contact Mobile ISO 7816 USB EMV Smart Type C Card Reader ACR39U-UF

  • 2-49 Units
    $16.00
  • 50-99 Units
    $12.00
  • 100-999 Units
    $11.00
  • >=1000 Units
    $9.00
Model Number:
ACR39U-UF
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 200 Units)
Customized packaging (Min. Order: 200 Units)
Samples: $16.00 /Unit, 1 Unit (Min. Order): Buy Samples
Contact Supplier
Samples - $16.00 /Unit, 1 Unit (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
HCCTG
Product Name:
Contact Mobile ISO 7816 USB EMV Smart Type C Card Reader ACR39U-UF
Dimensions:
72.2 mm (L)*69.0 mm (W)*14.0 mm (H)
Standard:
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Number of Slots:
1 Full-sized Card Slot
Protocol:
T=0; T=1; Memory Card Support
Compliance:
EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1
Operating System Support:
Windows,Linux,Mac OS,Android Solaris
Contact Smart Card Interface:
CAC, PIV, SIPRNET, J-LIS Smart Cards
Certifications:
TAA (US), J-LIS (Japan), VCCI, PBOC (China), CE, FCC, WEEE, RoHS2
Color:
Black

Packaging & Delivery

Selling Units:
Single item
Single package size:
7.22X6.9X1.4 cm
Single gross weight:
0.065 kg
Package Type:
Neutral Packing for Small Contact Mobile ISO 7816 USB EMV Smart Type C Card Reader ACR39U-UF
Lead Time :
Quantity(Units) 1 - 10 11 - 50 >50
Est. Time(days) 5 10 To be negotiated

ACR39U-UF_01ACR39U-UF_02ACR39U-UF_03ACR39U-UF_04ACR39U-UF_05ACR39U-UF_07

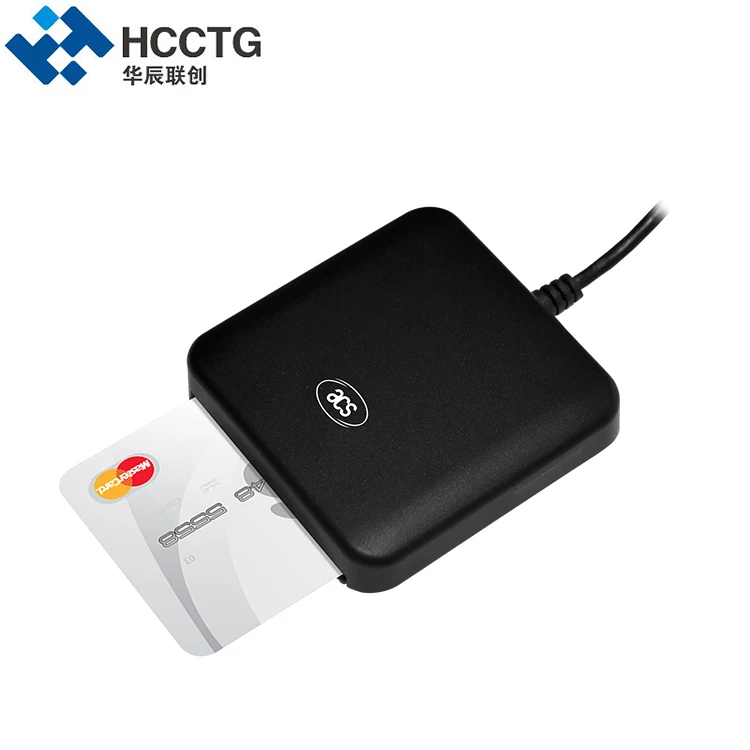

Small Contact Mobile ISO 7816 USB EMV Smart Type C Card Reader ACR39U-UF



General

ACR39U-UF This palm-sized reader features a USB Type C connector. The USB Type C Connector features reversible plug orientation and cable direction to fit mobile to device product designs for future smart card applications.

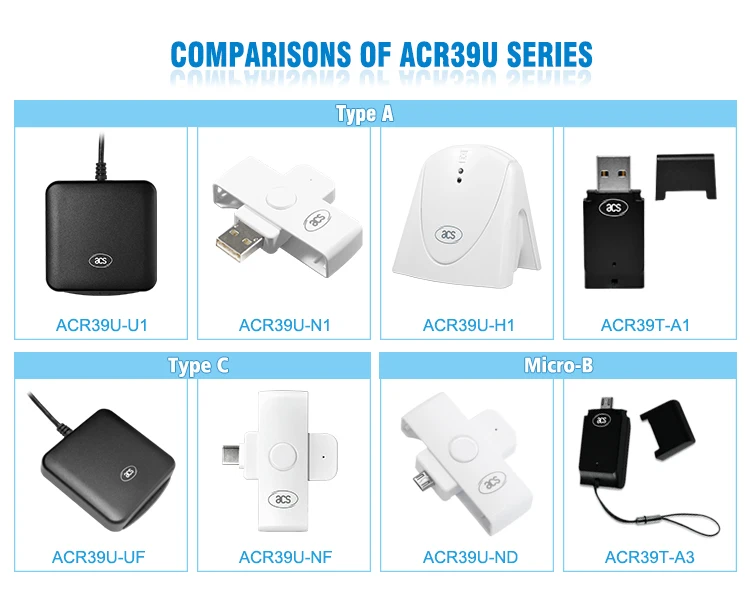

ACR39U-UF uses the same core as the ACR39U Series. It supports ISO 7816 smart cards and various memory cards, as well as microprocessor cards with T=0, T=1 protocols.

Unlike an older USB cable, it doesn’t matter which side is up with a Type-C plug; you can insert it either way. It complies with PC/SC and CCID standards, keeping the device compatible with current applications under USB specifications. ACR39U Smart Card Reader can easily be integrated to a computer-based and mobile device-based environment. Its drivers are compatible with operating systems such as Windows®, Solaris, Linux®, and Mac OS®. In addition, ACR39U-UF may be used on mobile devices running on Android™ versions 3.1 and later.

Features

Ø USB 2.0 Full Speed Interface

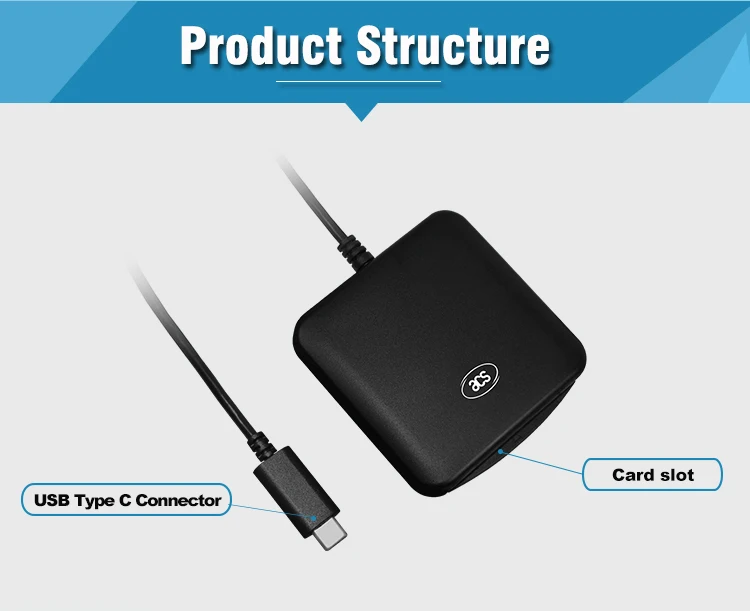

Ø USB Type C Connector

Ø Plug and Play – CCID support brings utmost mobility

Ø Smart Card Reader:

Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards

Supports CAC

Supports SIPRNET Card

Supports J-LIS Card

Supports microprocessor cards with T=0 or T=1 protocol

Supports memory cards

Supports PPS (Protocol and Parameters Selection)

Features Short-Circuit Protection

Ø Application Programming Interface:

Supports PC/SC

Supports CT-API CT-API (through wrapper on top of PC/SC)

Ø Supports Android™ 3.1 and later



Specification

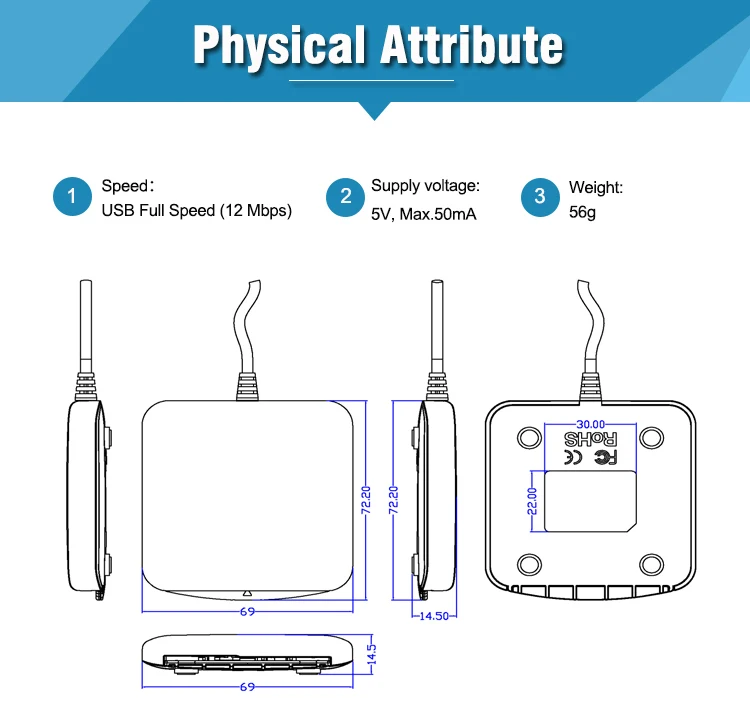

Dimensions

72.2 mm (L) × 69.0 mm (W) × 14.0 mm (H)

Contact Smart Card Interface

Number of Slots: 1 Full-sized Card Slot

Standard: ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)

Protocol: T=0; T=1; Memory Card Support

Others: CAC, PIV, SIPRNET, J-LIS Smart Cards

Compliance / Certifications

EN 60950/IEC 60950, ISO 7816, USB Full Speed, PC/SC, CCID, EMV Level 1 (Contact), TAA (US), J-LIS (Japan), VCCI (Japan), PBOC (China), CE, FCC, WEEE, RoHS 2, REACH

Microsoft® WHQL

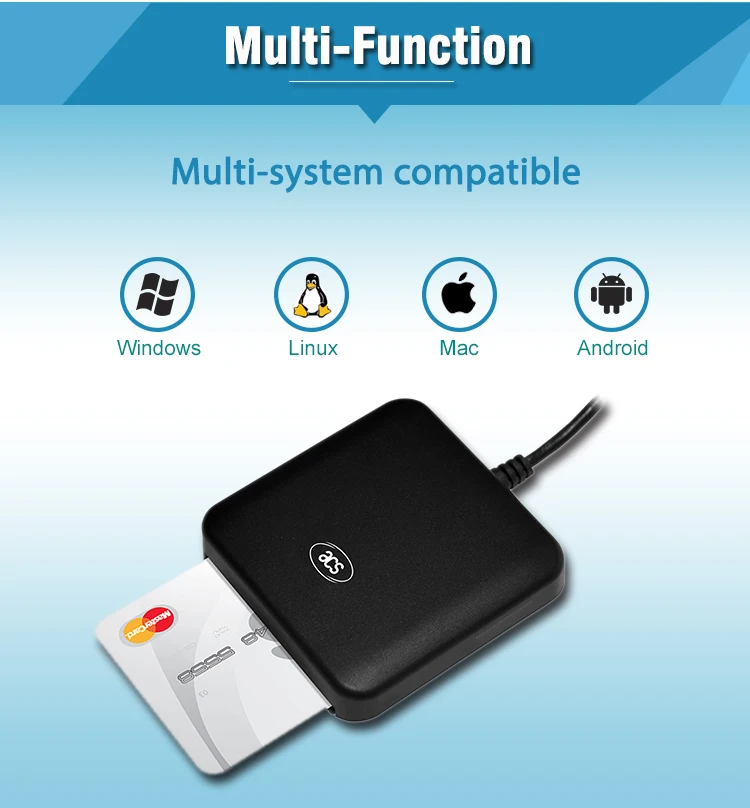

Operating System Support

Windows®

Linux®

Mac OS®

Android™

Solaris



ACR39U-UF (1)ACR39U-UF (4)
