Small and Medium sized production for Tomato Paste /Jam/juice production line

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $17810.00
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Medical
Packaging Type:
Bags, Stand-up Pouch
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220V/380V
Power:
5.2kw
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Union Packing
Model Number:
1A
Dimension(L*W*H):
1100*1300*1220mm
Weight:
180kg
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Product name:
juice production line
Supply Ability
Supply Ability:
30 Set/Sets per Month juice production line
Packaging & Delivery
Packaging Details
lubricate oil+shrink film+plastic bag+wooden case
Port
Huangpu
Lead Time :
30-45days
Product Description

 One,One ton Water treatment:


Water treatment

1. Stainless steel pure water system

2. Capacity: 1T/H

3. Rated power: 4.5KV

4. Power supply: 380v/50Hz.

5. Desalting rate:96-99%

6.conductivity of raw water: ≤500μs

7.conductivity of pure water: ≤10μs

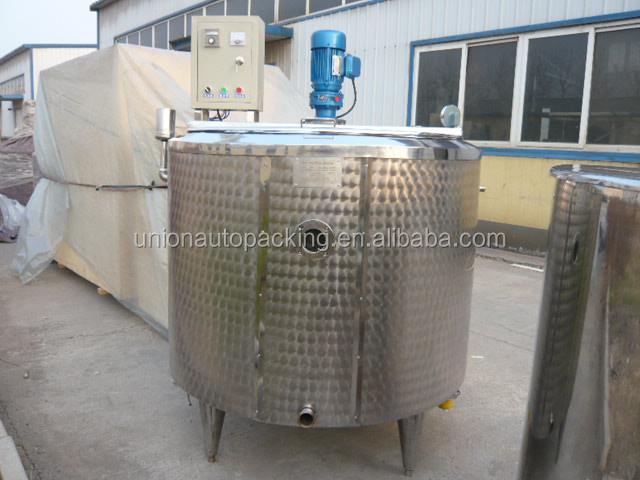

Two,1T heating tank


heating tank

1)inside material: ss304, thickness 2mm

2).top double side open,top middle Bridge

3).stirrer power 1.5kw,60hz ,36r/min,

 gate stirrer

4)input diameter: 50mm

5)size ¢1.36m,height 1.7meter

6)inside wall of tank is grit satin



2.High speed shearing

1)Capacity 500-1500L/H

2)Standard length :1050m

3)Speed : 2800r/hour

4)Power:4 kw

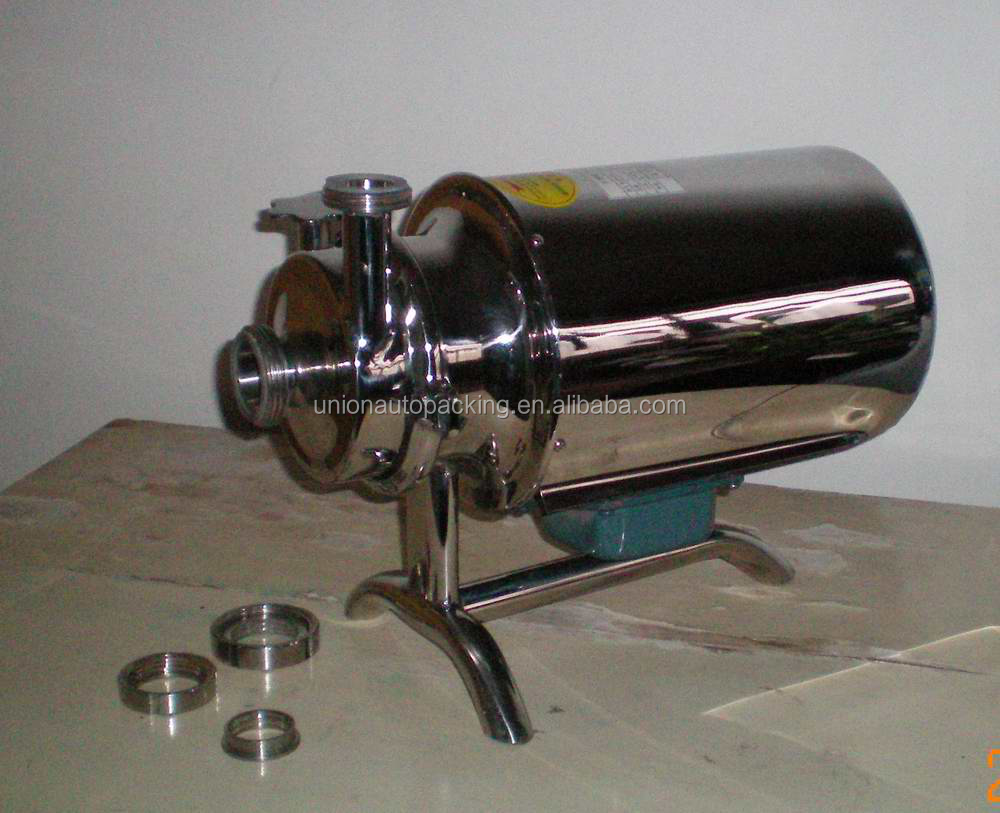

Three,One ton Pump


1)Motor power :0.37kw

2)Lift :12m

3)Impeller diameter:90mm

4)Input diameter:25mm

5)Output diameter:25mm

6)rotate speed:2840r/min

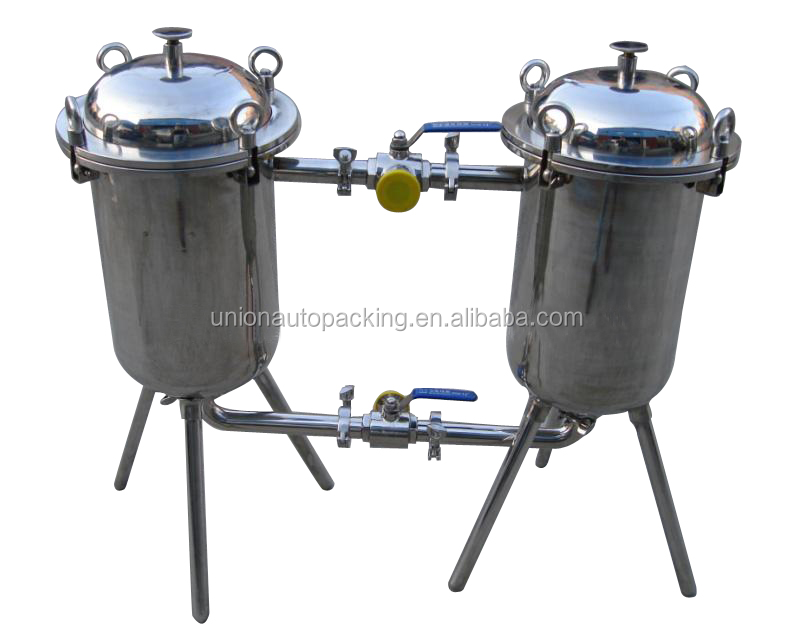

Four,


1)Filter Area:0.15m³

2)filter capacity:1-5Ton/hr

3) Test temperature:120℃

4) Mesh aperture:60-400Mesh

5)material : ss304

You can find it have two filter, you can just use one, when you want cleaning the filter you can change another one

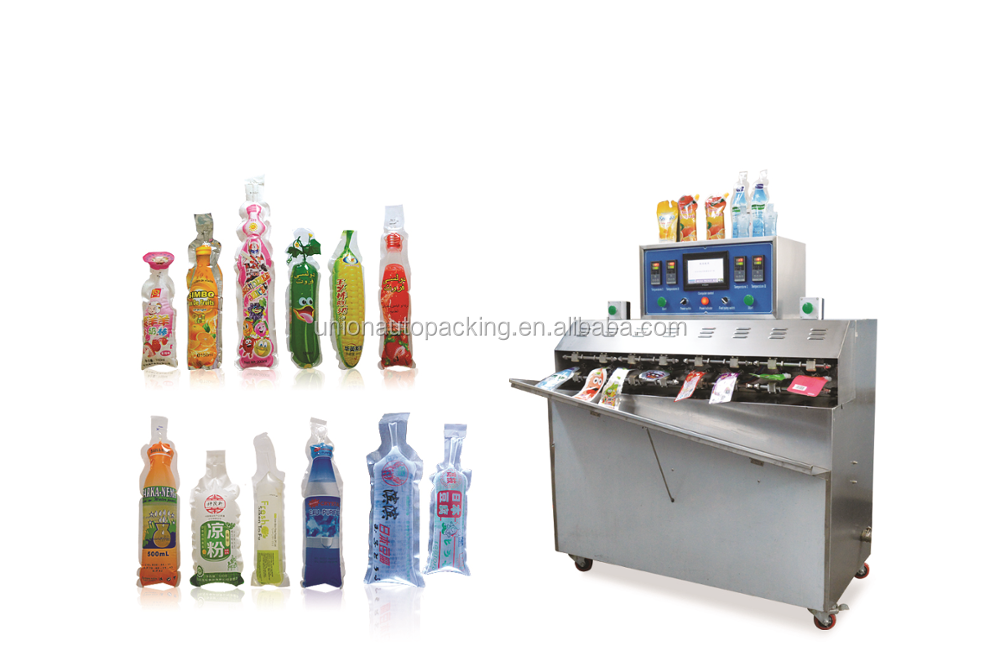

Five,UN-PZD-B juice  filling packing machine


Technical Parameters

Output :2000-3500bag/hr

Packaging range :50ml-500ml

Power :380V /220V 50HZ

Power : 1-1.6kwkw

Air Consumption: 0.4-0.8m³/min 1.0Mpa

Size : 1300x680x1400mm

Weight : 180kg

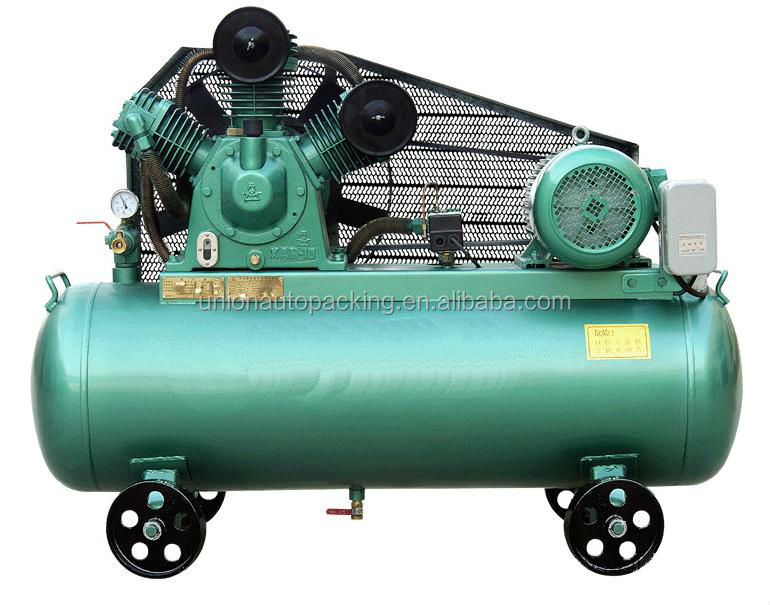

Six,Air compressor


Gas Displacemint :0.25m³/min

Power:2.2kw

Press: 0.8mpa

rotate speed :1080r/min



Motor specification :

Current : 13.5A

Power:2.2kw

rotate speed :2800r/min

seven,Function and characteristics

     1)  doypack filling machine is Easy to operate, adopt advanced PLC from Germany              Siemens, mate with touch screen and electric control system, the man-machine

       interface is friendly.

   2) Horizontal conveyer style to giving bag: It can put on more bags on the bag storage,

      save your time.

   3) Fully automatic spout pouch supply, liquid filling, cap supply, cap arrange and capping.

      Automatic quantitive filling and control liquid level.

   4) The capping device can be adjusted, so it is easy to make the cap loose or tight, ensure the          cap make tight.

   5) Safety device: Machine has emergency stop device, protect from abnormal situations.

   6) The whole machine adopts stainless steel material and international brand parts according to        the food hygienic requirements, guarantee hygiene and security of the food.

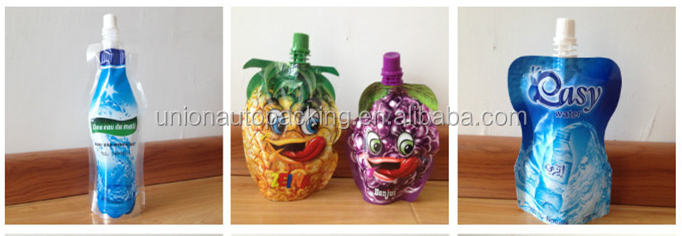

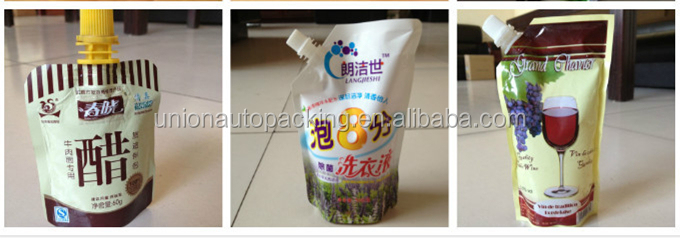

Eight,Packaging bag
