Small capacity gravel sand diamond gold washing plant

FOB Reference Price:Get Latest Price
$2,000.00 - $19,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Quick Details
Gravity Separator
Production Capacity:
Place of Origin:
Jiangxi, China
Brand Name:
Model Number:
washing plant
110v -380v
different models
Diffrent Model
gold, alluvial mineral, diamond
as request
After slaes service:
Product name:
washing machine
Under Guidance
Mining Separatoion
Manganese Steel
High Reputation
1 year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1300 Set/Sets per Month alluvial gold washing plant
Packaging & Delivery
Packaging Details
exported standarad packing / Nude /Shipping container
Lead Time :
5-28 days

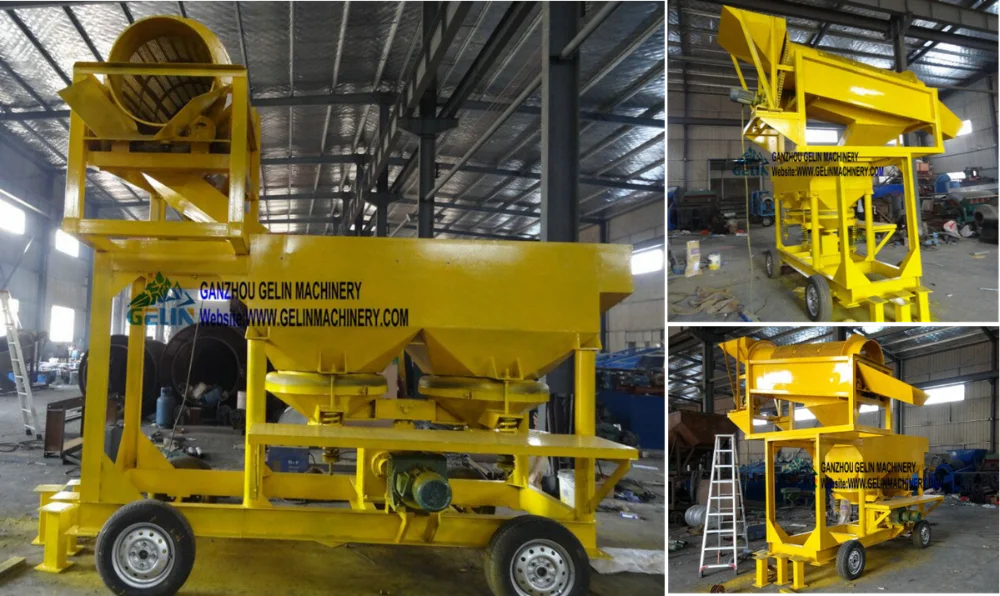

Turnkey wash plant

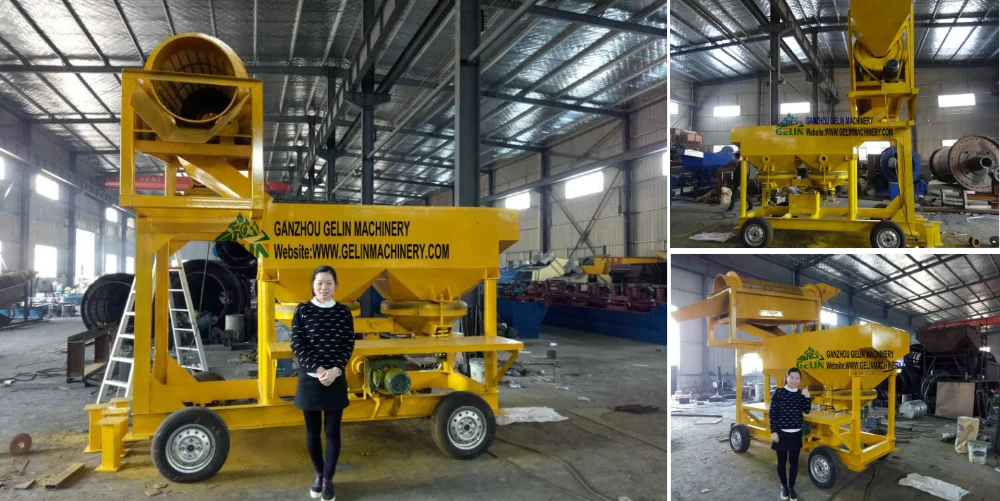

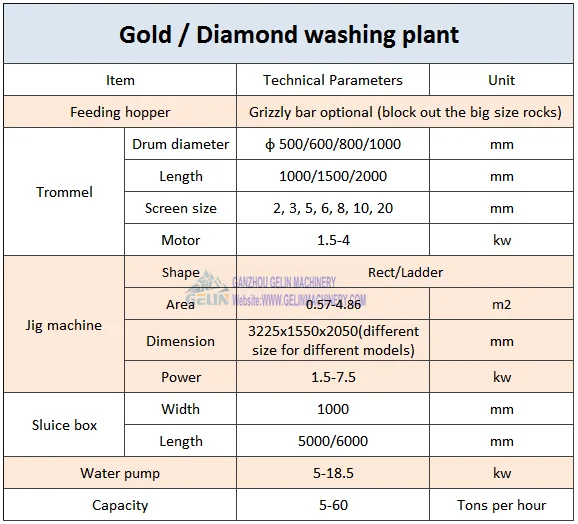

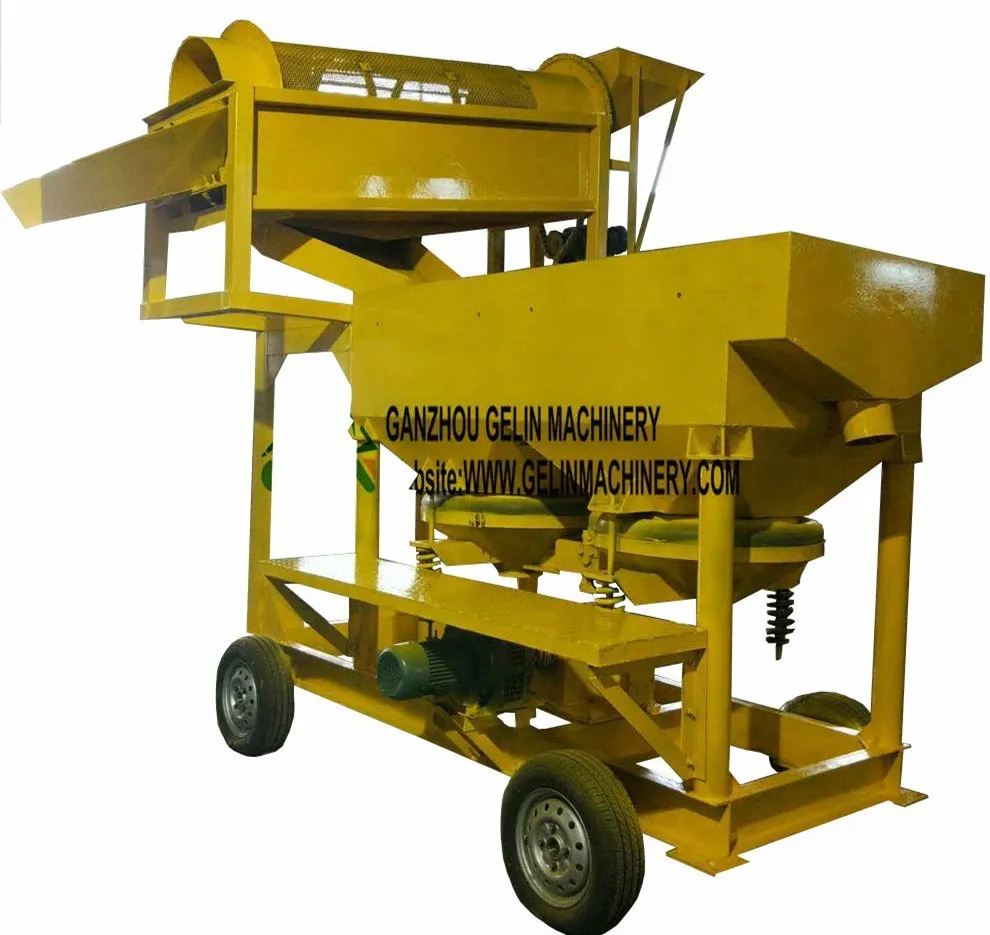

Small capacity gravel sand diamond gold washing plant

This plant is widely used for mineral separating, especially in the alluvial, river sand, placer, clay deposit and gravel sand gold & diamond concentration. This plant is including the equipment of hopper, trommel screen, jig machine, water pump and sluice box for optional. You could also watch our machinery working videos on our YouTube channel:
1. Modular installation and Turn-key operations.
2. Mobile type can easily move to other place
3. Moter or diesel optional
4. Side of the machine equipped with anti-skidding walkcat for worker stand and easy checking working status.

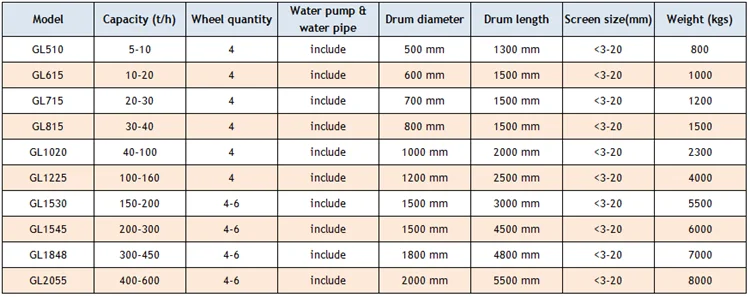

5. Different capaciy for different customers' request
6. Sluice boxes available upon request at an additional cost
Working Principle:
1. Feed to the hooper of the trommel by hand or excavator;
2. The mineral went to the trommel and will be washed by the high pressure water;
3. The big waste gravels will goes to end of the trommel (you can see from the video);
4. The mineral under the screen size will go to Jig machine for a gravity separation (Screen size can be customized);
5. The Jig machine is saw tooth wave jig machine, which can separate the mineral based on different specific gravity;
6. Due to the big gravity of the gold/diamond, the gold/diamond concentrate will finally separated by Jig machine
7. You can add 1 set of sluice box for a clean concentrate for the tailing.

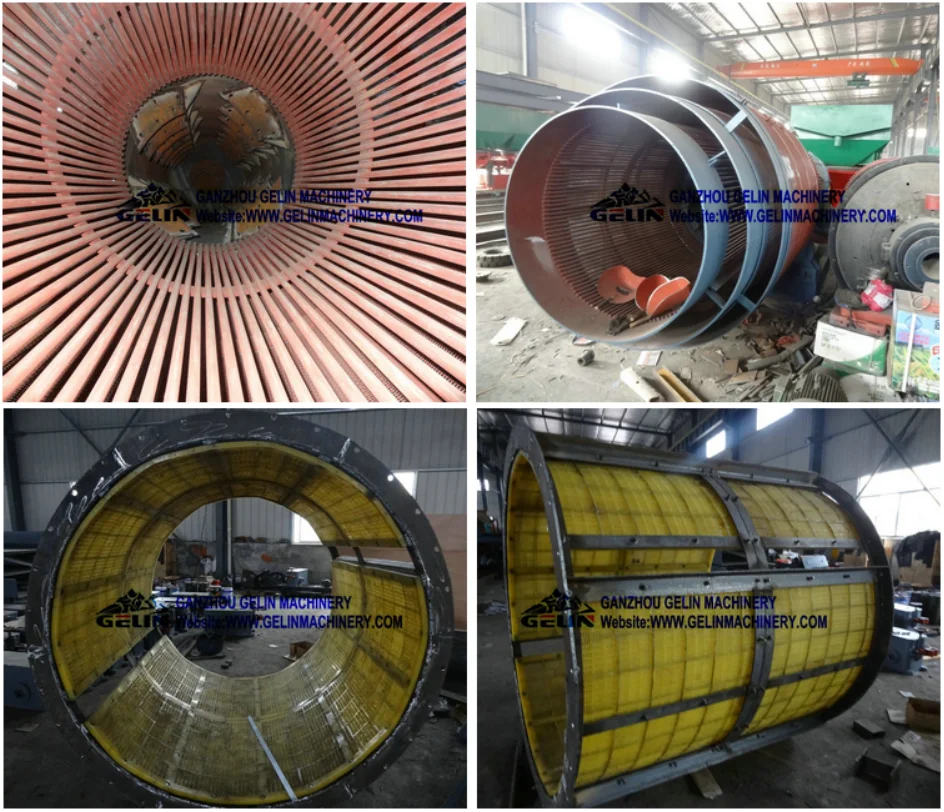

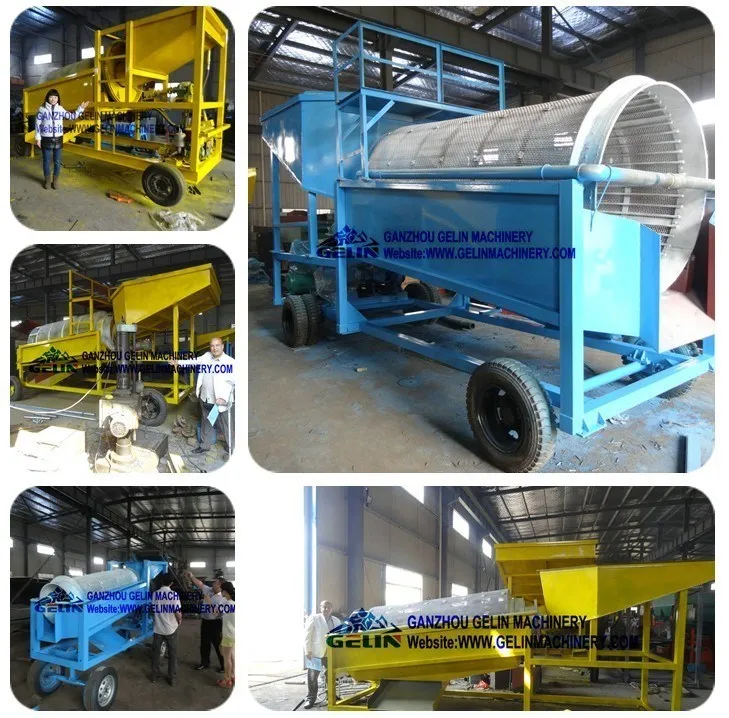

Trommel Screen
The trommel screen provide a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
The gold washing plant offers the portability of smaller hand fed systems, while maintaining large scale production with a smaller footprint. Once on site, setup takes only minutes and can be accomplished by a single person.
♦ Designed to break up alluvial gravels, clays and sand for Dm Washing Machine
♦ High capacity and high power scrubbing for Drum Washing Machine
♦ The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
♦ One high output electrical motor driving a gear system providing efficient torque
♦ Adjustable rotary speed for Drum Washing Machine
♦ Mechanical sealing of inlet chute – minimal spillage when over feeding
♦ Drive loads absorbed within the drive frame and pivoting drive frame design.Foundations only have to support vertical load and are not critical for alignment ie minimal cost
♦ Shell design less mass than conventional roller supported units–installation craneage requirement reduced

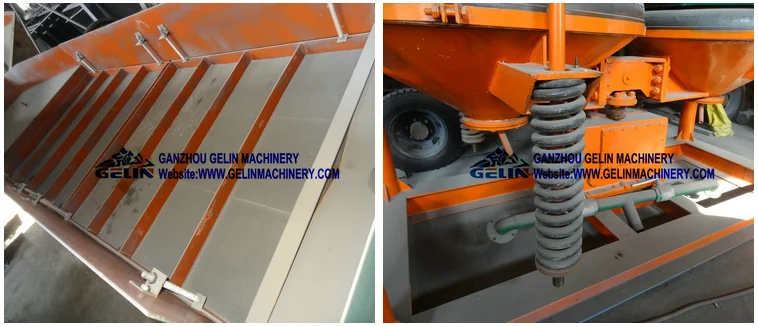

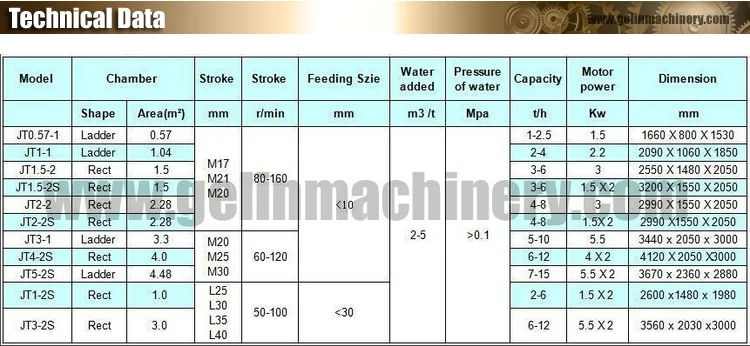

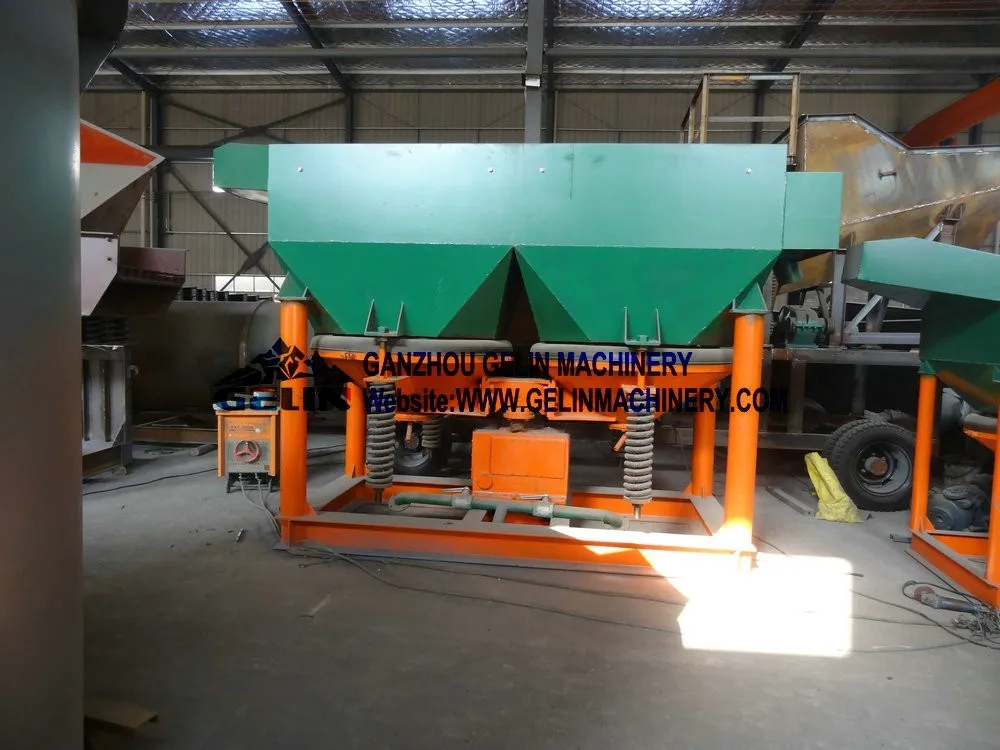

Jig Machine
Jig machine operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.
- High capacity
- High concentration ratio and high recovery
- Fabricated with highest quality material
- Easy to install, operate and maintain
- The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
- Saving water 30-40% than ordinary jig
- The pulsation speed very easy adjusted by regulator
- Suitable for roughing and desliming

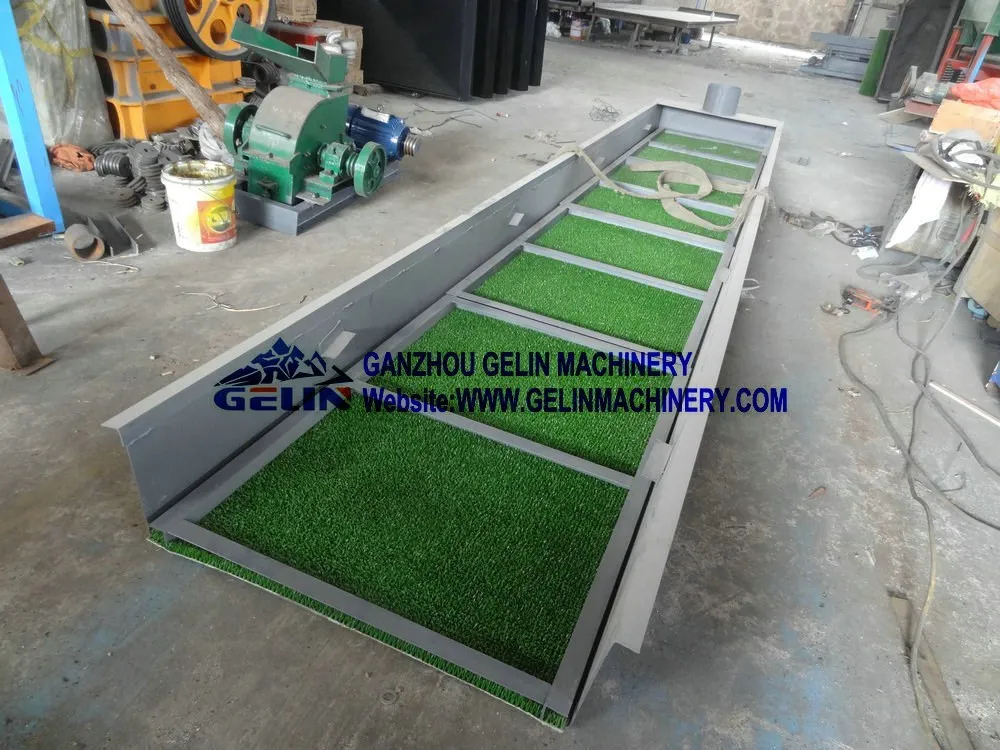

Gold Sluice

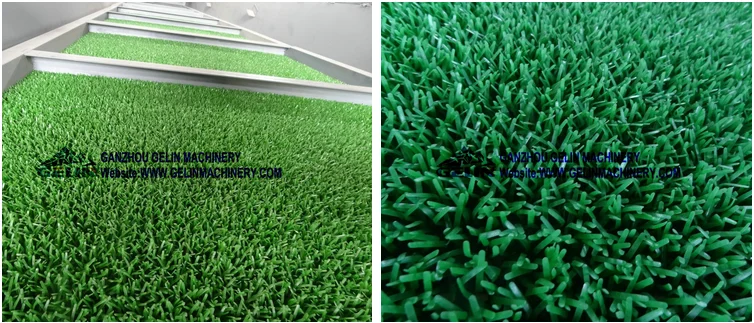

The sluice mat/gold carpet for gold is one of the necessary equipment in the processing of gold mining plant for alluvial gold, placer gold, gold sand, etc.It is also called felt, cohesive gold blanket, gold grass mat, gold rush etc. Just as its name implies, it is used for recovering gold. It usually work with the small sluice box or small shaking table for gold recovering.This equipment has the washing and sieving function. The length of washing part and sievinig part can be custom-made.
1. Easy installation.
2. Long working life.The sticky gold carpet can withstand the sunlight and high temperature directly.
3. Anti-slip,superior resiliency, drainage and scraping dust performance
4. Good adaptability. Can cut easily to fit different size and no requirement to the working place.

The sluice mat/gold carpet/sluice box matting for gold is usually fixed on the sluice box. The width depends on the size of sluice box.
The length of gold mining carpet is usually 2-6 meters, which could be cut according to different requirements.
Width: 1000mm Length: 5000mm Or refer to customers' request

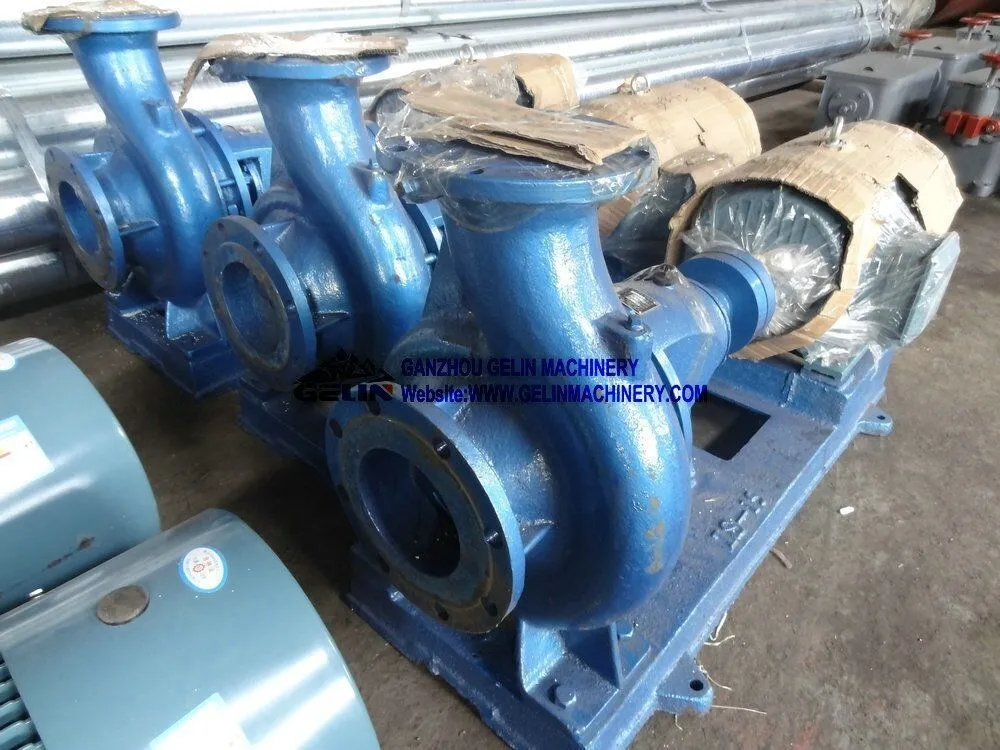

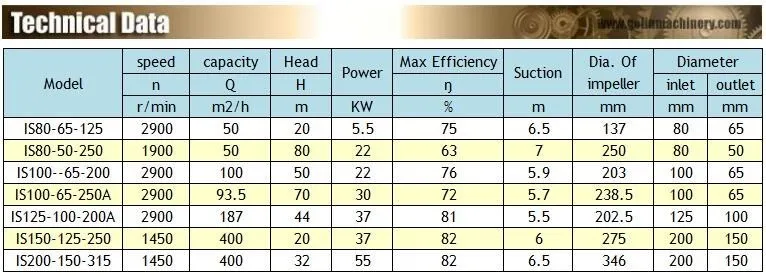

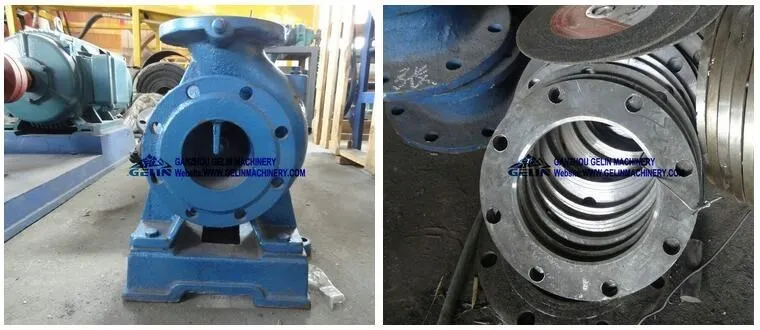

Water Pump
IS series centrifugal water pump is widely used for supplying water to the mining plant and industy and city. It can transport the clean water( T <80℃) and the liquid(physical and chemical character is similar as clean water.
Meaning of water pump model:
* IS100-65-250A
* IS--international standards singles-stage single-suction centrifugal pump
* 100--inlet diameter(mm)
* 65--outlet diameter(mm)
* 250-- nominal ourside diameter of impeller(mm)
* A--first cutting of impeller
Related Products

- Gold Shaking Table

It is a mine separation device for fine minerals working by gravity.

- JIG Machine

This machine is designed for processing alluvial gold mine, river and sand gold, placer gold, ect.

- Gold Centrifugal Concentrator

It is a relatively new type of gravity concentration apparatus.

Our Company

Ganzhou Gelin Mining Machinery Co., Ltd is an expert manufacturer of mining machines in China. Our company is located in Guzhang Industrial Zone, Shicheng county, Jiangxi province, covering an area of over 30000 square meters, having more than 30 sets of heavy processing equipment and with an annual outpurt of more than 2000 sets of mining machinery.

Experienced mining machinery manufacturer

Our distinctive prodcts include shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect. Our machines are popular in separating GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.


1.Based on clients’ request and budget, GELIN experts will strictly make efficient, reliable solutions accordingly;

2.Mine sample testing is available, we welcome the customer send the sample to you for testing by courier, or, the customer take the sample to our factory for testing;

3. Design and provide the complete processing flowchart;

4. Design & manufacturer products according to clients’ demands.


1.Pre-check and test the products before delivery;

2.Deliver the whole plant design for our clients which including infrastructure, electrical system and pipeline system design;

3.Trace the status of the shipping until the products received;

4.Prepare required documents to let clients pass custom clearance;

5.Dispatch experts to carry out below service on site:
1) Installation & debug of the machinery
2) Train the first-line operators & technical personnel

3) Carry out any other service clients may need

6. Provide technical exchanging & spare parts for life-long term


1.Starting by running the mineral beneficiation experiment. To provide our clients with the best solution accordingly;

2.Besides supply the flowchart design & equipment, we also provide the infrastructure design; Electrical & pipeline system design, etc. To help our clients complete the design of the whole plant;

3.After the installation, debugging of the equipment, the official production will also be guiding by our experienced engineers on site, to guarantee the output minerals perfectly meet your demands.

Q: What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.

 A:1). What type is the mining? Is it rock stone? or it is sand?
    2). If rock stone,What is the general particle size(mm) of the raw ore?
    3). What is the handling capacity(tons per hour) you plan to work with?
    4).What is the elements of the raw ore? How much percent % of each minerals?

Q: Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?

A: Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.

Q: How long is the warrenty of your equipments? Does your company supply the spare parts?

A: The warranty period of Gelin equipments is one year. And of course we will supply the spare parts for you for life-long time at lowest cost.

Q: If i need the complete mineral processing line. is Gelin able to help us build it?

A: Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need.
There is a rich experience engineer team of us. we had already build many mining projects in China & Overseas. You can believe our quality and service.

Welcome you visit our factory in your free time!
