Small gold machine powder pulverizer Gold grinder machine/crushing machine for Gold

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets 1 set small gold machine is ok (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hammer Crusher
Application:
sand ,rock,stone, mineral and ore crushing
Motor Type:
AC Motor
Power(W):
15-45kw
Capacity(t/h):
1-15t/h
Place of Origin:
Jiangxi, China (Mainland)
Brand Name:
Gaoxuan brand small gold machine
Model Number:
PCS M6
Dimension(L*W*H):
As per your requirement
Weight:
Depends on the model
Certification:
CE, SGS, ISO9001:2008
Product name:
small gold machine
Product name 2:
small hammer crusher
Sample Testing:
Available for crushing machine for Gold
Installation:
Engineer guide or send video for crushing machine for Gold
After sale Service:
Lifelong for small gold machine
Advantage:
Low power for Small gold machine
Feed opening size:
400*400mm for example
Max feeding size:
50 mm
Discharge size:
0.15-3 mm
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
one year excluding the spare parts
Supply Ability
Supply Ability:
200 Set/Sets per Week crushing machine for Gold can design as your require
Packaging & Delivery
Packaging Details
Laboratory/Small gold machine packed in wooden case.
Port
Xiamen/Shenzhen, China
Lead Time :
Shipped in 10 days after payment
Product Description

Small Gold machine  Application

The small hammer crusher crushes by collisions between high-speed hammer and materials with simple structure at high reduction ration. Small hammer crusher gather function of crushing and grinding, can make discharges less than 3mm. It's proper for small scale ore quarry, replacing ball mill, the discharged minerals can directly go into shaking table for separation.

Model
Capacity(t/h)
Feeding size(mm)
Output size
(mm)
Quantity of hammer(pcs)
Quantity of bar grate(pcs)
Motor(kw)
200*400
1-3
≤50
0.15-3
4
25
15-18
300*500
3-6
≤50
0.15-3
6
30
18-22
400*600
5-10
≤50
0.15-3
8
40
22-30
600*600
8-12
≤50
0.15-3
8
45
22-37
600*800
10-15
≤50
0.15-3
10
55
30-45

Main Features

1) The structure is simple and compact, easy maintenance.
2) Easy installation and safe operation; little investment and quick benefit.
3) The discharge size is adjustable, bar grate can reach 3mm.
4) Gather function of crushing and grinding to replace a ball mill.

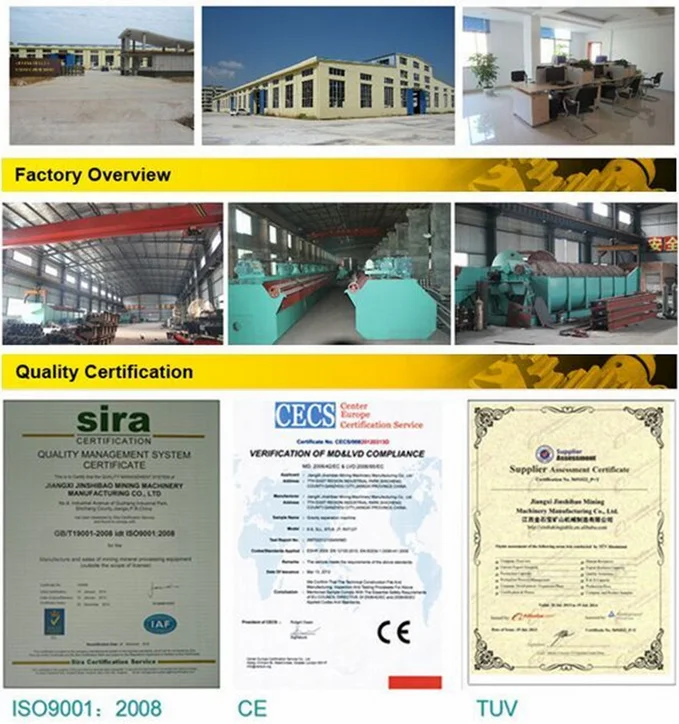

Certifications

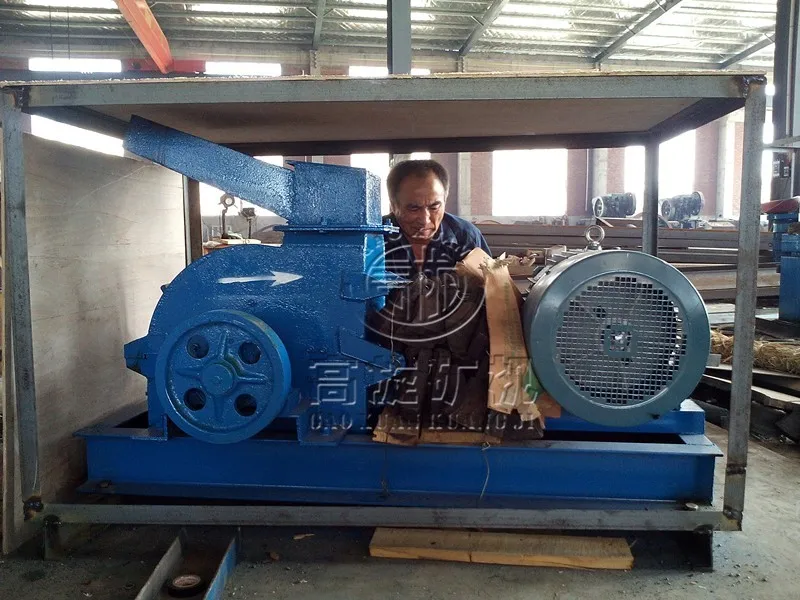

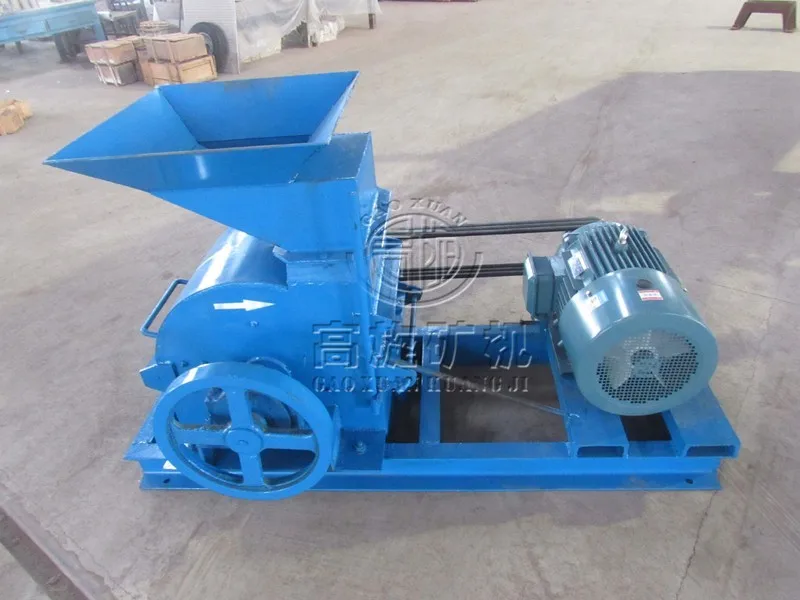

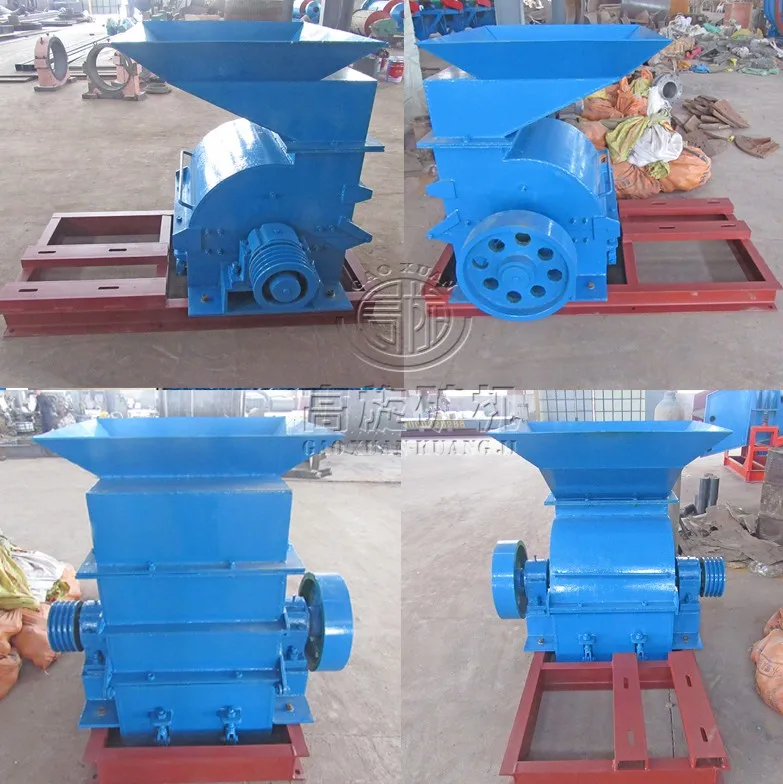

Detailed Images

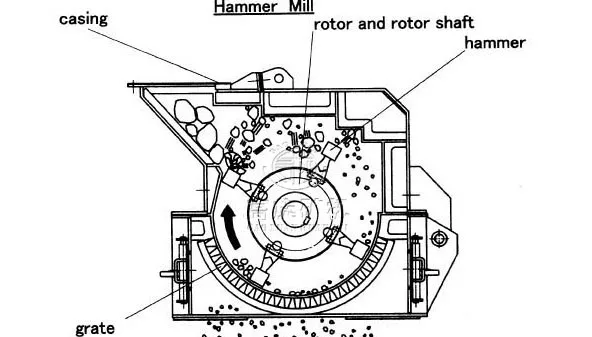

Principle-small hammer crusher

The motor drives the rotor rotate of the hammer crusher at a high speed through the belt. When the material get into the working areas of hammers, they are crushed by the rotating hammers. Products which are crushed to meet the required size are discharged by the outlet and become the final products; while the large size products are brought back to the crushed area by the hammers of the hammer crusher for being re-crushed until they reached the required size.

Main Parts

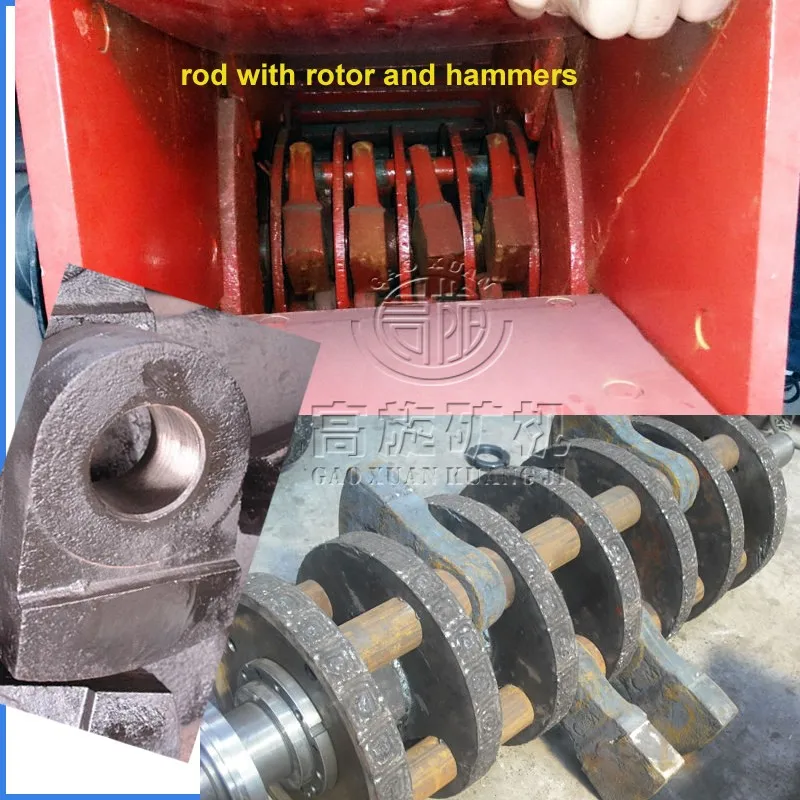

Name: Hammers with rod on rotor
Brand: Gaoxuan
Original: China
The hammers are made of High Manganese steel.
On the rotor there are series hammers, when the material get into the working areas of hammers, they are crushed by the rotating hammers of the hammer crusher

Machine Parts

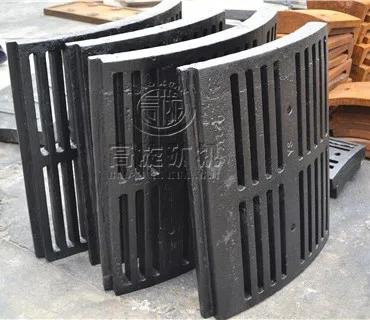

Name: Bar grate
Brand: Gaoxuan
Original: China
Bar grates are fixed in crushing chamber bottom, it's fuction like a screen to filter the qualified materials. The bar grate sizes are adjustable.
Products are discharged through bar grate. We can make the bar grate size to 3mm.

Main Features

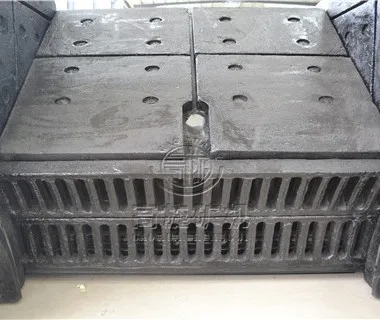

Name: Breaker Plates
Brand: Gaoxuan
Original: China
Breaker plates are fixed in crushing chamber inwall. The materials have collisions between rotating hammers and breaker plates untill reach the required sizes and discharged from bar grate.

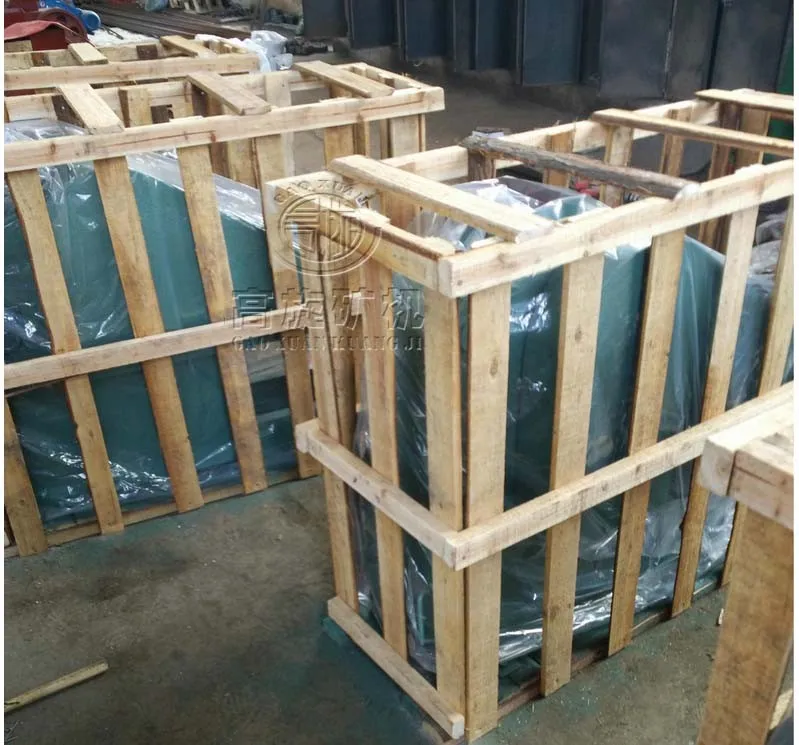

Packing & Delivery
Packaging
Size
844*942*878mm
Weight
0.6 T



Packaging Details
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
