Small scale refinery to convert crude oil to diesel petroleum refining plant

FOB Reference Price:Get Latest Price
$300,051.00 - $1,000,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
PR051
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Flow:
50-350L/M
Working Pressure:
0.6Mpa
Place of Origin:
Hubei, China (Mainland)
Brand Name:
HDC
Usage:
Transformer Oil, Crude oil purification process
Voltage:
380V/50HZ
Power(W):
5051
Dimension(L*W*H):
To be determined
Weight:
151 tones
Certification:
CE ISO
Production capacity:
50-10000 TPD
Raw materials:
Stainless steel and carbon steel
Conversion rate:
At least 97%
Finished product:
Petrol, diesel, asphalt
Warranty:
12 months
Machine Type:
Refinery machine
Advantages:
Energy saving, high conversion
Installation and training:
Free to service it overseas
Certificate:
China GB standard
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
3 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood, international standard trading paking.
Customized paking aviailable.
Port
Qingdao, Shanghai
Product Introduction

What is crude petroleum?

Petroleum  is a naturally occurring, yellow-to-black liquid found in geological formations beneath the Earth's surface, which is commonly refined into various types of fuels. Components of petroleum are separated using a technique called fractional distillation.

What are the finished products for plant refinery?

                    Gasoline                                    Diesel                                     Kerosene                             Base oil

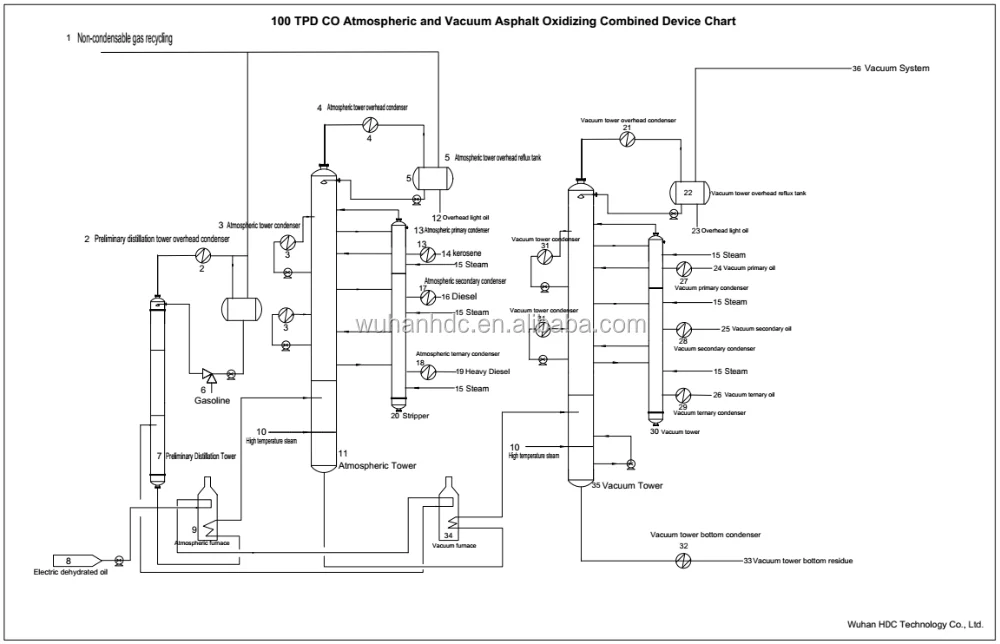

Technology Process

Desalting and dewatering system

Generally, prilimilary desalting system is applicated to reduce the velocity of the crude oil. When necessary, the secondary desalting system is required. The water content will also be separated at this stage. This is an important process for later oil refining as pretreatment.

Pressure system

Pressure system for the separation of diesel systems, depending on the density and viscosity of diesel fuel, crude into light diesel oil, heavy diesel oil. The main component is C9-C22 alkane, cycloalkane, or an aromatic hydrocarbon.

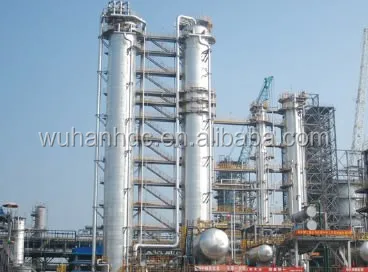

Vacuum tower system

Depressurization system separated base oil component, three-side outlet fractionation to obtain oil base stocks of different viscosities. The main component C20-C40 paraffinic, naphthenic or aromatic hydrocarbons.

Atmospheric and vacuum furnace

The material is heated into the rectification column. The inner coil, can pass into the steam to prevent coking production.

Tubular Furnace(cupola)

This is a kind of vertical cylindrical furnace. The lower part of this furnace is the radiation chamber, vertical tube furnace is installed at the wall. Central is a convection chamber, a horizontal tube furnace is mounted at its inner part. The upper part of the furnace is a flue. And the lower center is mounted a mixing oil and gas burner. This device is for pre-treatment as well as gasoline and diesel separation.

Catalytic reforming system

In the presence of a catalyst, the process of rearranging the molecular structure of hydrocarbons in gasoline fractions to a new molecular structure is called catalytic reforming. It is a process naphtha obtained  is converted into an aromatic hydrocarbon-rich, high-octane gasoline(liquefied petroleum gas and hydrogen as byproducts) when heating with catalyst in hydrogen pressure condition.

Our Service

Pre-Sales Service

● Inquiry and consulting support.

● Flowchart and factory design.

● Factory and refinery on-site inspection.

After-Sales Service

● Training how to install and function the machine.

● Engineers available to service machinery overseas.

●12 months warranty and life spand service available.

Packing & Delivery
Packaging
Size
To be determined
Weight
120  tones to 1000 tones



Packaging Details
The normal package is naked packed. If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request.
Delivery
Tool
Ship
Packing
In containers

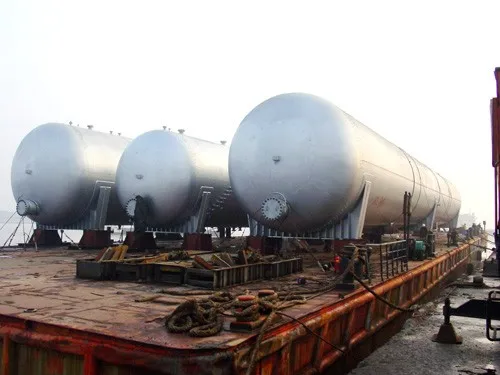

Shipping Details
The normal shipping method is by sea.
In order to save your shipping cost, some parts of the plant refinery will be made on your site.
You can cotact your own shipping agent or ask us to arrange shippingf for you.
Our factory

Wuhan HDC is an is a Professional and modern grain and oil machinery engineering equipment manufacturer integrating research, manufacturing and installation. We have obtained rich experience and practice in palm fruit oil machine, vegetable oil pretreatment, prepress,extraction, sophisticated technology and equipment designs etc, owing wide international market in more than 130 countries and regions.
With more than 30 years of experience on oil making machine, we provide a comprehensive range of products
We are proud to guarantee that, with our strong technical background and communication capability, our sales/support engineers are able to answer your most complicated technical questions over the phone in English. That would save a lot of time for communication.

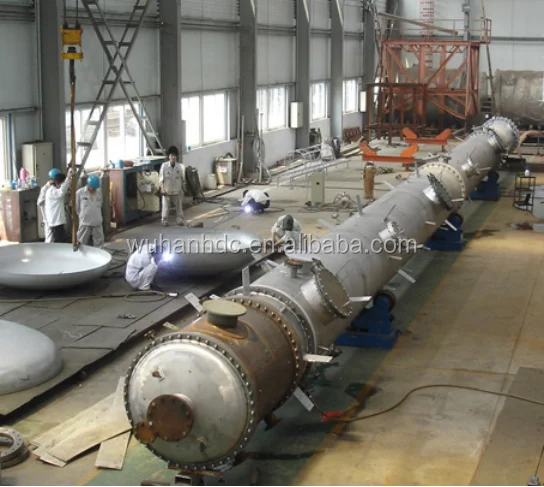

The following pictures show our factory and customers in our workshop.

FAQ

What is the warranty of the machines?
12 months free guanantee and life long standard paid service.
What is the raw material of your machinery?
Stainless steel and carbon steel.
When can I get the price?
Within 24 hours, if urgent, please directly contact us.
How to ask quotation?
Please inform us your crude oil specifications and your target capacity per day, then we will send our proposal as soon as possible.
Can we ask the oil plant for different types of oil?
Yes you can! But we recommend no more than 3 kinds of oils.
How many areas are required to build the plant refinery?
The land area required usually depends on the capacity of your plant. We can calculate the area needed and give you the plant designs.
How long will it take to get my products?
In general, it will take us 45-120 days to make the machinery, and 3-7days to shipping port.
Can you install the production line and train our stuffs for free?
Yes we can. We'll send engineers to help you install the equipment and train your workers freely.
