Overview
Quick Details
- Supplier Type:
-
manufacturer
- Model Number:
-
pcba manufacture
- Place of Origin:
-
Guangdong, China
- Brand Name:
-
Smart
- Base Material:
-
FR-4, FR-1, CEM-1, CEM-3, FR-4 Halogen Free
- Copper Thickness:
-
0.5oz, 1.0oz, 2oz, 3oz,
- Board Thickness:
-
0.2mm-4mm
- Min. Hole Size:
-
0.1mm
- Min. Line Width:
-
0.15mm
- Min. Line Spacing:
-
0.075mm
- Surface Finishing:
-
HASL, Lead free HASL
- color:
-
Green, yellow, black, white, red, blue
- Application:
-
Consumer Electronics
Product Certification
- CE Certified.
- RoHS Certified.
Supply Ability
- Supply Ability:
- 30000 Meter/Meters per Month pcba manufacture
Packaging & Delivery
- Packaging Details
- vacuum package
- Port
- ShenZhen
- Lead Time :
-
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 15 To be negotiated
Product Paramenters
Smart Electronics OEM service PCBA prototype PCB assembly manufacturing printed circuit board
Please kindly send us your gerber file and bom list
for quotation ,and please also inform the order quantity
for quotation ,and please also inform the order quantity
PCB Capacities and Technical Specification | ||
Order Quantity | 1-500,000 | |
Layer | 1, 2, 4, 6, up to 24 layer | |
Material | FR-4, High Tg, Isola, Aluminum, Rogers, etc | |
PCB type | Rigid, flexible, rigid-flexible | |
Shape | Rectangular, round, slots, cutouts, complex, irregular | |
Max PCB dimensions | 1200mm*600mm | |
Thickness | 0.2~4.0mm, Flex 0.01~0.25'' | |
Thickness tolerance | ± 10% | |
Copper thickness | 0.5-6 oz | |
Copper thickness tolerance | ± 0.25oz | |

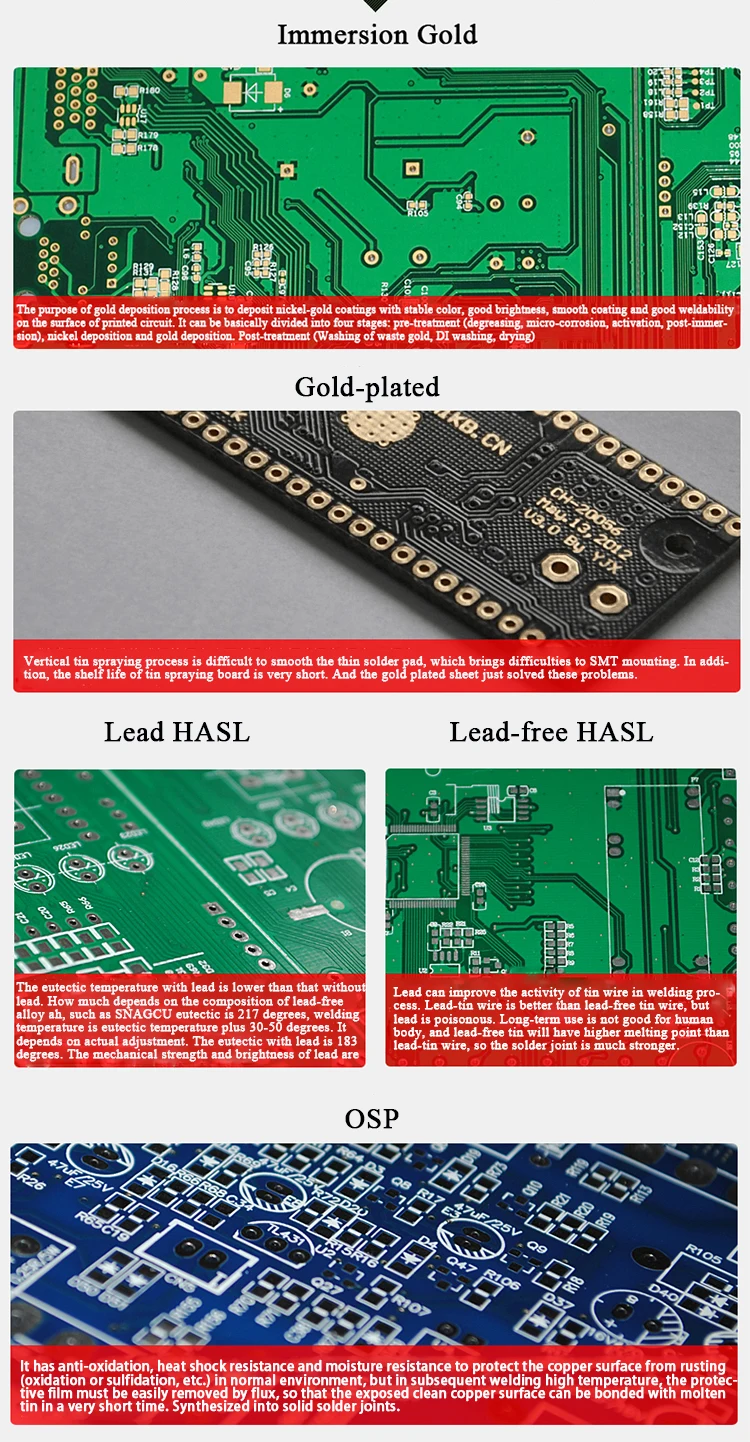

Surface finish | HASL, LF HASL, Imm Gold, Imm Silver, OSP etc | |
Solder mask | Green, red, white, yellow, blue, black, orange, purple | |
Silk screen | White, black | |
Silk screen min line width | 0.006'' or 0.15mm | |
Min drill hole diameter | 0.01'', 0.1mm or 10 mil | |
Min trace/gap | 0.075mm or 3mil | |
PCB cutting | Shear, V-score, tab-routed | |
PCBA Capabilities | ||
Turnkey PCBA | PCB+components sourcing+assembly+package | |
Assembly details | SMT and Thru-hole, ISO SMT and DIP lines | |
Lead Time | Prototype : 15 work days. Mass order : 20~25 work days | |
Testing on products | Testing jig/mold , X-ray Inspection, AOI Test, Functional test | |
Quantity | Min quantity : 1pcs. Prototype, small order, mass order, all OK | |
Files needed | PCB : Gerber files(CAM, PCB, PCBDOC) Components : Bill of Materials(BOM list) Assembly : Pick-N-Place file | |
PCB Panel Size | Min size : 0.25*0.25 inches(6*6mm) Max size : 1200*600mm | |
Components details | Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement | |
Component package | Cut Tape, Tube, Reels, Loose Parts | |

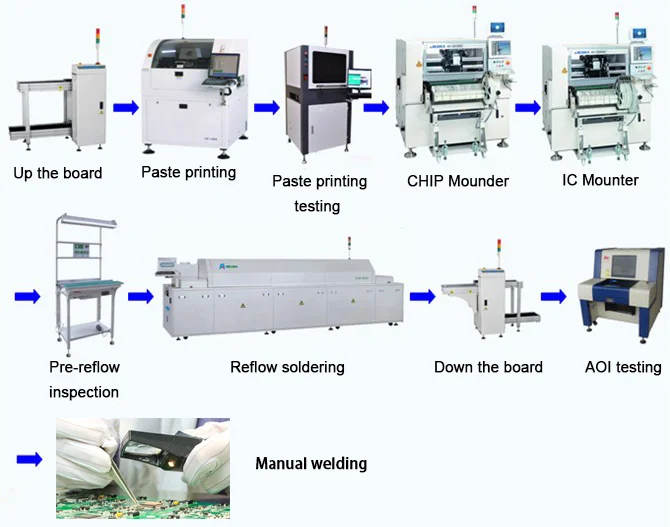

PCB+ assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing | |
Details Images

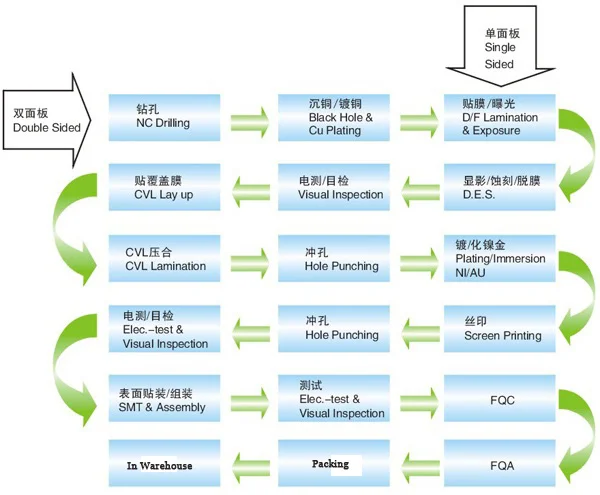

Manufacturing Technique
Certifications
Shipping
FAQ
1.Which type of PCBs do you expert in?
We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.
2.What is your Lead time?
Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production. For some special situation,we can also advise customer in advance to avoid any inexpectation or loss at customer side.
3.What is your testing policy and how you controle the quality?
For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more
faster. Due to there’s many steps to PCB production, we usually do inspection after every step.
4.PCB shipment?
This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on.Our forwarder can provide too much better freight cost than we get directly from those express enterprise.
5.I only have the pcb sample, not pcb file, can you produce it for me?
Yes, we can copy file based on your sample, this file names gerber, and production then is accorded to gerber file.
6.What kind of PCB file format can you accept for production? What CAM software do you use?
We accept Gerber file for production. CAM350, GENESIS, UCAM, GC-CAM, V-2000.
7.Will you allow me to put several part number together into one panel?
Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.
We are specialized in producing Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB, etc.
2.What is your Lead time?
Lead time is usually punctual here, usually 5-10 days for PCB sample, 10-15 days for mass production. For some special situation,we can also advise customer in advance to avoid any inexpectation or loss at customer side.
3.What is your testing policy and how you controle the quality?
For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more
faster. Due to there’s many steps to PCB production, we usually do inspection after every step.
4.PCB shipment?
This is depend on customer, sometimes we ship through our forwarder, who is also the agency of DHL, TNT, UPS, Fedex, and so on.Our forwarder can provide too much better freight cost than we get directly from those express enterprise.
5.I only have the pcb sample, not pcb file, can you produce it for me?
Yes, we can copy file based on your sample, this file names gerber, and production then is accorded to gerber file.
6.What kind of PCB file format can you accept for production? What CAM software do you use?
We accept Gerber file for production. CAM350, GENESIS, UCAM, GC-CAM, V-2000.
7.Will you allow me to put several part number together into one panel?
Yes, this is usually happen in we factory, this way can help customers reduce some cost and to a certain degree, it can help reduce some assembly cost.
