Smart Wi-Fi Wall Light Switch Work With Amazon Alexa and Google Home Fit for US/CA Wall Switches

FOB Reference Price:Get Latest Price
  • 500 - 999 Units
    $9.90
  • 1000 - 2999 Units
    $9.60
  • >=3000 Units
    $9.30
Lead Time:
Quantity(Units) 1 - 1000 1001 - 3000 >3000
Est. Time(days) 25 35 Negotiable
Customization:
Customized logo (Min. Order: 1000 Units)
Customized packaging (Min. Order: 1000 Units)

More

Graphic customization (Min. Order: 1000 Units) Less
Samples - $12.00 /Units, 1 Units (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
AvatarControls
Model Number:
AWS01F
Type:
Wall Socket
Grounding:
Standard Grounding
Rated Voltage:
AC100~240V
Rated Current:
10A
Application:
Commercial

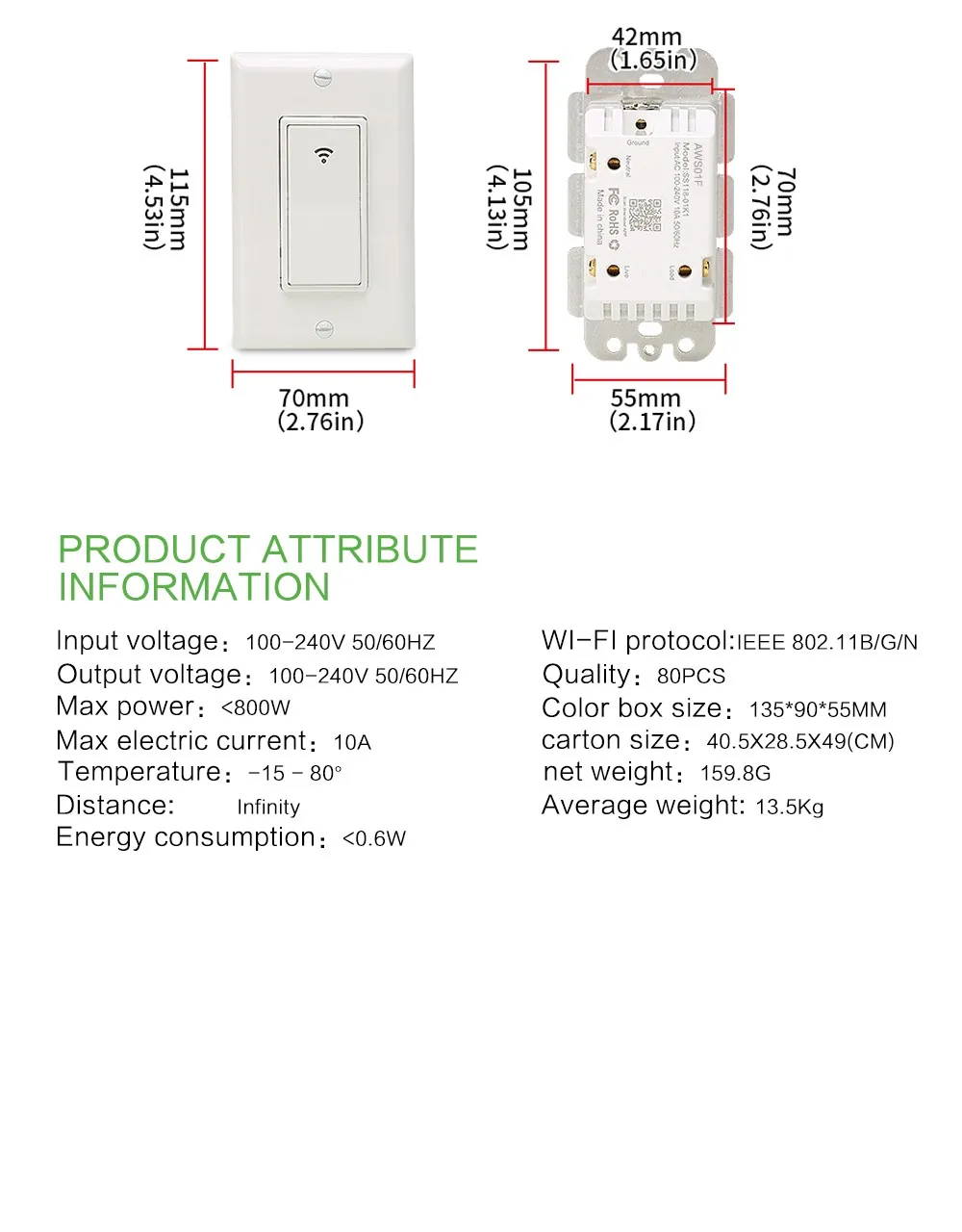

Product Size:
118 X 76 X 46 MM
Cover Materials:
PC Fire retardant, Aluminum alloy
Button Process:
Two-color rocker button
Contact Copper:
Brass/Nickel/Thickness≥0.6mm
Input Frequency:
50/60Hz
EU Plug Connection:
WiFi, 3G, 4G
Supported System:
iOS & Andriod
WIFI Standard:
WIFI 802.11 b/g/n
Security Protocol:
WAP/WAP2
Certificate:
FCC/ROHS
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
MPQ: 80 pieces
GW: 12.5 KG
Port
Shenzhen
Lead Time :
Quantity(Units) 1 - 1000 1001 - 3000 >3000
Est. Time(days) 25 35 To be negotiated
Product Description

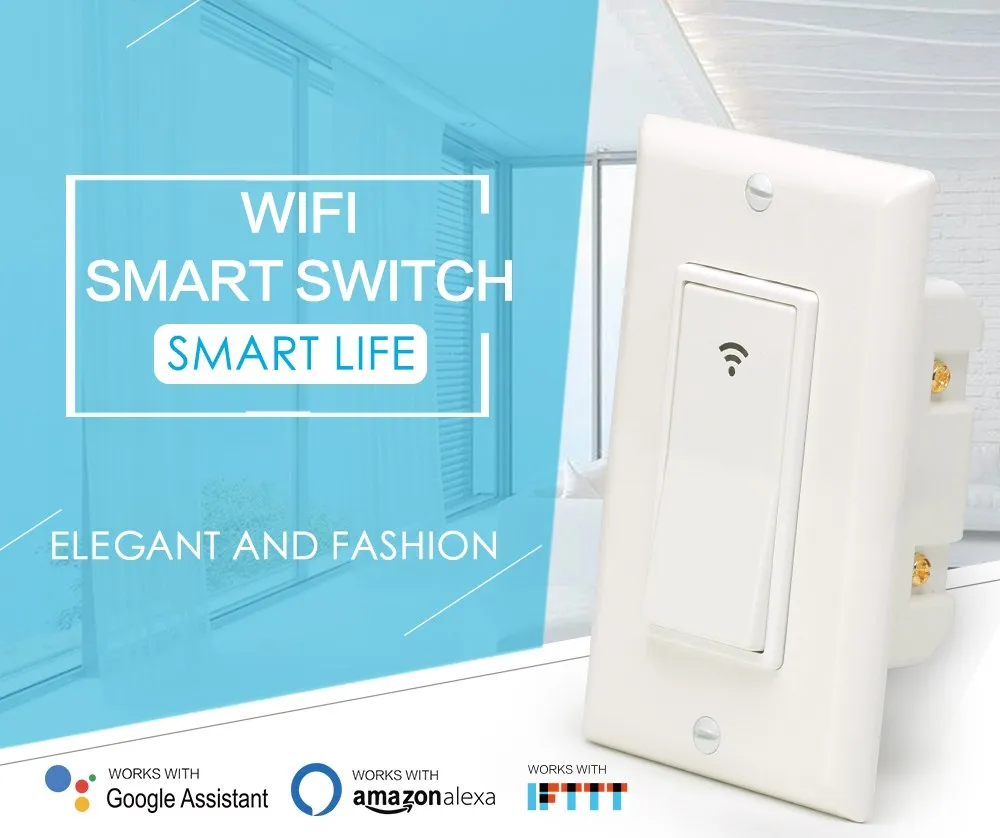

Smart Wi-Fi Wall Light Switch Work With Amazon Alexa and Google Home Fit for US/CA Wall Switches

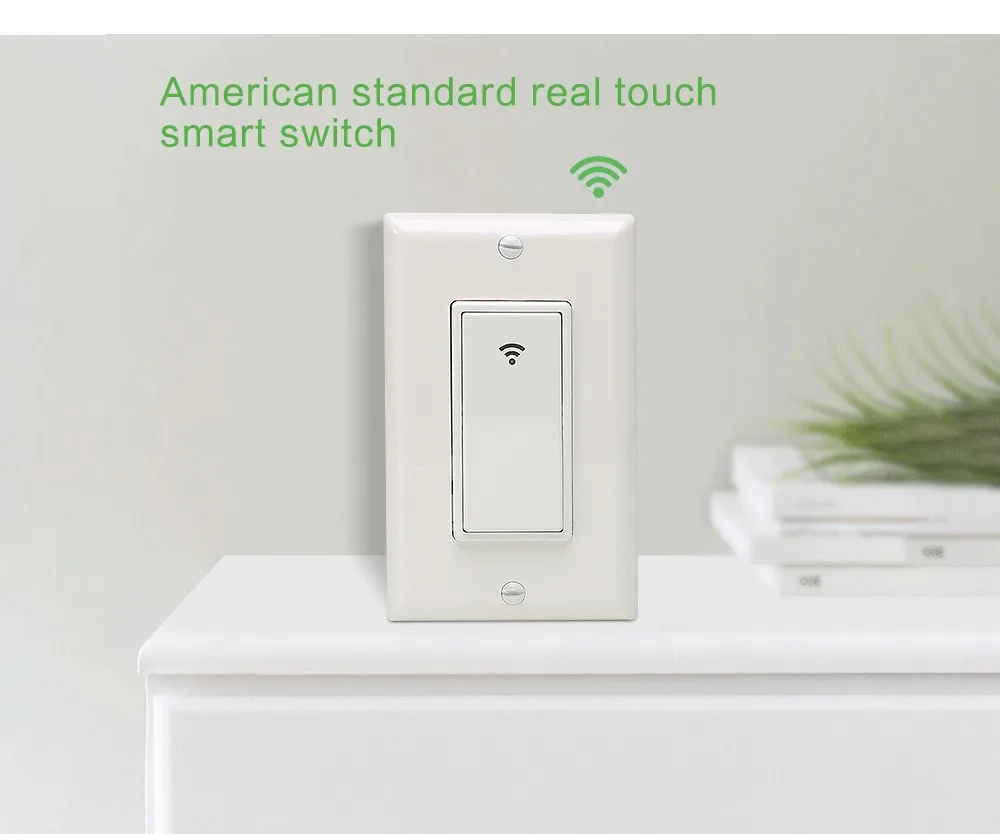

Products Show

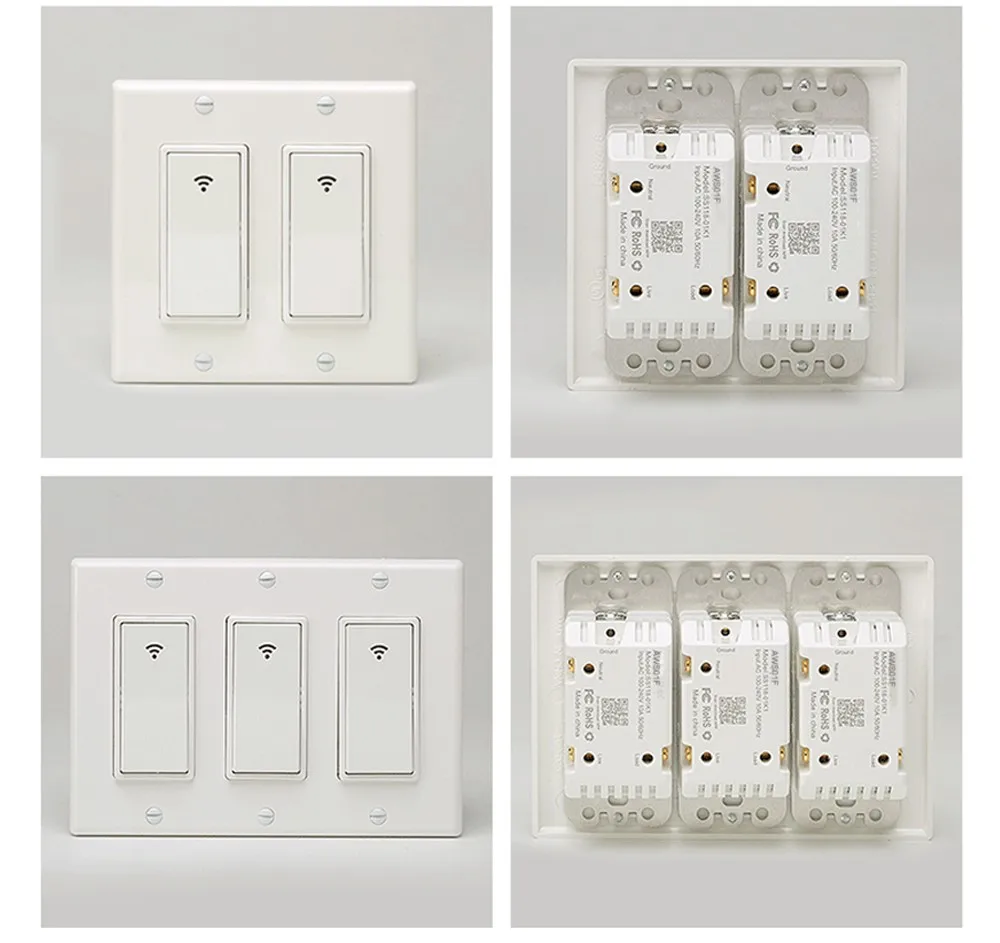

Product Details

Operation Steps
A. One-key configuration

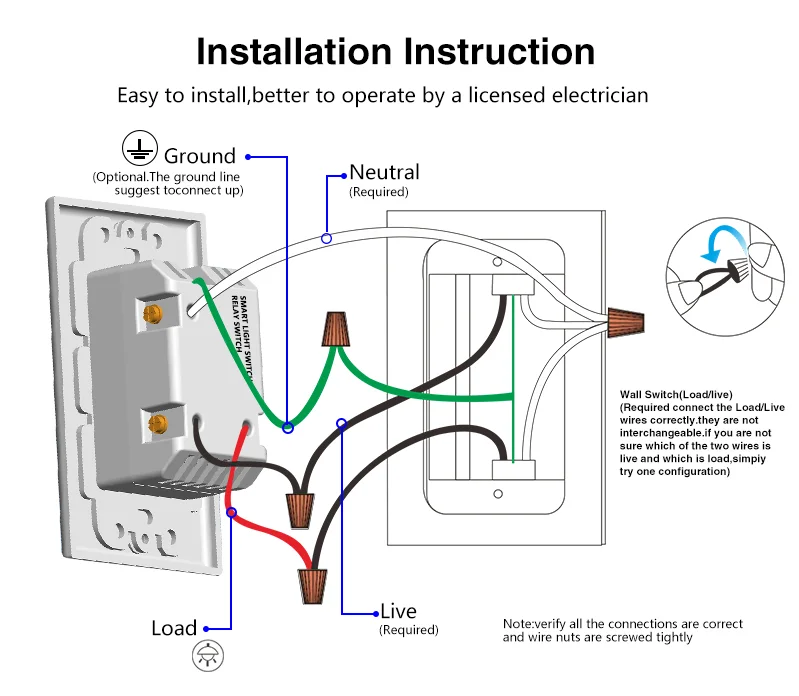

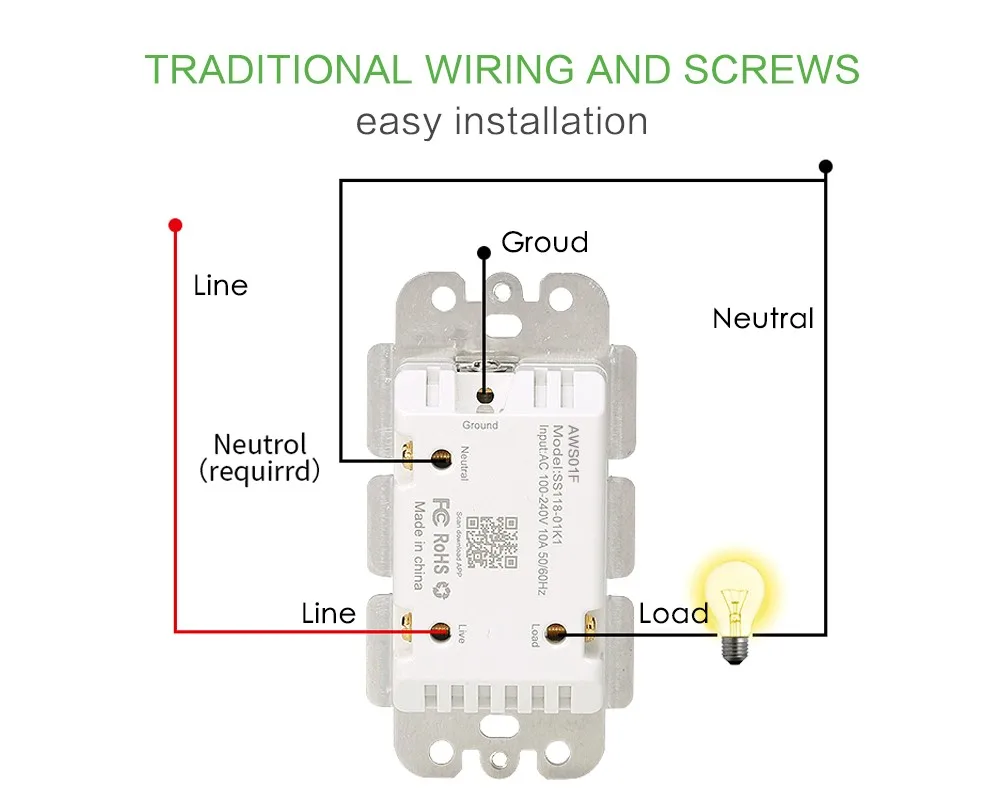

1. Please connect the switch to the power supply according to the corresponding wiring method, wait for the indicator to flash, or long press the switch key for 20 seconds until the indicator flashes rapidly (2 flashes per second).
2. Connect your phone to wifi and confirm success.
3. Open APP, click the icon in the upper right corner of the device list,select "Wall switch" to enter the configuration interface.
4.Click "Confirm indicator rapidly blink", enter password of WIFI connected to the current mobile phone, and click "confirm".
5. Wait for the configuration. After the configuration is successful, click "Done" to jump to the function interface of the switch.


B. AP configuration

AP Configuration is an auxiliary means if one-key configuration fails.How to use is as below:


1. Long press the button for 20S,the indicator light will be in the state of slow flashing(on 2 seconds and off 2 seconds)
2. Open APP, click the icon in the upper right corner of the device list, select "Wall switch" to enter the configuration interface, click on the upper right corner "AP Mode" to enter the AP configuration interface.
3. Click "Confirm indicator slowly blink", enter password of WIFI connected to the current mobile phone, click "confirm"
4.Click "Connect Now" to jump to the WIFI list interface, select SmartLife-XXXX and click "Connect"
5. Click on the return key on the mobile phone, wait for the configuration, after the configuration is successful, click "Done" to jump to the switch function interface.

Packing & Delivery
FAQ

Q: Are you a factory or trading company? amazon 2018
A: We are the factory, located in Dongguan, and the head office in Shenzhen.

Q: Can you put my brand name (logo) on these products?
A: Yes, pringting and laser engarving optional.

Q: Can you do custom made packaging?
A: Yes, of course.

Q What is the lead time (manufactureing time)?
A: Normally, 1-5 business days for sample; 6-10 days for MOQ order; 10-25 days for bulk order.
It depends on order quantity and buyer's requirements.


Q: What is your product quality?
A: We purchase raw materials from qualified suppliers. What's more, we have a strong quality control team to guarantee our products quality.
