Smart bes NEW! ro membrane price mobile phone keypad ic tv keyboard video game

FOB Reference Price:Get Latest Price
$0.01 - $0.10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Smart Bes
Model Number:
i41
Keypad Button Material:
Rubber
Open circuit resistance:
≥ 10MΩ at 100V
Operating temperature: Flat/Metal dome:
-20°c to +80°c
Storage temperature: Flat/Metal dome:
-40°cto +80°c
Switch stroke:
0.1 to 0.6mm
Contact bounce:
5 to 30ms
Actuation force tolerance:
+/- 20 to 45g
Tactile ratio:
FC > 40%
color:
Accroding to Pantone or RAL color
Type:
Waterproof Membrane
Supply Ability
Supply Ability:
30000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Vaccum package
Port
shenzhen
Lead Time :
7-30days

♥ Welcome to Smart bes ♥


We offer:PCB,PCBA,Singe-side PCB,Double-side PCB, Multilayer PCB,Aluminium PCB,Spray Tin PCB,Immersed Gold PCB,HDI Mobilephone PCB,Gold-plating PCB,(printed circuit board with assembly)PCBA,SMT PCBA,DIP PCBA,PCB&PCBA Copy,PCB Assembly,OSP,HASL and etc.

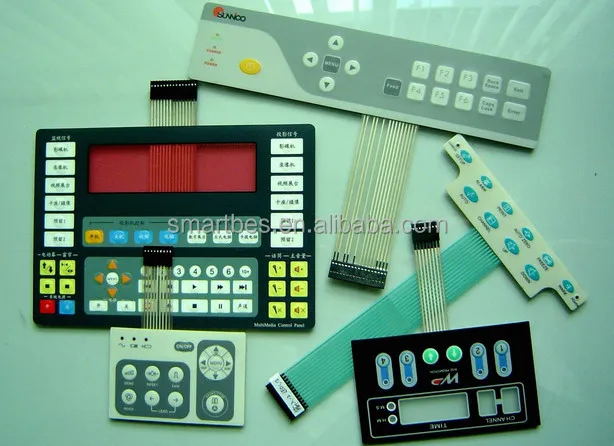

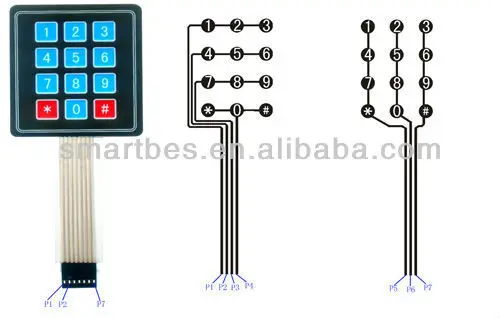

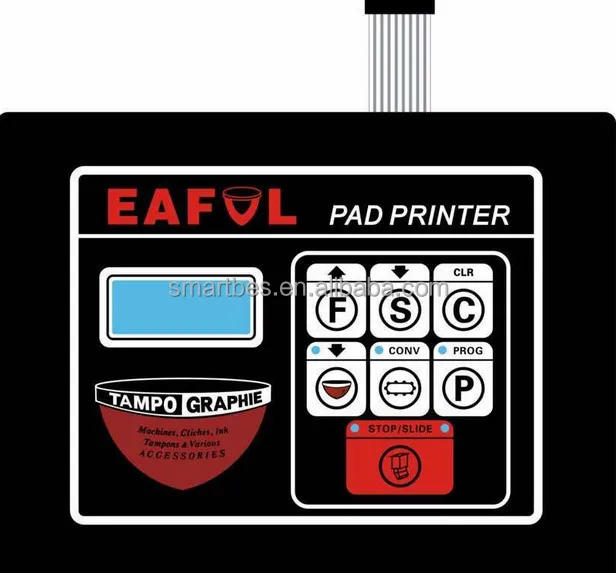

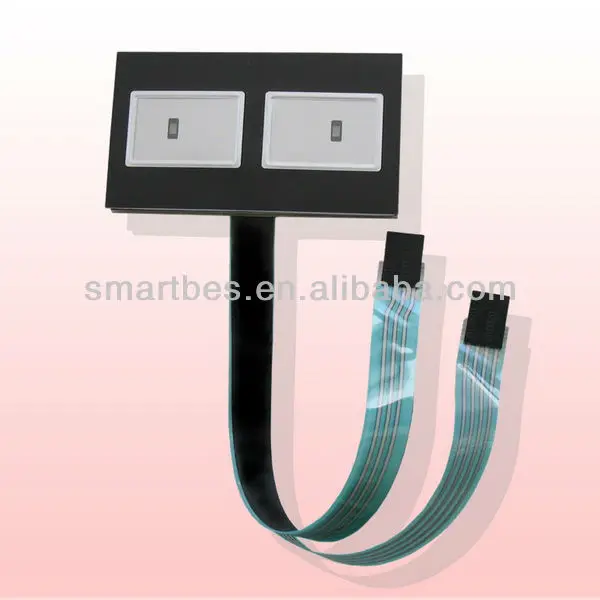

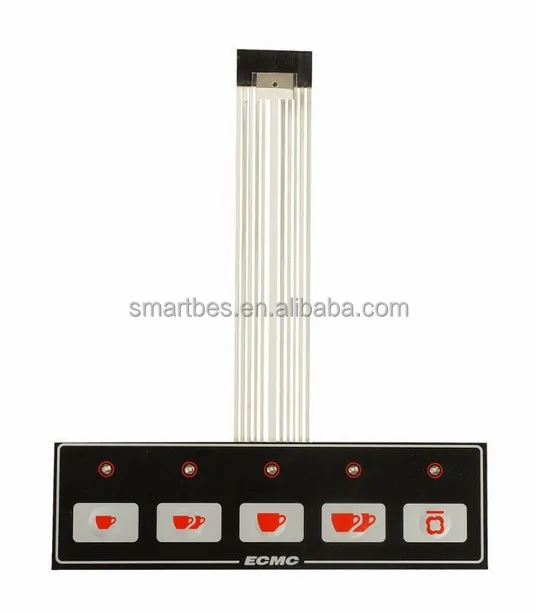

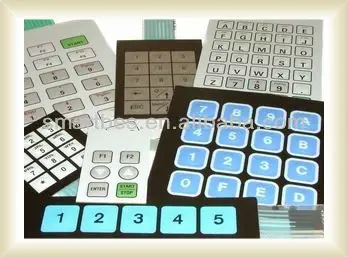

Membrane switch



Membrane switch design

Material

PET(polyester),PC(polycarbonate)

Dimension

According to customer's demand,OEM service

Color

Pantone and RALcolor matching system.

Rear Adhesive

3M467,3M468,3M9448 ect

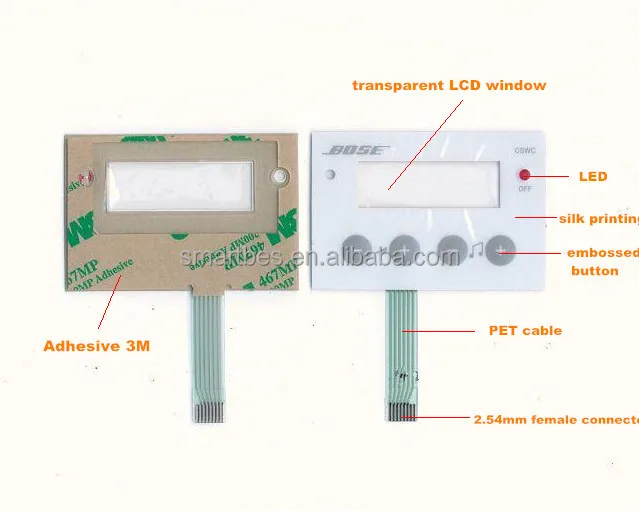

Features

1)with metal dome,

2)Key:embossed or flat

3)screen printing

4)with clear or transparent window

5)glossy surface or matte surface

6)Standard Tolerances:+/- 0.10inch(+/-0.25mm)

Best service + best price+best quality





 Are widely used in industrial, mechanical, electronic, medical, instruments, meters, household electrical appliances, and many other areas







Strength:



1, Pressing life-span is over ten hundred thousand times.



2, Have the characteristics of the function stabilizes.



3, Handle reliably and good tactility feeling.



4, Customised design



Technology:



Operating voltage:  35V DC
Operating current: 100mA  1W
Contact resistance: < 100 Ohms
Open circuit resistance: ≥ 10MΩ at 100V



Operating temperature: Flat/Metal dome:-20°c to +80°c



Storage temperature: Flat/Metal dome:-40°cto +80°c



Life expectancy  Flat type≥5,000,000 times Tactile type≥1,000,000 times



Switch stroke: 0.1 to 0.6mm
Contact bounce: 5 to 30ms
Actcuation force tolerane: +/- 20 to 45g

Tactile ratio: FC > 40%
Operating humidity: up to 95% RH


Female, male connector, solder pins and heat seal connectors are available





Certification:



UL Approval

ROHS

ISO9001:2000

CE certification

SGS Lead-free certification





*well and high quality control
*prompt delivery
*small order acceptable
*perfect craft procedure
*customer's designs are welcome

If you are interested in any of our products please feel free to contact us.

Flow Sheet













If we didn't meet the requirements in your contract, Alibaba.com will refund your covered amount.





   World wide:



Shipping :



FEDEX, UPS, DHL, EMS ,TNT via Express company

Also can follow customer by Sea.

Freight collect or prepaid:Of your choice.







We know time is money.Pls don't hesitate to contact us with phone,email or live chat.We'll do our best to reply you within 12 hours!
