Softel Fixed Channel CATV Cable TV Modulator 24 Channels

  • 1-9 Pieces
    $625.00
  • 10-49 Pieces
    $620.00
  • >=50 Pieces
    $599.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Customization:
Customized logo (Min. Order: 5 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 30 Pieces) Less
Samples: $650.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $650.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
SOFTEL/OEM
Model Number:
AH-2401
Characteristic:
Multi-channel Fixed Modulator
Frequency Range:
47-860MHz
Input:
Audio & Video (RCA Interfaces)
Output Level:
Fixed :113dBμV(Adj.) Agile :105dBμV(Adj.)
RF Output Impedance:
75 Ω
Frequency Stability:
Fixed: ±5KHz Agile : ±5KHz
Modulation Range:
0~90%
Voltage Input:
DC 5V for Mini Modulator, AC 240V Input for Chassis
OEM:
YES
Packing Size:
53*30*25 CM

Packaging & Delivery

Selling Units:
Single item
Single package size:
53X30X24 cm
Single gross weight:
11.0 kg
Package Type:
PE Foam protects the device, and outer package is carton, and fixed with strapping tape.
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 8 12 20 To be negotiated
Product Description

 Softel Fixed Channel CATV Analog RF Modulator 24 Channels




Description



The AH2401is a 3RU rack-mounted chassis that allows for installation of up to 24 pieces
microprocessor-controlled fixed mini-modulators.Built-in active combiner eliminates unnecessary
cabling and potential connection problem and ensures high output level .
All modulators are perfect factory set to the desired channel and proper offset.

Features
1. Switching power supply for installation flexibility and precise voltage regulation
2. Two cooling fans for long life performance
3. 40dBmV chassis output level,no need extra combiner
4. SAW(surface acoustic wave) filtering on IF for superior in band C/N
5. Front panel access controls enables easy setup

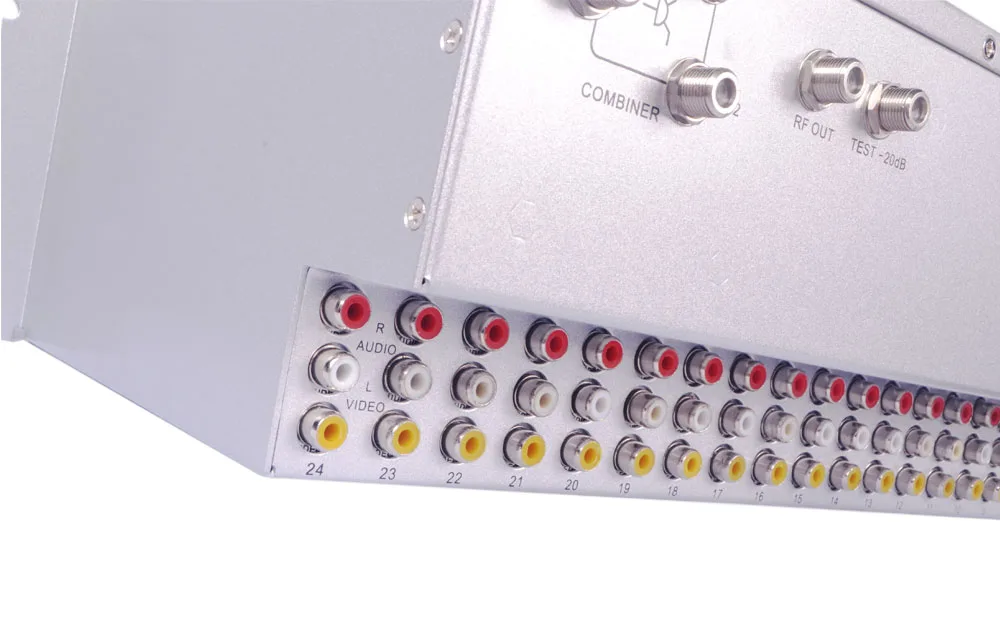

6. Rear panel has a combiner loop for easy connection
7. Stereo function optional



 Parameter



Frequency range47~860MHz
Output level>=40dBmV
C/N in-band60dB
C/N out-band62dB
Video input connectorRCA (Yellow)
Audio input connectorRCA (White)
RF output connector75Ω F-Female
Voltage inputDC 5V for mini modulator
AC 240V input chassis
Output Frequency47-860MHz
Output LevelFixed :113dBμV(Adj.) Agile :105dBμV(Adj.)
A/V Ratio-11 to -18dB(Adj.
Frequency StabilityFixed:  ±5KHz   Agile : ±5KHz
Video  75ΩF-female
 Input Level   0.6-1.5Vp-p(87.5% Modulation)
 Video C/N   50dB
 Hum/Noise   -50dB
 Modulation Range   0~90%
 Audio   75ΩF-female
 Input Level   1Vp-p(25KHz Dev.)
 Distortion   1%
