Solar Keymark.SRCC.heat pipe collector project,swimming pool,solar water heating system

FOB Reference Price:Get Latest Price
$85.00 - $3,000.00 / Set | 1 Set/Sets one sample is available (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
JIAJIARE
Model Number:
JR-SC300
Type:
Evacuated Tube
Installation:
Freestanding
Pressure:
Pressurized
Certification:
CB, CE, RoHS, UR, CCC.Solar Keymark
Circulation Type:
Indirect / Closed Loop (Active)
Heating System:
Batch / ICS (Passive)
Connection Type:
Split
Capacity:
0.212
Housing Material:
aluminum alloy
Insulation:
aluminum silicate
Vacuum tube:
3-target
Frame:
galvanized steel/aluminum alloy/SUS
Aperture area:
1.86
Frame degree:
25-45
Heat pipe:
anti-freeze copper
Heat pipe material:
aluminum alloy copper
Supply Ability
Supply Ability:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
1.We use carton and wooden box for packing
2.For sample we use wooden box
3.It is safe and reliable
Port
shanghai and ningbo
Lead Time :
within 15 days

specifications

1.High efficiency and high quality

2.15 years for guarantee

3.Doule layers foaming

4.Good preservation

 Heat pipe solar collector

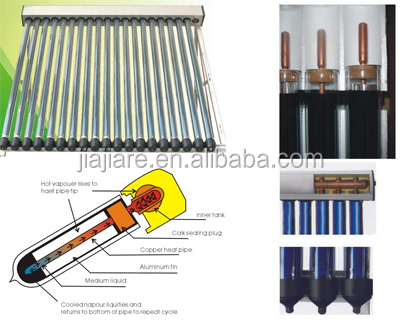

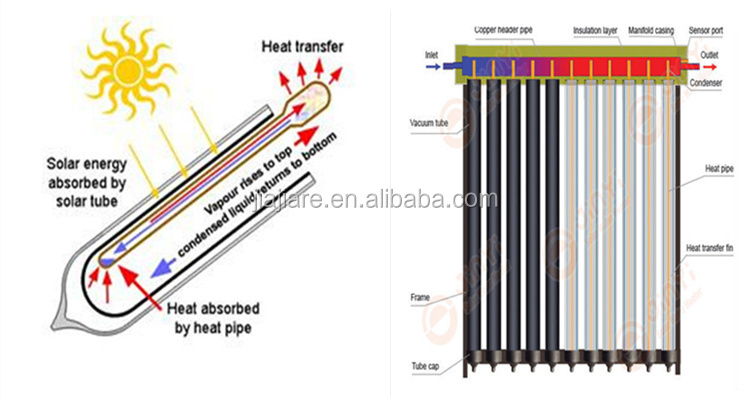

1.working principle



1.The matal heat absorption wing with selective absorption coating converts solar energy into heat energy and transfers it medium liquid inside.



2.The liquid in the heat pipe changes into vapor which rises to the condenser



3.When passing through the heat exchanger,the heat is absorbed and the temperature is lowed,and the vapor becomes liquid,returns to the base of the heat pipe.



4.This transference of heat is a continuous circulation as long as the collector is heated by the sun.








     Solar Pool Heating System work by circulating pool water directly through collectors and then rerouting the warmed water to the pool. System controllers sense when collectors are warmer than the pool water, and open valves diverting water from the pool circulator through the collectors and then back into the pool. The controller can be set to automatically keep the pool temperature anywhere between 65 and 100 degree Fahrenheit. The collectors used for solar pool heating system are often less expensive than those used for domestic hot water systems, providing significant economic advantages

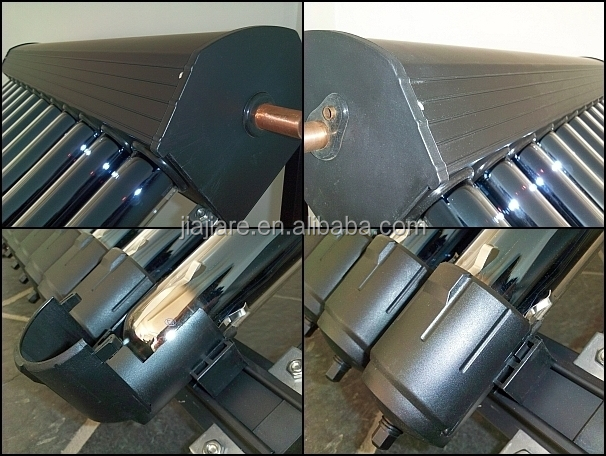

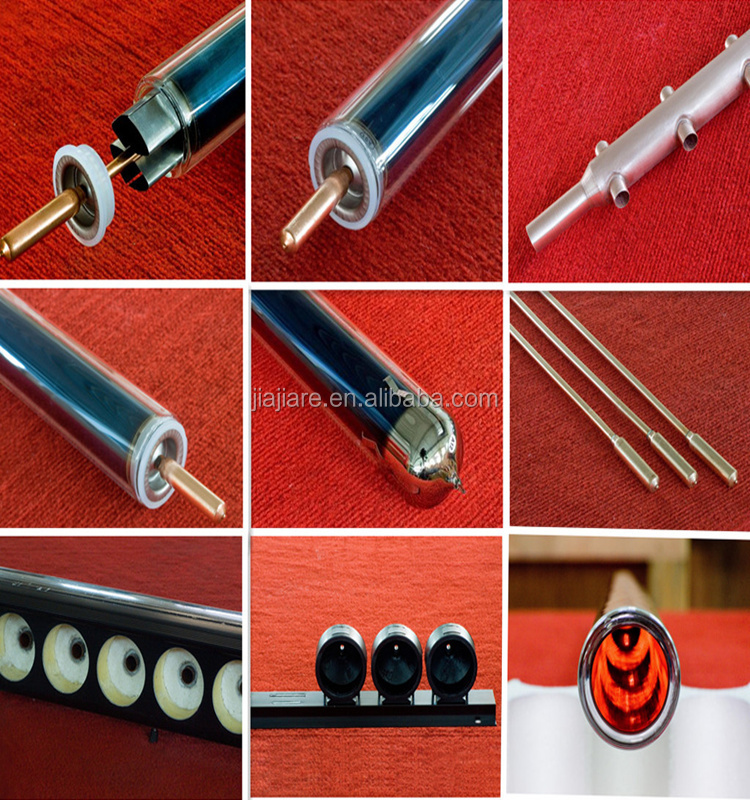

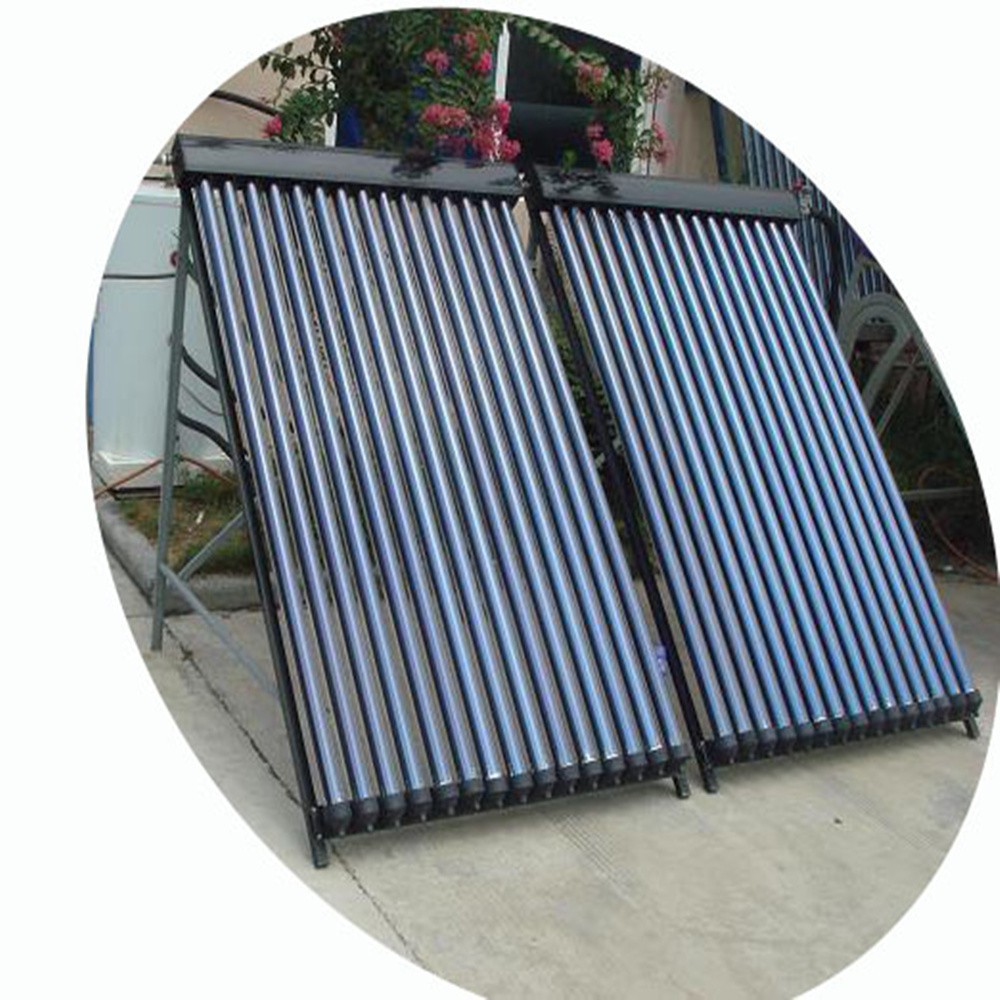

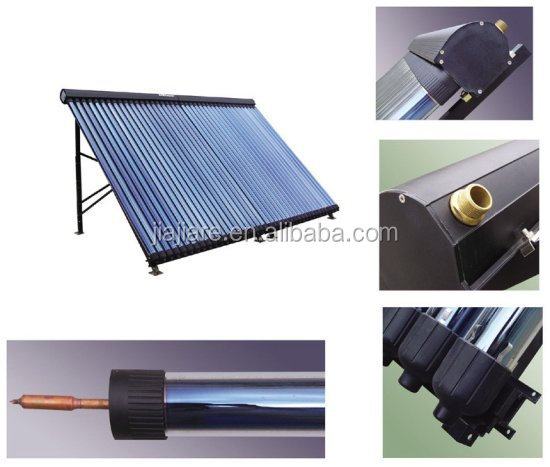

2.product show

solar pool heating 02




HTB1BqvnHXXXXXaoXVXXq6xXFXXXzSolar_Collector_heat_Pipe_for_Solar_Waterget9-



Vacuum tube 2__.jpg











3.specifications of heat pipe solar collector

Flow channel
Outer casing materialaluminum alloy
thickness2mm
colorblack and silvery white
Insulationaluminum silicate and high-density PU foaming

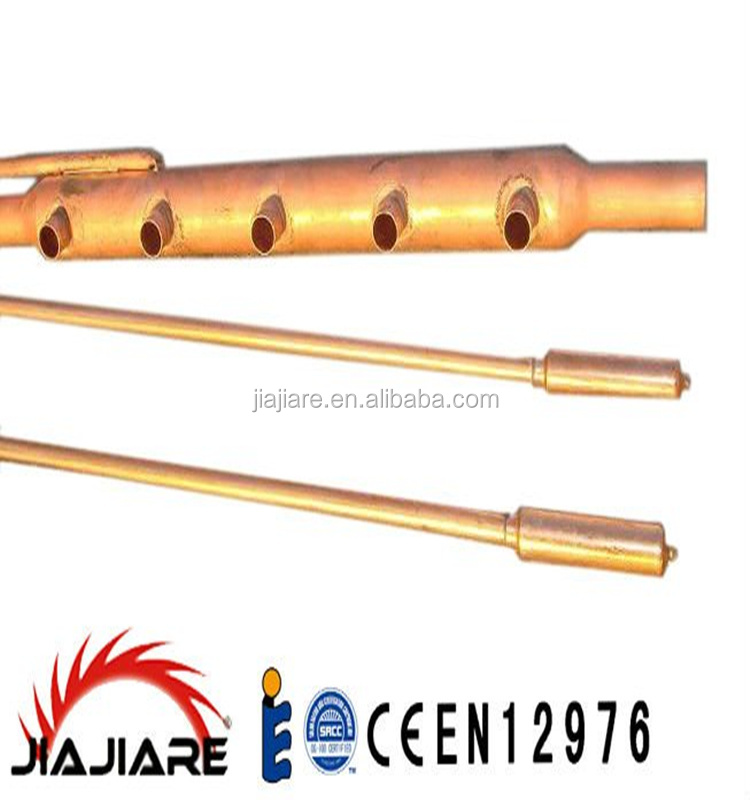

Header pipe materialcopper
diameter35mm/22mm
thickness1mm
Ender cover materialnylon 66
thickness2mm
Heat pipe vacuum tube
Vacuum tube materialhigh borosilicate glass vacuum tube
constructionSS-C/CU selective complex absortive coating
Tube diameter and length47mm/1500mm.58mm/1800mm.70mm/2000mm
Heat pipe materialred copper
diametercondensor 14mm/pipe body 8mm
Heat pipe and condensor length1.79m/60mm
thickness1mm
Aluminum fin materialaluminum
length1.6m
thickness0.25mm
Frame and caps
Frame materialaluminum alloy and galvanized steel
thickness1.5mm-2mm



Packaging & Shipping

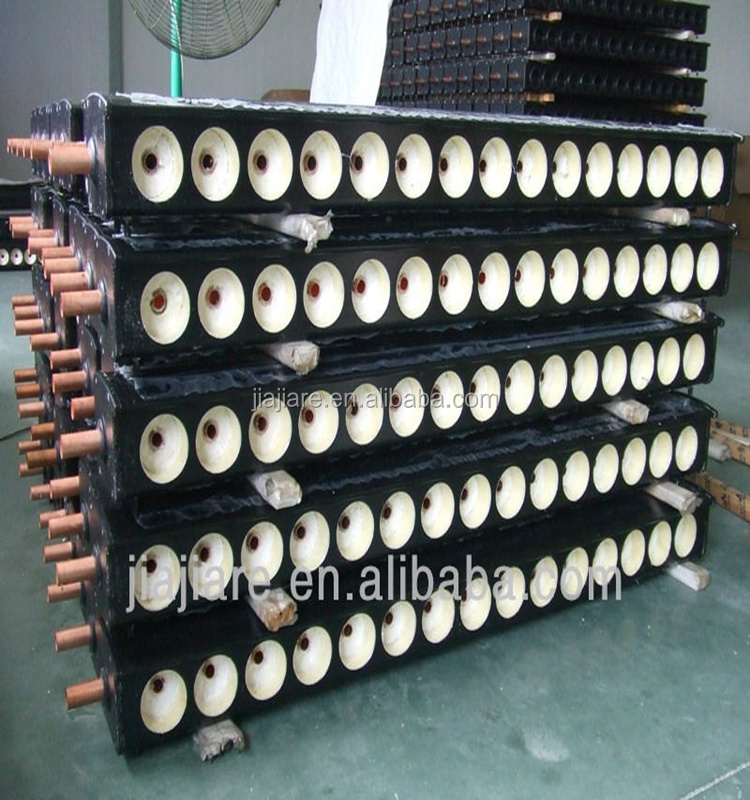

 DSCF5670_



DSCF5744_









Company Information

 1.our company

Why choose us ?

We have our clients set to list of reasons why to choose us over other solar water heater,here are our benefits

Engaged in the solar energy application technology for more than 18 years

We has received many honors and passed multiple verifications

The number of service outlets across the country, so you have no worry.

Wu researches and produces all kinds of products , widely used in hospitals, schools, hotels, etc.

1__

2.certification

QQ20150121095054_

3.exhibition

4





Our Services

 FAQ

1.Can you provide FREE SAMPLES?

   You have to pay it first,but next order we will cut the coats.(20GP)

2.What is your GUARANTEE TIME?

   10 years for vacuum tubes,3 years for water tank,and 5 years for frames,1 year for other parts.

3.Can you accept OEM and ODM?

   YES,we can print your LOGO on the product and package,It is free for containers.

4.What is your payment term?

   We accept T/T or L/C and Western Union.

5.What is your FOB port?

   We accept FOB Shanghai and Ningbo.

6.Do you have any additional services?

   YES!

   We offer free spares according to your order quality.Such as Vacuum Tube,tube holders,ducting rings,silicon rings,screws and so on.

   And we can offer LOGO DESIGN,PRODUCTS ADVERTISING DESIGN etc services free.
