Solar installation system grid tie 500kw solar power / panel system

FOB Reference Price:Get Latest Price
$0.39 - $0.59 / Watts | 1 Watt/Watts (Min. Order)
System Type:
On-Grid Solar System
Solar Power (W):
500KW
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
Greensun
Model Number:
GS-500KW-ON
Specification:
Normal
Application:
Home
Output Voltage (V):
Three phase 380Vac to 440Vac
Load Power (W):
500KW
Work Time (h):
24 Hours
Solar Panel Type:
Grade A Polycrystalline
Product name:
500kw solar panel system
AC Output:
208V/220V/380/400VAC480V
Installation Site:
Rooftop or Ground
System Warranty:
10 years
System Life Span:
25 years
Inverter:
3 Phase
Montiring:
Wifi/ShineWebBox
Certificate:
CE/IEC62109, G83/G59, VDE0126-1-1,AS4777
OEM Service:
Acceptable
Solar panel:
Poly or Mono optional
Supply Ability
Supply Ability:
100 Set/Sets per Week
Packaging & Delivery
Packaging Details
Carton, Wood Pallet and Wooden Box
Port
Shanghai or Ningbo
On grid solar system

Grid-tied, on-grid and utility-interactive all are used to describe the same concept – a solar system which is connected to the state grid/Utility.

Configuration
Grid Tie Solar System 500KW
Components Name
Description
Quantity(PCS)
GSP350-72, poly 350W
Voltage:36V Size: 1960*990*40mm
1428
Grid tie Inverter 40KW
3 phase 400VAC, 50/60HZ
11
Monitoring device
Monitor the whole solar system
Shine Box
PV Combiner Box
customized, 8Input 8Output
11
PV Cable
4mm2
11000m
MC4 Connector
DC 1500V
360pairs
Mounting bracket
roof and ground type; Aluminum/
Galvanized steel;Customized
1set
Packing & Delivery

Solar Panel

Inverter

Mounting Bracket

Pack in Pallet

Pack in Wooden Box

Pack in Container

By Express
TNT, UPS, DHL, FEDEX , Door to Door Service
By Air
Any Cargo Airport in China
By Sea
Any available in China, such as Shanghai and Ningbo
Project

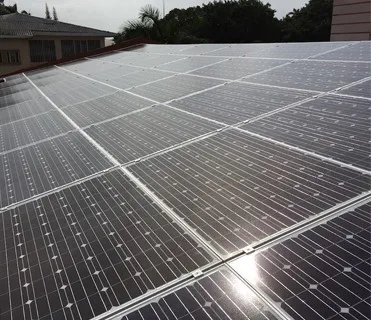

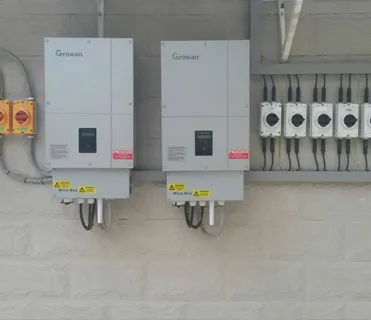

20KW On-Grid Solar Energy System with 2pcs Growatt 10000MTLP-US

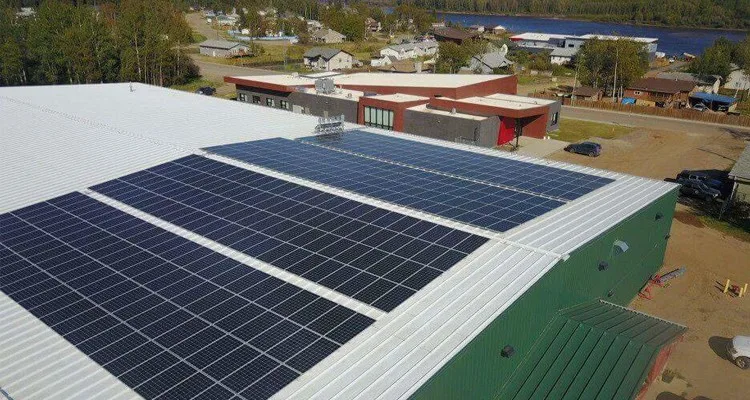

150KW Solar Power Plant in Canada

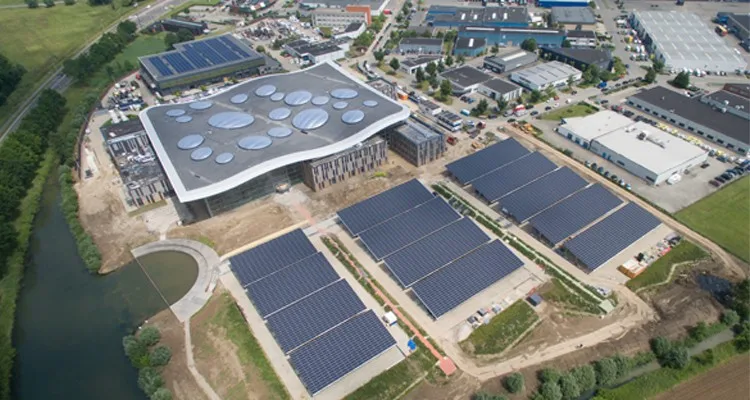

1.5MW Solar Power Generation System in Netherlands.

Components Details

Solar Panel

Poly Solar Panel, Mono Solar Panel, PERC Solar Panel, ETC.

PID free PV module
0-5W positive power tolerance

100% full EL inspection

Superior quality control

25 years warranty


Grid Tie Inverter

MPPT efficiency up to 99.5%
Integrated DC switch
IP65 protection rating

Real time monitoring available

Monitoring

Monitoring device: Wifi/Shine Lan/Shine WebBox

Get real-time data in everywhere of your solar system on your Cell Phone or PC

PV Combiner Box

DC 1000V
Lightening Arrester
DC Breaker, Fuse, SPD inside
IP65 Protection Grade

PV Cable&MC4 Connector

Cross Section: 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, ETC.                                                                        Colors: Black For STD, Red Optional.
Lifetime: 25 Years


Mounting Structure(Mounting Brakets)

Pitched roof mounting structure
Flat roof mounting structure
Ground mounting structure
Ballast type mounting structure

Car parking lot mounting structure

Compatible for all types solar modules
