Sowell ECO-2 Servo Motor High Speed Easy to Operate Full Automatic Pet Blow Molding Machine

FOB Reference Price:Get Latest Price
$12,000.00 - $18,500.00 / Set | 1 Set/Sets (Min. Order)
Bottle Volume (ml):
2000ml max
Production Capacity (BPH):
1800~2400
Lead Time:
Quantity(Sets) 1 - 3 >3
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Sowell
Application:
Bottle
Plastic Processed:
PP, PET
Condition:
New
Dimension(L*W*H):
300*180*240(cm)
Certification:
CE ISO
Voltage:
Customized
Automation:
Automatic
Blow Moulding Type:
Stretch Blow Moulding
Power (kW):
35
Applicable Industries:
Food & Beverage Factory
Key Selling Points:
Competitive Price
High Pressure Valve Brand:
Parker
Rotary Cylinder Brand:
SMC
PLC Brand:
Schneider
Hollow part volume:
2000ml max
Weight (KG):
2500
After-sales Service Provided:
Engineers available to service machinery overseas, Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
Power(W):
35kw
Weight:
2500kg
Suitable bottle:
PP PET bottbles
Advantages:
Fast,low consumption,stable
Machine capacity:
2000ml
Bottle max diameter:
105mm
Bottle max height:
330mm
Mold cavity:
2
OEM/ODM service:
Yes
Warranty:
Two Years
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 3 >3
Est. Time(days) 45 To be negotiated

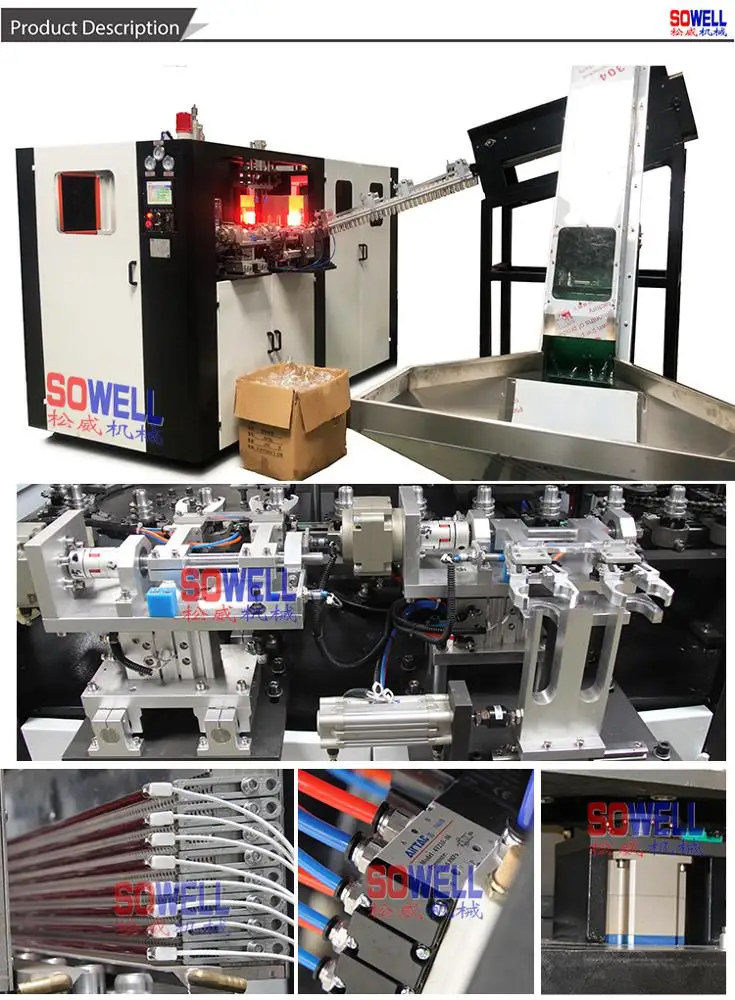

Product Description



Servo Motors, Convenient, Energy Saving



Suitable for all PET Container less than 2000ml, neck size 18-38mm;

carbonated bottle, mineral water, oil bottle, cosmetics, Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

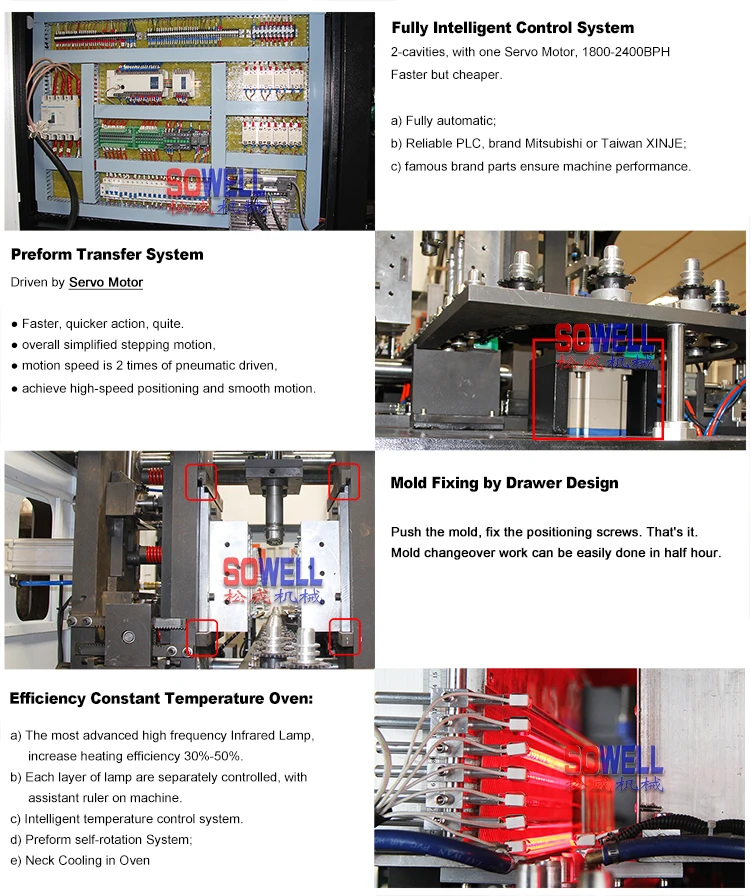

Main Features

1) Two Servo Motors, controls Preform Feeding and Preform Transfer System.

      Recycle time could be shortened from 4sec to 2.2sec, double the machine output.

2) The most advanced high frequency Infrared Lamp, increase heating efficiency 30%-50%.

3) Mold fixing by Drawer Design, mold changeover work can be easily done in half hour.

4) Efficiency Constant Temperature Oven.

5) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

6) Overall computer control, easy to operate.

7) Can connect with the air conveyor ,which can directly inline with filling machine .




Technical Parameter

Technical-Parameter



Items ModelECO-2ECO-4SECO-4LECO-6SECO-6L
 OutputBottle/hour2400BPH5000BPH4500BPH7000BPH5000BPH
BottleMax. Volume 2000ml750ml2000ml750ml2000ml
Max. Heightmm330240330240330
Max.Diametermm1057010570105
MoldCavities 24466
Mold Open Strokemm130120130120130
ElectricalPowerKW
Total Rate PowerKW3450666698
PowerConsumptionKW2022323046
AirOperation PressureMPa0.8-1.00.8-1.00.8-1.00.8-1.00.8-1.0
Low Pressure Air Consumingm3/min2.02.02.02.02.0
Blowing PressureMPa2.6-4.02.6-4.02.6-4.02.6-4.02.6-4.0
High Pressure Air Consumingm3/min2.43.24.83.26.4
Size&WeightMain Machine Size(L*W*H)mm3000*1800*24003300*2000*22004200*2100*24004200*2050*22004900*2150*2400
Machine WeightKGS40004200500050005800
Product Applications

Product-Application-1

Process Flow Diagram

Process-Flow-Chartpet-blowing-processStretch-Blow-

Related Products
Certifications

Certificates-1

Our Services



Our-services-1

    Pre-Sales Service

  • Inquiry and consulting at email/WhatApp/SNS
  • Welcome to visit our Factory.
  • We offer Turnkey Project Solution for PET preforms & bottles production line.

    After-Sales Service

  • Guarantee for 2 years.
  • Training for machine installation & operation.
  • Engineers available to service machinery overseas.
