Special Shape thermal break strut for OEM service

Feedback Ratings
  • 5000-49999 Meters
    $0.17
  • 50000-399999 Meters
    $0.16
  • >=400000 Meters
    $0.15
1 batch = 500 Meters
Quantity:
- + Meters available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Economical Choise
Model Number:
KXT-CS007
Type:
Other Door & Window Accessories
Color:
black
width:
It can be required
thickness:
Customized
length:
Customized
main raw materials-1:
pure and clean recycled PA66
main raw materials-2:
short chopped fiberglass
OEM Service:
Available
Plastic Modling Type:
Extruding

Packaging & Delivery

Selling Units:
Multiple of
Package size per batch:
120X120X20 cm
Gross weight per batch:
26.0 kg
Package Type:
Customized thermal Insulator packed as a coil, 500 meters per coil, less than 4 broken ends per coil.
Picture Example:
package-img
Lead Time :
Quantity(Meter) 1 - 5000000 >5000000
Est. Time(days) 15 To be negotiated
Customized Polyamide66 GF25 Thermal Break Strip
Detailed information:
    shaped I 14.8 PA66GF25 heat insulating strut in thermal break aluminium profiles , shapes and widths can be customized.
    Manufacturing standard for PA66GF25 heat insulating strut in thermal break aluminium profiles was in compliance with  Chinese national standards GB/T 23615.1-2009 (please kindly refer to the performance tables below), produced and extruded by raw materials of pure and clean  PA66 + 25% short chopped fiberglass.

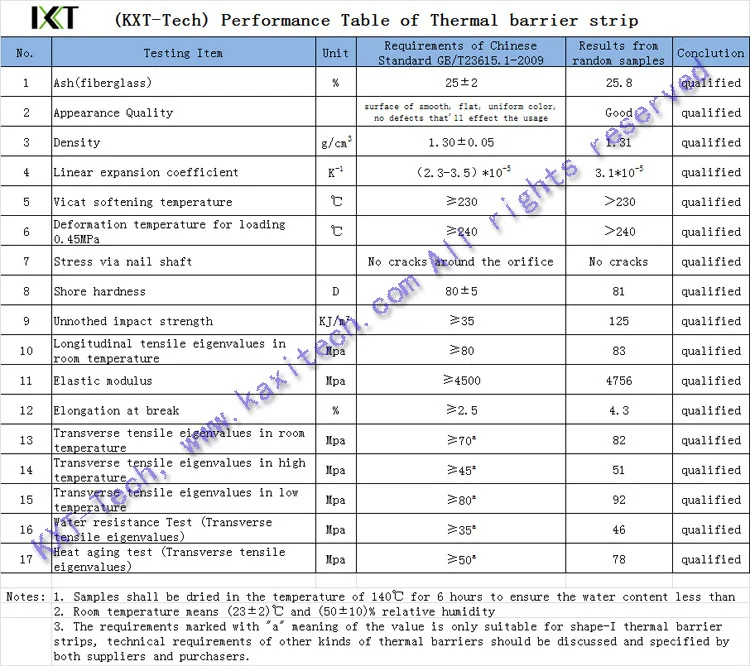

Technical performance:
(Note: If "KAXITE Series" Suffixed in name, refer to the second performance table)
 For Economical Choise (made of clean and pure recycled nylon), you can see the performance of PA66GF25 thermal insulaion strips as shown below:
Need higher performance? Made the Luxurious Decision (KAXITE Series)(made of pure new raw material of PA66), you can see the extremely better performance of PA66GF25 heat insulating strut in thermal break aluminium profiles as shown below:

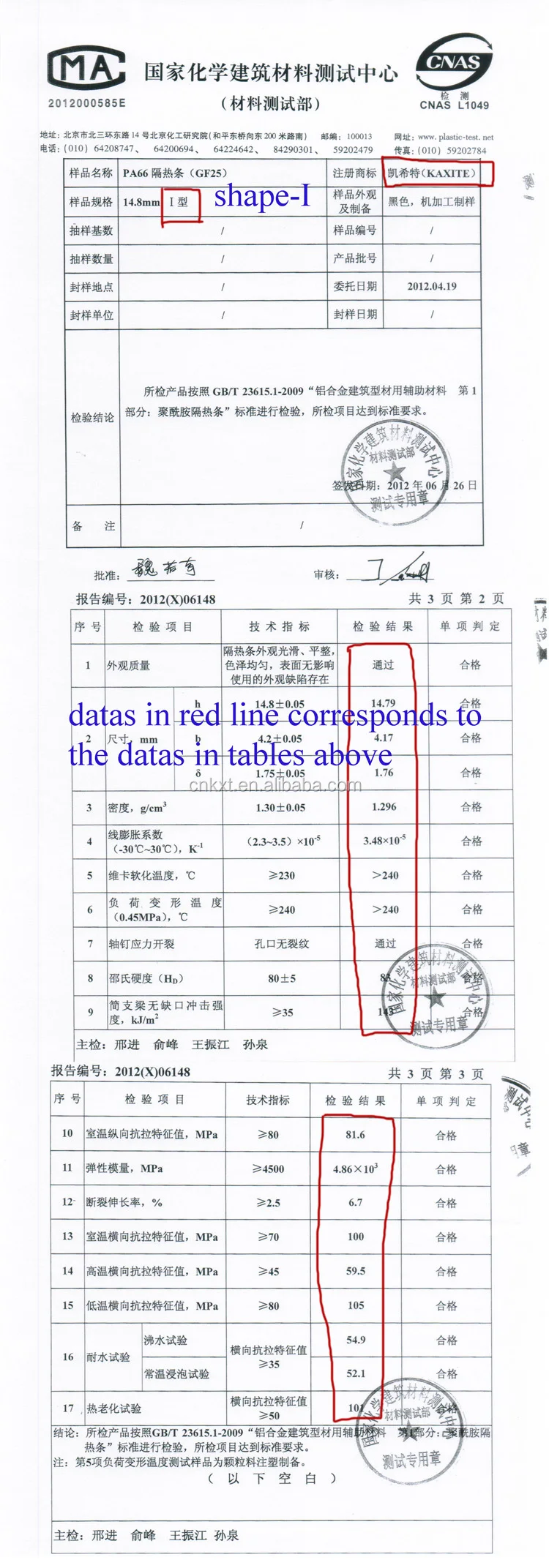

Testing result from National Testing Organization:
You do not believe the datas in "Results from random samples" in the table above?
KXT-Tech who has the PA66GF25 heat insulating strut in thermal break aluminium profiles of Kaxite Series is the first one who got the recognision by the most authoritative  testing organization in China -- CNAS, now you'll find the testing report we got from CNAS as below, as well as the datas:

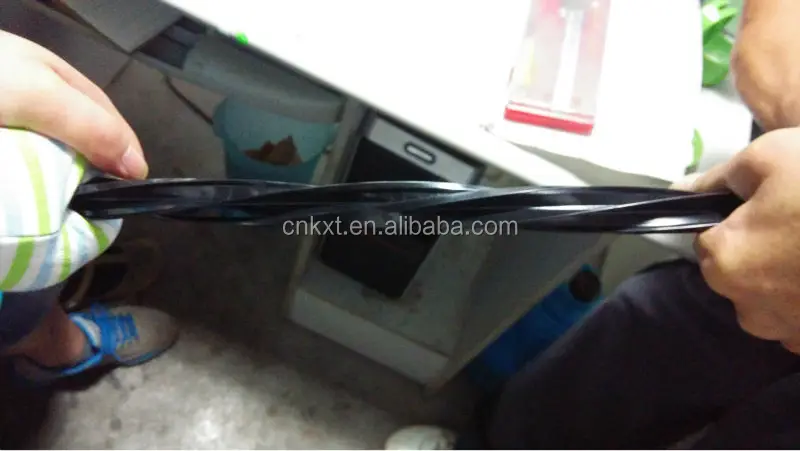

  Twisting Test

About the price:

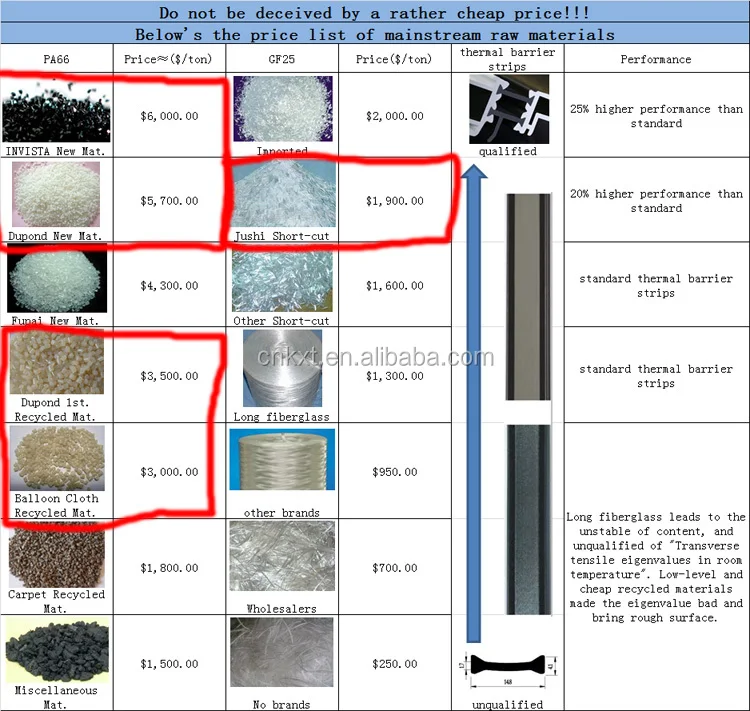

Why there's rather lower price in the market for PA66GF25 heat insulating strut in thermal break aluminium profiles? You'll know why when you find the datas below about the prices of raw materials.
 Materials in red boxed were what we use. Dupond materials are for Kaxite series thermal barriers ( Luxurious Decision
), and later below that ( balloon recycled or Dupond recycled) are for Economical Choise.

The most important component in the raw material :
  What's the most important component in the raw material of PA66GF25 heat insulating strut in thermal break aluminium profiles? Not Dupond, not extremely expensive fiberglass, it's Anti-aging agent and Antioxidants.

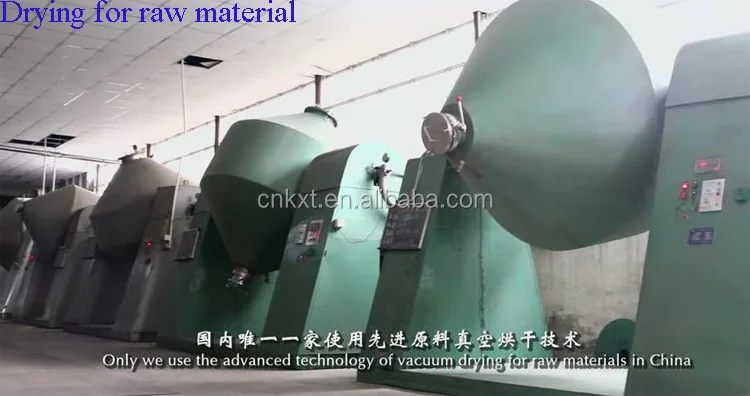

   Think what will happen if there's no such anti-aging agents or antioxidants? PA66GF25 heat insulating strut in thermal break aluminium profiles may aging fastly under wind and sun, maybe just less than 10 years, the polymer profiles would broken and glasses and windows will fall from such high curtain walls!! It's killing! But now most finished raw materials in the market for thermal barriers manufacturers have no such antioxidants due to it's high cost, so in order to avoid the phenomenon, we have our own capacity of granulation to ensure that our raw materials contain these important elements!

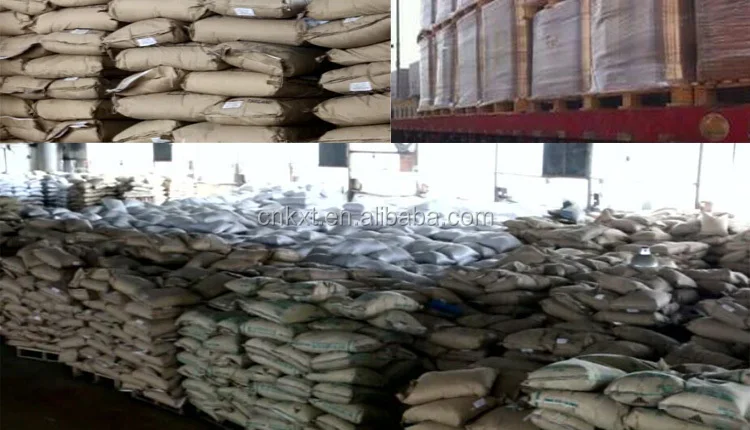

Note: Raw materials are available for you if you need, just contact us!

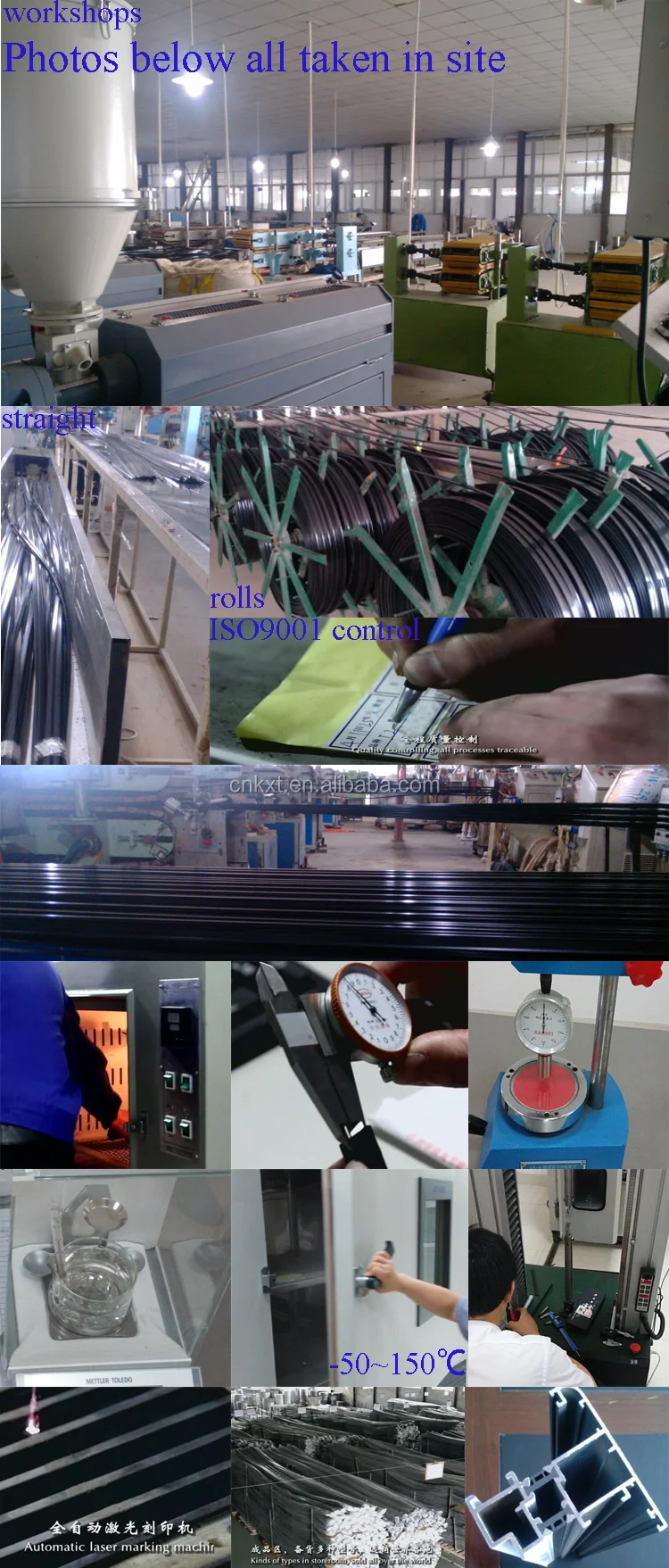

Manufacturing process is strictly in line with ISO9001:2008, and do the test and inspection in our own labroary:

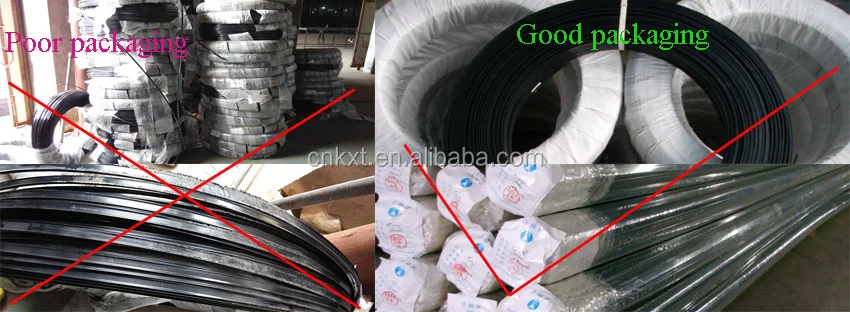

Good package, take care of what you care about!
Our social influence in the industry of energy-saving materials. National industrial symposia about aluminium thermal break profiles with polyamide PA66GF25 heat insulating strut in thermal break aluminium profiless always chaired by us.

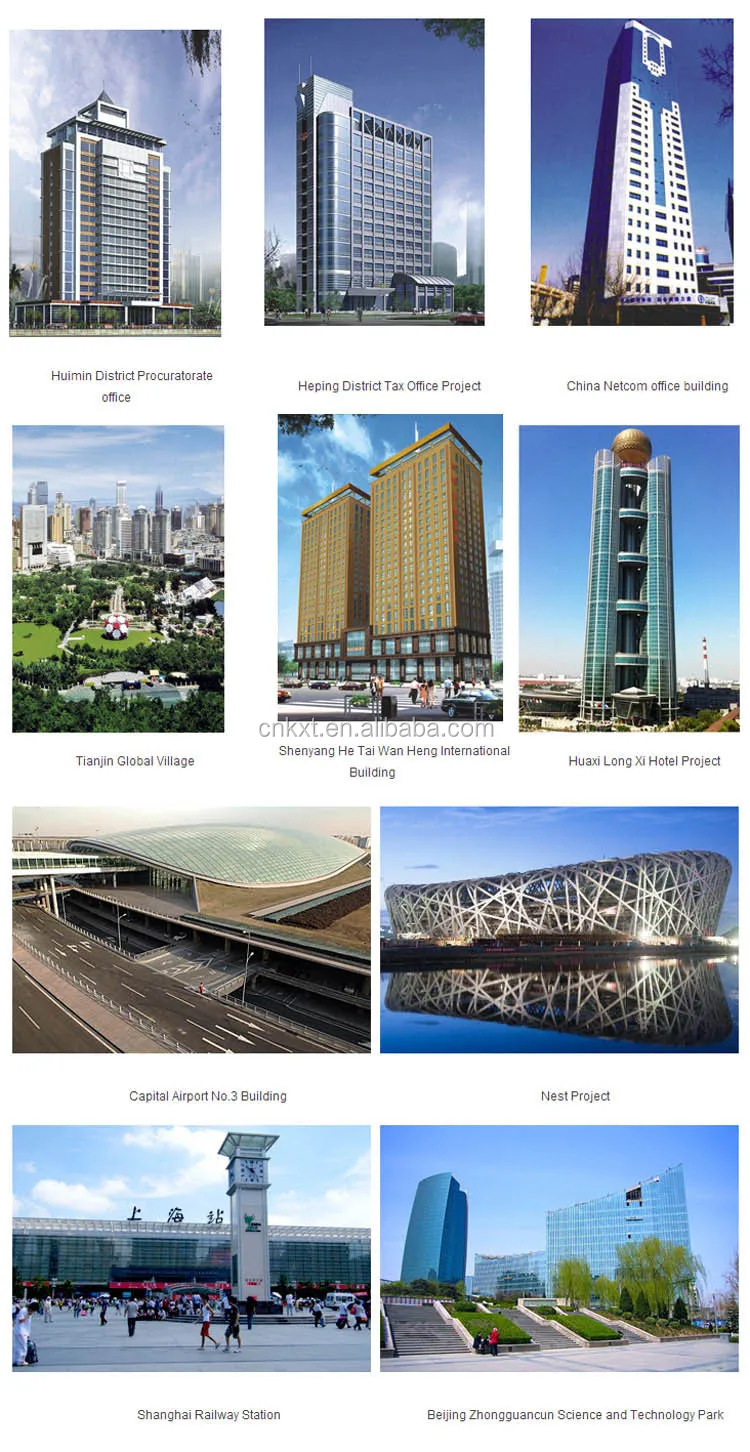

Our successful projects in domestic country:   our PA66GF25 heat insulating strut in thermal break aluminium profiles were used in most huge projects in China, such as Huimin District Procuratorate office, Heping District Tax Office,Shandong Province, China Netcom office building, Tianjin Global Village, Shenyang and Tai Wan Heng International Building, West Long Xi Hotel, Capital Airport Air War 3 floor, Nest, Shanghai Railway Station, Beijing Zhongguancun Science and Technology Park.

What is PA66GF25 heat insulating strut in thermal break aluminium profiles?
  • PA66GF25 heat insulating strut in thermal break aluminium profiles are made from resins that create a “thermal break” between the inner and outer surfaces of aluminum fenestrations.
  • PA66GF25 heat insulating strut in thermal break aluminium profiles reduce heat loss or heat gain through the aluminum.
  • PA66GF25 heat insulating strut in thermal break aluminium profiles improve the U-value characteristics of finished systems.
  • PA66GF25 heat insulating strut in thermal break aluminium profiles are about energy conservation, U-values and government codes
  • 70% of aluminum fenestration systems produced in North America contain a thermal break
  • Primarily used in colder climates to reduce heat loss
  • Increasing use of thermal barriers to reduce heat gain and also reduce heat loss
  • Developers, architects and designers are demanding better performance in terms of power usage
  • Stricter government regulations to reduce power usage in buildings to combat environmental concerns
  • Aluminum, if it is to retain its market superiority in terms of its structural integrity, will have to achieve better performance in terms of U-values
  • The use of PA66GF25 heat insulating strut in thermal break aluminium profiles will assist manufacturers to achieve improved LEED performance
The data in "What is PA66GF25 heat insulating strut in thermal break aluminium profiles" was derived from the AAMA/WDMA U.S. Industry Statistical Review and Forecast - 2008/2009 (Published April 2009)

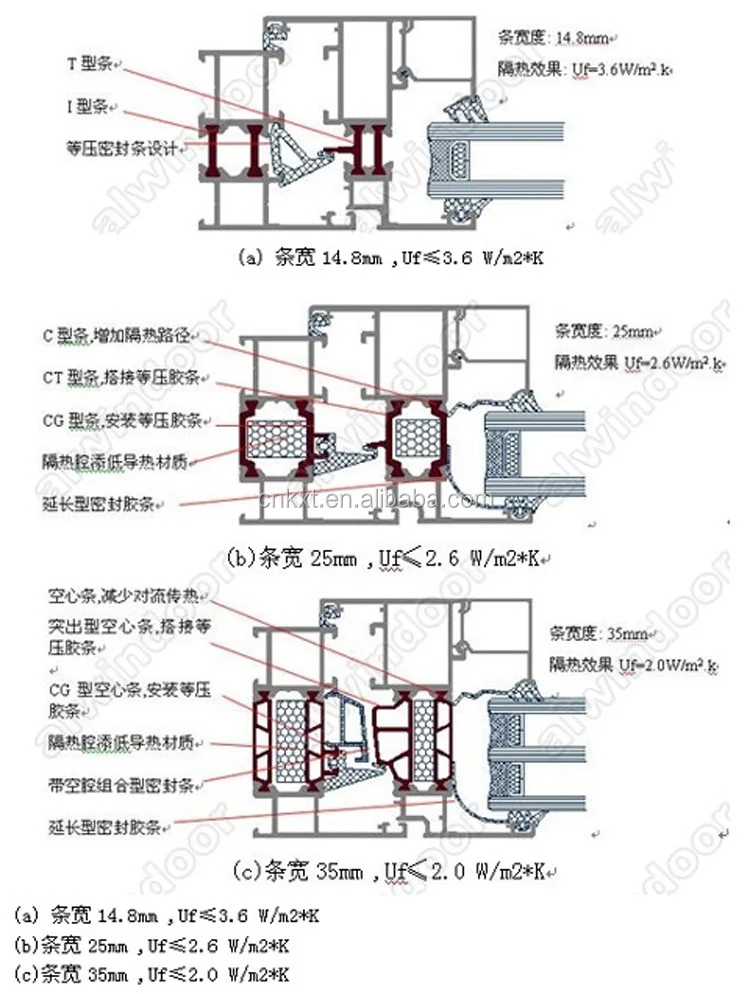

Note: The wider the PA66 polymer profile is, the better U value it will reach.
Product Features:
1, The PA66GF25 heat insulating strut in thermal break aluminium profiles were manufactured in line with Chinese national standards GB/T 23615.1-2009, with extremely high mechanical strength and withstand tensile shear stress, can be acted as the connecter to the hardware; if you need higher properties, please choose our kaxite series polyamide profiles which were produced with pure new raw materials, most of these PA66 particles were purchased from Dupond, and all the finished polyamide profiles were in compliance with the European standard UNE EN14024.
2, the linear expansion coefficient is close to aluminum, to ensure that when temperature changes, the PA66GF25 heat insulating strut in thermal break aluminium profiles and aluminium profiles expanding in the same time to ensure fitting closely;
3, highly heat distortion temperature, to meet subsequent processing on the surface of profiles;
4, high dimensional accuracy, ensuring airtight, watertight performance of the windows breaking thermo with polymer profiles;
5, anti-aging, anti-UV performance, long using life;
6, superior chemical resistance.

service advantages:
1, the design and development of new insulation strips, for any kinds of shapes you need for the PA66GF25 heat insulating strut in thermal break aluminium profiles, we can develop mould in a short time and send you the samples, actually we’ve successfully solved so much headaches for our customers and received satisfaction;
2, we offer the most advanced laser marking machine for custmers if a special mark on the heat insulation strip is needed;
3, Here we offers most sizes from 10mm width to 60mm or even bigger heat insulating strips, which’s your best favor?
4, We provide matching equipment of PA66 thermal barrier profiles for customers for the corresponding service followed.

storage conditions:
It’s better to be stored in ventilated and dry environment, should be put horizontally, keep away from water, rain, heat, stress, and avoide acids, alkalis and organic solvents meanwhile.

Packing:
Straight: 6 m / bar, 10~100 pieces per bundle as you like.
Roll bar: 500 meters / roll (only for the shape I and shape C pieces.
