Speed Reducer Gearbox Speed Reduction Gearbox for Conveyor

FOB Reference Price:Get Latest Price
$110.00 - $1,000.00 / Piece | 1 Piece/Pieces (Min. Order)
Rated Power:
2-130KW
Model Number:
SMR
Lead Time:
Quantity(Pieces) 1 - 1 2 - 1000 >1000
Est. Time(days) 7 20 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Samples:
$110.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining
Gearing Arrangement:
Helical
Output Torque:
2.68-134.2N.m
Input Speed:
1440rpm
Output Speed:
10-407rpm
Place of Origin:
Zhejiang, China
Brand Name:
FIXEDSTAR
Product Name:
Speed Reducer Gearbox Speed Reduction Gearbox for Conveyor
Solution:
Mining, Belt Drive, Conveyor
Size:
B-J
Lubrication:
Synthetic Oil, Mineral Oil
Warranty:
12 Months
Certificate:
CE; ISO9001
Product Certification certification
CE Certified.
Valid from 2006-04-18 until 2049-12-31
Supply Ability
Supply Ability:
200000 Piece/Pieces per Year
Packaging & Delivery
Packaging Details
Standard export packing and wood pallet packing
Port
Shanghai or Ningbo Port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 1000 >1000
Est. Time(days) 7 20 To be negotiated
Detailed Images

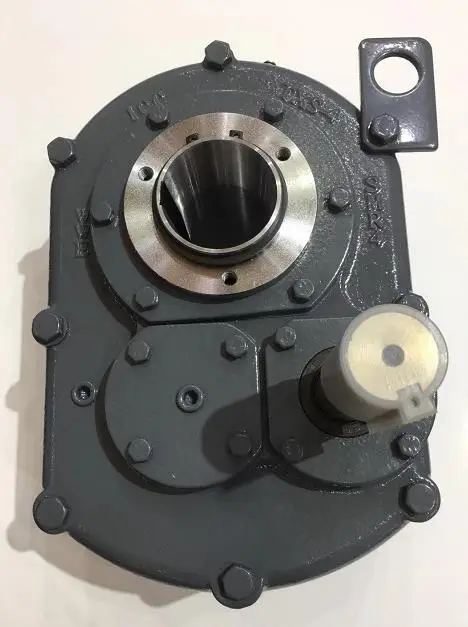

Detailed Images of Three Types Speed Reducer Gearbox Speed Reduction Gearbox for Conveyor

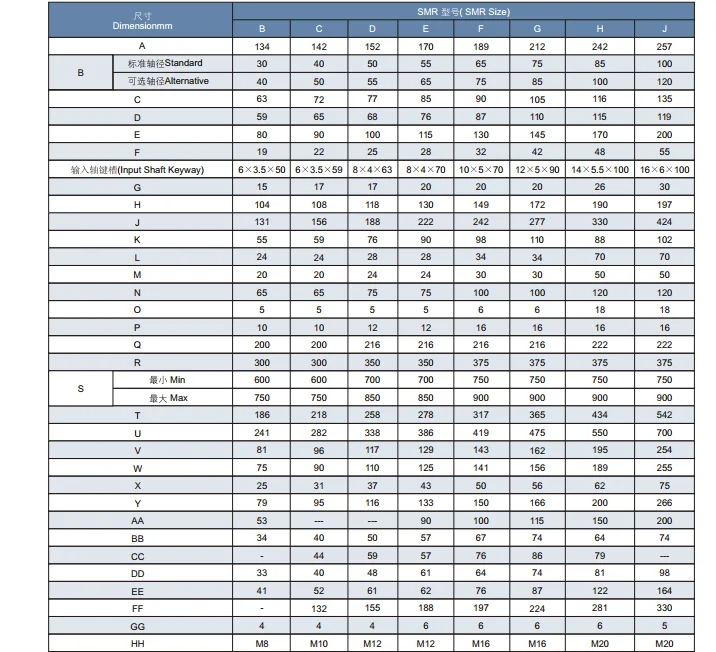

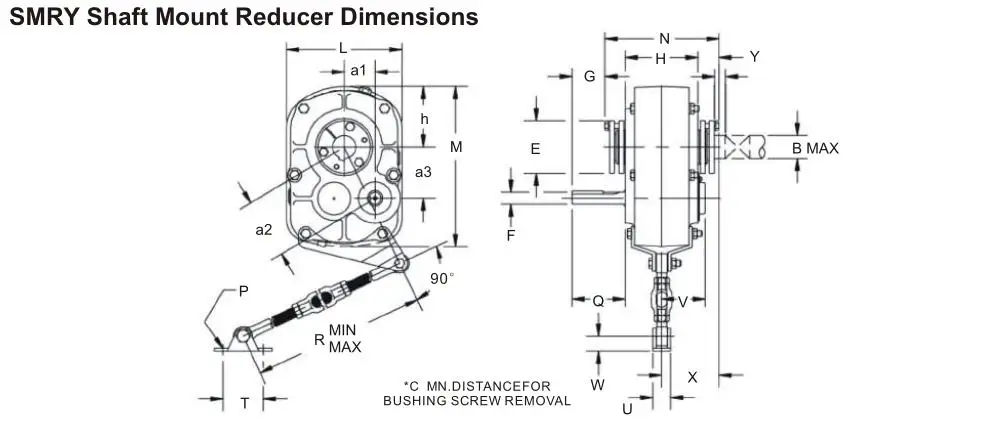

Detailed Dimensions of Speed Reducer Gearbox Speed Reduction Gearbox for Conveyor
Product Description

1. Speed Reducer Gearbox Speed Reduction Gearbox for Conveyor


1. Precision High Quality Gearing


Computer designed helical gears, strong alloy materials for high load capacity, ground profile (some intermediate pinions are shaved). Crown tooth profile, in conformance with ISO 1328-1997, 98% efficiency for per stage, smooth quiet operation with several teeth in mesh.


2. Output Hub


*Standard or alternative output hole diameter for choice as follow.

ITEM
Standard output hole diameter
Alternative output hole ø
B5
ø30
ø25/35/40
B13/20
ø30
ø25/35/40
C5
ø40
ø35/45/50
C13/20
ø40
ø35/45/50
D5
ø50
ø45/55/60/65
D13/20
ø50
ø45/55/60/65
E5
ø55
ø50/60/65
E13/20
ø55
ø50/60/65
F5
ø65
ø60/70/75
F13/20
ø65
ø60/70/75
G5
ø75
ø70/80/85
G13/20
ø75
ø70/80/85
H5
ø85
ø80/90/95/100
H13/20
ø85
ø80/90/95/100
J5
ø100
ø90/95/105/110/105120
J13/20
ø100
ø90/95/105/110/105120

3. Strong Alloy Steel Shafts


Strong alloy steel, hardened, ground on journals, gear seatings and extensions, for maximum torsional loads. Generous size shaft keys for shock loading and conform to ISO standards.


4, Back Stops


Alternative parts, anti-run back device, are available on all 13:1 and 20:1. Ratio units and do not recommend for 5:1.


5. Torque Arm Assembly


For easy adjustment of the belt.

Packing & Delivery

Packing Images of Speed Reducer Gearbox Speed Reduction Gearbox for Conveyor

Inner Packing: PP bag with carton;
Outer Packing: Wooden case;
Shipment: 20-30 days upon receiving the deposit.
