Spindle Motor Speed Control DC Motor start drive

FOB Reference Price:Get Latest Price
$100.00 - $600.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
ISTECH
Model Number:
IST200
Output Power:
18.5kW
Input Voltage:
AC 415V
Output Voltage:
AC 380V/415V/440V
Type:
AC/AC
Output Type:
3 Phase
Output Current:
37A
Output Frequency:
0-3200HZ
Size:
470*290*217
Weight:
35kg
product name:
Spindle Motor Speed Control
Certificate:
CE
Protection:
IP20
Control MODE:
Vector, V/F
Warranty:
2 Years
Starting torque:
Open-loop:150% Rated Torque
Carrier frequency:
0.5 kHz-16kHz
Torque boost:
0.1%-30.0%
Communication:
MODBUS/ RS485/Profibus-DP
Filter:
Built-in C3 filter
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week Spindle Motor Speed Control
Packaging & Delivery
Packaging Details
1 separate carton packing of Spindle Motor Speed Control
Port
SHANGHAI,NINGBO,GUANGZHOU,SHENZHEN
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 3 To be negotiated
Product Description

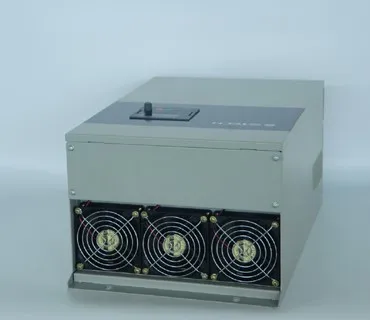

Spindle Motor Speed Control DC Motor start drive



IST200 series Spindle Motor Speed Control DC Motor start drive is a general-purpose high-performance current vector control AC drive.
It is used to drive various automation production equipment involving textile, paper-making, wiredrawing, machine tool, packing, food, fan and pump.

General Specification of Spindle Motor Speed Control

Input voltage: 1Phase 220V, 3Phase 220V,380V,415V,480V
Output voltage: 3Phase 220V,380V,415V,480V
Adaptable Motor:
1Phase 220V 0.75kW-5.5kW 1hp-7.5hp
3Phase 220V 0.75kW-75kW 1hp-90hp
3Phase 380V 0.75kW-400kW 1hp-450hp
3Phase 480V 0.75kW-400kW 1hp-450hp


key component list

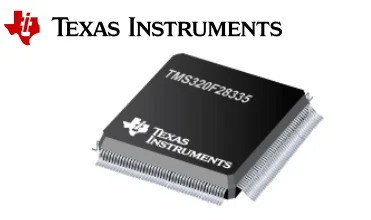

DSP CPU

Brand:     TI

Original:  USA
High performance static CMOS Technology
Up to 150MHz (6.67ns cycle time)
High performance 32 bit CPU (TMS320C28x)
IEEE-754 single precision floating point unit (FPU)

IGBT

Brand: Infineon

Original: Germany

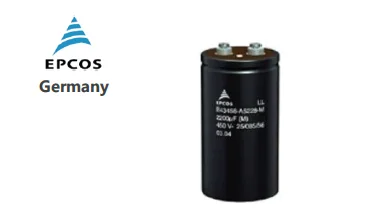

Capacitor

Brand: EPCOS
Original: Germany



Our Services



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Company Information

Shanghai ISTECH(CNC Group)



Shanghai ISTECH Electric Co., Ltd. is a high tech enterprise belongs to CNC Electric Group.The headquarters is located in        Shanghai, China.



ISTECH focuses on R&D, manufacture and sales of Variable Frequency Drive (VFD). With the pursuit of "green energy saving  and customer value promotion", ISTECH committed to providing quality products and services to customers and always enjoy a good reputation on the global VFD market.

Electronic Factory

Whole Set Factory

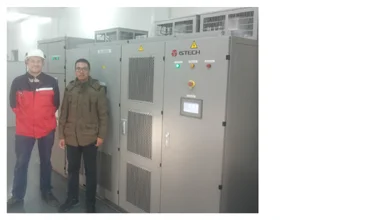

Medium Voltage VFD Test

Low Voltage VFD Test

1600kW On load Test Motor

R&D Center

FAQ

 1. What's the relationship of ISTECH and CNC Electric Group?
Shanghai ISTECH is a subsidiary of CNC Electric Group, which established in 1988, Top 500 electric enterprise in China.

2. What's the Variable Frequency Drive ?
Variable Frequency Drive is shortname as VFD, VSD, Inverter, AC Drive and so on. Which can adjust the motor's rotator speed, change the frequency.



3.What's the basic functions of VFD?
1)Soft start,  2) Stepless speed regulation, 3) Energy saving, 4)Multiple protection,  5)Automation.



4.How long the life of VFD?

Although VFD is a static device, but include the consuming device such as filter capacitor, cooling fan. If they are regular maintenance, VFD is expected to use for more than 10 years.



5.What's the difference between Soft start and VFD?
Soft starter is actually a voltage regulator for motor starting, only change the output voltage; VFD not only change the

voltage, but also the frequency, adjusting the motor's rotator speed.


6.How to select the suitable VFD according to the different load?
A. Fan and Pump: Normally, select the same power capacity of VFD for motor. (But Air compressor, deep solar pump 3phase 480V, mud pump, the rapid change of the music fountain need to increase capacity).

B. Crane: Due to Start impact is very big, select the more power capacity of VFD for motor. Meanwhile, when the weight is lowered, there is an energy feedback, so the brake unit or the common bus mode is used.

C. Uneven load: Sometimes light weight, sometimes heavy, should select the power capacity of VFD according to the heavy load, such as steel rolling mill machinery, crushing machinery, mixer, etc..

D. Large inertia load: Select larger power capacity of VFD for this kind load, to speed up the start and avoid oscillation.
