Sponge Sofa/Furniture Laser Cutter Price SF1610

FOB Reference Price:Get Latest Price
$800.00 - $10,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Applicable Material:
Acrylic, Crytal, Glass, Leather, MDF, Paper, Plexiglax, Plywood, Rubber, Stone, Wood
Laser Type:
CO2
Cutting Area:
1600*1000mm
Cutting Speed:
1-24000mm/min
Graphic Format Supported:
AI, BMP, DXP, PLT
Application:
Laser Cutting
Model Number:
SF1610
Cutting Thickness:
30mm acrylic,10mm wood
CNC or Not:
No
Cooling Mode:
Water Cooling
Control Software:
DSP Control
Place of Origin:
Shandong, China (Mainland)
Brand Name:
senfeng
Certification:
CE, ISO, SGS
working area:
1600*1000mm
laser type:
sealed co2 laser tube
cooling mode:
water cooling
driving system:
stepper
working voltage:
AC110-220V±10%,50-60HZ
controlling software:
DSP control system
compatible software:
CorelDraw,AutoCAD,Photoshop
guarantee time:
1 year,laser tube 3 monthes
Supply Ability
Supply Ability:
530 Set/Sets per Year
Packaging & Delivery
Packaging Details
wooden case
Port
qingdao shanghai guangzhou
Lead Time :
8 days after your deposit

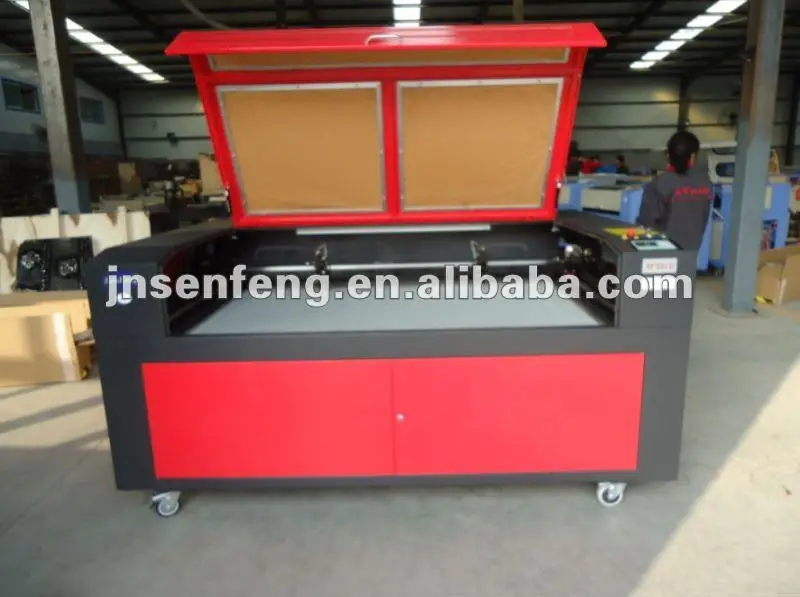

Sponge Sofa/Furniture Laser Cutting Machine SF1610

Specifications:
Name:
Laser cutting machine SF1610
Processing area
1600mm*1000mm(5.3feet*3.3feet)
Laser power
60W,80W ,100W,130W,150W
Laser type:
Co2 glass laser tube
Software:
Laser cut 5.3
Dimension:
3.3m*2.3m*1.3m
Engraving speed
1-6000mm/min
Cutting speed
1-1000mm/min
Cutting thickness
0-20 acrylic (others determined by materials)
Resolution ratio
≤0.0125mm
Position system:
Red dot
Interface:
USB
Minimum shaping character
letter 0.5mm, Chinese 0.5mm
Support graphic format
DST, PLT, BMP, DXF
Gross power
1000W
Driving mode:
DC0.8A 24V stepper motor
Cooling mode:
Circulation water cooling
Working voltage:
AC220V/50HZ or 110V/60HZ or depend on customer
Operating temperature
0-45C
Operating humidity:
5-95%
Packing:
wooden box
Guarantee time:
1 year, laser tube 3 months
Option:
Rotary attachment for column materials
Operation:
Video to tell customer how to operate the machine
 Guarantee and after-sale service

1. 12 months for machine,long life span of laser tube:1500-3000 hours.

2. 24 hours technical support by e-mail, calling or door-to-door service

.English software, user manual and detailed Videos CD

4.International quality certificate:CE,FDA,SGS,ISO9001:2008

5. professional laser machine supplier with 8 years experiences in China

Optional parts

Optional  parts

Function

Up and down worktable

Adjust height od table to make it move automatically

Rotary attachment

Engrave cylinder such as pens,bottles and so on

Red light pointer

Make the laser beam visible

USB port

Machine work without computer

Auto focus

Engrave uneven surface

Double laser heads

Meet mass production

Applicable materials:

Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.

                 looking for agents all over the world
