Square bottle sticker label manual bottle labeling machine front and back side label

$2,102.00 / Set | 1 Set (Min. Order)
Power:
330W
Model Number:
TY-801
$2,102.00
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
Packaging Type:
Bottles
Packaging Material:
Glass, Metal, Paper, Plastic, Wood
Type:
Labeling Machine
Condition:
New
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Place of Origin:
Guangdong, China
Brand Name:
TransOcean
Voltage:
220V/50HZ
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Weight:
70kg
Automatic Grade:
Semi-Automatic
Certification:
CE Certificate
Driven Type:
Electric
Dimension(L*W*H):
950*780*900mm
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Key Selling Points:
Easy to Operate
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, United Kingdom, United States, Viet Nam, Philippines, Pakistan, Thailand, Colombia
Showroom Location:
Egypt, United Kingdom, United States, Viet Nam, Philippines, Pakistan, Thailand, Malaysia
Bottle type:
Square
Labeling speed:
15-30pcs/min
Material:
SUS 304 Stainless Steel
Advantage:
Economy Labeling Machine
Label Roll:
Inner Diameter : 76mm
Power Supply:
220V 50hz Single Phase (customized)
Labeling precision:
±0.5 mm
Label material:
Sticker/Transparent label

Packaging & Delivery

Selling Units:
Single item
Single package size:
109X57X104 cm
Single gross weight:
75.0 kg
Package Type:
1) Deduct & Cleaning 2) Lubricate Drive Parts 3) Divide Machine Into Modules 4) Wrap Modules With Plastic Film 5) Packing Modules Into Plywood Cases 6)mark Shipping Mark In The Cases if Any Special Requirements, We Will Pack It As Requested.
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 10 >10
Est. Time(days) 15 15 To be negotiated
Video Description
Product Description

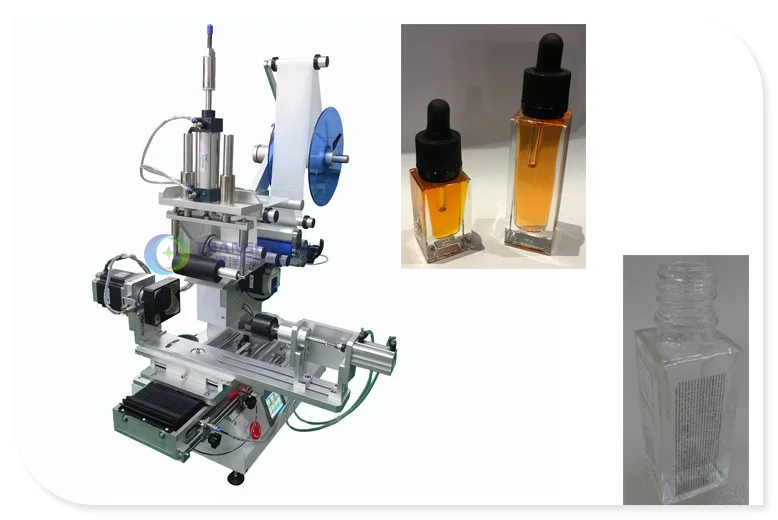

TY-801 semi automatic plane front and back side rolling labeling machine from flat bottle

Main Features
1) Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.


2) Applicable products: flat shape objects, the arc, the circumferential surface, concave, convex, or other surface attached to the label of the product; such as: Shampoo flat bottle, packaging box, caps, plastic shell and so on

3) Change the labeling mechanism, can be applied to the uneven surface labeling, such as prism surface, circular surface labeling and so on.

4) By change the mold, can labeling irregular production.

5) Widely used in daily chemical, bio-medical, food, stationery supplies, mechanical hardware and other industries.

Technical Parameters
Labeling accuracy
±0.5mm (excluding products, labels, error)
Labeling speed
15--35 pcs/min(related to the product and label size)
Apply the product size
Length: 20-200mm
Width: 20-150mm
Thickness: 20-120
(Can be customized)
Apply label size
Length:15-100 mm;
Width: 15-110 mm
(Can be customized)
Applicable to the power supply
220V/50HZ (Need to add a voltage converter, according to the local voltage of different country)
Apply labels inside diameter
¢76mm
Apply labels outside diameter
¢240mm
Voltage
220V
Power consumption
330W
Air pressure
0.3---0.6Mpa
Net size (length*width* height)
Machine size: 950*780*900mm
Packing size: 1220*640*1100mm
Weight
NG:70Kg

GW: 80KG
Detailed Images
LABELING SAMPLE

Powerful
Ideal suitable for labeling large size labels, sponge material made with the labeling mechanism, to achieve no bubble and a solid labeling effect
bottle mold
Each set machine freely for one piece production mold. If more production can do more mold for fixed production when labeling. But price calculated separately.
Front and back side label
Can labeling front and back side label together, but the label roll should make in the same roll. paste front side first, then turn back for the back side label.

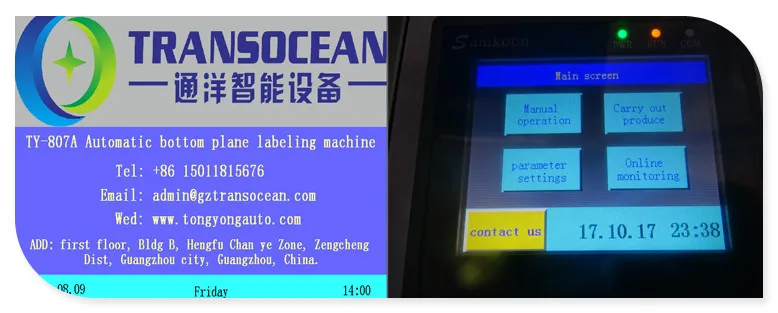

Color touch screen in English
Panasonic PLC, Simple operation, do not need high-quality technical workers, easy to get started.

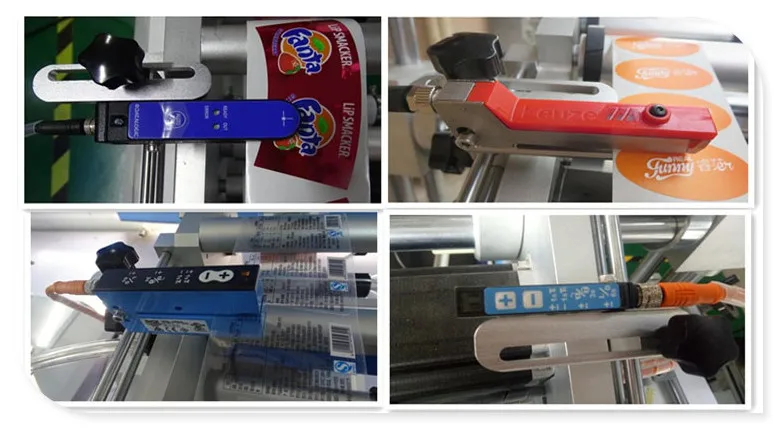

Import label sensor
1. Germany Sick and Italy Data logic of self-adhesive label sensor. (standard model)
2. Germany Sick and LEUZE sensor not only can use for self-adhesive label, but also can use for transparent label. (price calculated separately).
Electrical and circuit separate
The inside of machine to keep dry, use longer. it connect electric and air compressor. working pressure: 0.3-0.6 MPA
Main electrical configuration

Packing size
1100*570*1040mm
GW: 93.5kg
Available function(customized type)

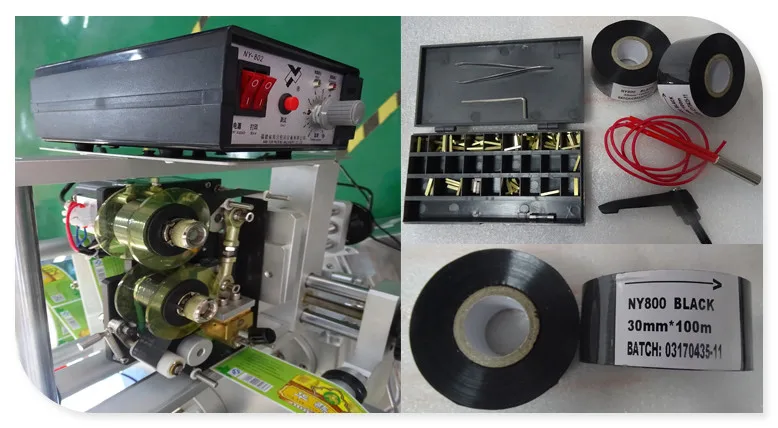

Hot coding machine
1. code content usually be:
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
Customized machine
By customized machine, one set machine can with 360° rotating function and front&back side labeling function.
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
Double pieces product molds
One time labeling two pieces labels by do a double pieces molds. but two labels should make in the same roller.
Payment terms and service
Payment terms.
L/C at sight, T/T, alibaba trade assurance(BOLETO, Mastercard, Visa, e-Checking, PAYLATER). 40% deposit, 60% balance pay before send out the good or see the scan bill of lading.Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Packing & Shipping
Packing.
Export wooden box
1) Deduct & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules Into Plywood Cases
6)mark Shipping Mark In The Cases
if Any Special Requirements, We Will Pack It As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5 days, standard model with in stock. By Air, by Sea or by Express (DHL etc),
Shipment cost will depend on the destination, shipment way and the weight of the goods.
Related Products
FAQ
Q1: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.

Q2. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.

Q3. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service, guarantee your
money, and guarantee your machine's on-time delivery and machine quality.

Q4. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 40% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.

Contact information

For get more information and videos. go to home page "contacts" to get my phone number, that also are WhatsApp & wetchat number.
