Stainless Steel Heavy Duty Stud Wedge Anchors

  • >=1000 Pieces
    $0.14
Type:
Sleeve Anchor Wedge Anchor
Length:
40-300mm
Samples:
$1.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 100000 Pieces)
Graphic customization (Min. Order: 100000 Pieces)

More

Customized packaging (Min. Order: 100000 Pieces)
customized products (Min. Order: 100000 Pieces)
surface treatment (Min. Order: 100000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Color:
Silver
Finish:
Longer Life TiCN
System of Measurement:
Metric
Place of Origin:
Jiangsu, China
Brand Name:
Grace
Model Number:
Heavy Duty stud wedge anchors
Material:
Steel
Diameter:
12mm, M6-M20
Capacity:
850kgs-5400kgs
Standard:
GB
Model:
Stainless Steel Heavy Duty stud wedge anchors
Material/Finish:
Carbon Steel,Alloy Steel,Stainless Steel
Thread Types:
American/Left Hand/Metric/Right Hand/Special Pitch
Appearance:
Bright neat body, without any burrs
Tolerances:
Precision Tolerances to Customer Specification
Quality Control:
100% inspection during production
Industry Focus:
Agricultural/Architectural/Heavy Equipment/Military
Product Certification certification
CE Certified.
Valid from 2019-04-07 until 2024-04-06
Supply Ability
Supply Ability:
5000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Cartons + plastic bags + pallet or according to requirement
Port
Shanghai or Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Video Description

Stainless Steel Heavy Duty Stud Wedge Anchors

Product Description

Stainless Steel Heavy Duty Stud Wedge Anchors

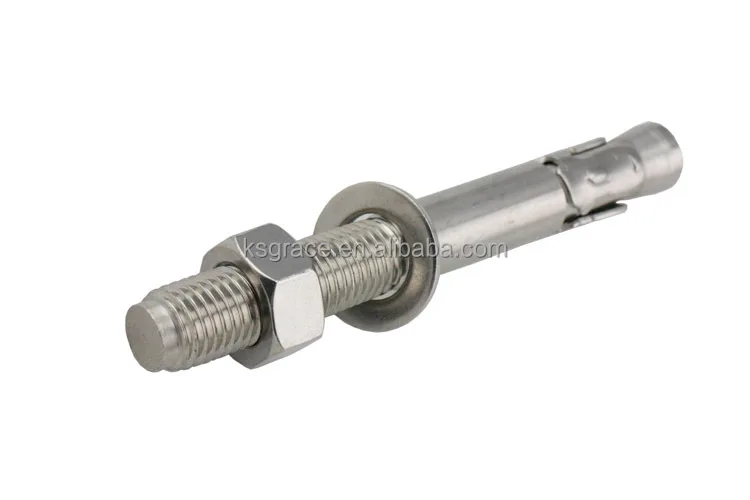

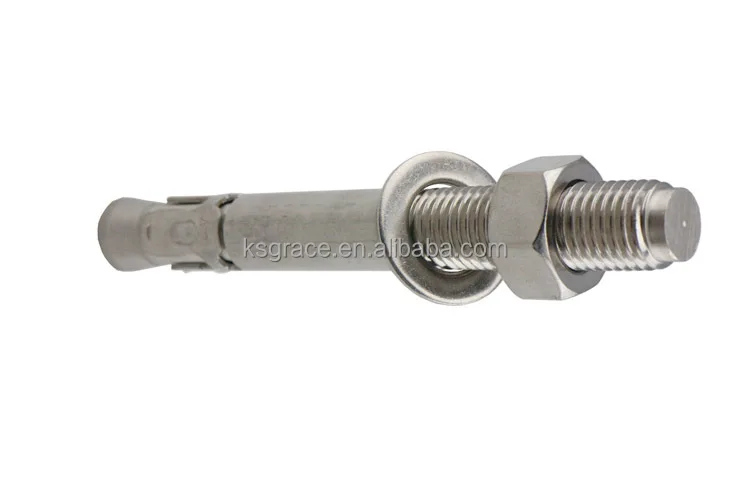

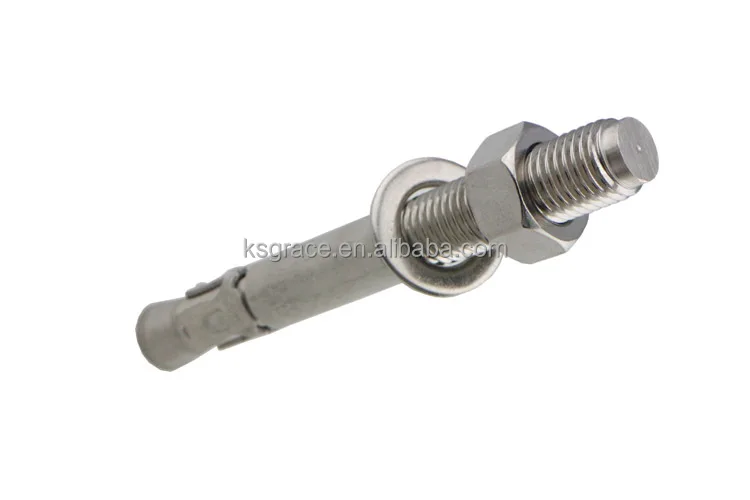

The wedge anchors (also called heavy duty concrete anchor) are used to anchor fixtures on to concrete. The wedge anchors are inserted into a predrilled hole and then expanded, causing them to wedge securely in the concrete. The concrete wedge anchor is available in zinc plate steel, hot-dipped galvanized and stainless steel.

Technical Specification:



Wedge Anchors Size

Max. Fixture Thickness (mm)

Pull out Load (Kgs)

M6X40

3

850

M6X55

15

M6X70

30

M6X95

55

M8X50

10

1150

M8X65

20

M8X80

35

M8X95

50

M8X105

60

M8X120

75

M8X165

135

M10X65

15

1500

M10X80

20

M10X95

35

M10X115

55

M10X130

70

M12X80

20

2300

M12X100

30

M12X110

40

M12X120

50

M12X150

80

M16X105

15

3400

M16X140

40

M16X180

80

M16X220

120

M20X125

15

5400

M20X160

40

M20X200

80

M20X300

180





Wedge Anchors Size

Max. Fixture Thickness (mm)

Pull Out Load (Kgs)

1/4X1-3/4

3/16"

830

1/4X2-1/4

5/8"

3/8X2-1/4

1/8"

1500

3/8X2-3/4

1/2"

3/8X3

3/4"

3/8X3-1/2

1-1/4"

3/8X3-3/4

1-1/2"

3/8X5

2-3/4"

1/2X2-3/4

1/8"

2800

1/2X3-3/4

7/8"

1/2X4-1/4

1-1/2"

1/2X5-1/2

2-1/2"

1/2X7

4"

5/8X3-1/2

3/16"

3600

5/8X4-1/2

1-1/8"

5/8X5

1-1/2"

5/8X6

2-1/2"

5/8X7

3-1/2"

5/8X8-1/2

5"

3/4X4-1/4

1/2"

5500

3/4X4-3/4

3/4"

3/4X5-1/2

1-1/2"

3/4X7

3"

3/4X8-1/2

4-1/2"

3/4X10

6"



Related Products

Certifications



Exhibition



Testing Laboratory

Quality Control:
The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing.We have Magnetic Powder Detector, Material Testing Machine, Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.



Production Process

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface, make the surface to be bright and clean and uniform and beautiful.



Company Information



FAQ

1. Q: Could you send me your catalogue and price list?

A: As we have more than thousands of products, it is really too hard to send all of catalogue and price list for you. Please inform us the style you interested, we can offer the pricelist for your reference.

2. Q: How about the quality of your product?

A: 100% inspection during production. Our products are certified to ISO9001, TS16949 international quality standards.

3. Q: What material of the product can you supply?

A: Carbon Steel, Alloy Steel, Stainless Steel, Brass, Copper or according to your requirement.

4. Q: What's the delivery time?

A: For products in stock, we can ship it within 7 days after receiving your payment. For custom order, within 24 tons, production time is 20-35 days after confirmed every details.

5. Q: What's your packing?

A: Our Normal packing is bulking in Cartons, 25kgs/carton, 36cartons/ pallet. We also can pack products according to your requirement.

6. Q: What about the warranty?

A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.

To avoid any subsequent trouble regarding quality issue, we suggest you check the goods once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictures and contact us as soon as possible, we will properly handle it to make sure your loss to reduce to the smallest.
