Stainless Steel Vertical Anchor winch Electric Marine Capstan Anchor Windlass With Drum (Winch TFC912C)

  • 1-3 Pieces
    $498.06
  • 4-9 Pieces
    $461.75
  • >=10 Pieces
    $411.37
Model Number:
TFC912C
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 50 Pieces)
Customized packaging (Min. Order: 50 Pieces)
Samples: $498.06 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $498.06 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
Proceans
Part:
Anchor windlass
Product Name:
Stainless Steel Vertical Electric Marine Windlass (Winch TFC912)
Material:
AISI 316 Stainless Steel
Motor:
900W
Voltage:
12V
Current Draw:
55A
Max. working load:
220kgs/484lbs
Max. pulling load:
660kgs/1452lbs
Suitable for boat:
20ft-35ft
Advantage:
Fast delivery
Design:
OEM sevices provided

Packaging & Delivery

Selling Units:
Single item
Single package size:
40X40X17 cm
Single gross weight:
12.0 kg
Package Type:
Plastic bag + foam + Carton bag
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 10 To be negotiated
Video Description
Product Description

Product Application

What makes boater's lives easier, and bring those ideas to life in our products. We aim to relieve the aching muscles that often come with anchoring and give your more confidence when docking.


That's why each windlass we bring to the market is made of the finest quanlity materials and engineered for excellence.


What ? You are a new boater and not know it very well ? Don't worry, we have instructions in every cartons. And before you buy it, contact the sales, He/ She will give you the most professional instruct !

SPECIFICATIONS FOR VERTICAL WINDLASS

Vertical Windlass
Code
TFC612C
TFC912C
Motor
600W
900W
Voltage
12V
12V

Main performance


Current Draw
33A
55A
Max. Working Load
150kgs/330lbs
220kgs/484lbs
Max. Pulling Power
450kgs/990lbs
660kgs/1452lbs

Windlass Infomation
Max. line speed
26m/min(85ft/min)
26m/min(85ft/min)
Suitable Chain/Rope Size
      6mm Chain       12mm Rope
       6mm Chain          12mm Rope

Packing Information
Weight
10kg/22lbs
11kg/24lbs
Packing Size
40*40*17
40*40*17
Control Units

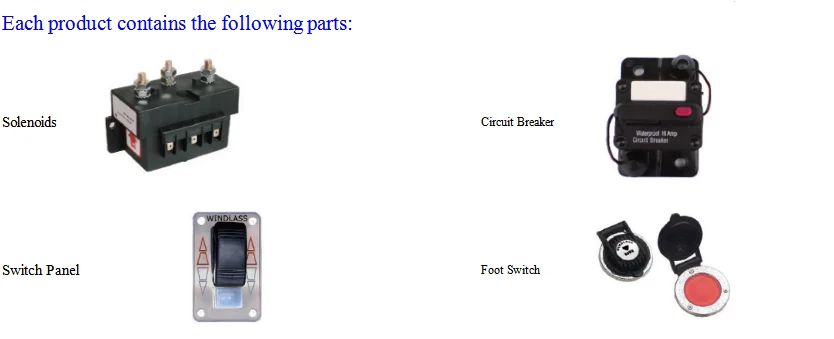

Solenoids, Circuit Breaker, Switch Panel, Foot Switch

Main Features

1) Easy Installation

2) Most of the windlass unit is on the deck

3) Good for boats with small anchor lockers

4) Anchor rode enters the gypsy, makes  a 90° turn and feeds into the anchor locker.

5) Minimun fall of 305mm(12") is recommended in order to have enought gravity to pull the rode down into the locker.

Certifications

We can supply the factory test report, if you want the thirty party to test, we also can make it. Such as SGS, CE Certificate.

CE Certificate

Both of our windlass have CE Certificate.

We will test every windlass before shipping.

Our CE Certificate and testing report are as follows

Related Products

DIN766, DIN743, ISO4565 Chain

The Chain we have Hot Dip Galvanized and Stainless Steel,  Also Can right suitable for your windlass !

Polyamide, Polyester,Polypropylene Rope

Many kinds of material and specification for you choose !

Boat Anchor

The boat anchor was made by Hot Dip Galvanized or Stainless. Many kinds of the anchor for you choose !

Packing & Delivery
Contact Us
Our Company

About Tofun Marine

Tofun Marine, Marine and Leisure Products For Global Distribution, One-Stop Supplier.

With the support of our own factories, we supply wide range of high quanlity affordable Marine & Leisure products. With more than 10 Years Experience !


Our Product line includes:

Mooring & Docking Equipment,

Marine Hardware,

Plumbing & Ventilation Equipment,

Wire Rope & Rigging,

Light & Electrical,

Safety Equipment,

RIB & Inflatable Sport Boat,

Water Sport & Outdoor Product, etc.


We are developing a reputation for prociding excellent quanlity products and very competitive prices; also have a diverse and helpful staff who strives to be an asset to our customers. With us, your money in safe, your business in Safe !

Payment Terms
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 30-35 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight if possible.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:
