Stainless steel multifunction grinding machine

  • 1-4 Pieces
    $2,700.00
  • 5-9 Pieces
    $2,650.00
  • >=10 Pieces
    $2,600.00
Model Number:
MY-20
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
10 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1 year, 1 year
After-sales Service Provided:
Video technical support, Online support
Place of Origin:
Guangdong, China
Brand Name:
MINGYUE
Voltage:
220V/50Hz 380V/60Hz
Certification:
CE
Type:
Pulverizer
Product Type:
Food/Chemical/pharmaceutical
Dimension(L*W*H):
550x420x1400mm
Range of Spindle Speed(r.p.m):
2800 - 2900 r.p.m
Power (kW):
2.2
Application:
Medicine Processing, Chemicals Processing, Food Processing
Applicable Industries:
Hotels, Food & Beverage Factory, Food Shop, Food & Beverage Shops, pharmaceutical
Key Selling Points:
Multifunctional
Output (kg/h):
30 - 50 kg/h
Weight (KG):
120 KG
Feeding Size (mm):
<12
Output Size (mesh):
12 - 120 mesh
Size of input granules(mm):
<12
Size of output granules(mm):
12-120
Speed of principal axis(r/min):
3000
Grinding size:
12-120 mesh
Feeding size:
<6mm(Max to 15mm)
Material:
Stainless Steel 304
Function:
Grind to powder
Weight:
120kg
Power(W):
1.5kw

Packaging & Delivery

Selling Units:
Single item
Single package size:
55X42X140 cm
Single gross weight:
120.0 kg
Package Type:
Wooden case
Lead Time :
Quantity(Pieces) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 12 15 To be negotiated
Video Description
Product Description

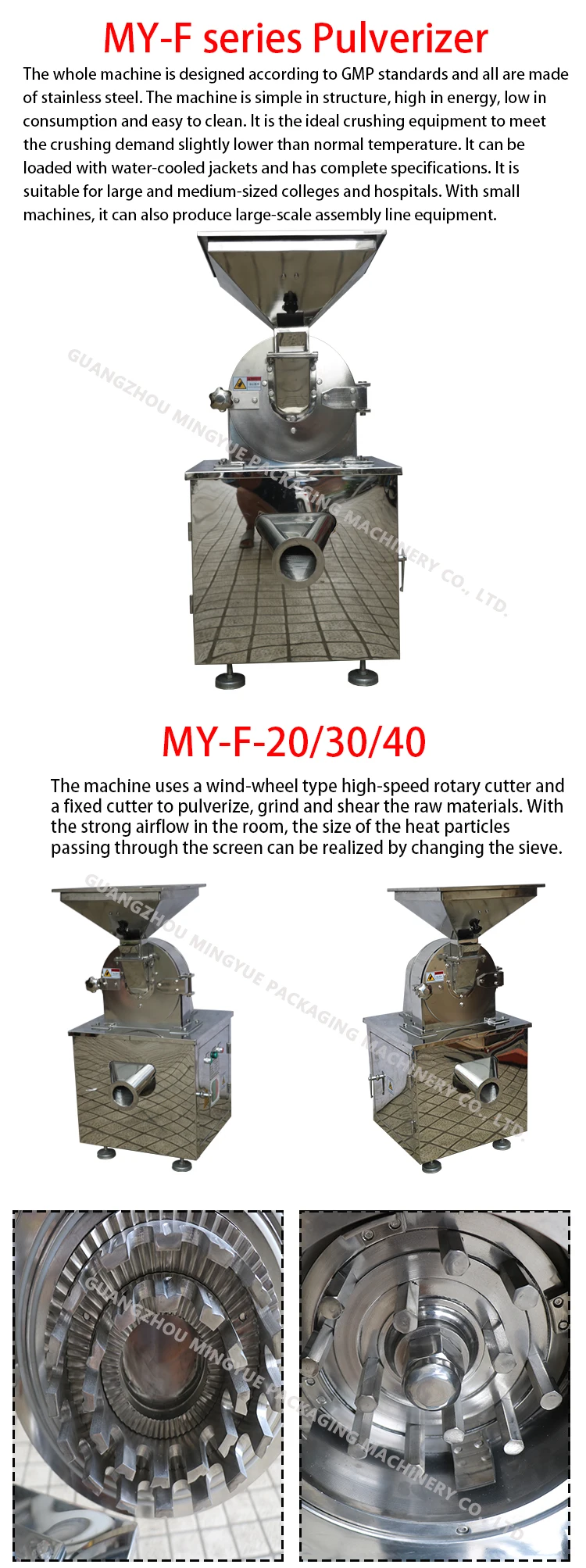

Stainless steel multifunction grinding machine

-_01-_02-_03



Technique Performance

Model

MY-20

MY-30

MY-40

Capacity(kg/h)

30-50

30-200

50-300

Size of input granules(θ)

<10

<10

<12

Size of output granules(θ)

12-120

12-120

12-120

Power(kw)

2.2

5.5

11

Speed of principal axis(r/min)

3000

2900

2900

Weight(kg)

120

280

450

Overall Size(L×W×H)
(mm)

550×420×1400

750×550×1400

850×700×1600



Main application

The machine is widely applied for the material crushing by the industries of pharmaceutics, chemical and foodstuff, etc.



Characteristics

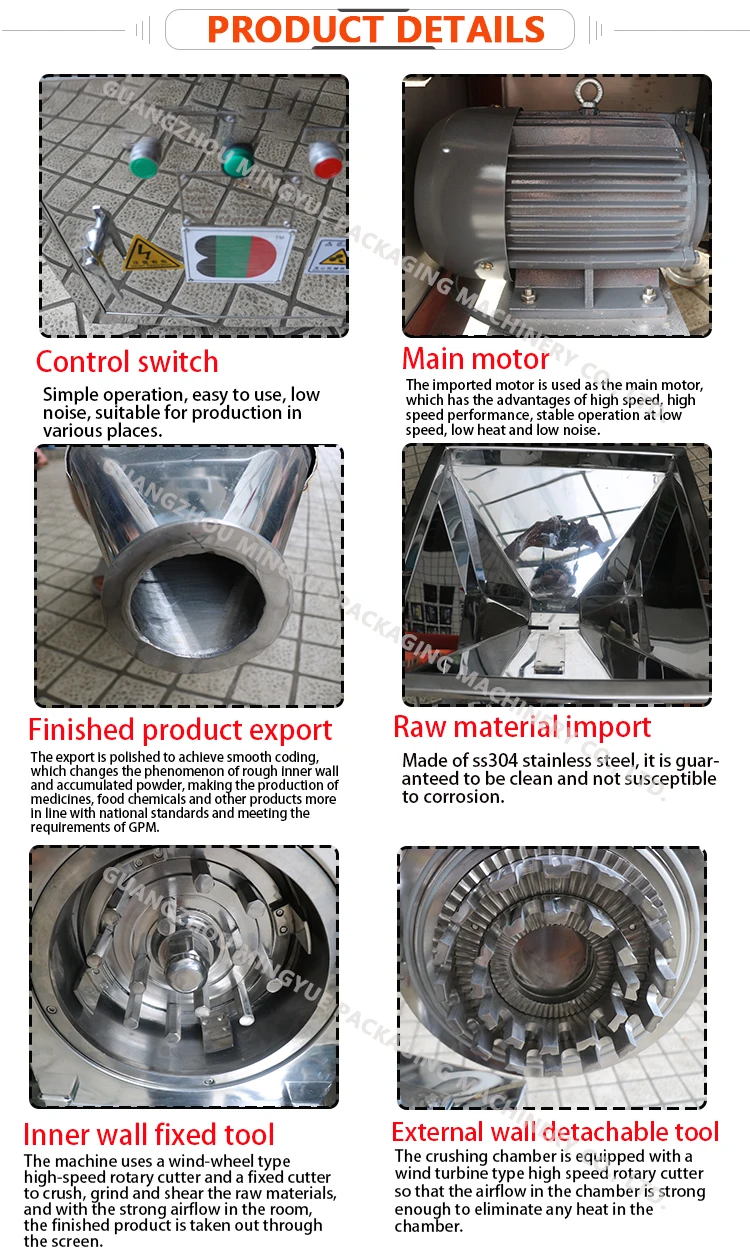

The crushing chamber is equipped with wind wheel type high~speed rotating cutters, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.



Working Method

The machine uses the wind wheel type high~speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. The size of granules can be achieved by changing of the screen.
