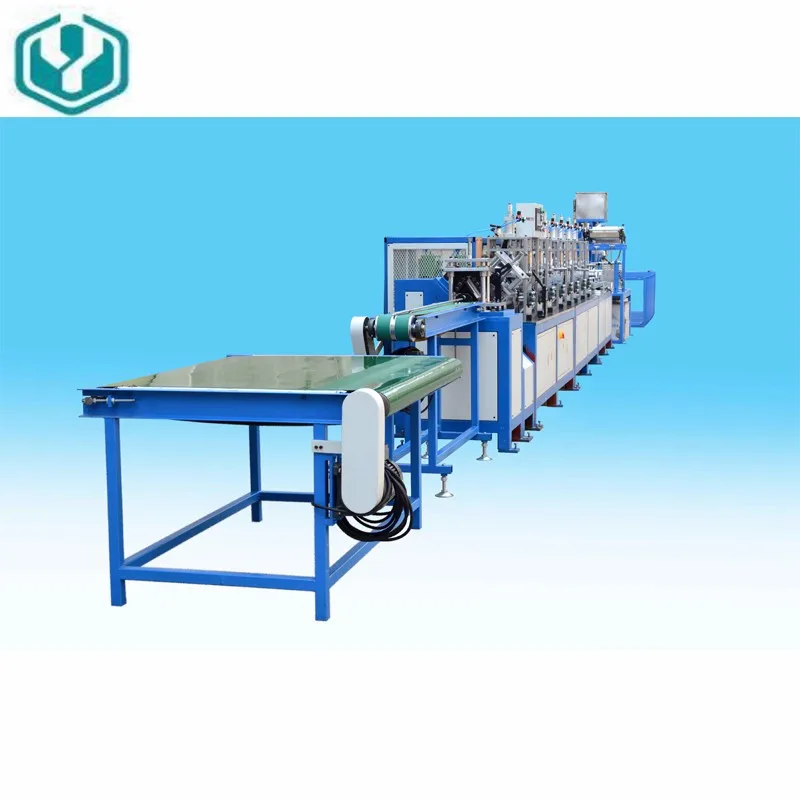

Standard Corner Board Paper Edge Protector Cutter Machine

FOB Reference Price:Get Latest Price
$10,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Product Type:
Edge Board Making Machine, Angle Board Making Machine
Processing Type:
Laminating Machine
Power(W):
11.5kw
Condition:
New
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Yinon
Model Number:
FT-S600
Voltage:
220V/380V
Dimension(L*W*H):
30000 x 1500 x 1800mm
Weight:
3700kg
Certification:
CE
Min. Cutting Length:
40mm(better with 50mm)
L edge protector thickness:
1-10 mm
Raw paper grammage:
130gsm-500gsm
Core diameter of paper reel:
76mm(3 inch)
Usage:
Packing Protective
Function:
V shape angle board making
Color:
Blue/customized
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard Corner Board Paper Edge Protector Cutter Machine
Packing Details : Standard packed with corrugated board and wrapped with plastic film.
Delivery Details : 20-30 Days
Port
Shenzhen
Lead Time :
20 Days
Main Parameter

Standard Corner Board Paper Edge Protector Cutter Machine

Model
FT-S600
Total Power(W)
11.5kw(servo 4.5kw , motor 5.5kw other 1.5kw)
Dimension(L*W*H)
Around 21000 x 1500 x 1700mm per set
Weight
Around 3700KG
Voltage
220V/380V
Working speed
40-45m/min
Min. cutting length
40 mm (better with 50mm)
L edge protector thickness
1-10 mm
Applicable glue type
PVA and PVAc
Quantity of shaft for paper roll
12
Paper roll diameter
Max. 1380 mm
Paper roll weight
Max. 400 kg
Function
L shape/V shape edge board making
Edge board leg width
25-100mm for each side
Core diameter of paper reel
76mm(3 inch)
Cutting precision
±0.5mm
90° Angle Ctting Unit
Should add an extra punching mold
Service
Engineer available to provide overseas services
Products Show

Standard Corner Board Paper Edge Protector Cutter Machine

How dose the edge protectors made by our machine?
Advantage

High stability

Every main component are producing by our CNC Centre, Stability and high accuracy

Best Service

Debugging and installation of each device we have engineers overseas guidance for customers

 High quality

 Each product is strictly tested, qualified after the factory.

Our Company


Yinon hardware machinery factory was established in 2000. It is an enterprise that specialized in advanced and exact automated machine equipment, development and manufacture of paper machine. The main products involved packaging machine, paper machine, angle-board machine, edge-board machine, edge protector plant, angle protection line, automated equipment. Yinon is the latest and specialization enterprise which contact, introduce and product paper angle protector equipment in domestic. Our paper angle board machine is the most advanced, Highest-automate, highest production speed, highest production efficiency and the easiest to operation equipment.



Related Products

Paper Slitter Rewinder Machine

High Speed Paper Tube Machine

Paper Wrap Around Machine

Our Certifications
Customer Photo
Since established, Yinon Machinery had won the favor of overseas customers with excellent quality and excellent service. Including North America, South America, Egypt, South Africa, Southeast Asia and India have our customers.
FAQ

Q: Are you trading company or manufacturer ?

A: We are absolutly factory. And we always welcome you to come and visite our factory.

Q: How long is your delivery time?

A: Generally it is 20-30 days.

Q: What about the After service?

A: After you buy the machines, we can go to your country to install and repair if some problems.

Q: What is your terms of payment ?

A: we accept TT or L/C paying.
