Steam Boiler

  • >=1 Sets
    $36,250.00
Model Number:
WNS2.0-1.25-Y/Q with BALTUR burner & condenser
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
China
Brand Name:
VENUS
Type:
Natural Circulation
Style:
Horizontal
Usage:
Industrial
Output:
Steam
Structure:
Fire Tube
Fuel:
Gas-fired
Pressure:
1.25Mpa
Certification:
CNAS
Dimension(L*W*H):
4000*2580*2300
Rated evaporation:
0.5-20t/h
Saturated steam temperature:
174-204°C
Heating efficiency:
98%
Applied dye stuff:
Applied fuel light oil, natural gas, liquefied petroleum gas, etc.
Application:
Mainly used in industrial steam supply
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
Standard export package
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Description

Performance advantage

1.Automatic microcomputer program controller, just one button to you can to start or stop the furnace. When the load changes, the control system can adjust the fuel ratio automatically to ensure sufficient burning. the reserved data output interface make it easy to connect between user and building central control system, so it can meet the needs of users with high self-control requirements.

2.To ensure the safe operation of the boiler and Improve the quality of steam, the water volume is fully considered in the design of WNS boiler,

the furnace is arranged in low position, a large range of safety water level is preserved, it is particularly important when boilers are at low water levels, it can make the steam evaporation area larger, so the steam has a low moisture content and the steam has a good quality.

3.Large furnace volume, big heating surface, those can reduce the unit heat capacity density, improve the working conditions of the front smoke box, It overcomes the weakness that the return flame type boiler is easy to damage the front smoke box cause of the high temperature of furnace smoke, ensured the safety and reliability of the boiler and reduced the accident rate. NOx emissions are minimized in similar boilers, fully comply with the increasingly stringent environmental requirements.

4.spiral turbulence strips are arranged inside the smoke pipe, when the smoke passes through the pipe, it rotates and washes the pipe wall, breaking the boundary layer of the pipe wall, make the central part of the high temperature flue gas fully heat exchange, It also slows down the flow rate of the flue gas, enhanced heat exchange effect, it is four times as efficient as the heat transfer than a plain screw pipe. it use high quality alloy steel for external heat transfer, prolongs the service life of tobacco pipe observably and it's easy to disassemble, convenient to maintenance.

5.Although the smoke box is not a pressure vessel component, but it plays an important role in the boiler. Box wall temperature excessive or unreasonable box design can cause 80% heat loss of boiler. We adopt soft seal design in the design of smoke box, the flue gas leakage and the local over temperature of the flue gas box are reduced. Air insulation layer is set on the door of smoke box, minimize heat loss of boiler, ensure

high efficiency of boiler.

6.Overs six hundred thousand kilocalories boiler equipped with a ladder, boiler installation and maintenance well be convenient, fully reflects the humanized design of the product.

7.Boiler appearance design uses classic cylindrical structure, boiler outsourcing by punch forming. surface technology adoption electrostatic painting, electroplate, baking varnish, stainless steel polishing, to improve the practicability, beauty and novelty of the product.

Specifications
REMARK

Notice of application

1. The boiler operator must be professional trained and get the operate certification.

2. The boiler must be installed by professional company and get the occupancy permit.

3. Boiler must be single commissioning and detailed understanding the boiler features and operation manual before put into use (including the configured equipment individual operation manual)

4. The boiler shall not be used in excess of the design specifications and forced to limit the normal operation of the safety protection device.

5. Installation, usage, maintenance must be accord with the relevant national standard.

6. Should contact with us before complete understanding the usage of equipment.

If operation not accord with the above request and operation manual thus caused quality problem, our company will not be responsible for free product warranty and accident liability.

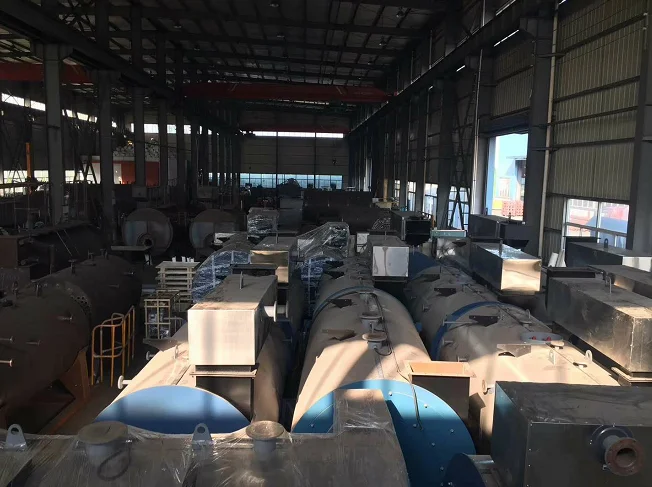

Our factory
