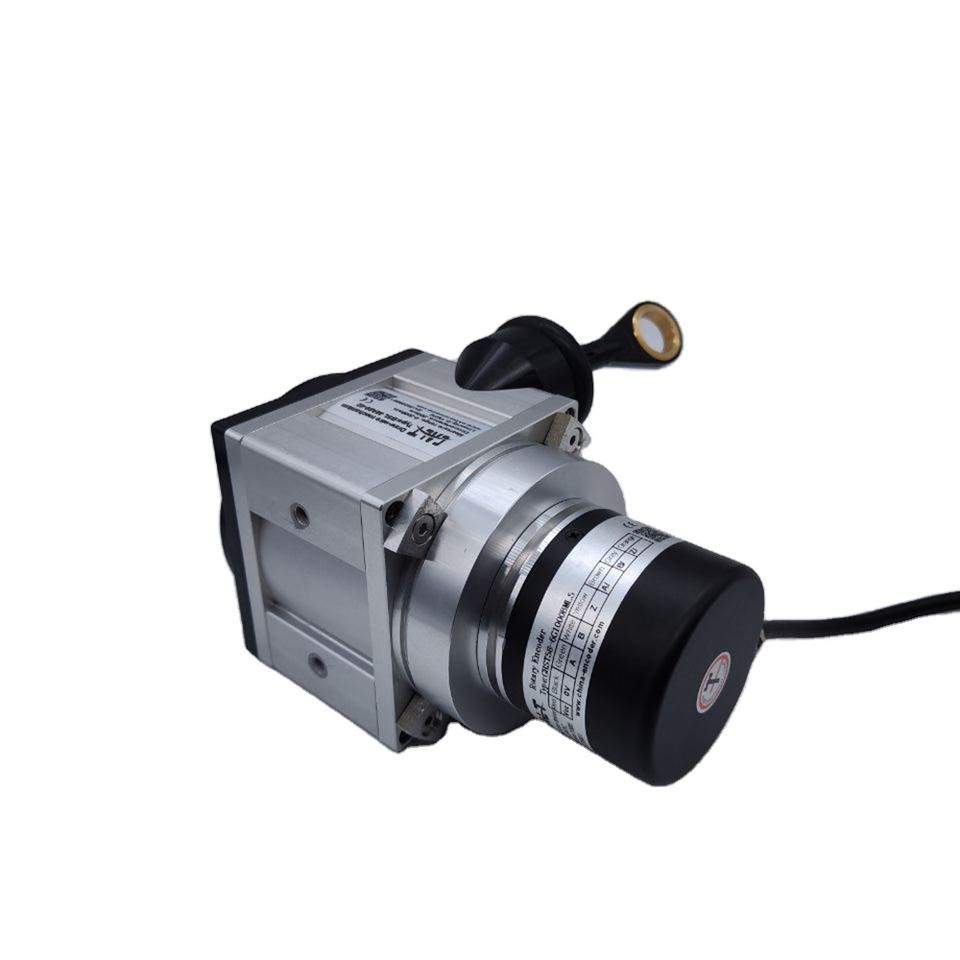

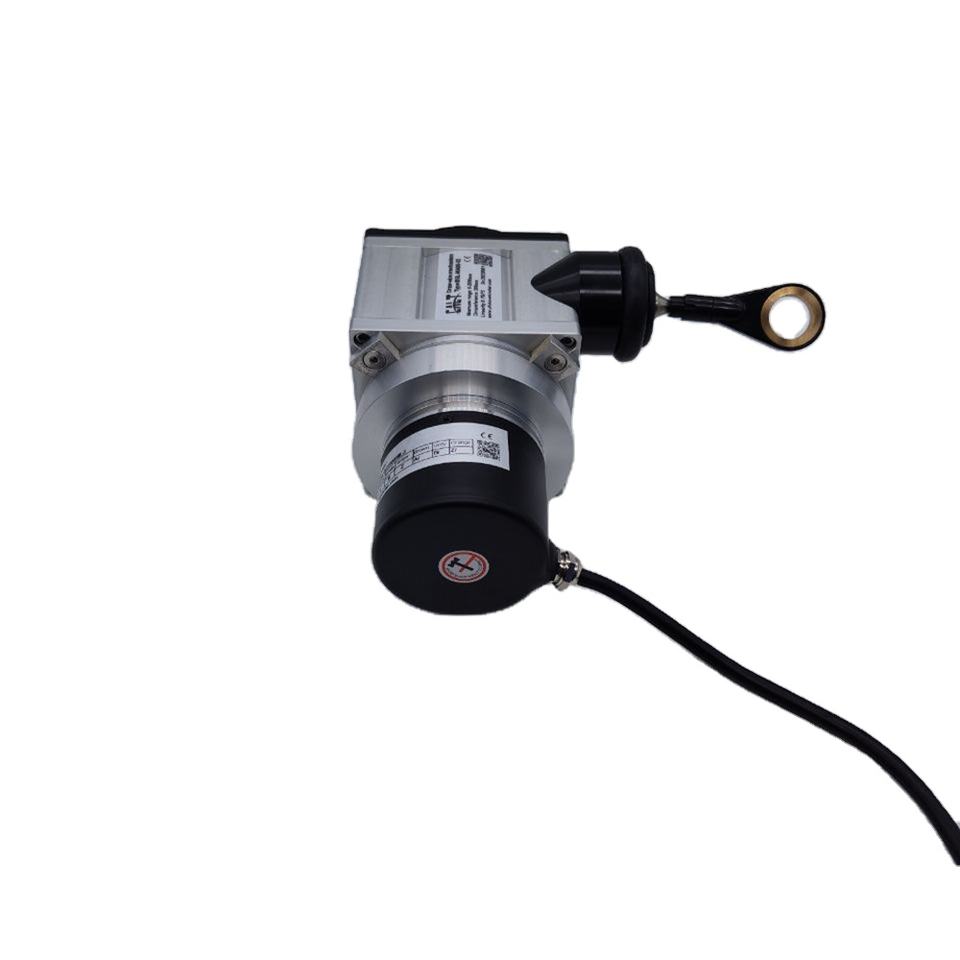

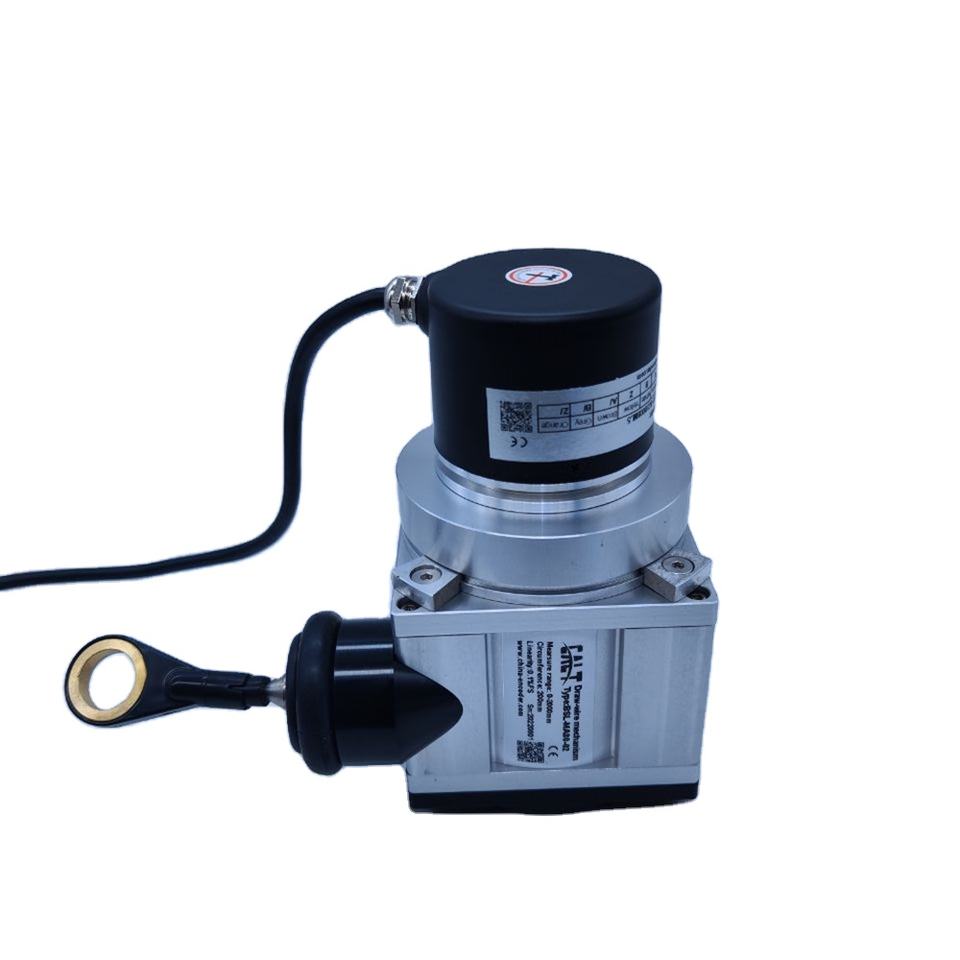

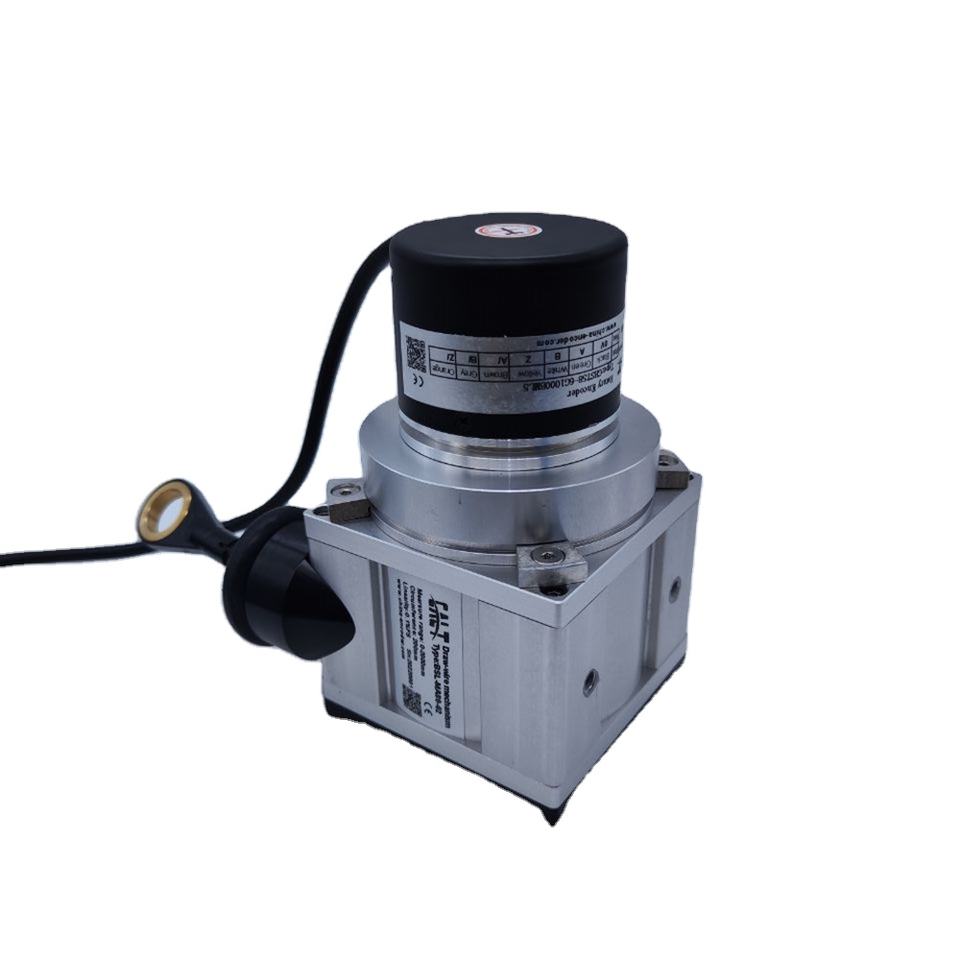

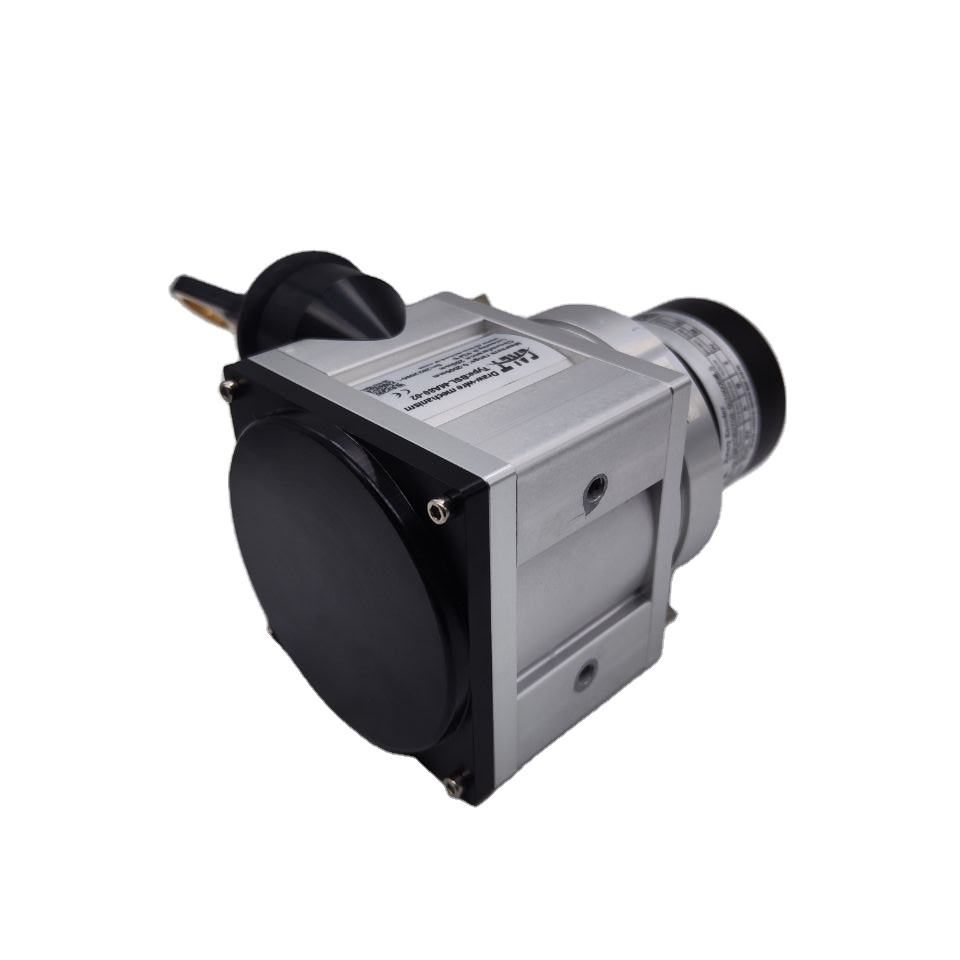

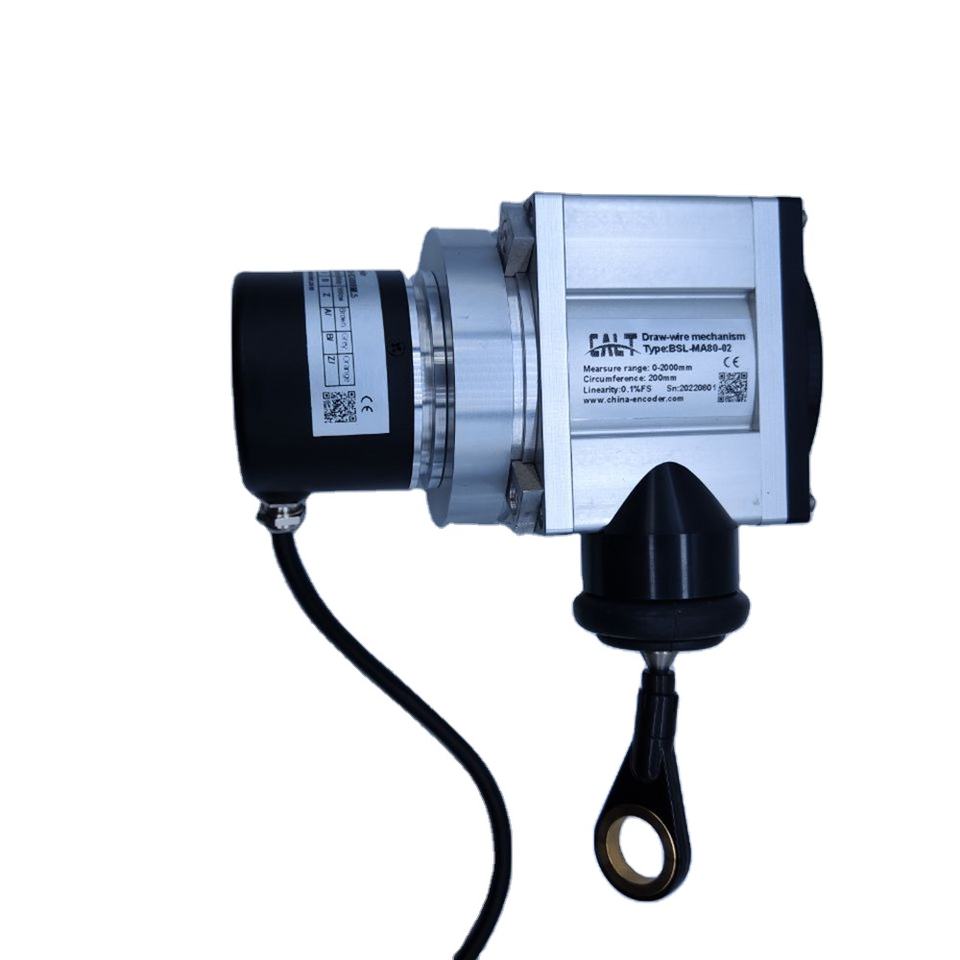

String encoder BSL-MA80-02 encoder draw-wire mechanism with 1000ppr GHST58-6G1000BML5 encoder for measuring 2m

5.0(12 reviews)3 sold

Shanghai Qiyi Co., Ltd.

9 yrs

CN

High-Resolution Measurement: The BSL-MA80-02 encoder, combined with the GHST58-6G1000BML5 encoder, offers a high resolution of 1000 pulses per revolution, enabling precise measurement of linear displacement with a measuring length up to 2 meters.
Durable and Rugged Design: With an IP64 rated casing and a highly flexible 316 stainless steel rope, this string encoder is designed to withstand harsh environments and maintain its performance over time.
Wide Operating Temperature Range: The encoder operates within a wide temperature range of -30°C to +70°C, making it suitable for various industrial applications.
Easy Installation: The manual installation type of the encoder allows for simple and convenient setup, reducing the need for complex calibration procedures.
High Accuracy and Low Hysteresis: The encoder boasts a low hysteresis of 1 mm, ensuring accurate measurement results and minimizing errors, which is particularly beneficial for applications where precise positioning is critical, such as in user-defined applications with variable measuring length.

Key attributes

Mounting Type

Manual installation

Model Number

BSL-MA80-02+GHST58-6G1000BML5

Type

Motion & Position Sensor

Brand Name

calt

Usage

position sensor

Description

String encoder

Place of Origin

Shanghai, China

Series

String encoder

Features

String encoder

Theory

optical sensor

Output

line driver

Description

displacement sensor

Circumference of drum

200 mm

Linearity

≤ ± 2 mm

Diameter(rope)

1 .2mm

resolution

1000ppr

Spring sleeve material

Zinc die casting

Hysteresis

≤ 1 mm

Material(rope)

Highly flexible 316 stainless steel rope

Measuring length up to

0 m ... 2 m

Working temperature

-30 °C ... +70 °C

IP code of casing

IP64

Packaging and delivery

Selling Units

Single item

Single package size

16X12X10 cm

Single gross weight

4.000 kg

Lead time
