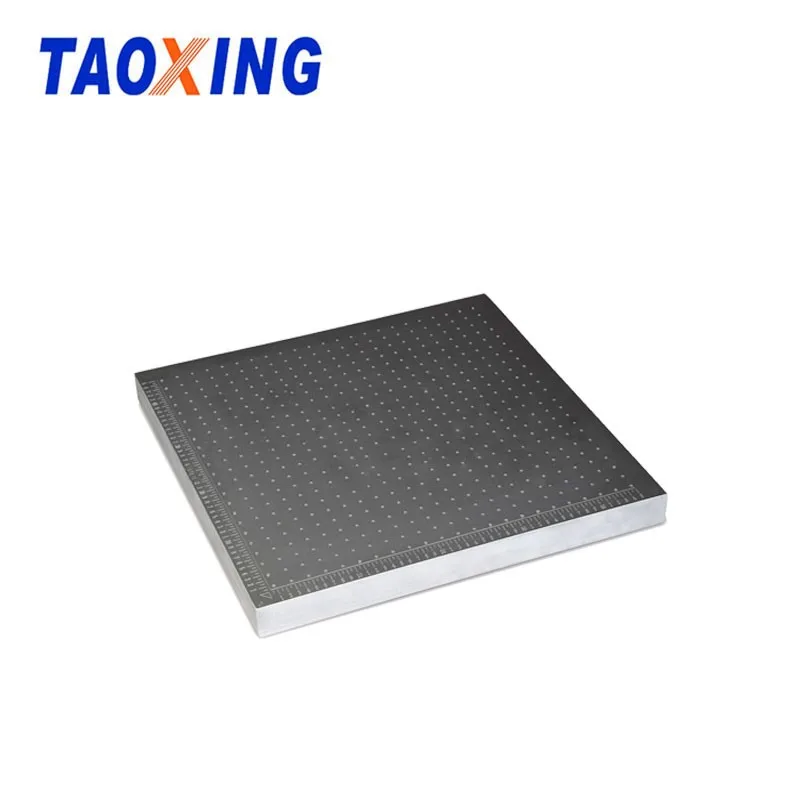

Suction platform Printer oxidation adsorption table can be customized

  • >=1 Sets
    $1,300.00
Model Number:
TX-pb03
Gross Power:
2KW
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Color & Page:
Various
Certification:
No
Usage:
Cutting Machine
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Plate Type:
Screen Printer
Condition:
New
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
taoxing
Automatic Grade:
Automatic
Voltage:
220V
Dimensions(L*W*H):
2500*1300*35(mm)
Weight:
120kg
Name:
Suction platform
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
News Paper Screen Printing Machine packed by Wooden Box
screen printing machine
screen printer
Labeling Screen Printing
Port
shanghani
Video Description
Related Products
Product description

Title goes here.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine.

Adsorption platform specification
2500*1300*35(mm)
Surface treatment
Hard anodizing
Adsorption platform thickness
35(mm)
Flatness
< 0.15mm
Panel aperture
1.5mm
Panel thickness
2mm
Panel hole distance
20mm
Floor thickness
1.5mm
Panel material
Aluminium Alloy
Suction caliber
Φ50
Interface mode
Flange
Operating temperature
<50℃
Feature

Vacuum adsorption platform is an aluminum honeycomb structure, made of aluminum alloy material, the surface has a good flatness, the platform has the advantages of light weight, high strength, high rigidity, bending resistance, anti-flexion, etc. High flatness, small deflection, high adsorption force, scratch resistance and abrasion resistance.

1.Large flat surface

Vacuum adsorption platform plate size up to 1950 * 3950mm (more than this size can be spliced). With good flatness and deflection, the flatness is generally controlled within 25 filaments, and the minimum is up to 10 filaments; the deflection value is less than 10 filaments under an increase of 30 kg.

2.Quality light bearing significant

The vacuum adsorption platform adopts an aluminum honeycomb structure and all aluminum alloy materials are used. The density per square meter is about 25-35 kilograms. 30 kg weight is not deformed.

3.Suction suction is even

The vacuum adsorption platform has been optimized to ensure that the performance of the platform is not affected and that the suction force at any position on the platform is even.

4.Scratch resistant

Vacuum adsorption platform plate surface has a variety of treatment processes, namely fluorocarbon PVDF powder, anodizing, hard oxidation,
According to the actual needs, the hard oxidation process is the most scratch resistant and wear resistant, and its surface hardness can reach
HV500-700.

5.Customer settings

Vacuum adsorption platform can be customized according to customer needs, whether it is the platform size, pore size and hole spacing, suction area, suction suction diameter, suction port number, interface or any partition, inhale alone or not Can be customized.

Contract Us
FAQ

1.Are you factory or trading company ?
A:Our factory has over 17 years history, so you can trust us absolutely .We have a number of qualified technicians in the field of design and production saler,with which we can prove overall service for you at any time.

2.Can we use our own design or logo ,and do some changes to your machine ??
A:Of course ,you can,we are open and we would be very appreciate to listen to your advices.

3.What are your main production?
A:screen printing ,curing printing, coating machine , IR drying tunnel, high precision oven, large format vertical exposing machine,high precision stretching machine, auxiliary equipment.

Packing & Delivery
Packaging
Size
126 (L) * 100 (W) * 163 (D)CM
Weight
520KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Delivery Time


1.Standard Model can be Delievry 7- 15 Days after Payment

2. Customized Model can be Delievry 20- 40 Days after Payment


Transport:

By Courier            By Sea
By Train                 By Air

Loading Port:
Shanghai Airport
Ningbo or Shanghai Sea port

Our Company

Hangzhou Taoxing Printing Machiner Co.,ltd. is a High-tech lead company, integrated with science, industry and trade. We have strong technical support, advanced production equipment and professional staff who dedicate to products research, development, manufacture, installation, test and maintenance.
Our main products:
1: Automatice screen Printing machine : Automatice Glass Screen Printing machine , Automatice Bucket Screen Printing machine ,Automatice Pen Screen Printing machine,Automatice aluminum Screen Printing machine ,Automatice Piston printing machine, and so on
2. Semi-auto screen printing machine: Semi-auto PVC screen printing machine, Semi-auto wooden screen printing machine, Semi-auto bottle screen printing machine, Semi-auto glass screen printing machine, fire extinguisher screen printing machine, and so on
3. Manual screen printing machine : T-shirt printing machine, manual round screen printing machine. manual vacuum printing tabel .
4. Pad printer : Auto pad printer , Semi-auto ink tray pad printer,Semi-auto ink cup pad printer manual ink try pad printer ,manul ink cup pad printer
5. Pre-Press : Mesh stretching machine, Exposure machine, Frame drying machine, Frame coating machine
6. Post-Press: UV curing machine, IR drying Tunnel, IR drying Oven , Flash dryer
7. Auxiliary: Powder coating machine, Scraper grinding machine ,Flame treatment machine,screen frame, screen mesh.

Cooperative Partners


Working Shop



Cetefications

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
