Suitable for gp 30 rolling ring drive with steel wire guide wheel traverse unit gp3-30/px30

$107.00 - $255.00 / Piece | 1 Piece (Min. Order)
Model Number:
GP30A
$107.00
- +
available
GP40A
$155.00
- +
available
GP50A
$199.00
- +
available
All 6 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Samples: $107.00 /Piece, 1 Piece (Min. Order): Buy Samples
Contact Supplier
Samples - $107.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
1.5 years
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Electrical and cable equipment factory
Place of Origin:
China
Brand Name:
Qipang
Use:
Weaving Machinery
Type:
Guide Wire
gp 30 rolling ring drive:
gp 30 rolling ring drive with steel wire guide
Material:
Stainless Steel
Usage:
guide wire
Size:
135*85*105MM
Package:
Carton Box
Model:
GP30A
Application:
winding wire
Export Market:
Europe

Packaging & Delivery

Selling Units:
Single item
Single package size:
14X8X11 cm
Single gross weight:
25.000 kg
Package Type:
carton and wooden Suitable for gp 30 rolling ring drive with steel wire guide wheel
Lead Time :
Quantity(Pieces) 1 - 1 2 - 10 >10
Est. Time(days) 5 15 To be negotiated
Video Description
Product Description
/px30Suitable for gp 30 rolling ring drive with steel wire guide wheel traverse unit  gp30/px30
Detailed Images

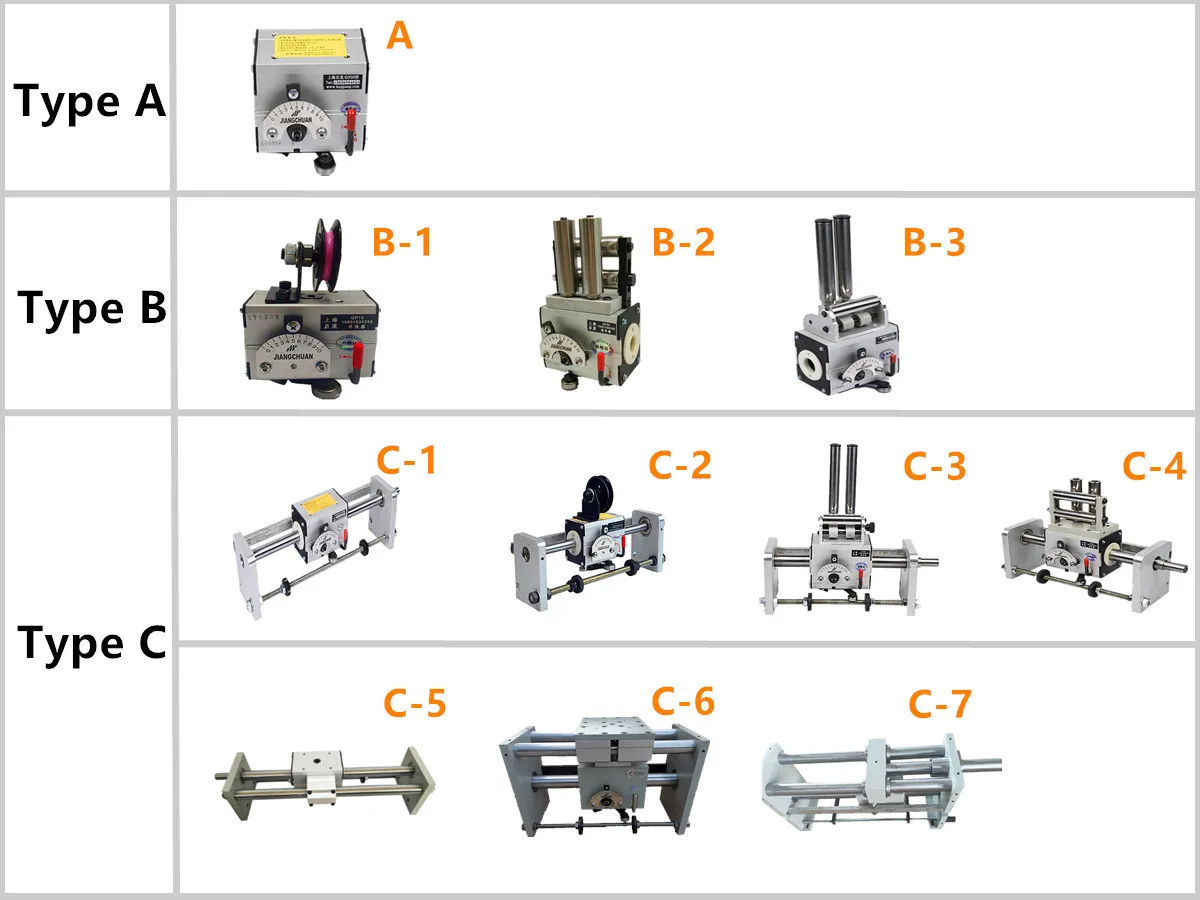

Type A / Type B / Type C :


Type A Series : One Rolling Ring linear drive

Type B Series : One Rolling Ring linear drive with Guide Rollers or Guide Wheel

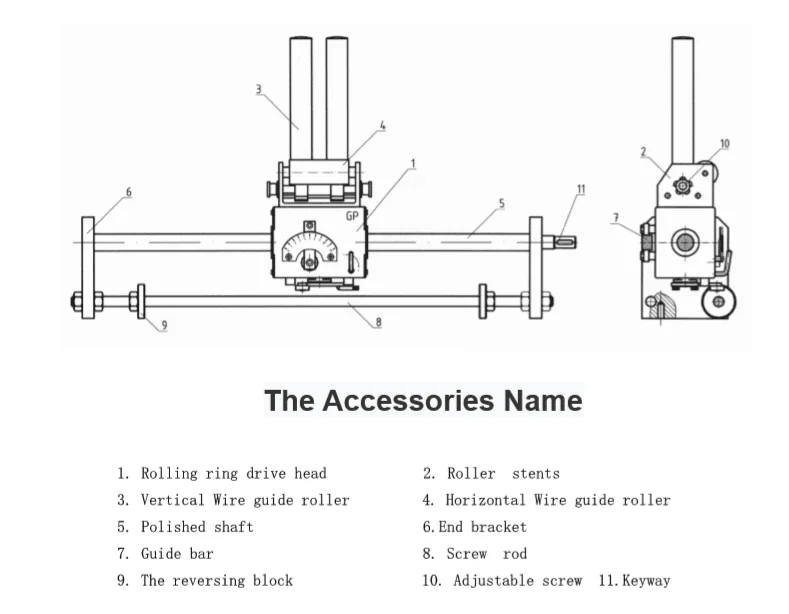

Type C Series : One Rolling Ring linear drive with accessories , such as shaft , guide wheel , bearing block , steady bar ,etc

Main Features

1.Infinitely adjustable-speed

Don't need to change the polished rod rotation speed, the spool to the polished rod speed must be, as long as the handles on the toggle dial position, can adjust discharge line reciprocating movement on the polished rod speed and achieve accurate adjustment line with the needs of the pitch, can be set from 0 to coarse pitch.rolling ring drive .

2.Instantaneous commutation

It is not necessary to change the rotation direction of the optical rod. When the reversing arm collision wheel hits the commutation block, the stripper will walk in the opposite direction immediately.

3.Release assembly

There is no need to polished rod stops, you only need to release the handle according to the arrow pointing to rotate 90 °, row line can stop automatically move, and use hands to move on the polished rod.

4.High speed operation

The speed of light rod can reach 1000 RPM or so, which can meet the operation requirements of high speed line arrangement and frequent commutation.

Our Company

Shanghai Qi Pang Industrial Co., LTD was established in 2003. Our company is a high-tech enterprise that develops and make the series polished shaft rolling ring drive and wire straightener earliest in China. The company is located in the JiaDing, Anting auto city, which is the world financial center in Shanghai. It is very convenient.

We always adhere to the talent oriented and honest business principles since our company established . Our company will continue to attract talents in various fields and advance foreign advanced technology to make our products have a high quality and precision. Our company developed a new type machine in 2015. It is a new type of machine : Frequency Take-up machine.


We always adhere to the principle of quality first, credit first and customer first. We sincerely welcome our old and new customers to cooperate and create a better future.


Certifications

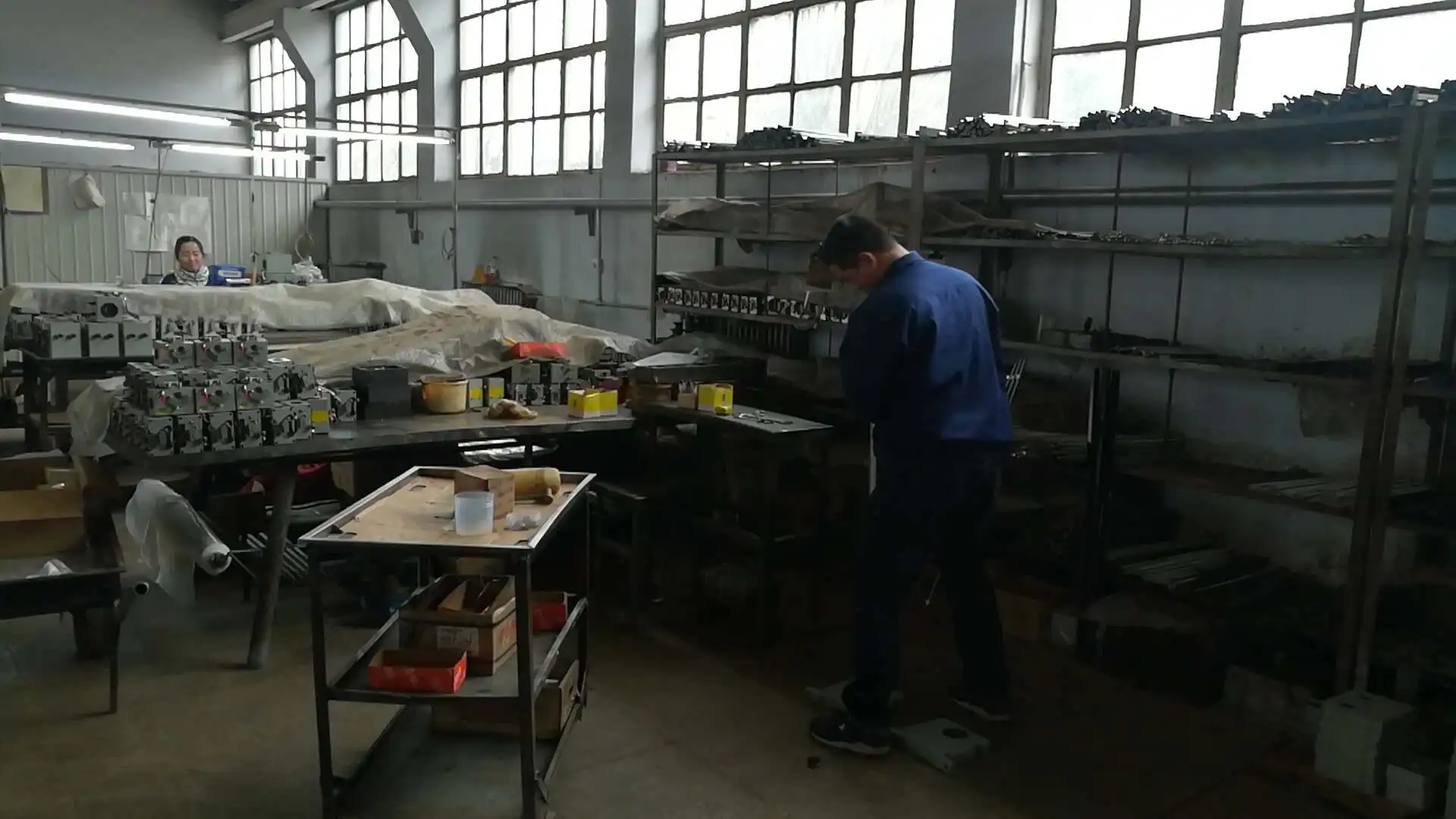

processing workshop
Packing & Delivery

Our most professional packaging


Transport of large trucks to the seaport


And international transport cooperation


Other Products

QP 500 winding machine

TC 350 rewinding machine

TC630 cable winidng machine
