Sun Feeder Printing and slotting machine for corrugated paperboard box

FOB Reference Price:Get Latest Price
  • >=1 Units
Lead Time:
Quantity(Units) 1 - 2 >2
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Quick Details
Applicable Industries:
Manufacturing Plant
Biggest machine speed:
150-200 pieces/min
Biggest feeding size (L * W):
Width of printing roller:
MIN. feeding size (L * W):
MIN. height of box (H):
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Lead Time :
Quantity(Units) 1 - 2 >2
Est. Time(days) 40 To be negotiated
Product Description
Technology Parameter:
Max machine speed
150-200 pieces/min
Max feeding size (L * W)
Width of printing roller
Min feeding size (L * W)
Min height of box (H)
Min slotting interval
Negative knife (A * B)
Dimension (Length*Width*Height)
8500 KG


This machine is manual operation and vacuum absorption auxiliary feeding system.(The wind strength can be adjusted). It can slot, cut the corner, cut the extra side and press the lines of the corrugated cardboard. The slotting width is electric adjustment, and it attached a ruler that the scale can be read easily. The phase adjustment of slotting part is planetary gear structure. The machine adopts 360°electric adjustment. The up and down slotting knives and creasing knives can move synchronously(use exclusive tool to adjust left and right). This small machine is easy to operate and repair easily which is specialized for slotting small boxes.

Printing part
1. Adopts Φ296mm high quality thick seamless steel tube which is surface grinding and hard chromium plating.
2. Adopts Φ175mm 220 mesh high quality steel anilox roller which is produced by Tengda Dalian.
3. Adopts Φ160mm rubber roller made by Chunfeng Jizhou. It is wear-resisting, oil resistance and acid and alkali resistant. The roller is in highly grinding so it is easy to print.
4. The pressure adjustment of printing roller adopt high precision crosshead shoe gapless adjustment to do the slight adjustment, can make the printing pressure reach best condition.
5. 360°electric phase, printing motor button phase adjust mechanism adopt planetary gear structure, can freely adjust machine work or stop 360°by electric button when machine running.
6. ink pump provide ink automatically, lift printing plate by hand. also with the automatic ink distribution system, which avoid the bad influence to the printing result when ink dry out because of machine stop running. Used 1.2inch PVC ink-back tube, smooth tube wall avoid ink-stuff up and sticking, can send the ink to ink bucket in time to avoid ink-leak phenomenon.

Main structure and features
1. Feeding paper roller adopt patterned roller, feeding paper roller pressure adjustment adopt eccentric wheel adjust and left-right eccentric wheel, adjust the pressure synchronous
2. Pushing paperboard department adopt both sides baffle and latter baffle to fasten paperboard, to avoid the slotting error when pushing paperboard which make upper paperboard misplace, can fit to every kinds paperboard, and sending paper stable and accurate.
3. Slotting plate adopt full steel processed accessories, slotting knives adopt zigzagarc-shaped semicircle knives to slot and remove the scrap, paperboard get into slitting roller after slotting, slitting knives slit both sides of the paperboard(note:pressing wheel and slitting knives in one roller)
4. Paperboard is send out by six transmit shaft after slotting, corner-cutting, slitting, pressing, this machine power equipped with the frequency conversion speed regulator(speed adjustable freely), adopt Jintiao frequency converter.
5. This machine adopt electric planetary gear phase to adjust paperboard size, can adjust without stopping.

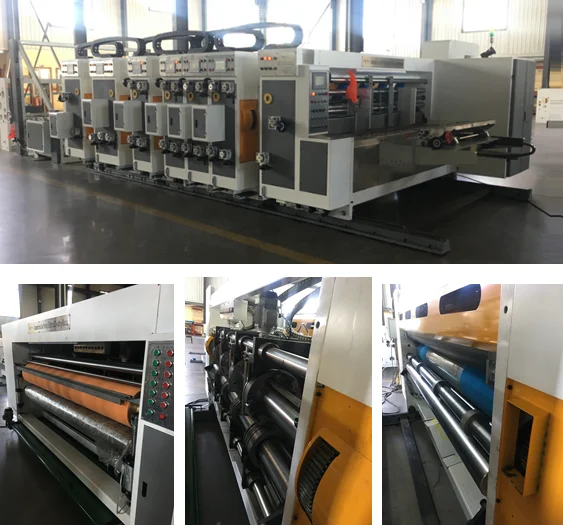

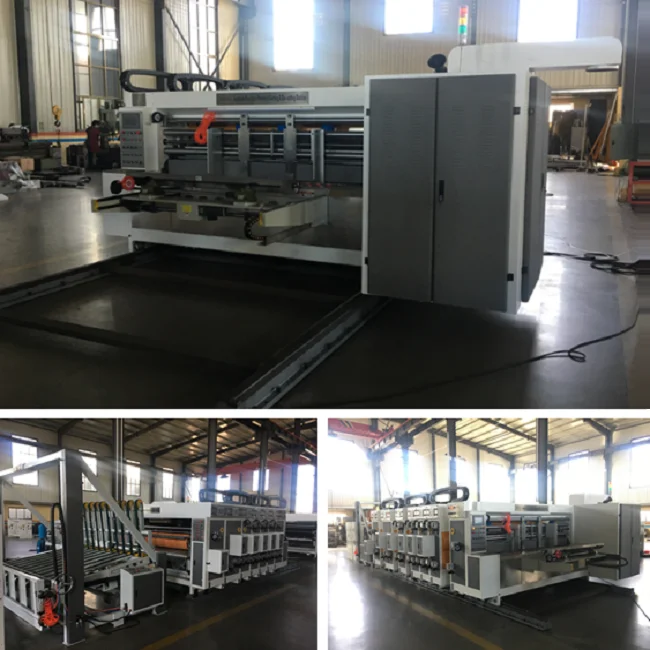

Machine photos
