Sunsoar Printed Circuit Pcb Pcba Assembly Pcb

FOB Reference Price:Get Latest Price
  • 2 - 4999 Pieces
    $0.50
  • >=5000 Pieces
    $0.01
Samples:
$26.99 /Piece | 1 Piece (Min. Order) | Buy Samples
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 2000 2001 - 3000 >3000
Est. Time(days) 5 7 10 Negotiable
Customization:
Graphic customization (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Customized logo (Min. Order: 500 Pieces)
Label (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Supplier Type:
FACTORY
Model Number:
SPA216
Place of Origin:
China
Min. Line Width:
0.1mm
Copper Thickness:
0.5-4OZ
Min. Line Spacing:
0.1mm
Board Thickness:
1.6mm
Base Material:
FR-4
Surface Finishing:
OSP
Min. Hole Size:
0.2mm
Solder mask color:
Black.Red.Yellow.White.Blue.Green
Product name:
aluminum pcb
Application:
Electronics Device
Supply Ability
Supply Ability:
6000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Bubble bags,
ESD Bag / Static bag,
Polyethylene foamed sheets,
Carton
Port
ShenZhen
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 2000 2001 - 3000 >3000
Est. Time(days) 5 7 10 To be negotiated
Video Description
Product Description

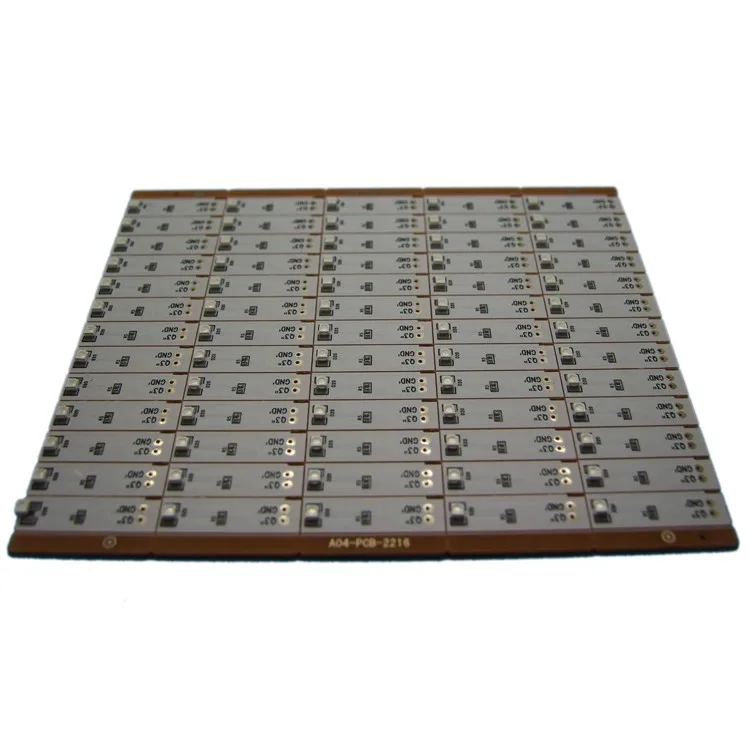

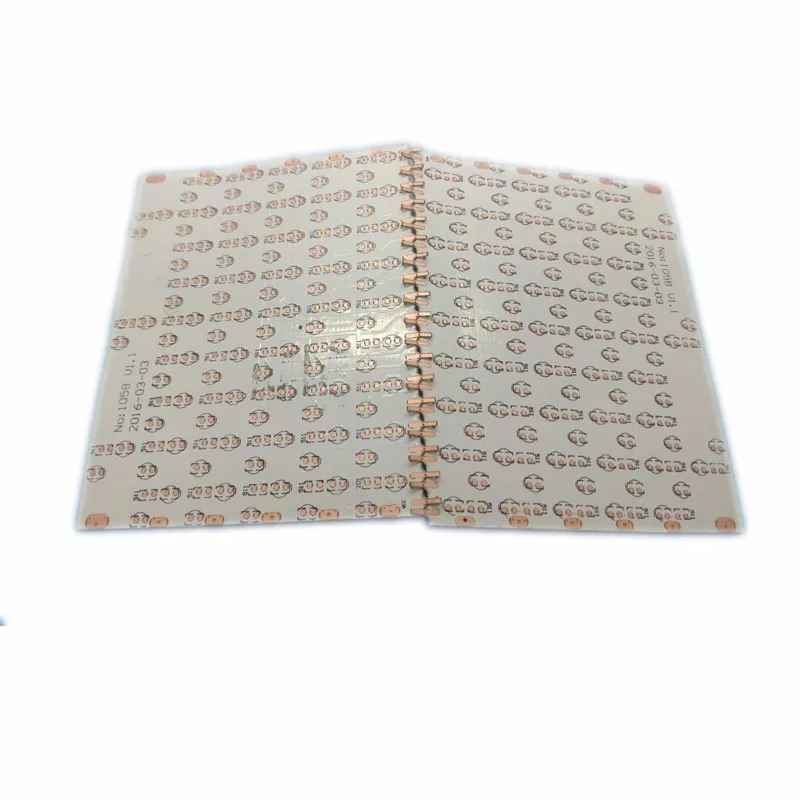

OEM PCBA Assembly Free Sample Board Aluminum Pcb For Led

Product Name
OEM Printed Circuit PCB Assembly Board In Shenzhen
Material
FR-4,Halogen free,High TG,Cem-3,PTFE,Aluminum  BT,Roger etc.
Color
White,Black,Yellow,Red,Blue,Purple etc.
Standard
RoHS,CE,SGS
Surface treatment
OSP,Immersion gold,HASL,Gold finger,Hard plating
V-Cut
V-Cut degree 20,30,45,60
Capacity
35000sq/m
CAM capability
20 Items

Other PCB Boards we can make

Aluminum Pcb,          Flex Pcb,         Rigid Flex Pcb,       Rigid Pcb,     Pcb Assembly,    Multi-Layer Pcb,    High Frequency Pcb,      Gold Finger Pcb,

HDI Board

item
Mass production
Small batch order
Laminate
FR-4,Halogen free,High TG,Cem-3,PTFE,Aluminum BT,Rogers
Maximum board size
610*460mm
610*460mm
Board thickness
0.3-3.5mm
0.2-6.0mm
Minimum line width/space
0.1/0.1mm
0.076/0.076mm
Minimum line gap
+/-15%
+/-10%
Outer layer copper thickness
140um
210um
Inner layer copper thickness
70um
150um
Min.finished hole size(Mechanical)
 0.2mm
 0.15mm
Min.finished hole size (laser hole)
0.1mm
0.1mm
Aspect ratio
10:01
13:01





Surface Treatment
Flash Gold
 0.025-0.075um
0.025-0.5um
Immersion Gold
 0.05-0.1um
 0.1-0.2um
Sn/Pb Hasl
 1-70um

Leadfree Hasl
 1-70um

Immersion Silver
 0.08-0.3um

OSP(Entek)
 0.2-0.4um

Gold Finger
 0.375um
>=1.75um
Hard Gold Plating
 0.375um
 >=1.75um
Immsion Sn
 0.8um

Main Products
Our Service

What we can do?

-EMS-Electronic Manufacturing Service
-PCB Supply and Layout
-PCB Assembly on SMT, BGA and DIP
-Cost Effective Components Sourcing
-Fast Turn Prototype and Mass Production
-Box Build Assembly
-Engineering Support
-Tests(X-ray, 3D Paste Thickness, ICT, AOI and Functional tests)
-Logistics and After-sales Service

Our Company

Hello! Everyone! Welcome to visit our site
We are a custom-made manufacturer of PCB and PCBA products from China.Our mission is to solve the manufacturing problem for low cost, quick turnaround prototyping and big batch.

Who We Are?

SHENZHEN SUNSOAR CIRCUIT CO.,LTD. is an professional OEM manufacturer of PCB and PCBA,we have engaged in printed circuit board area for 10 years.

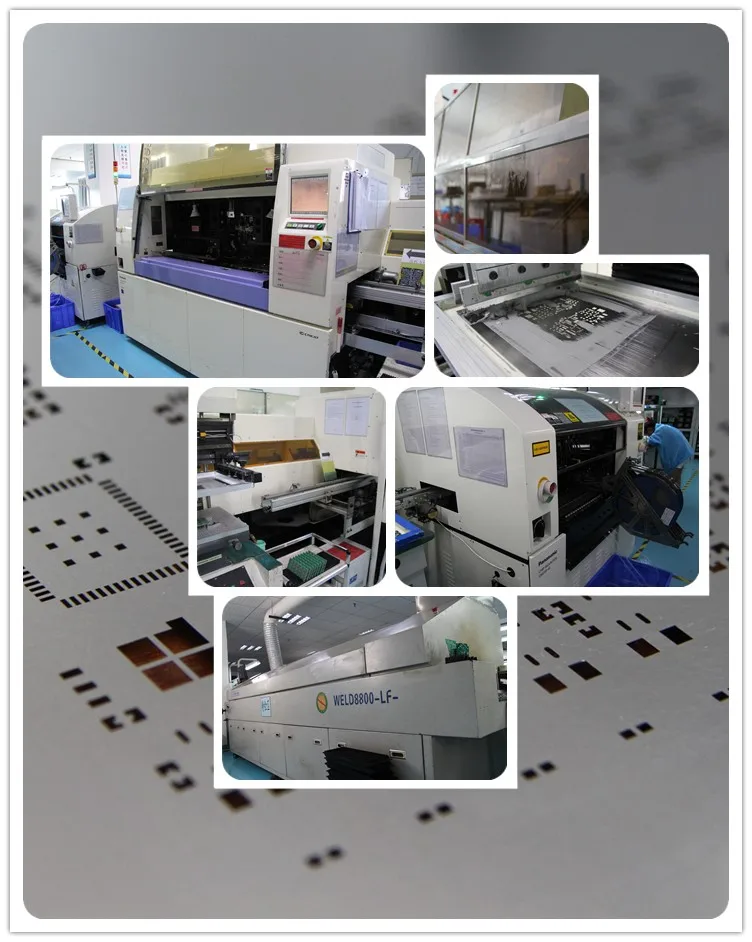

Factory

Our Factory is located at Baoan Shenzhen

Team

Our small team with strong power enough to serve all of you.

Bare PCB Lead Time

Layer
Sample Order
First Order
Mass production
(above 30 m2)
Quick turn
Usual time
2
24 hours
3-4 days
8-10 days
4
48 hours
5-6 days
10-12 days
6
72 hours
6-8 days
12-14 days
8
72 hours
8-10 days
16-18 days
10
96 hours
12-12 days
18-20 days
......
......
......
......

PCB Assembly Lead Time

Order Conditions
Standard Delivery Date
The fastest Delivery Date
Prototype
3 days
7 days
(<20 pcs)
2 days
8 hours
Small Volum
7 days
9 days
(20-100 pcs)
3 days
12 hours
Medium Volum
10 days
12 days
(100-1000 pcs)
6 days
24 hours
Packing & Delivery
Our Certifications

UL Approval
ROHS
ISO9001:2000
CE certification
SGS Lead-free certification

FAQ

Q1:What service do you have?
A1: One-stop service including PCB production + Component sourcing + Assembly

Brand of material
Q2: What material brand you use for your PCB?

A2: KB, SL, NANYA, TACONIC, ROGERS and so on.

MOQ
Q3: What is your minimum order quantity?

A3: We have no limitation on MOQ, prototype, medium volume and large volume are all acceptable.


Q4:What files required to get quotation from you?
A4: For PCB quotation, please provide the Gerber data/files and indication of related technical requirements as well as any special requirement if you have.
For PCBA quotation, please provide Gerber data/ files and also BOM (bill of materials), and if you need us to do function test, please also provide the test instruction/procedure.
