Supply Thermosetting polythene PE powder coatings

FOB Reference Price:Get Latest Price
$2.00 - $3.00 / Kilograms | 500 Kilogram/Kilograms (Min. Order)
Report Suspicious Activity
Overview
Quick Details
CAS No.:
9003-01-4
Other Names:
Thermoplastic Powder Paint
MF:
Mixture
EINECS No.:
201-177-9
Place of Origin:
Guangdong, China (Mainland)
Main Raw Material:
PE/PVC
Usage:
Appliance Paint, Building Coating, Electrical Insulating Varnish, Furniture Paint, Powder Coating
Application Method:
Spray
State:
Powder Coating
Brand Name:
Winner
Model Number:
RAL
Name:
Thermoplastic powder coating
Color:
Customized
Gloss(60°gauge head):
Customized(3°-200°)
Density(g/cm3):
1.2~1.8
Painting thickness:
250μ-400μ
Curing conditions:
150-°C200°C*10mins-15mins
Utilization rate:
95 - 99%
Standard:
RoHS
Quality Certificate:
ISO9001:2008
Shelf Life:
Cool ventilated dry place for 24 Months
Supply Ability
Supply Ability:
10 Ton/Tons per Day
Packaging & Delivery
Packaging Details
Package details: 1)Packed in bags.25kg/bag. 2)Lined with PE bag. 3)One 20 feet container can load more than 600 pags(15T).
Port
Jiangmen/Guangzhou
Lead Time :
Shipped in 10 days after payment
Product Description
About Powder coating:

Powder coating is widely used in household appliances, Office furniture, lamps, garden equipment, leisure products, vehicle parts, fire-fighting equipment, instruments and meters, kilometers guardrails, anti-corrosion pipes, automotive, marine, architectural hardware, liquefied petroleum gas cylinders, supermarket shelf, sewing machines, safes, furniture and other artifacts in the area of painting.

Working life
3-8 Years
Spraying mode:
High voltage electrostatic spraying 60-80 KV
Color
RAL,PANTONE(Customized)
Application
Metal Surface
Gloss(60°gauge head)
1-200%
Certification
ISO:9001, RoHS, FDA, EN71
Density(g/cm3)
1.2-1.8
Film thickness
250-400μm
Utilization rate:
95-99%
Appearance(visual)
Smooth, Texture, Wrinkle...
Curing conditions
200°C*10mins/180°C*15mins/160°C*20mins
MOQ
500kg
Salt spray test
500-1000H
Surface hardness
H-2H
Shelf Life
Under 25 degrees for 24 monthes
Package
Net:25kg/Pag
Our Service

1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.

5. Free shipping to all over the world.

Detailed Images
Benefits of Powder Coatings:

• Tough, durable, lasting coating for metals. Excellent hardness and abrasion / impact resistance gives improved product performance over most liquid coatings.

• Wide range of colors.

• Environmentally friendly outsourcing option to avoid permitting for solvent-based paints.

• Less process variation results in consistent color and appearance of the product.

• High film builds and excellent edge coverage gives better resistance to corrosion with proper pretreatment.

• Coatings can be easily formulated for specific applications such as prolonged exposure to sunlight, the ability to survive in highly corrosive environments, flexibility to allow forming after coating, or high durability and resistance to chipping.

Cold Rolled/Hot Rolled Steel
Aluminum Extrusions and Castings
Galvanized Steel
Rare Earth Magnets (NdFeB)
Iron Castings
NiZn Plated Steel
Zinc Castings
Stainless Steel
Copper/Brass
Powder Metallurgy Parts
Magnesium
Some Non-Metallics

We offer powder coating capabilities that include a wide spectrum of colors, thickness, textures, softness, edge coverages, flexibilities, machinabilities, smoothness and temperature ranges.

Attributes of powder coating:

1. Tough(Hardness)
2. Attractive
3. Durable
4. Scratch-resistant
5. Chemical-resistant

6. Colorful
7. Versatile

8. More

Powder coating technical parameters:
Item
Instrument
Standard
Testing method
Pencil hardness
Pencil hardness instrument
≥ H
GB/6739
Impact resistance
Impact tester
≥ 30 kg.cm
GB/T 1732
Flexing endurance
Bending instrument
≤ 2mm
GB/T 6742
Adhesive force
Cross-Cut tester
0 grade
GB/T 9286
Bulge
Bulge instrument
≥ 6 mm
GB/T9753
Resistance to salt spray
≥ 500 Hs
≥ 9 grade
GB/T 1771
Resistance to heat and humidity
≥ 1000 Hs
Slight loss of gloss
GB/T 1740

ATT: Above tests adopt 0.8mm deoiling and derusting cold-rolled steel sheets, coating film thickness 60~80um; performance index of coating film will change with brilliance changing.

Other Products

Types of powder coatings:

The most common polymers used are polyester, polyurethane, polyester-epoxy (known as hybrid), straight epoxy (fusion bonded epoxy) and acrylics and so on.

Curing conditions: 200℃*10min/180℃*15min/160℃*20min

Gloss level:
High gloss (above 85%),
Flat gloss (50%-85%),
Semi gloss (7%-50%),
Matt (below 7%)

Ultra high gloss properties: 450 – 600%

Surface appearance: metallic (Gold, silver) effect, chrome (Red, Blue, Green, Purple…) effect, smooth effect, art textures (sandy, wrinkle) effect and so on.

According to RAL & PANTONE, We accept customized.

Our Company

Jiangmen Winner Coating Co., Ltd is located in the famous hometown of overseas Chinese-Jiangmen City. Winner Coating has been committed to the development and application of environmentally & friendly powder coatings. Its a collection of production, sales and service in one of professional powder coatings manufacturers.

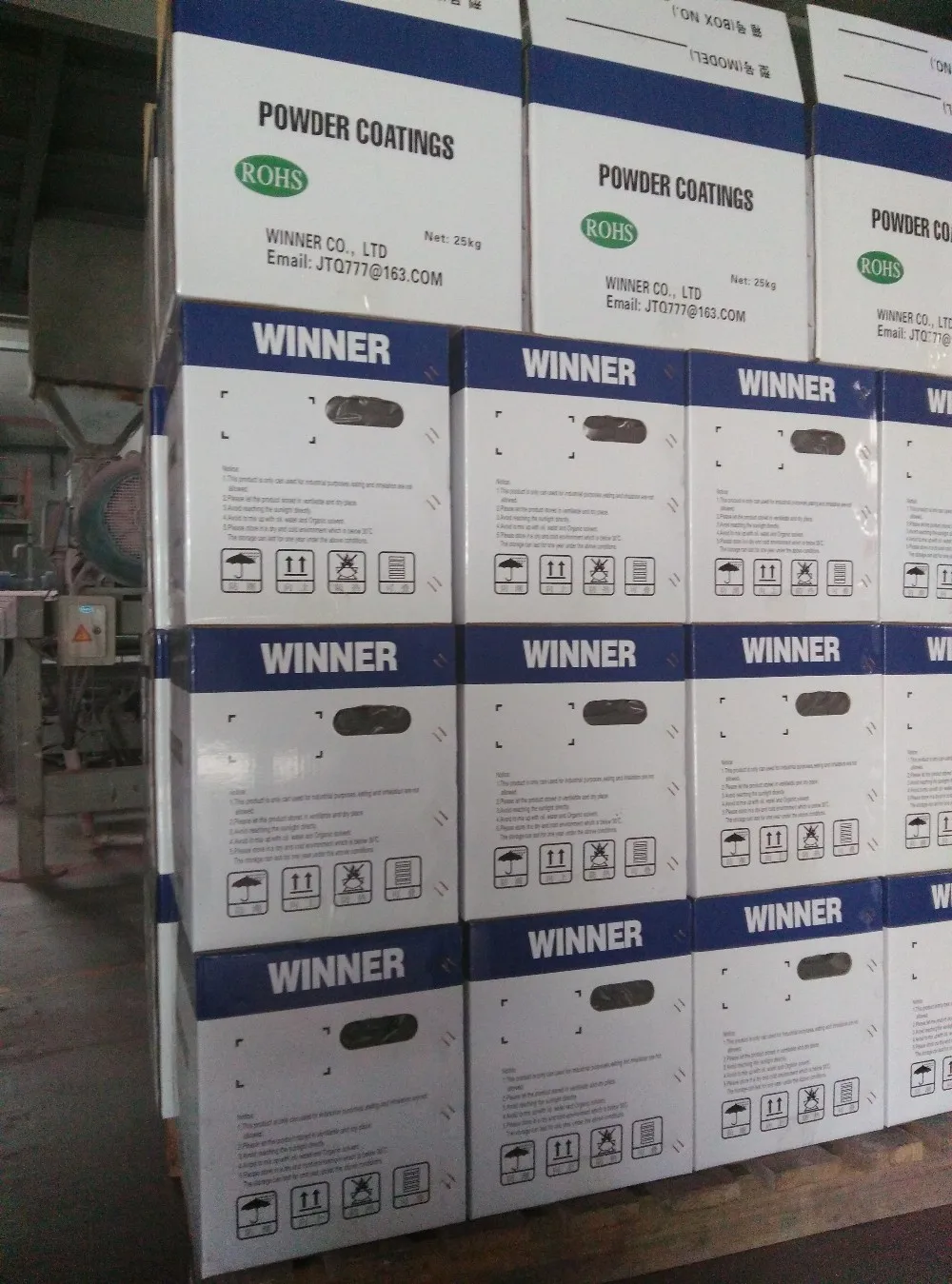

Packing & Delivery
Our most professional packaging
Wrapped Up Neatly to the seaport
Waterproof five - storey corrugated box

The powder coatings production process:

1. The polymer granules are mixed with hardener, pigments and other powder ingredients in a mixer.
2. The mixture is heated in an extruder.
3. The extruded mixture is rolled flat, cooled and broken into small chips.
4. The chips are milled and sieved to make a fine powder.


Personal Protective Requirement:

1. Wash hands before breaks and at the end of work.
2. Avoid contact with the eyes and skin.
3. Do not eat, drink, smoke or sniff while working.
4. Avoid inhaling the powder.
5. Provide for good ventilation.
6. Protection equipment for instance:

Dust mask, filter type P2, Protective gloves, Safety glasses, Light weight protective clothing.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our carton box, 25kg/carton. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4. How about your production time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific production time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can, and very encouraging and welcome Sample available, because that our products can better meet your requirements.

Q6. What is your sample policy?
A: We can supply the sample free under 3 kg, but the customers have to pay the sample courier cost and Test Charge.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
