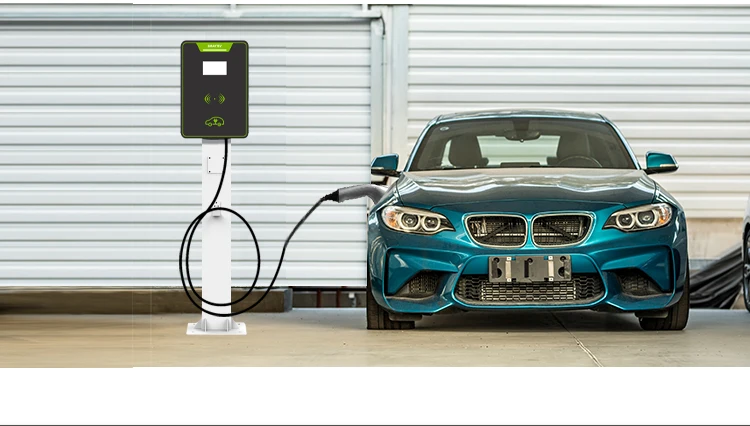

Supply Three-phase 22KW 32A Leakage ground over temperature protection IP55 IEC 62196 61851 smart fast wallmounted ev charger

  • 1 - 19 Pieces
    $438.00
  • 20 - 49 Pieces
    $417.00
  • 50 - 99 Pieces
    $397.00
  • >=100 Pieces
    $378.00
Quick Charging:
IEC 62196 / IEC 62196
Color:
Shipping:
Support Express · Sea freight · Land freight
Lead Time:
Quantity(Pieces) 1 - 20 21 - 100 >100
Est. Time(days) 14 20 Negotiable
Customization:
Customized logo (Min. Order: 20 Pieces)
Customized packaging (Min. Order: 20 Pieces)

More

Graphic customization (Min. Order: 20 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Type:
Electric vehicle chargers
Function:
screen display, Charging for electric car battery, EV charging
Charging Port:
1port
Connection:
Type 2 / Type 1
Voltage:
110V - 240V
Warranty:
12 Months
Certification:
ce, RoHS
Place of Origin:
Shanghai, China
Brand Name:
SE
Model Number:
SEVK-0-38-22-AC-03-EU-W-S
Use:
Standard Battery, electric car
Output power:
22KW
IP Grade:
IP55
Operating Current:
32A
Operating Voltage:
400V ±10%
Charging Standard:
IEC 62196.2
Service:
3S(small qty, special, short time)
Certificate:
CE TUV
Connector:
Copper Alloy , Ag plated
Supply Ability
Supply Ability:
215 Piece/Pieces per Week
Packaging & Delivery
Packaging Details

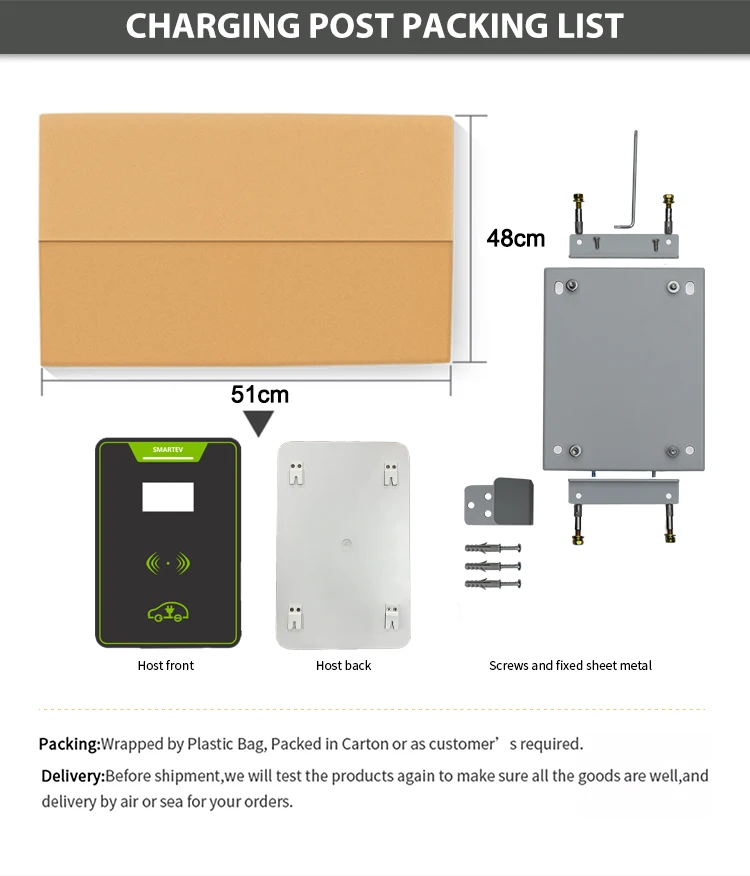

We package the products and accessories in cartons of 54 cm * 42cm * 25 cm.
List: Wall-mounted charger (including charging gun) * 1
Mounting plate * 1
Supporting screws
Hook * 1
RFID card * 2
Instructions for use and installation instructions * 1
Weight: 12KG
Port
Shanghai/Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 20 21 - 100 >100
Est. Time(days) 14 20 To be negotiated
Video Description
Related Products
Product Description
Parameters
Model
SEVK-0-38-22-AC-03-EU-W-S
SEVK-1-38-22-AC-03-EU-W-S






Structure Appearance
product properties
Off-line w/o stand
Offline with stand
Dimension
400(H)×280(W)×120(D)mm

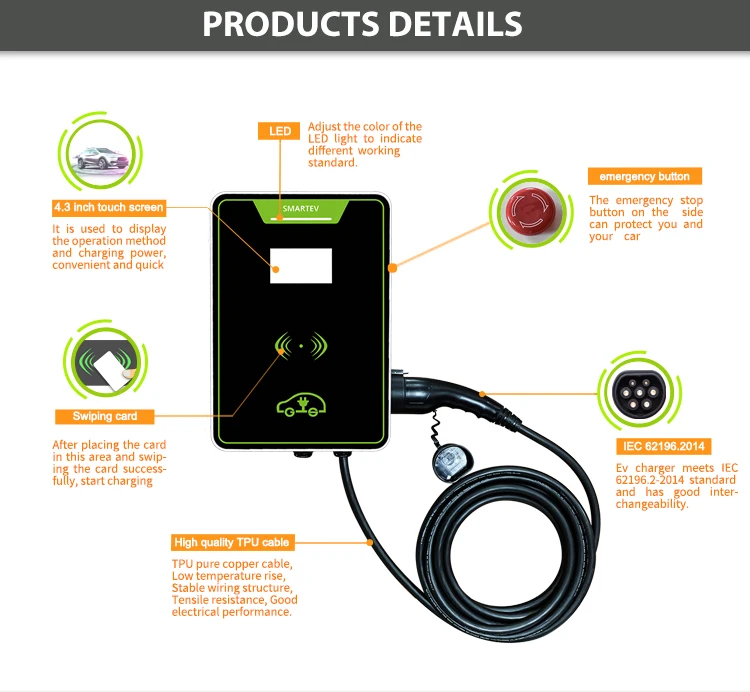

User Interface
4.3 inch display touch screen with Indicator light

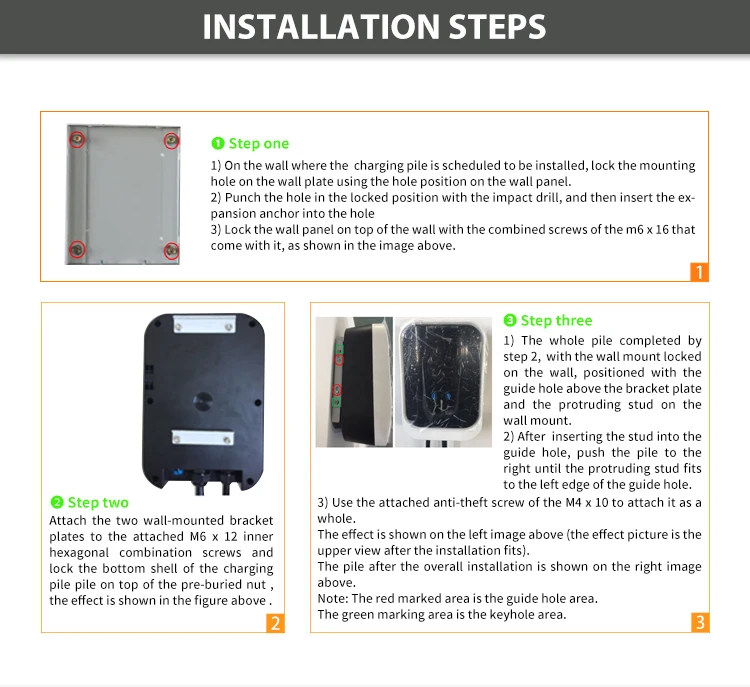

Installation method
Wall-mounted Type/Floor-standing Type Installation
Wiring method
Bottom enter&out
Cable length
3.5m/5m/10m optional
Weight
12.0kg (Including charging gun)





Electrical Specification
Input voltage
AC400V±10%
Frequency
45-65Hz
Power rating
22KW
Measurement accuracy
OBM 1.0
Output voltage
AC400V±10%
Output current
32A
Standby power
3W


Function
Indicator light
Yes
Display
N/A
RFID
Yes
Communication interface
4G/3G,Ethernet,WiFi, RS232, OCPP1.6 (net work version)


Protection
Design standard
EN/IEC 61851-1 (2010 / 2017),EN/IEC 61851-22 (2001),EN/IEC 62196-1 (2014),EN/IEC 62196-2 (2017),ROHS directive 2011 /65/EU
Protection
Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection, onboard A-type leakage protection






Operating Environment
Working temperature
-40-+65℃
Working Humidity
5%-95% no condensation
Working altitude
≤3000m
IP grade
≥IP55
Cooling mode
Natural cooling
Applicable
Indoor/Outdoor,No conductive dust, no corrosive gas, no explosive gas, no strong vibration
Special protection
UV resistance
MTBF
≥100000H

Optional
Installation components
□Stand pillar
Intelligent module
□Bluetooth □Voice □Both
Company Profie

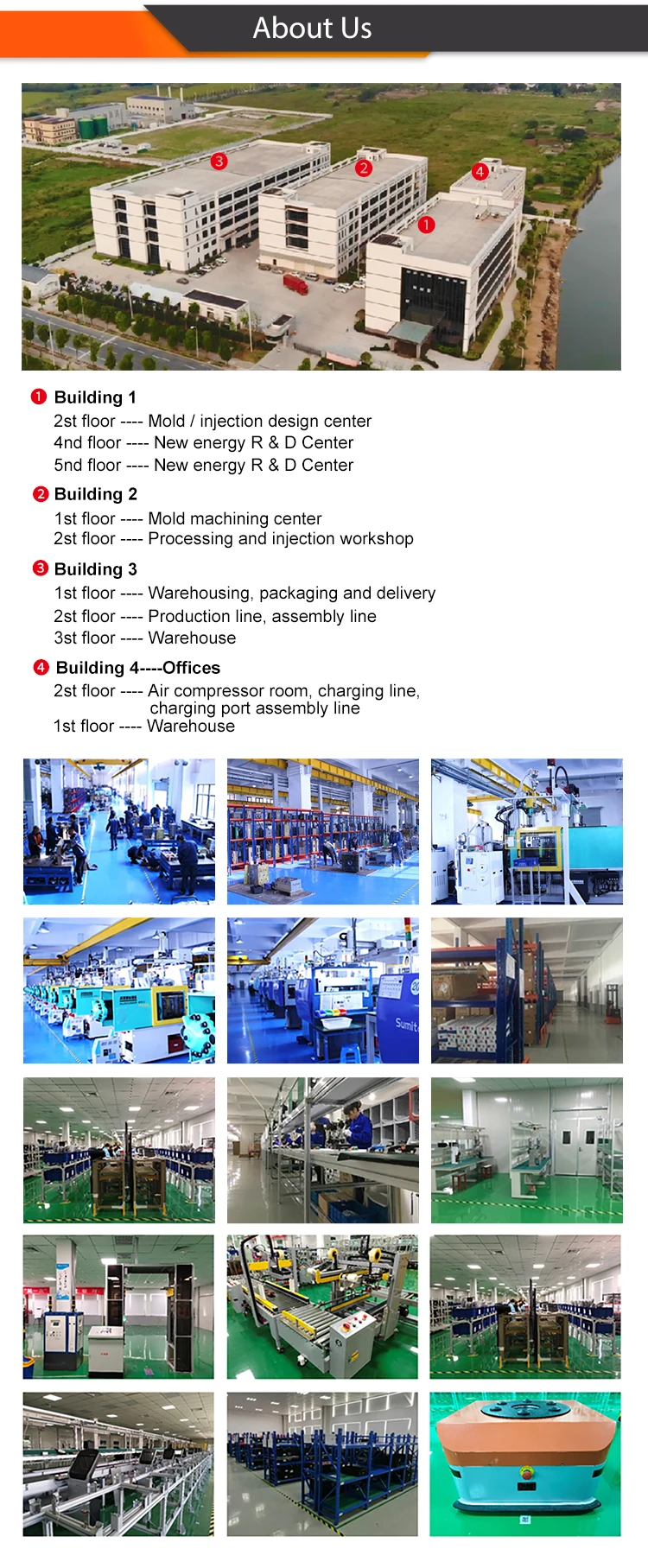

Hengyi Mechanical&Electrical Engineering is an enterprise specializing in Research & Development of Electric Vehicle Charging products. The company has a strong R&D team and the team director conducted a visiting scholar study at the University of Michigan Dearborn from 2011 to 2012. And the company also has a complete production supporting system integrating mold design, manufacturing and injection molding. We can provide customized services to meet different needs from customers, in addition to our regular standard products. We constantly strive to provide each customer with better products along with customized services. We are committed to become the most professional and efficient manufacturer in the field of EV charging. Now our products adapt to vast majority of vehical models around the world and we will continously update to provide with safe and efficient EV charging products.
FAQ
Q1:How do you package it ?
A:We pack in cartons.

Q2:what's the MOQ?
A:For LOGO, color or other special requirements, a minimum of 20 is required. If you do not have these requirements you can buy directly, we will ship within 3-10 days.

Q3:Can you produce according to the samples?
A:Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

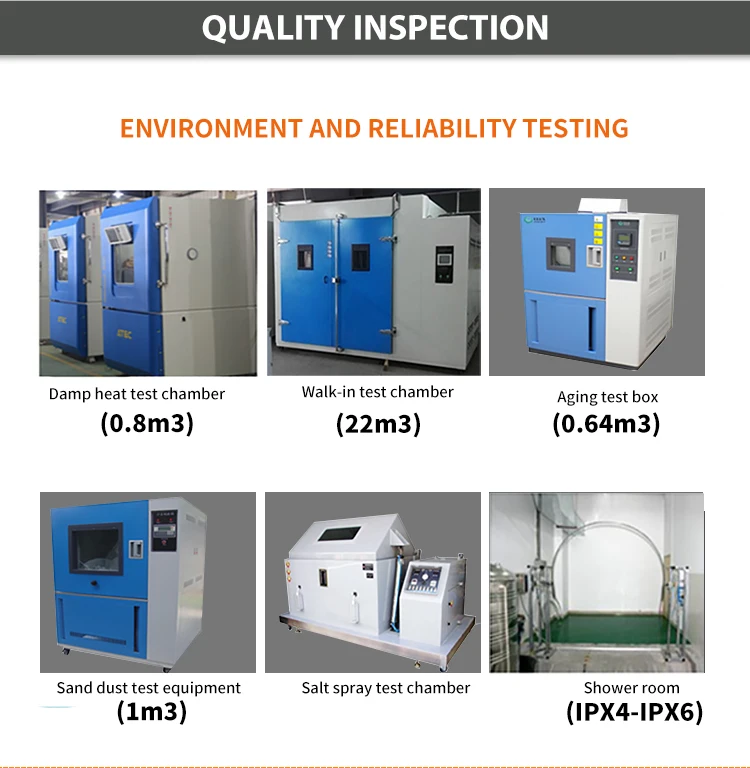

Q4:Do you test all your goods before delivery?
A:Yes, we have 100% test before delivery.

Q5:What is your terms of delivery?
A:EXW, FOB, CFR, CIF, DDU.

Q6:What is your terms of payment?
A:We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
