30 Set/Sets per Year for aluminium foil container tray making machine
Packaging & Delivery
Wooden box or as per your requirement for aluminium foil container tray making machine
1 - 1
To be negotiated

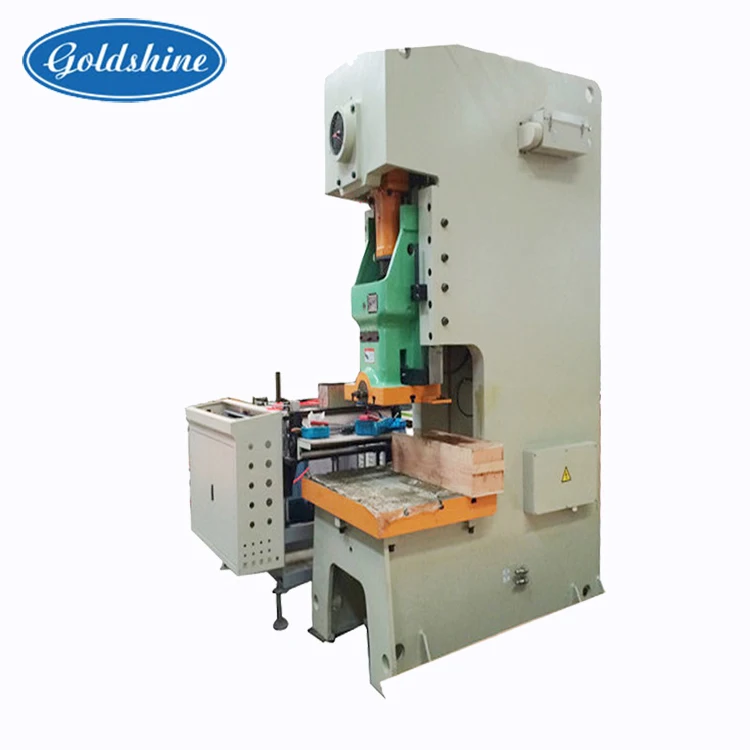

Performance Characteristic of Supply Top Quality aluminium foil container tray making machine
1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production. 2. Feeding, punching, scrap collecting is running automatically. 3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press. 4. Feeding is controlled by stepper system, the feeding length is accurate and can be adjusted from 20mm to 999mm.
Main specifications and technical parameters of Supply Top Quality aluminium foil container tray making machine
Max.Width of Roll (mm)
Max.Unwind Roll Diameter(mm)
Feeding Speed (m/min)
Feeding Length (mm)
Feeding Accuracy (mm)
Working Voltage (V)
Total Power (Kw)
Weight of machine (Kg)
Optional: inflatable shaft 75mm, 150mm
2.High Accuracy Press
Nominal Pressure (KN)
Slide Block Strok (mm)
Slide Stroke Per Minutes(/min)
Maximum Die Set Height(mm)
Die Set Height Adjustment(mm)
Slide Bottom Size (mm)
Bolster Surface Size (mm)
Total Power (KW)
Overall Dimension Before Changed(mm)
Overall Dimension After Changed(mm)
Material Name of Mould
High Chrome Steel
High Chrome Steel
The Mould holder is made of Precise hardware steel plate covered with four column copper base steel ball .
Mould Holder Material
4.Scrap Collrcting Device
Name: Automatic feeding device
It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.
Name: press parts Flatten aluminum foil to make aluminum foil better fit the mold.
Name: Control system Brand: PLC Duplex safety valve are used to achieve emergent stop,inching,sing action and continuous operation. Electric adjustment of mould load height is adoped,enabling eady operation.
Name: Mould The mould adopts aeroelasticily resilience device,and our advantages of the mould have kong shelf life,stable quality,high precision and resaonable desigh.
The main products: aluminum foil jumbo roll, aluminum foil, aluminum foil container, aluminum foil container machine,aluminum foil roll machine, POP-UP foil sheets and so on.
Q: Are you trading company or manufacturer ? A: We are manufacturer. Q: How long is your delivery time? A: Generally it is 15-35 days, it is according to your quantity. Q: Can you do the machines' appearance design for us? Yes. We have a professional team with rich experience in machne's apperance design and manufacturing. Q: What is your terms of payment ? A: L/C,D/A,D/P,T/T,Western Union.
