Supply high quality flat ftth drop optic fiber cable 1 core

FOB Reference Price:Get Latest Price
$0.049 - $0.053 / Meters | 1 Meter/Meters Supply high quality flat ftth drop optic fiber cable 1 core (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
foclink or OEM
Model Number:
fiber optic drop cable
Product name:
Supply high quality flat ftth drop optic fiber cable 1 core
Cable type:
ftth drop cable
Construction:
self-supporting
Outer Jacket Material:
LSZH (black/white) PVC
Cable Diameter:
(2.0±0.2) (5.0±0.2)mm
Tensile Strength (long/short term):
100/200N
Bending Radius (long/short term):
10D/20D (mm)
Fiber core:
1,2 ,4 core
Fiber Type:
Singlemode G657A1
Strength Member Material:
steel wire
Supply Ability
Supply Ability:
3000 Meter/Meters per Day Supply high quality flat ftth drop optic fiber cable 1 core
Packaging & Delivery
Packaging Details
Supply high quality flat ftth drop optic fiber cable 1 core in 25pcs/pack; 4 cartons(26cm*26cm*26cm) in a bigger cartons(40cm*50cm*50cm)
Port
shenzhen
Lead Time :
within 1-3 days for ftth fiber optic drop wire
Product Description


Supply high quality flat ftth drop optic fiber cable 1 core

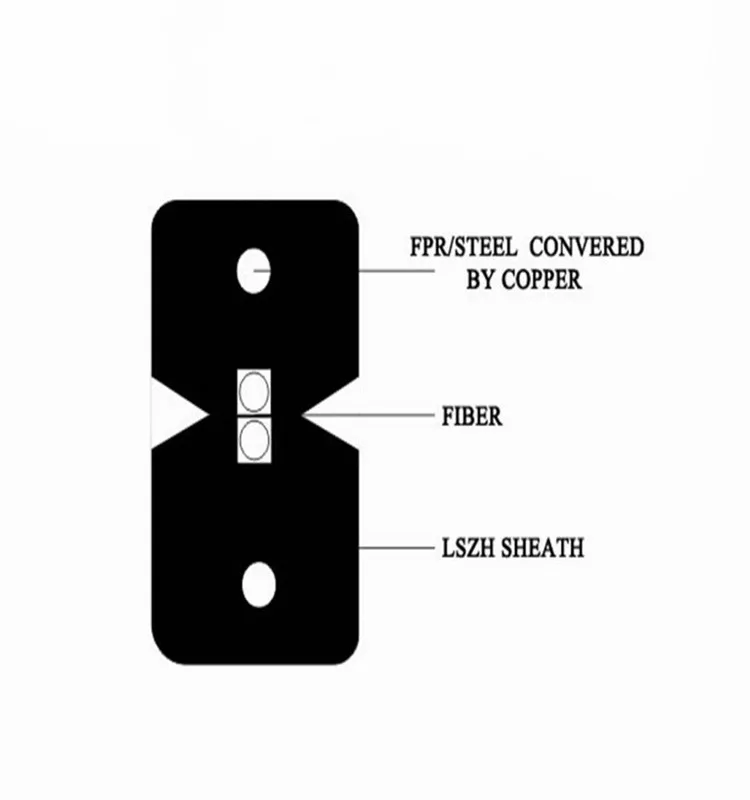

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G657A1 ). The cable is protected by a dielectric strength member made of fiberglass reinforced plastic (FRP), steel wire and a LSZH outer jacket. Designed for outdoor installation, the cable is well suited for connections between the dome closure and small dwelling unit/warehouse and independent villas.

Feature

1) Self-supporting structure, light weight, easy to install
2) Durable and flame retardant LSZH sheath, low smoke zero halogen
3) Steel wire as additional strength member has high tensile strength
4) Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance

G652
G655
50/125μm
62.5/125μm
Attenuation

(+20°C)
@850nm
≤3.5 dB/km
≤3.5 dB/km
@1300nm
≤1.5 dB/km
≤1.5 dB/km
@1310nm
≤0.45 dB/km
≤0.50 dB/km
@1550nm
≤0.30 dB/km
≤0.50 dB/km
Bandwidth (Class A)
≥500 MHz·km
≥200 MHz·km
@1300nm
≥1000 MHz·km
≥600 MHz·km
Numerical Aperture
0.200±0.015NA
0.275±0.015NA
Cable Cut-off Wavelength λcc
≤1260nm
≤1480nm

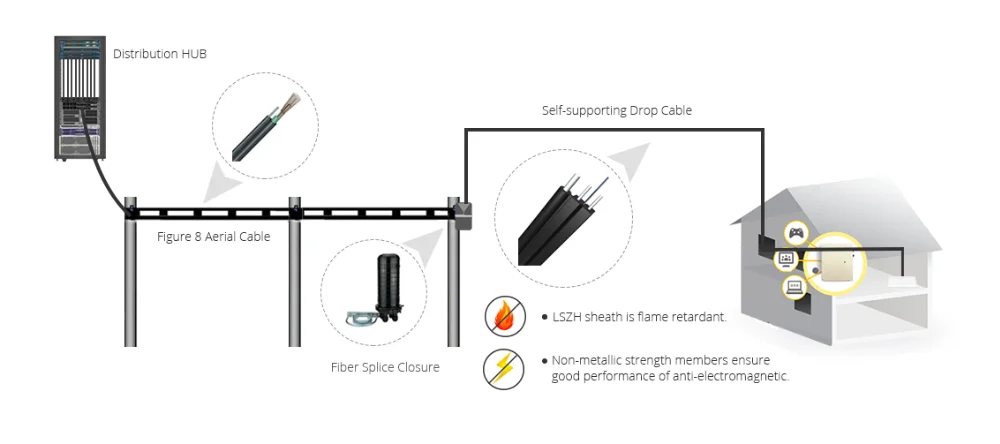

Ideal Solution by Using Self-supporting FTTH Drop Cable


Packing & labeling

Foclink offers two types of cable package. Package 1 is usually for indoor, light weight cables. Package 2 is usually for outdoor, heavy weight cables. Usually we only attach Test Report on the out package of the cable, but we could also mark as your requirements.

Our Company

We have a complete R&D system,advanced production and testing equipments,and have established a quality assurance system in accordance with the ISO9001 standards.
After more than 20 years of development in the communication and network field,our company now provides a full range of products and solutions in FTTH(FTTX)system,Generic Cabling system (ALL-LAN),and MDF system.The products have past the tests from the Ministry of Information Industry of China.

Foclink keeps quality as first ,service'as the guiding principle.With the innovative technology and scientific management,we are ready to effectively provide all kinds of standard products and customized products for you!

why choose us

1) More than 10 Years Fiber Export Experiences
2) Drawing, Specification, Test Report can be sent at any time if request

3)Competitive Prices
4) Fast delivery
5) Free sample provided
6) Longtime Warranty
7) Reliable quality, OEM and ODM service available
8) Low cost International shipping
9) Small order acceptable

10) Prompt answer for any question or inquiry
11) Quality complaint will handle in 24 hours by our After sale Service Dept

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: 30 Years' Guarantee for fiber optic PLC splitter
25 Years' Guarantee for fiber optic cable
