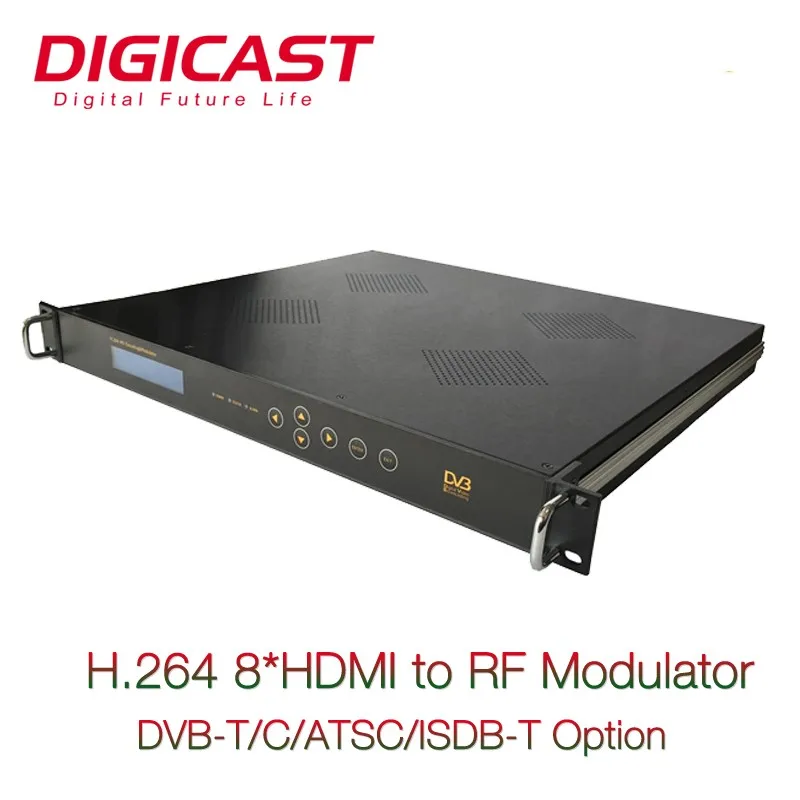

Support 12/16/18/20 Channel IP To RF Modulator 16 Channels 8 Channel H.264 HD Encoder Modulator

  • 1 Pieces
    $2,699.00
  • 2-9 Pieces
    $2,599.00
  • >=10 Pieces
    $2,499.00
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
3 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces)
software (Min. Order: 1 Pieces)
hardware (Min. Order: 1 Pieces) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
DIGICAST
Model Number:
DMB-9581-8
Input:

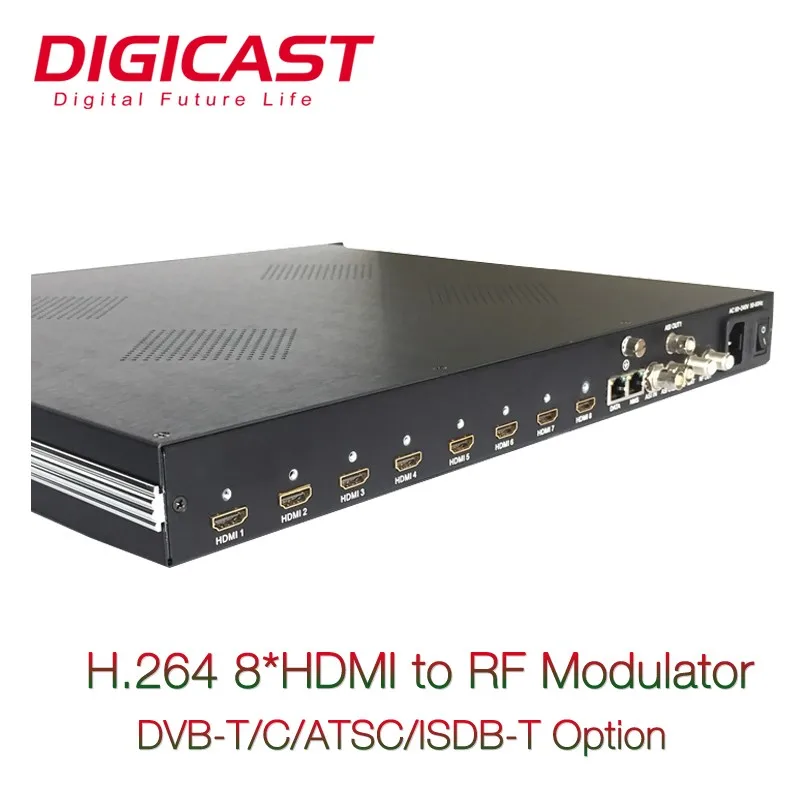

8*HD MI or SDI+1*ASI in
Output:
8*SPTS over IP(UDP/RTP/RTSP),2*ASI(independent),
Nature:
Encoding Modulator ATSC 8 Channel Encoder
Video compression standard:
H.264/AVC high profile level 4.0
Resolution:
1920*1080-60P, 1920*1080-50P, 1920*1080_60i, 1920*1080-50i, etc
Audio compression standard:
MPEG-2 layer1, AAC(optional)
Audio sampling rate:
48KHz
Audio bit-rate:
64 ~ 320kbps
Modulation Module:
DVB-T, DVB-C, ATSC-T, ISDB-T/Tb, DTMB

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X20X38 cm
Single gross weight:
6.0 kg
Package Type:
Support 12/16/18/20 Channel IP To RF Modulator 16 Channels 8 Channel H.264 HD Encoder Modulator Packaged by 1pcs/ctn
Lead Time :
Quantity(Piece) 1 - 1 >1
Est. Time(days) 3 To be negotiated
LOW PRICE PROMOTION
NEW PRODUCTS

Mini HD H.265 ProVideo Streaming Encoder

Input:HDMI in/loopout

Output:1080P@60fps

DMB-8902N Enhanced ProVideo Streaming Encoder

Input: 1*Channel SDI+1*Channel HDMI/VGA/YPbPr/AV
Output: IP Streaming output

DMB-8800BE Classic H.264/AVC Decoder

Input:  Up to 1080P@60fps

Output: Support HDMI/CVBS/VGA

DMB-8900NU UHD 4K HEVC ProVideo Streaming Encoder

Input: 1*channel HDMI in
IP Output: Full HD 4K@30fps

DMB-9060B Multi-Channel Professional IRD

Input: 4*Tuners input
IP Output: TRANSPORT STREAM OUTPUT

DMB-9016B 16 Channel professional Receiver

Input: 16*Tuners(DVB- S/S2/-C/-T/T2/ISDB-T/ATSC-T optional )

IP Output:Transport Stream Output


Contact us
Contact Person
Bruce Chen
E-mail
service@ digicast.cn
Company Website
www.digicast.cn
Whatsapp/Wechat Phone
+86-17888214818
Skype
17888214818
Encoder Modulator

(DMB-9582-S2) Satellite Broadcasting Equipment DSNG system to encode SD/HD programs to DVB-S2 uplink Mpeg2 mpeg4 DVB-S2 Modulator

(DMB-9592) Home Use MPEG2 H.264 Full HD Digital TV Full HD to ISDB-T Modulator

(DMB-9591 Classic) Lowest price Compact MPEG4 HD SD Full HD and CVBS to DVB-T Modulator with RF Mixing input USB for upgrading

(DMB-9580) MPEG2 SD 4 CVBS Digital TV Encoding Modulator CATV RF Modulator

(DMB-9581) All in one H264 Audio Video HD RF Modulator for SDI Full HD to DVB-C conveter

(DMB-9582) Mpeg2 Mpeg4 H.264 4 Channels Full HD to RF Modulator Hotel TV Sytem HD Encoder Modulator

Product Description

Overview

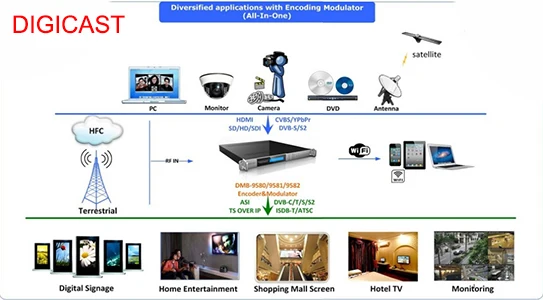

DMB-9581 H.264 HD Encoding Modulator (all-in-one) is a high-density and flexible device, integrating Encoding, Multiplexing, Encapsulation and Modulation with its excellent performance of HD encoding and modulation. It supports various of modulation modules, such as DVB-T module, DVB-C module, ATSC-T module, DTMB module and ISDB-T module, etc.. The device is designed in standard 1U chassis, with a max. capability of swapping two modules(Encoding module or WIFI module or Tuner in module by option). Meanwhile, it delivers unrivaled and reliable video quality with advanced video compression(H.264) technology, to meet the ever-increasing need of high quality video experiences. Moreover, with its multiplexing module, local programs can be re-multiplexed with external Transport Stream. Additional, DMB-9581 can be applied to IPTV system with TS over IP output. The device also supports program sources from video and surveillance control camera or HD STB, HD camera or playout server, PC and other diversified video source.

Main Feature

* Support modulation modules selectable from DVB-T, DVB-C, ATSC-T, ISDB-T and DTMB
* Support H.264 video encoding
* Encoding module, WIFI module and Tuner in module swappable, easy upgrading and maintenance
* Audio encoding: MPEG-1 Layer 2(default),(LC-AAC, HE-AAC optional)
* Support PID, PSI/SI compilation and LCN setting
* Equipped with multiplexing module, able to multiplex local programs with external TS
* Support TS over IP out, applied to IPTV applications.
* Support IP empty packet filtering capability
* Cut-off memory capability
* Management of support web browser via Ethernet interface
* Support software upgrading by Ethernet interface

Specifications
ENCODING MODULES (optional & swappable)-- Digital DVB channel h.264 encoder DVB modulator

H.264 HD Encoding Module
Video input: Full HD/HD-SDI(1 or 2 Channels for option)
Video compression standard: H.264/AVC high profile level 4.0
Resolution: 1920*1080_60P, 1920*1080_50P, 1920*1080_60i,
1920*1080_50i, 1280*720_60P, 1280*720 _50P
Audio input: Full HD/SDI
Audio compression standard:
MPEG1 Layer II(default),(LC-AAC, HE-AAC optional)
Audio sampling rate: 48KHz
Audio bit-rate: 64 ~ 320kbps
TUNER IN MODULES (optional & swappable)
DVB-S/S2 Tuner in Module
Tuner in: 1*DVB-S/S2 Tuner(Tuner in module: RTS-01)
Supporting DVB-S/S2 standard
Constellation: QPSK, 8PSK
FEC: DVB-S (QPSK): 1/2, 2/3, 3/4, 5/6, 7/8
DVB-S2 8PSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Frequency range: 950~2150MHz, in 500KHz steps
Symbol rate: 2~45MSymbol/s
RF input level: -65~-25dBm
DTMB Tuner in module
Tuner in: 1*DTMB Tuner(Tuner in module: RTD-01)
Constellation:4QAM, 16QAM, 32QAM, 64QAM
FEC: 0.4, 0.6, 0.8
Frequency range:110~860MHz
RF input level: -65~-25dBm
WIFI MODULE (optional & swappable)
Protocol of mobile receiver
DLNA, Airplay
Operation mode
802.11A/B/G/N
Frequency range
2.4000 ~ 2.4835GHz
5.150 ~ 5.825GHz
Transport speed
802.11a: 6/9/12/24/36/48/54Mbps
802.11b: 1/2/5.5/11Mbps
802.11g: 6/9/12/24/36/48/54Mbps
802.11n (20MHz): MCS0-15, up to 144Mbps
802.11n (40MHz): MCS0-15, up to 300Mbps
WIFI output level
2.4GHz: 802.11b: 16 ± 1.5 dBm
802.11g: 14 ±1.5 dBm
802.11n(20MHz): 13 ±1.5 dBm
802.11n(40MHz): 13 ±1.5dBm
5GHz: 802.11a: 14 ± 1.5 dBm
802.11n(20/40MHz): 12 ±1.5 dBm
Antenna
2*bilateral antenna
OUTPUTS AND OUTPUTS
ASI Input
Channel: 1*ASI
Interface: BNC, 75 ohm
Input bit-rate: ≤100Mb/s
Packet mode: Byte mode
Packet length: 188/204 Bytes
ASI output
Channel: 1*ASI+1*ASI backup
Standard: compliant with EN 50083-9 ASI
Output loss: >10dB
Interface: BNC, 75 ohm
IP Output
TS over IP out, UDP protocol
Channel: 1*MPTS or Multi-MPTS (the same contents with RF out)
Support empty packet filtering
Interface: RJ45 (10/100M)
MODULATION MODULES (optional)
DVB-T Modulation
Channel: 1*DVB-T frequency or 2*DVB-T adjacent frequencies
Modulation standard: EN300 744, EN304 744
Bandwidth: 6M, 7M, 8M
Constellation: QPSK, 16QAM, 64QAM
FET mode: 2K, 8K
Guard interval: 1/4, 1/8, 1/16, 1/32
FEC: 1/2, 2/3, 3/4, 5/6, 7/8
MER: ≥42dB
RF output frequency range: 30~960MHz, in 1KHz steps
RF output level: -30~10dBm (81~97dbµV), in 0.1dB steps
ACLR: 55dB
ATSC-T Modulation
Channel: 8VSB*1 frequency or 8VSB*2 adjacent frequencies
Modulation standard: ATSC A/53
Constellation: 8VSB
RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30~960MHz, in 1KHz steps
DVB-C Modulation
Channel: 1*DVB-C frequency or 4*DVB-C adjacent frequencies
Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan)
Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM
RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps
MER: ≥40dB
RF output frequency range: 30 ~ 960MHz, in 1KHz steps
Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed
Out-of-band rejection: 55dB
Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M
DVB-S Modulation
DVB-S QPSK: FEC 1/2, 2/3,3/4,5/6,7/8
RF output: 950.00~2150.00MHz, in 10Khz steps
Symbol rate: 0.05-20.0 Mbps
Output level adjustable: -16dB-0, maximum
Output level: ≥-8dBm
ISDB-T Modulation
Channel: 1*ISDB-T frequency
Modulation standard: ARIB STD-B31
Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k)
Constellation: DQPSK, QPSK, 16QAM, 64QAM
Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8)
External code: RS (204, 188)
Guard interval: 1/4, 1/8, 1/16, 1/32
Bandwidth: 6MHz
RF output frequency range: 30 ~ 960MHz, in 1KHz steps
MER: ≥42dB
RF output level: -26dBm ~ -10dBm, in 0.1dB steps
DTMB Modulation
Channel: 1*DTMB frequency
Modulation standard: GB20600-2006
Bandwidth: 8MHz
Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM
Qty. of modulation carriers: 1(single carrier) or 3780(multi-carriers)
Guard intervals: PN420, PN595, PN945
Internal error correction code: LDPC
Encoding efficiency: 0.4, 0.6, 0.8
Interlace depth: 240, 720
MER: ≥42dB
ACLR: 55dB
Frequency range: 110 ~ 960MHz, in 1KHz steps
RF out level: -26dBm ~ -10dBm, in 0.5dB steps
GENERAL OPTIONS
Dimensions
430mm(W)*460mm(D)*45mm(H)
Weight
4.5 KGS
Consumption
25 W
Detailed Images
