Overview
Quick Details
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Guangcheng
Model Number:
GCAN-202
CAN Bus channels:
2 CAN Bus channels with 3-Pin terminal
Processor:
High speed 32-bit industrial grade
Support baud rate:
5Kbps~1Mbps
Maximum flow:
transmit 8000 FPS, receive14000 FPS
Secondary development:
Support
ESD Immunity level:
Contact Discharge±2KV, Air Discharge±15KV
Surge immunity leve:
±1KV
Fast transient Burst Impedance Level:
±1KV
Dimensions:
118mm (L) * 93mm (W) * 23mm (H)
Working temperature:
-40.00℃~ 85.00℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
20.6X15.2X5.2 cm
Single gross weight:
0.4 KG
Package Type:
Carton
Lead Time :
Quantity(Piece) 1 - 50 >50
Est. Time(day) 3 To be negotiated
Product Description

Introduction

The GCAN-202(CANET II) is a CAN Bus converter, used for Ethernet converting CAN Bus. It is an industrial-grade CAN Bus converter, whose function is to realize interconnection easier and extends the application scope of CAN Bus.

Hardware Features

1. High speed 32-bit industrial grade processor
2. Embedded Watchdog timer
3. FLASH storage, can store parameters
4. External voltage (DC+9~30V)
5. ESD Immunity level: Contact Discharge±2KV, Air Discharge±15KV
6. Fast transient Burst Impedance Level: ±1KV
7. Surge immunity level: ±1KV
8. Working temperature: -40.00℃~ 85.00℃
9. Working humidity: 5%~95%, no condensation

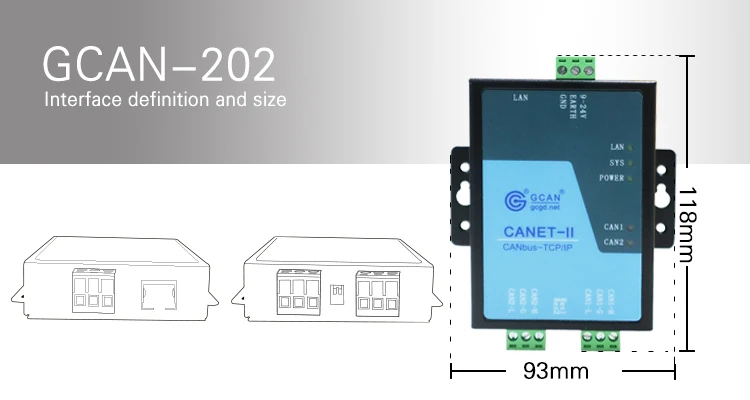

10. Dimensions: 118mm  * 93mm  * 23mm

CAN Features

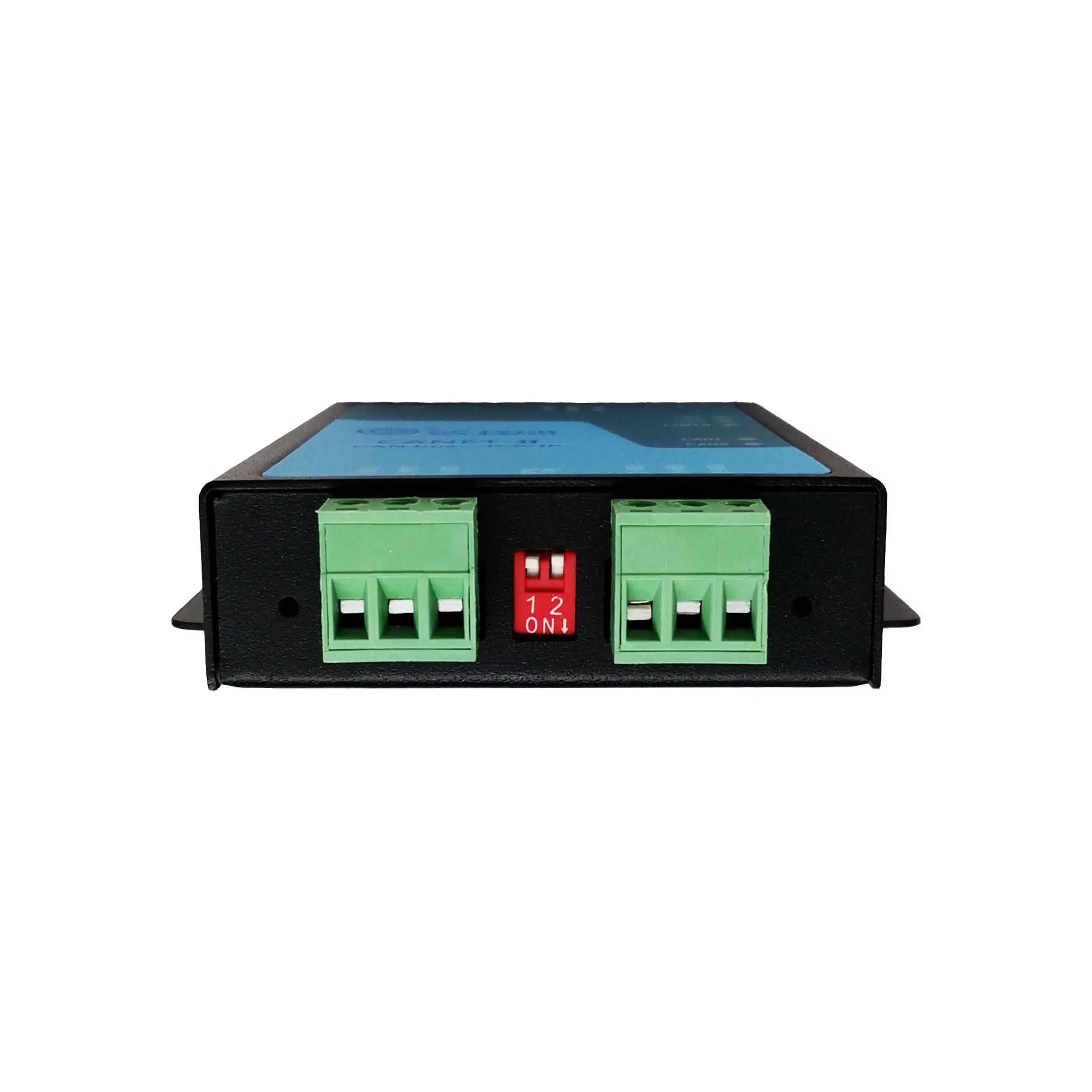

1. Two CAN Bus channels with terminal connection
2. CAN2.0A and CAN2.0B, ISO/DIS11898
3. Baud rate: 5Kbps~1Mbps
4. Electric isolation, insulation level: DC 3000V
5. 32 FIFO receiving buffers, maximum flow: transmit 8000 FPS, receive14000 FPS

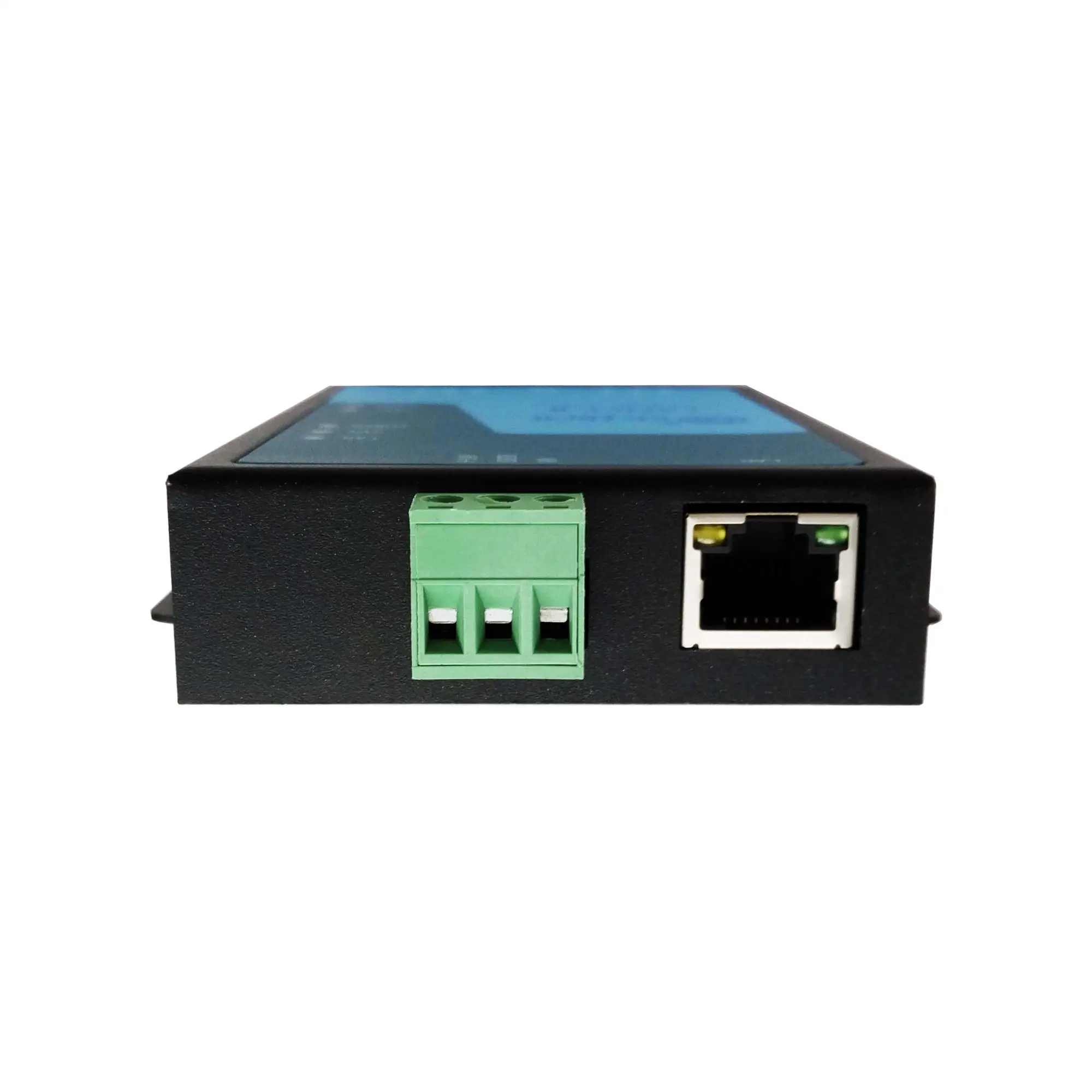

Ethernet Features

1. Restore the network connection automatically after disconnecting, can establish a TCP connection.
2. SOCKET working mode compatibility (TCP Server, TCP Client, UDP, etc), program communication software according to standard SOCKET rules
3. Support secondary development, we can provide VB routine or you can look for some another basic programming routine about Ethernet online

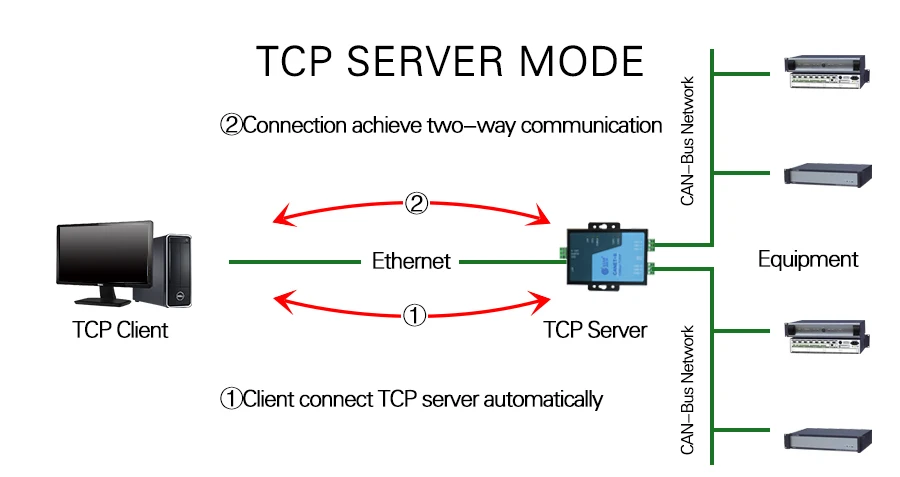

TCP Server Mode

GCAN-202 waits for TCP Client to connect. If connection succeeds, can make bidirectional data communication.

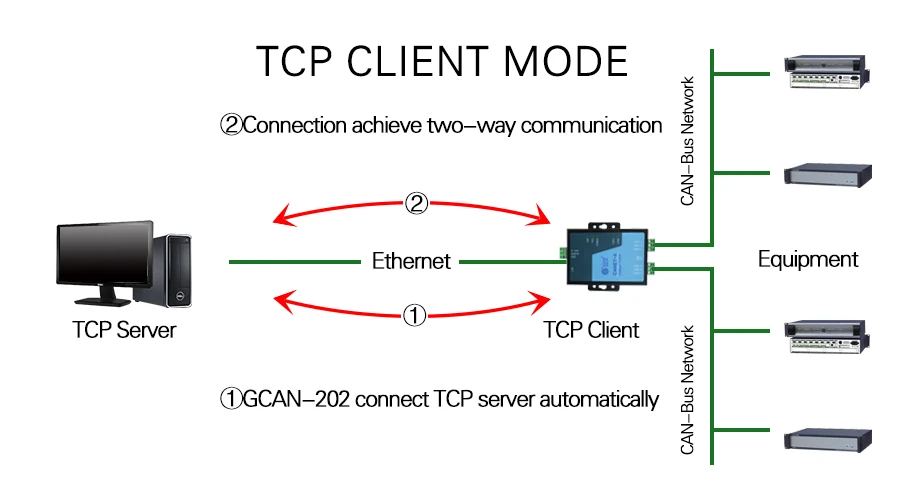

TCP Client Mode

GCAN-202 starts connection to TCP Server, if connection fails, TCP client will try to reconnect till success. If connection succeeds, can make bidirectional data communication.

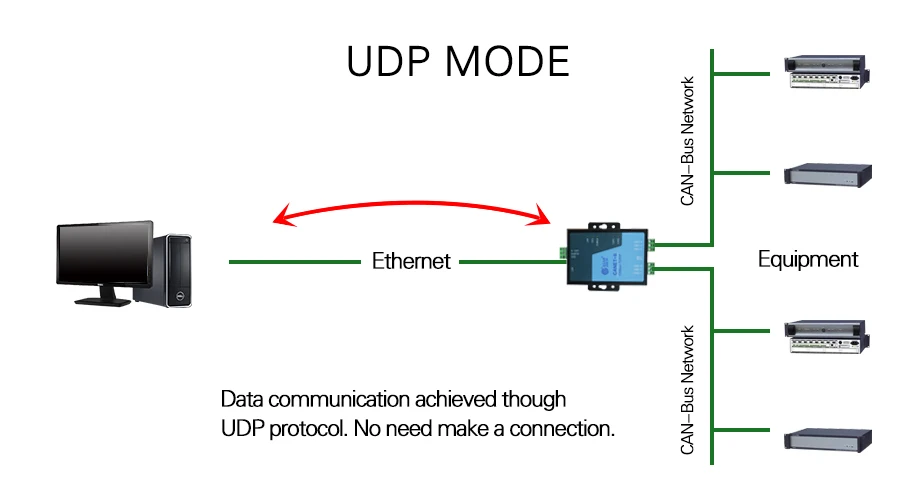

UDP Mode

UDP mode is a communication mode without connection, makes the data communication through UDP protocol.

Certifications
Our Company

Shenyang Guangcheng Technology CO., LTD

It is national certified high-tech enterprise. Our company has more 20 own intellectual-property rights with all of main products developed by ourselves, which is a leading supplier and service provider of industrial interconnection industry in China. We major in development, production, sales of industrial communication equipments and automatic equipments. The products cover CAN-Bus analyzer, ECU downloader, industrial gateway, remote IO, PLC core-board, and servo driver, software and hardware of industrial communication and providing for comprehensive solution. Since founded in 2010, our company has been on a mission to “promote the progress of industrial interconnection technique, offer competitive product and service”. We always create value for our customers. Now, we have served over 10 billion customers, involving traffic, electric power, energy, medical apparatus, ship, military industry, and automatic, multiple industries.

Our Service

Service: 1 years guarantee, and professional technical staff help.
Supply ability: We usually have 3000-5000 units in stock for urgent orders.
Capacity: 500/month, can meet the demand of most enterprises application.
Lifetime: At least 5 years for each device, can still produce just if you need.
Cooperation: Welcome the cooperation with distributors all over the world.

Packing & Delivery


Packing

1. Standard package. Carton

 2. Customized design


Delivery Time

2~5 days after receipt of your payment
