T5 Standard Wireless Barcode Scanner Distance up to 150M Data Collector Storage

FOB Reference Price:Get Latest Price
$103.00 - $107.00 / Units | 2 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Products Status:
Stock
Type:
Barcode Scanner
Scan Element Type:
CMOS
Colour Depth:
32 Bit
Interface Type:
USB
Max Paper Size:
5-20cm
Optical Resolution:
0.1mm (4mil)
Scan Speed:
100 ± 10 times / sec.
Brand Name:
CS
Model Number:
T5 (A0427)
Place of Origin:
China (Mainland)
Scan Engine::
650nm laser scan engine (one-dimensional)
Processor::
32-bit ARM processor
Operating System::
uCOS II
Memory::
512 MB FLASH
Display::
2-inch color LCD screen
Tip::
standard buzzer, LED lights
Keyboard::
24 keys keyboard
System Interface::
USB keyboard, USB virtual serial port
Wireless Module::
433MHz radio channel
Communication distance::
150 meters (indoor) 400 meters (outdoors)
Supply Ability
Supply Ability:
5000 Unit/Units per Week
Packaging & Delivery
Packaging Details
Original paper box
Port
Shenzhen
Lead Time :
Shipped in 0 days after payment
T5 Standard Wireless Barcode Scanner Distance up to 150M Data Collector Storage

This is the T5 Standard Vision,supports Data import,
The other one T5 lite vision can not support this function!






Features:

- 512M Memory, mass data storage
- Support import database, you can check or fix product information
- Uses advanced laser scanning-head, high tability and good sensitive
- Support the same bar code with a variety of colors/sizes
- Export data format is txt, excel
- Supports wireless uploading acquisition results
- Support inventory, wired barcode scanner function
- Support multi-warehouse inventory separately,
- Providing API interface program for secondary development
- Support for Win XP, Win7, Win8 system

- Industrial design wide temperature display and rugged housing replaceable rechargeable battery
Detailed
T5 wireless barcode inventory machine using a one-dimensional scanning engine, with a two-inch industrial-grade monochrome LCD display, combined with wireless data transmission, easy to help customers solve storage problems. Mainly for small businesses, companies, stores, shop merchandise bar code and other information collection / inventory management / statistical processes queries. Software features include: in / out library management, inventory management, data management, terminal management, bar code detection, serial number acquisition, wired barcode scanning, browsing data. Can display product information (in English and Chinese characters) of the bar code, number, section name, size fields, bar code data collection. T5 supports offline save data, the data can be sent to the PC wirelessly or via PC-side software to import and export formats: TXT, EXCEL, CSV, etc. T5 support a variety of management software market data docking.


Due to safety inspection for airmail shipping,these batteries are removed from package!
Batteries are not included in package!



Performance Parameters

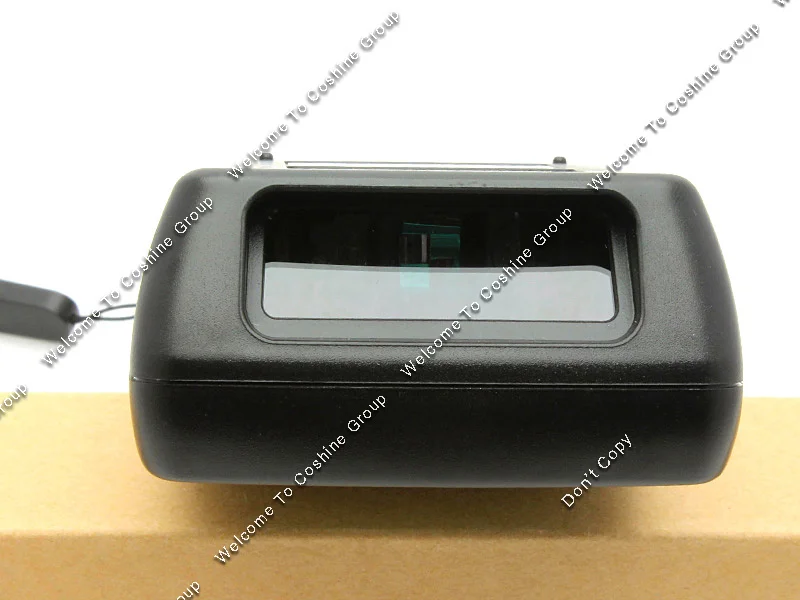

Scan Engine: 650nm laser scan engine (one-dimensional)
Processor: 32-bit ARM processor
Operating System: uCOS II
Memory: 512 MB FLASH
Display: 2-inch color LCD screen
Tip: standard buzzer, LED lights

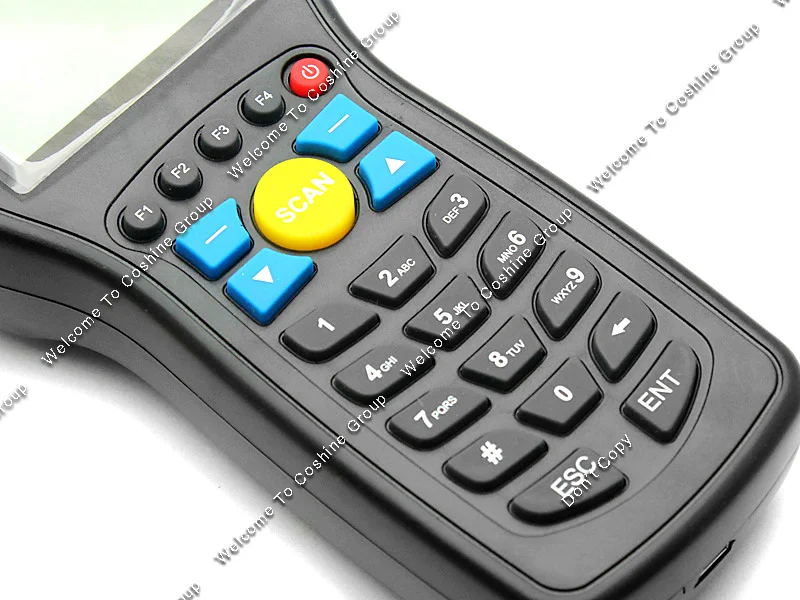

Keyboard: 24 keys keyboard
System Interface: USB keyboard, USB virtual serial port
Wireless Module: 433MHz radio channel
Communication distance: 150 meters (indoor) 400 meters (outdoors)


Scanning Parameters
Scan speed: 100 ± 10 times / sec.
Scan Depth: 5mil: 35-100mm; 15mil: 30-300mm; 30mil: 40-500mm
Resolution: 0.1mm (4mil)
Decoding type: EAN-8, UPC-E, EAN13, UPC-A, Code39 code, cross 25 yards, UCC / EAN 128, Code128 code, CODE BAR, MSI PLESSEY, industrial 25 yards, 11 yards, Code93 code

Electrical Parameters

Current: 270mA standby 28mA when scanning
Power Source: USB Charging

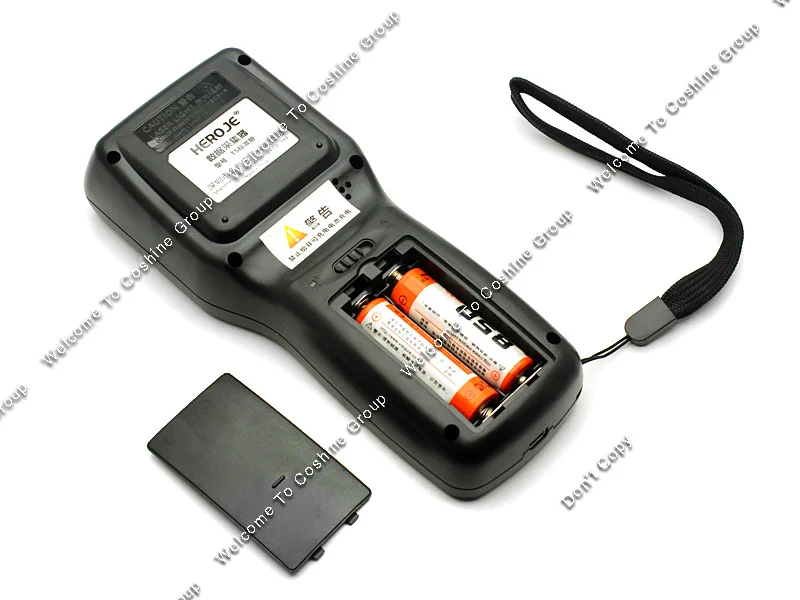

Battery: 1.2V, two AA 2600mAH NiMH batteries ,Not included in package!
Standby Time: 100 ~ 150 hours
Working Hours: 8 to 10 hours

Mechanical Parameters
Size: 170mm (L) × 70mm (W) × 36mm (H)
Housing Material: ABS
Weight: 255g (with battery)

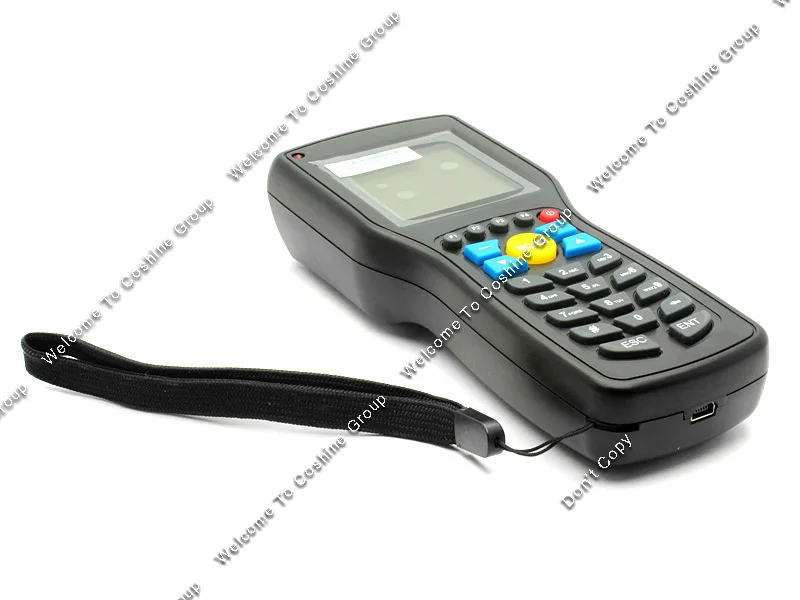

Communication Interface: USB
Environmental Parameters:

Working Temperature: -10 ℃ ~ 40 ℃
Storage Temperature: -20 ℃ ~ 50 ℃
Humidity: 10% ~ 95%
Ambient Light: 0 ~ 70,000 lux

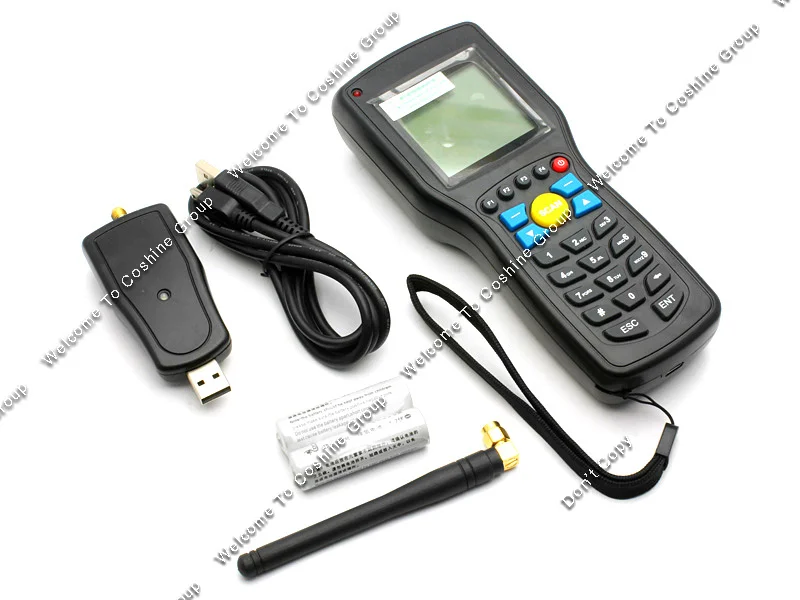

Accessories
Data cable
Wireless receiver

Application Scenarios
Store, Shopmall, Warehouse management, Production line management, Library management, The apparel industry, FMCG, retail, Supply chain and other industries, The logistics industry (including warehousing, Ccourier, LTL transportation and other materials), Manufacturing, Fixed assets, Medical industry
