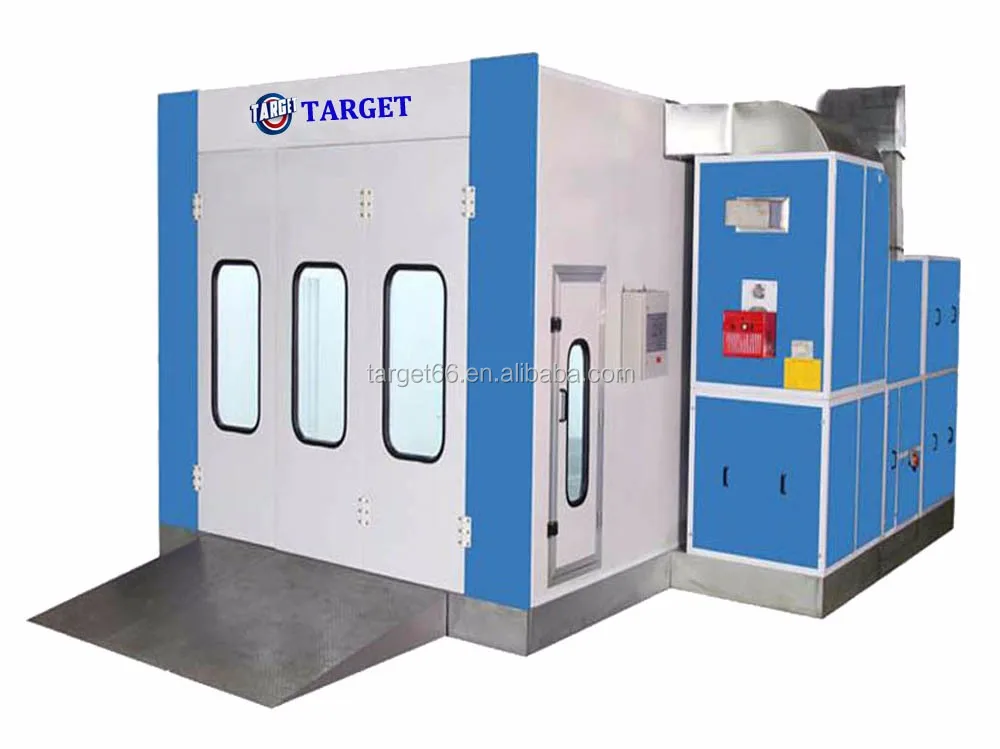

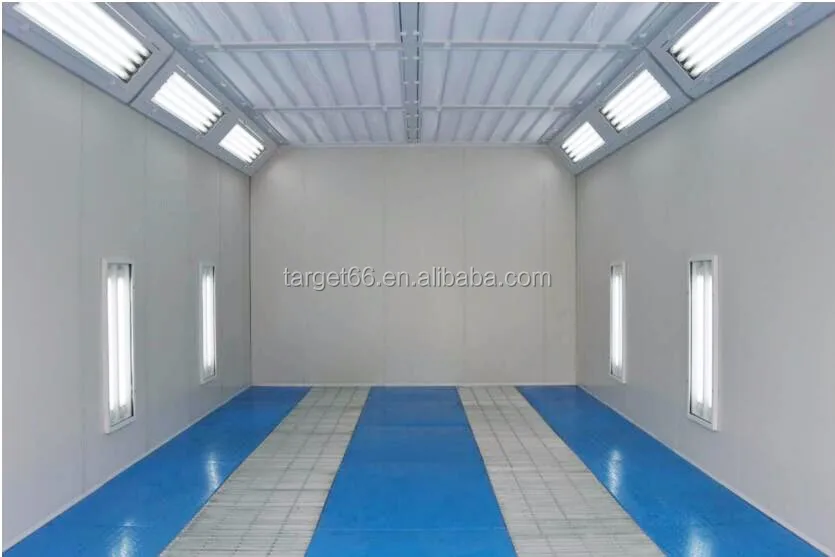

TARGET TG-60C Downdraft Auto Body Spray Paint Baking Booth

  • 1-3 Sets
    $5,999.00
  • >=4 Sets
    $4,999.00
Quantity:
- + Sets available
Samples:
$6,800.00 /Set, 1 Set (Min. Order): Buy Samples
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Contact Supplier
Samples - $6,800.00 /Set, 1 Set (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Spray Booths
Power:
11kw
External Size:
7050*5560*3500 (L*W*H)
Internal Size:
6900*4000*2800(L*W*H)
Voltage:
380v/3phase/50hz
Certification:
ce
No Load Speed:
0.25m/s
Place of Origin:
Shandong, China
Brand Name:
TARGET
Model Number:
TG-60C
Product name:
TARGET TG-60C Downdraft Auto Body Spray Paint Baking Booth
Usage:
Car Painting Baking
Warranty:
2 Years
Heating System:
RIELLO Brand Diesel Burner
Filters:
Environmental 3 Filter Process
Fans kind:
Centrifugal Fans
Color:
Cutomized
Wall Panel:
EPS
Lighting System:
LED
Environmental certificate:
CE Approved Cabinet Spray Booth

Packaging & Delivery

Selling Units:
Single item
Single volume:
25 cm 3
Single gross weight:
3000.000 kg
Package Type:
20'GP container Accurate price, please contact us directly .
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

Our Qualifications:

     As experienced factory of spray booths,TARGET has been in this area for more than 15 years,exporting our paint booths to Australia,America,Germany,Asia,Africa and many other europe countries.
    Our automotive paint booths are constructed of quality materials and manufactured to exacting standards,designed for extended service and meet high production requirements while providing the best environment for a quality finish.

    We hold true to the product quality first, customer-focused purpose and dedication to provide quality services to our clients all the time,and our paint booths are highly appraised by our cuntomers.
    There are many different styles and options for you.If you have any questions, please no hesitate to contact us!

SPECIFICATIONS FOR TG-60C High Efficiency Diesel Burner Spray Booth
Overall Size (mm)
7050*5560*3500 (LxWxH)
Entry Door Size (mm)
3000*2700(W×H)
Inner Size (mm)
6900*3900*2800 (LxWxH)
Personnel Door (mm)
750 x 2000(W×H)
Wallboard
EPS (epispastics polystyrene) colorful steel skin panel, EPS foam Density is 12kg/m³,50mm thick,steel 0.476mm thick, compound construction, anti-flame and heat-insulation, galvanized steel roof panel.
Basement
300mm depth ,Galvanized steel sheet and square steel pipe assembling
,2 rows of grid plates made by flat bar and round steel,
3 rows of diamond plates, galvanized.
Full ramps, external setting
Inlet Fans
2 sets*4 Kw centrifugal fan  , Air Blower Capacity: 25000m³/h
Outlet Fan
1 set * 5.5 Kw centrifugal fan , Air Blower Capacity: 15500m³/h ,
Burner
Italy Riello G20 Diesel Burner, 200000Kcal/h. SUS304 Stainless steel heat exchanger ,argon arc welding.

Max Temp:80.C, Heating Time: 4-5min(20-60°C), Fuel Consumption: 4-5kg/vehicle
Air Speed
0.25-0.35m/s
Illumination
Ceiling light : 8Units×4Pcs=32Pcs×18W 900LUX ,LED light

Side light: 6Units×2Pcs=12Pcs×18W 900LUX ,LED light
Temperature Rate
40~60℃, 10-20 min, Max temp:80℃
Air Filtration Efficiency
Primary filter : Can Capture Granules Larger than 10μm

Ceiling filter :600g high efficiency filter, can Capture Granules Bigger than 4μm

Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>98%
Noise:dB(A)
≤80
Total Power
16kw , Noise < 80db
Optional Color
Blue, red, white, orange, or other
Heating Cabinet Position
Left, right, back side of the booth
Control System
Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop. All motors are full voltage start.
Power Supply
220/380/400/415V

Main Features:

1)  2 years warranty
2)  Effective filter system
3)  Original Italian RIELLO Burner,hot wind recycling system with SUS304 heat exchanger
4)  Multi-Layer Fiberglasses Filter and active-carbon ensure a qualified exhaust according to the relevant state standards
5)  15 years experienced working team
6)  Customized service
7)  Life long technical support service

Detailed Images

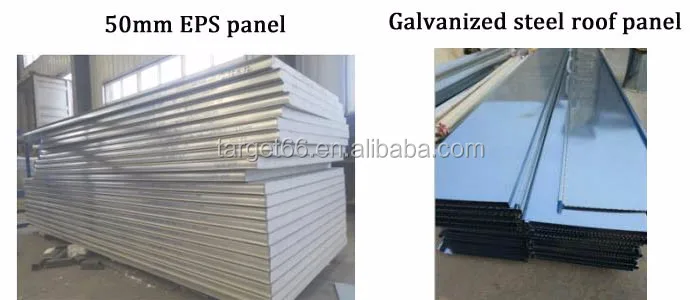

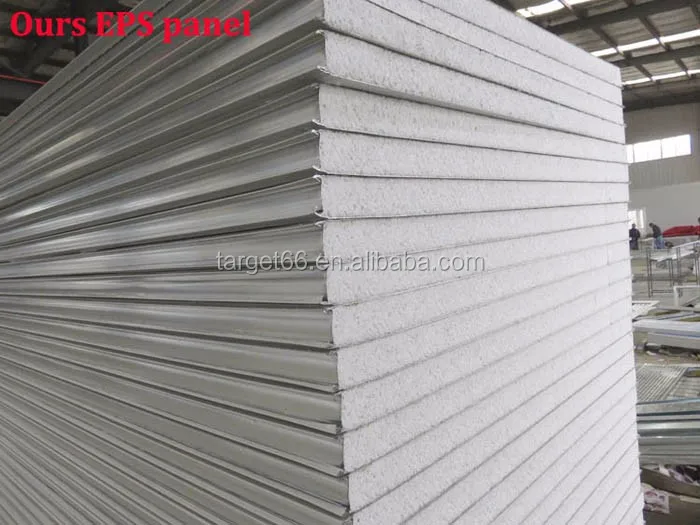

Wall Panels

EPS colorful steel skin panel
50mm thick,steel 0.5mm thick,foam Density is 12kg/m³
Tongue &groovestyle,compound construction,
anti-flame and heat-insulation, galvanized steel roof panel

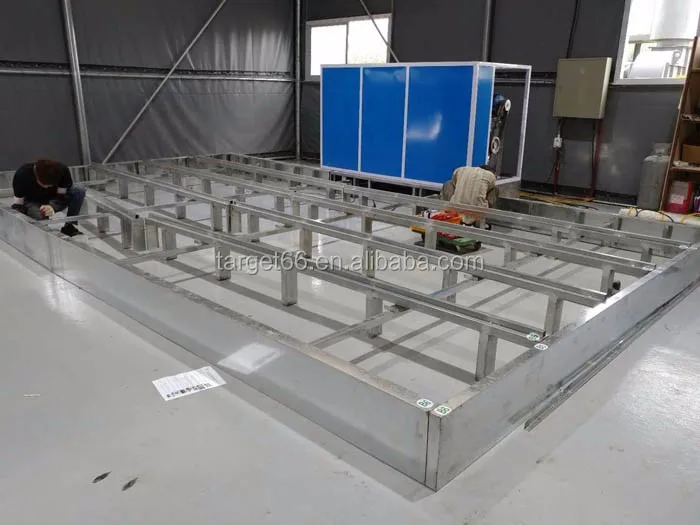

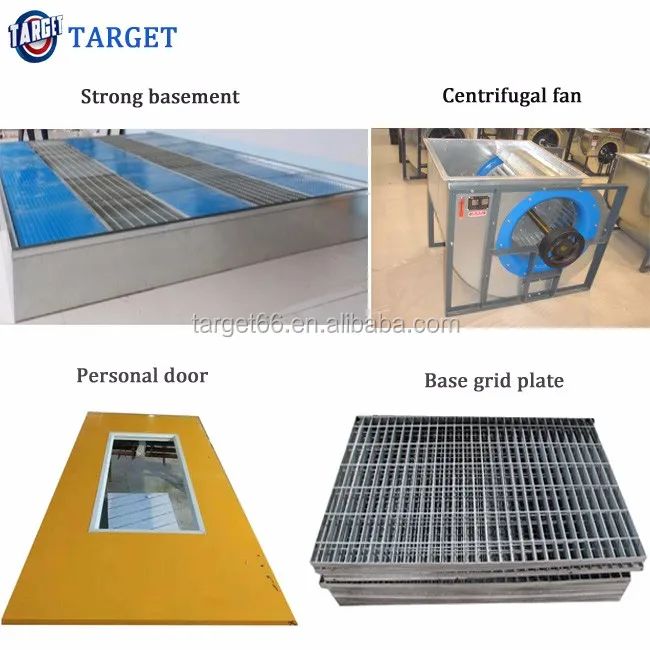

Basement

300mm depth ,1.2mm Galvanized steel sheet and square steel pipe assembling,
2 rows of grid plates (30*3mm) made by flat bar and round steel,
3 rows of diamond plates, galvanized.
2 ramps, external setting, 750 x 2000 mm(W * L )/pc


Air Circulation System

Intake Fans:2 sets of YDW-4kw double-intake centrifugal fan,blower Capacity: 20000m³/h

Exhaust Fans:1 set of YDW-7.5kw double-intake centrifugal fan,blower Capacity: 12500m³/h
Fan cabinet:Rock wool colorful steel skin board ,75mm thick,steel 0.5mm thick

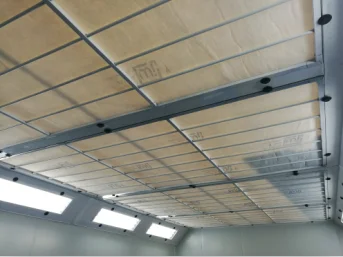

Roof System

Beam:40*40 galvanized square pipe,with supporting and 40*40 angle iron,connected by screw.

Plenum:0.8mm galvanized steel,powder coated on the surface.The roof filter support frame is 25*25 and 15*15 galvanized square tubes,powder coated on the surface.

Secondary Frame:1.2mm thick galvanized sheet compression molding,spraying treatment,riveting pull.Filter support is 25*25mm and 15*15mm galvanized square tube welding molding,spraying treatment.

Purification System

Primary filter : Can Capture Granules Larger than 10μm

Ceiling filter :600g high efficiency filter, can Capture Granules Bigger than 4μm

Floor filter: fiberglass filter,exhaust activated carbon filter, Filtering rate>98%

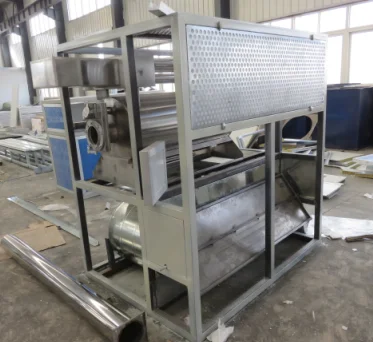

Heating System

Burner:1 set of Italy Riello G20 Diesel Burner,200000Kcal/h.

Heat Exchanger:high quality stainless steel,argon arc welding

Electric Damper:1 set of electric damper for changing spraying and baking automatically.

Parameter:Max temp:80℃,temperature rising time: 40~60℃, 10-20 min

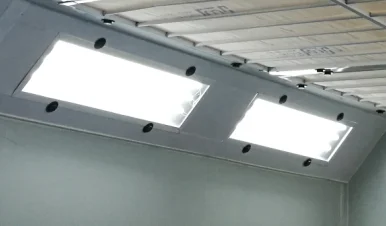

Lights

Ceiling lights:8Units×4Pcs=32Pcs×18W LED 900LUX ,with anti-explosion design

Side lights:6Units×2Pcs=12Pcs×18W LED 900LUX ,with anti-explosion design

Control System

Spraying, heat spraying, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop.
All motors are full voltage start


Our Service

1. OEM ODM service.
2. Customized service: The color and size of the product can be customized.
3. Two Years Quality warrant service, during the period spare part supplied free if you pay for shipping.
4. Professional team supply service for life long time. Oversea service if need.

Why Choose TARGET Equipment :

1. Easy way to submit the order , you can submit the order list in our website , after we get the list, we will issue the PI to you to save your time !

2. Warranty. All TARGET Equipment have two years warranty. Longlife time service. 15 years servce team.
3. Delivery time . Standard equipment 7 days , Truck /Bus equipment need customize,about 15--20 days after confirm the order
4. Payment term. T/T, L/C , Third-party credit insurance , etc.
5. Installation , we will supply full 3D drawing, CD after confirm the order ,that will easy for you to install the whole equipment .
6. Oversea service will supply if need.


Payment:

1. T/T 30% deposit, 70% balance before shipping.
2. Western Union,
3. Money Gram ,
4. Alibaba Trade Assurance
5. other

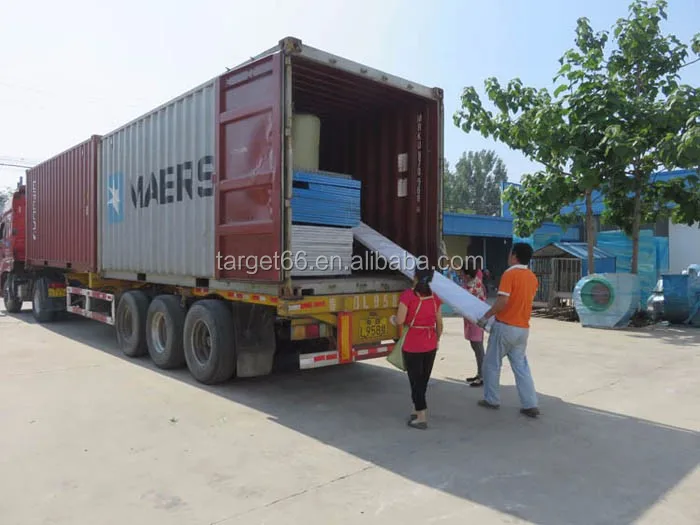

Packing & Delivery
Our Company

Yantai TARGET Equipment is a professional Auto Repair Equipment and Environmental Equipment manufacturer in China. Have 15 years' experiences service team for customers , more than 10 engineers support for oversea services.Our main equipments include: Car Body Repair Equipment, Truck Repair Frame Machine, Car Spray Booth, Truck Spray Booth,Powder Coating Spray Booth, Powder Coating Curing Oven, Powder Coating Line , Sand Blast Unit .etc.
