Atributos
Bus tie, Line, Capacitor, Motor, Power filter, TransformeUso
1A, 5AActual
81Número de sockets
DC220V or DC110VTensión
Jiangsu, ChinaLugar del origen

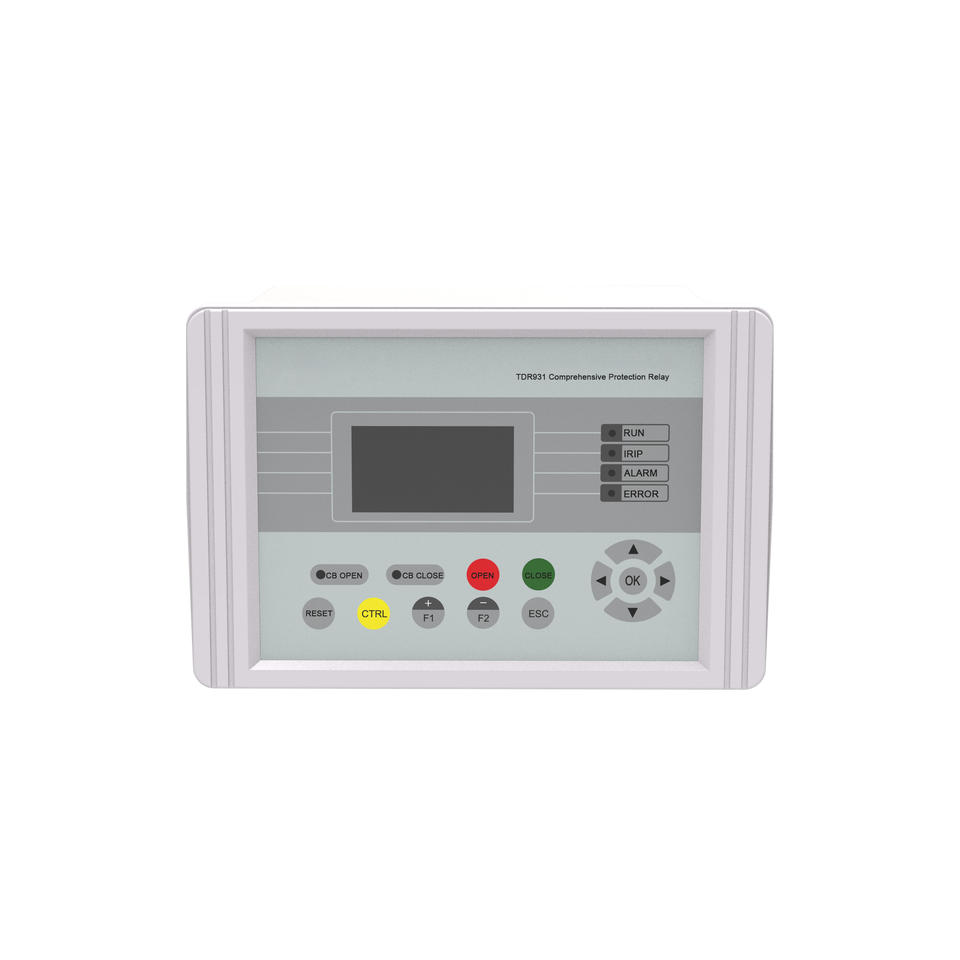

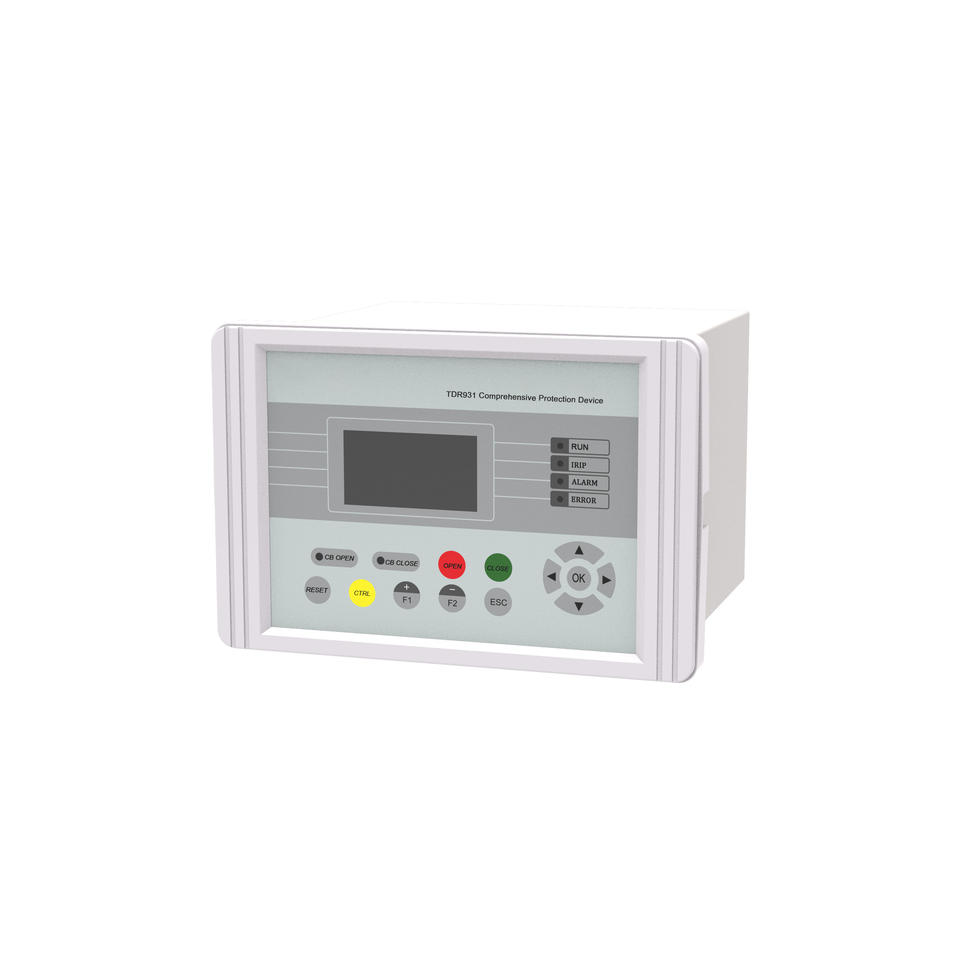

TDR931Número de Modelo
Marca:SKSYRI
Rated frequency:50Hz
Power during normal operation:≤10W
Power during protection action:≤15W
Communication Interface:1 RS485;1 or 2 Ethernet (IEEE802.3)
Analog quantity acquisition:12 ways (Ua,Ub,Uc,Ia,Ib,Ic,IA,IB,IC,Ux,3I0 and 3U0)
BI collecting circuit:23 ways
Remote signaling signal and SOE signal:64 ways
Atmospheric pressure:80kPa~106kPa
Relative humidity:5%~95%
Ambient temperature:-25~+50℃
Unidades de venta:Artículo individual
Tamaño del paquete individual:26X23X20 cm
Peso bruto por unidad:7.000 kg
