TG160 Rebar Thread Rolling Machine/Screw Thread Rolling Machine/Used Thread Rolling Machine

FOB Reference Price:Get Latest Price
$4,400.00 - $4,900.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
TG160
Lead Time:
Quantity(Sets) 1 - 2 3 - 10 11 - 25 >25
Est. Time(days) 10 15 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Color (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets) Less
Samples - $4,900.00 /Sets, 1 Sets (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China (Mainland)
Brand Name:
HUACHANG
Certification:
ISO 9001
Warranty:
1 Year
After-sales Service Provided:
Online support
Machine Name:
Rebar Thread Rolling Machine
Max rolling pressure:
140Kn
Hydraulic auto feeding adjusted time:
0.1-99.9s
Hydraulic cease time regulation range:
0.1-99.9s
Main axis power:
5.5kw/7.5kw
Hydraulic power:
2.2kw
Colling electric pump:
9.0w
Dimensions:
1420*1580*1360mm
Machine total weight:
1850kg+50kg
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic bag ang then fumigation-free wooden case
Port
Tianjin Port or Shanghai Port or Qingdao Port
Lead Time :
Quantity(Sets) 1 - 2 3 - 10 11 - 25 >25
Est. Time(days) 10 15 25 To be negotiated
Product Description

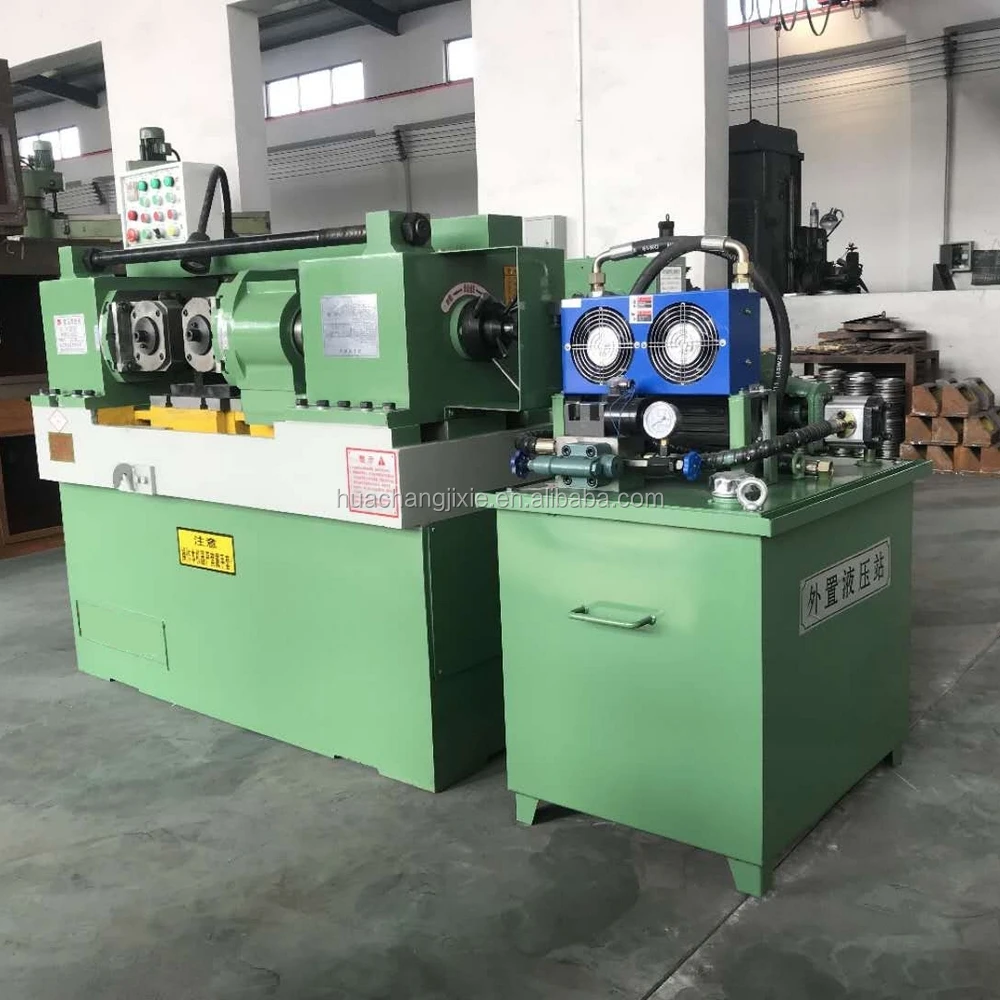

Thread Rolling Machine TG160 is extrusion forming thread with rolling tools by cold rolling technology which is an advanced chip-free processing technology. The rolling process is continuous. It can effectively improve the surface cleanliness, hardness and strength of the workpiece through the rolling radial pressure. It has high working efficiency.

Within its cold rolling range the machine can roll, straighten, polish, shrink to form the workpieces into all kinds of threads like common threads, twill threads, straight threads, helical teeth, trapezoidal threads, modulus threads as you need.

The machine has safe and reliable electro-hydraulic performance and control system. The cycle of rolling process can be switched between manual and automatic as user's need.


Main Features

1.Cold rolling and chip-free processing

2.Form all kinds of threads as you need

3.High working efficiency

4.Safe and reliable electro-hydraulic performance and control system

5.Processing manual or automatic as you need

Parameter
Thread Rolling Machine TG160
Process Range
prcess type
DIA
Length
Pitch
rolling one head or both 2 heads
6-42mm
100-300mm
≤4mm
rolling the whole bar
6-30mm
1M,3M,6M
≤2.5mm
Inner DIA of Roller
54mm
Outter DIA of Roller
130-180mm
Roller Width's range
25-100mm
Center distance of 2 rollers
125-225mm
Dip Angle of Main Shaft
±6°
Rotary Speed of Main Shaft
37,46,63,79r/min
Max rolling pressure
140Kn
Hydraulic auto feeding adjusted time
0.1-99.9s
Hydraulic cease time regulation range
0.1-99.9s
Main axis power
5.5kw/7.5kw
Hydraulic power
2.2kw
Colling electric pump
9.0w
Dimensions
1420*1580*1360mm
Machine total weight
1850kg+50kg
Packing & Delivery


Packing Details :

Plastic bag and then fumigation-free wooden case.

Delivery:

within 5 days after if machine is in stock;
producing according to customers' order within 10-25 days

Related Products

Thread Rolling Machine TG180


Thread Rolling Machine TG220


Our Service

Pre-Sale Service
1.Communicate about your actral use situation and help you to choose most suitable machine model
2. Design color,marks according to your requriy
3.Produce the machine according to your order


Sale Service
1.Check the machine upon delivery
2.Help you to make operating manual and precautions


After Service
1.Guarantee for a year.
2.Discuss the problem and send corresponding repair parts,if the machine has working problem
3.Free repair whole using life with our
Professional Engineer and After-sales Team (excluding the freight and accessories charge).

FAQ

Q: Are you a factory or trading company?
A:We are a manufacturer with 10 years expe
rience,you could get factory price from us.

Q:Where is your factory located? How can I visit?
A:Our factory is located in Ren County,Xingtai City,Hebei Province,China,about 3 hours from Beijing.We can pick up clients from Beijing Airport or Shijiazhuang Airport to visit us.

Q:Can you do OEM?
A:Yes,we do OEM machines.


Q:what is your payment terms?
A:Generally,30% in advance,70% before shipment.

Q:Can you provide installation service?
A:Yes,we can,but you need to take charge of our engineer's air tickets,hotel and food fee,and 50 USD/day.
