1) Real-PTT Platform;
2) LTE Full Bands 4G/3G/2G;
3) 1.77 Inches Large Tftlcd ;
4) 5200mAh Li-ion Battery;
5) GPS/SOS;
6) Recording Playback;
7) 3.7V Wide Voltage Operation;
8) Programmable Function Key
9) Infinite Group Capacity;
10) Infinite Single Call Member
Overview
Quick Details
- Place of Origin:
-
Fujian, China
- Brand Name:
-
TID
- Model Number:
-
TD-G5
- Type:
-
Handheld
- Frequency Range:
-
Global, Global
- Talk Range:
-
Global
- Storage Channel:
-
Unlimited
- Dimensions:
-
170*55*40mm
- Network Type:
-
GSM/WCDMA/LTE
- Sim Card Size:
-
Standard Card
- Battery Capacity:
-
5200mAh Lithium Battery
- Battery Working Hours:
-
30 Hours
- Dimension(with Battery and Antenna):
-
170*55*40MM
- Operating voltage:
-
3.7V
- Antenna Impedance:
-
50Ω
- Weight(with Battery and Antenna):
-
230g
- Output Power:
-
1W
Supply Ability
- Supply Ability:
- 50000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- 1. According to the customer's requirement, to customize boxes or using our standard box packaging.
2. Each radio set packing in a gift box/carton.
Each set including one battery, one charger, one AC adaptor, one hands strap, one English user manual.
- Port
- Xiamen, Guangzhou, Dubai, Hongkong
- Picture Example:
-
- Lead Time :
-
Quantity(Units) 1 - 300 301 - 3000 3001 - 30000 >30000 Est. Time(days) 5 15 35 To be negotiated
Recommend Products
TD-V90
TD-G8plus
TD-666
TD-Q7 10W
TD-DP650 digital
TD-DP880 digital
Product Description

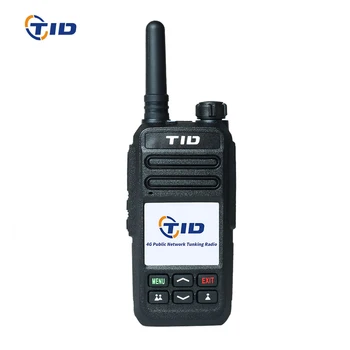

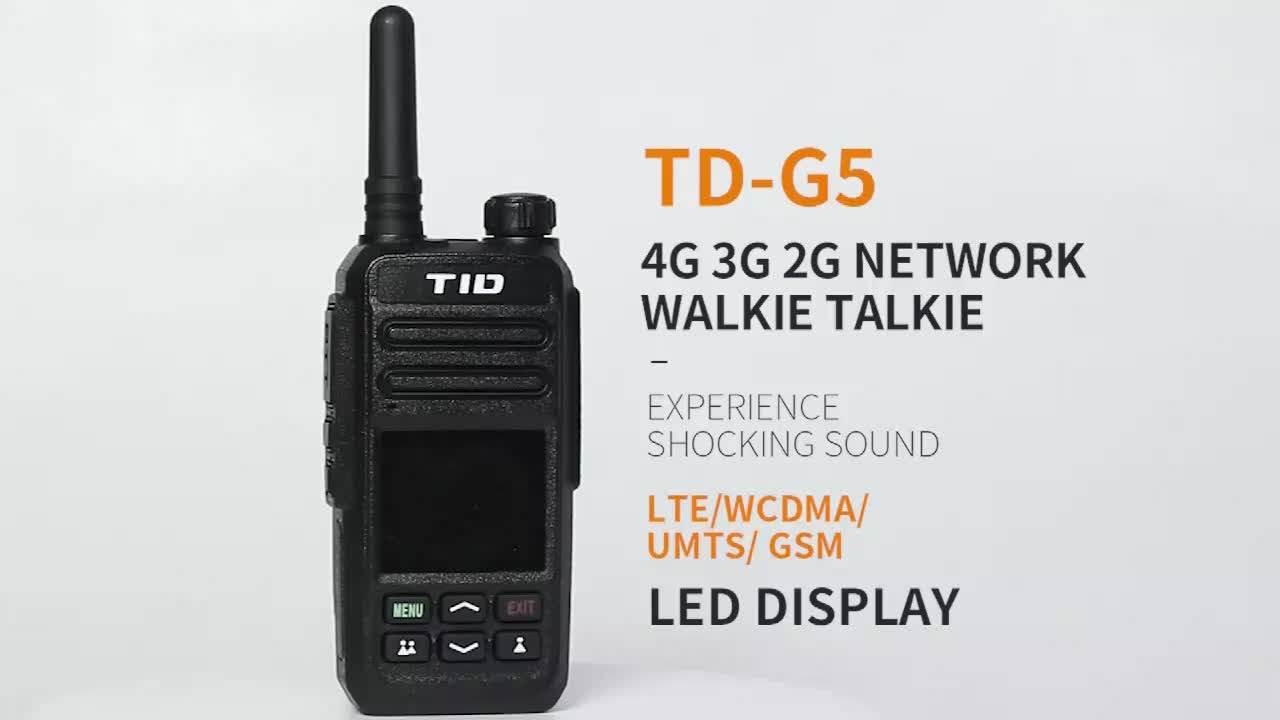

TID Zello 4G LTE 3G WCDMA POC IP Two Way Radio TD-G5 WIFI GPS SOS Bluetooth Walkie Talkie
TID Brand TD-G5

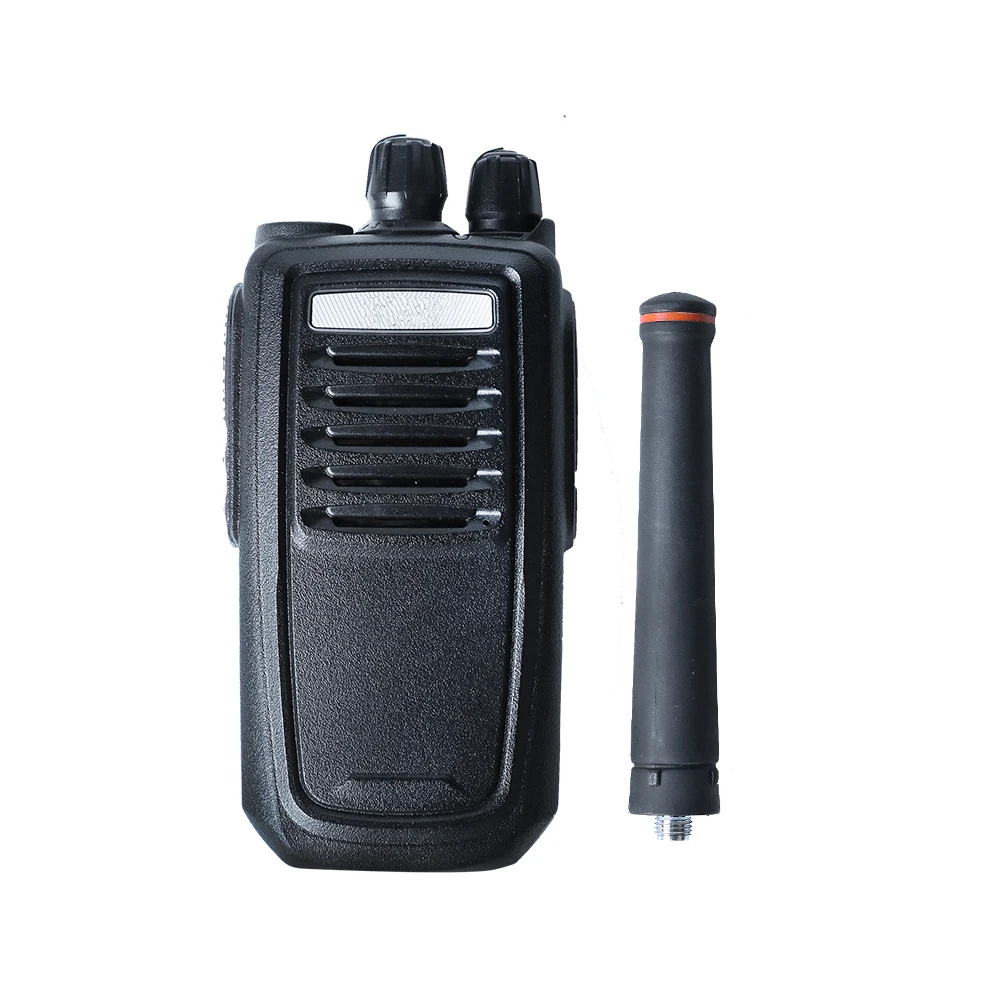

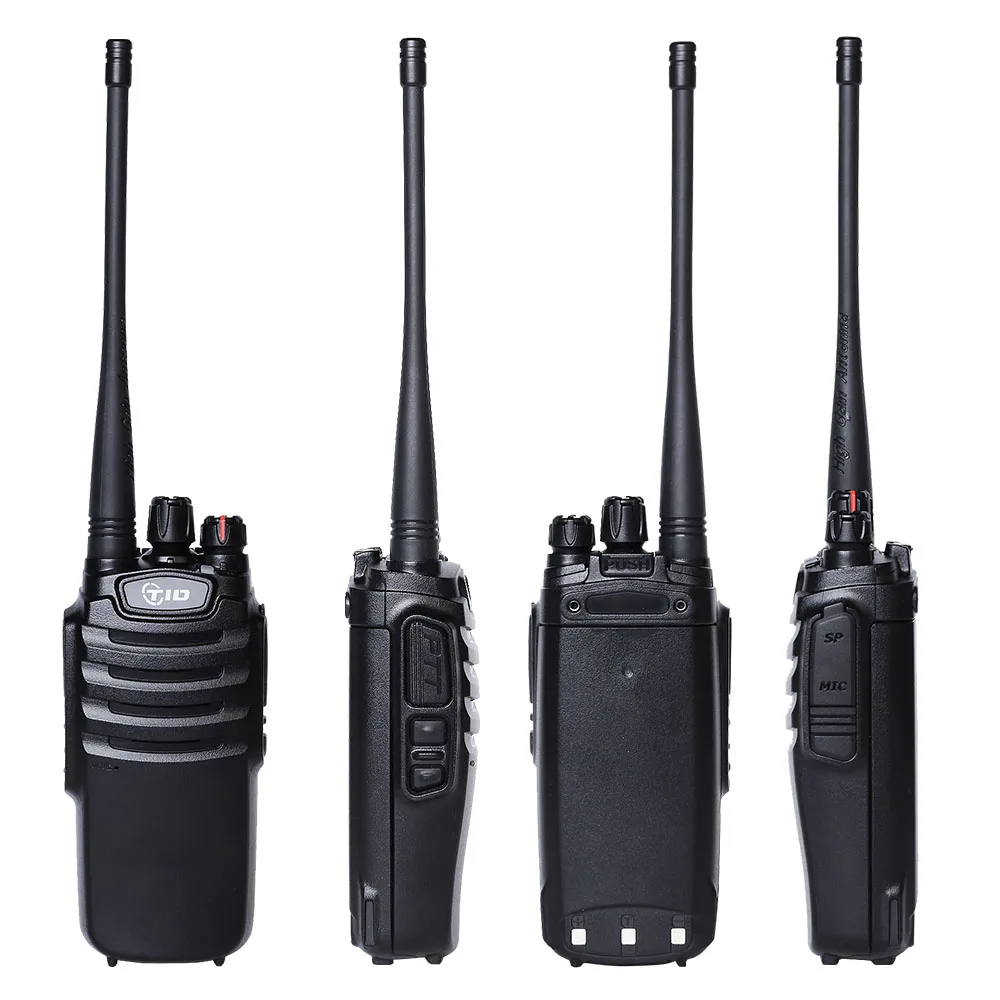

Detailed Images
Voltage | 3.7V |
Frequency Range | Global |
Dimension(with Battery and Antenna) | 170*55*40MM |
Weight(with Battery and Antenna) | 230g |
Network Type | GSM/WCDMA/LTE |
Sim Card Size | Standard Card |
Transmit Power | 23dBm~25dBm |
Battery Capacity | 5200mAh Lithium Battery |
Battery Working Hours | 30 Hours |
Antenna Impedance | 50Ω |
Auido output power | 1W |
A-H(North America AT&T) | LTE-FDD: B2/4/12; WCDMA: B2/5 |
V-H(North AmericaVerizon) | LTE-FDD: B2/4/5/13 |
LTE-FDD: B1/3/5/7/8/20; LTE-TDD: B38/40/41 | |
WCDMA: B1/5/8 | |
GSM: 900/1800MHz | |
SA-H(New Zealand/Australia/South America) | LTE-FDD: B1/2/3/4/5/7/8/28; LTE-TDD: B40 |
WCDMA: B1/2/5/8 | |
GSM: 850/900/1800/1900MHz | |
LTE-FDD: B1/3/8; LTE-TDD: B38/39/40/41 | |
TD-SCDMA: B34/39; WCDMA: B1/8; EVDO: BC0 | |
GSM: 900/1800MHz; CDMA 1X: BC0 | |
JC-H(Japan) | LTE-FDD: B1/3/8/18/19/26 |
Working Voltage | DC 3.3~4.2V |
Working Current | IDLE mode: ≤60-170mA; Data Transmission mode ≤200mA |
Working Temperature/Humidity | T: -10℃~+50℃; H: 5%~95% |
Storage Temperature | -40℃~+85℃ |
Rated Audio Output Power | 1W |
Audio Distortion@ Rated Audio | 10% |
Charger | 5V 1A Micro USB |
Max Output Power | 23dBm |
RX sensitivity | ≤-106dBm |
Packing & Delivery
Packing
According to the customer's requirement, to customize boxes or using our standard box packaging.
Delivery
By air/sea or by express, for small order we suggest you can consider sent by express like DHL, FedEx, UPS etc.
1. UPS, DHL, EMS, HK EMS, FEDEX, HK post, TNT and so on (door to door)
2. For air shipment, please choose your favorite shipping method according to your requirements
3. The shipping cost varies in different location, also depends on specific weight. We will recommend the cheapest and safest way according to your detailed quantities.
4. Shipping period varies depending upon your location. Normally, it will take around 3-7days from China to destination country, but some remote places need more add 1-3 days.
