TJL-7 2t 3t 5t 7t 10t 20t 30t 50t 100t Stainless Steel Shackle Load Cell for Crane

Feedback Ratings
  • 1-10 Pieces
    $61.50
  • 11-99 Pieces
    $51.50
  • >=100 Pieces
    $44.50
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Contact Supplier
Samples - $62.00 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
TianGuang
Model Number:
TJL-7
Usage:
Pressure Sensor
Theory:
Resistance Sensor
Output:
Analog Sensor
Capacity:
5T
Type:
Tension link load cell sensor
Precision:
0.1%FS
Sensitivity:
2.0mV/V
Application:
automobile brake
Bridge Voltage:
10V DC
Material:
Alloy Steel
Safe overload:
150%FS
Warranty:
12 Months
Product name:
Double Hole Tension Lifting Load cell

Packaging & Delivery

Selling Units:
Single item
Single package size:
25X15X5 cm
Single gross weight:
3.0 kg
Package Type:
According to the order information to determine
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 1 2 - 11 12 - 100 >100
Est. Time(days) 7 30 30 To be negotiated
Product Description

1. Rated Force Range: 20-30kN,50kN, 70-100kN, 150-200kN,300kN,500-700kN

2. Cable length: 6m

3. OEM: Acceptable

4. Certification: ISO9001

5.Packing: See the details

Parameters


Product Name
Plate ring type force sensor (50kN)
Accuracy
0.05%FS
Sensitivity
2.0mV/V
Non-linearity
0.03%
Relative creep over 30 min
0.05%
Temp. influence on sensitivity
0.05%FS/10℃
Temp. influence on the zero signal
0.05%FS/10℃
Zero output
±1.0%FS
Input resistance
380±10Ω or 750±15Ω
Output resistance
350±  3Ω or 700 ±  5Ω
Insulation resistance
>5000 MΩ
Operating temperature range
-20~+65℃
Nominal (rated) temperature range
-10~+45℃
Reference temperature
23℃
Reference excitation voltage
10V  DC
Limit force
150%
Breaking force
>300%
Material
Alloy Steel or Stainless Steel(made in order)
level of protection
IP66
Mode of connection
Input+ : Red,  Input- : Black,  Output+ : Green,  Output- : White
Mass
2.0kg
Products Show

Features

1. Made of alloy steel or stainless steel
2. Suitable for belt weigher, hopper scale and other weighing devices
3. Good steel performance and high accuracy

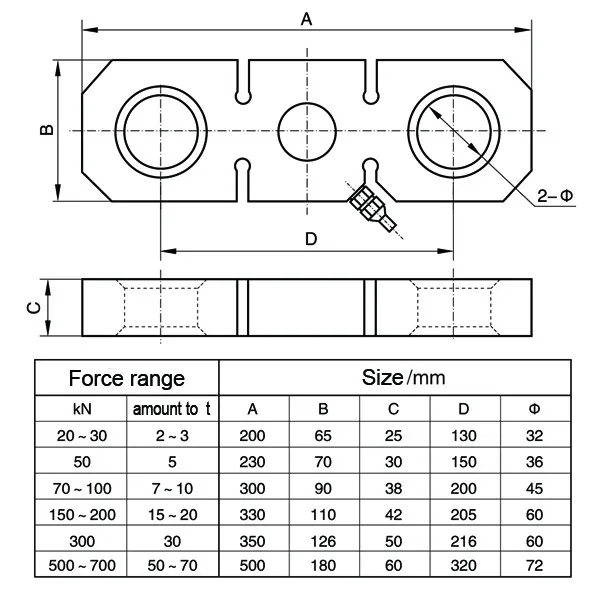

Dimension drawing


Related Products

Wireless transceiver module

Load cell transmitter

Weighing indicator

Process Flowchart
Our Company

    Anhui Tianguang Sensor Co., Ltd. was founded in 1991, covers an area of 22,000 square meters, registered capital of 16 million. Main research and development, production and sales: load cell, ice coating detection sensors, torque sensors, tension sensors, shaft pin sensors, pressure sensors, tension and pressure sensors, oil field load sensors and related monitoring and control instruments and other products. Over the past 20 years Skylight constantly draws on domestic and foreign advanced technology, the introduction of foreign advanced equipment and technology, learning and absorbing the concept of modern enterprise management, has developed, produced more than 100 kinds of load cell sensors and ancillary instruments, the products are widely used in military.

Factory

Workshop


Warehouse


Team


Equipment


Office


Certifications and enterprise honor


Our Service

Free consult support

   24/7 free product relating consult through Alibaba Trade Manager, email, telephone, Skype, Whatsapp, Wechat and other measures.

Customization

  Provide OEM service, most products are customizable (please consult with us for details).

After sale service

  One year warranty since product shipped out. Fully technical support for application.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 25-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the small size sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
