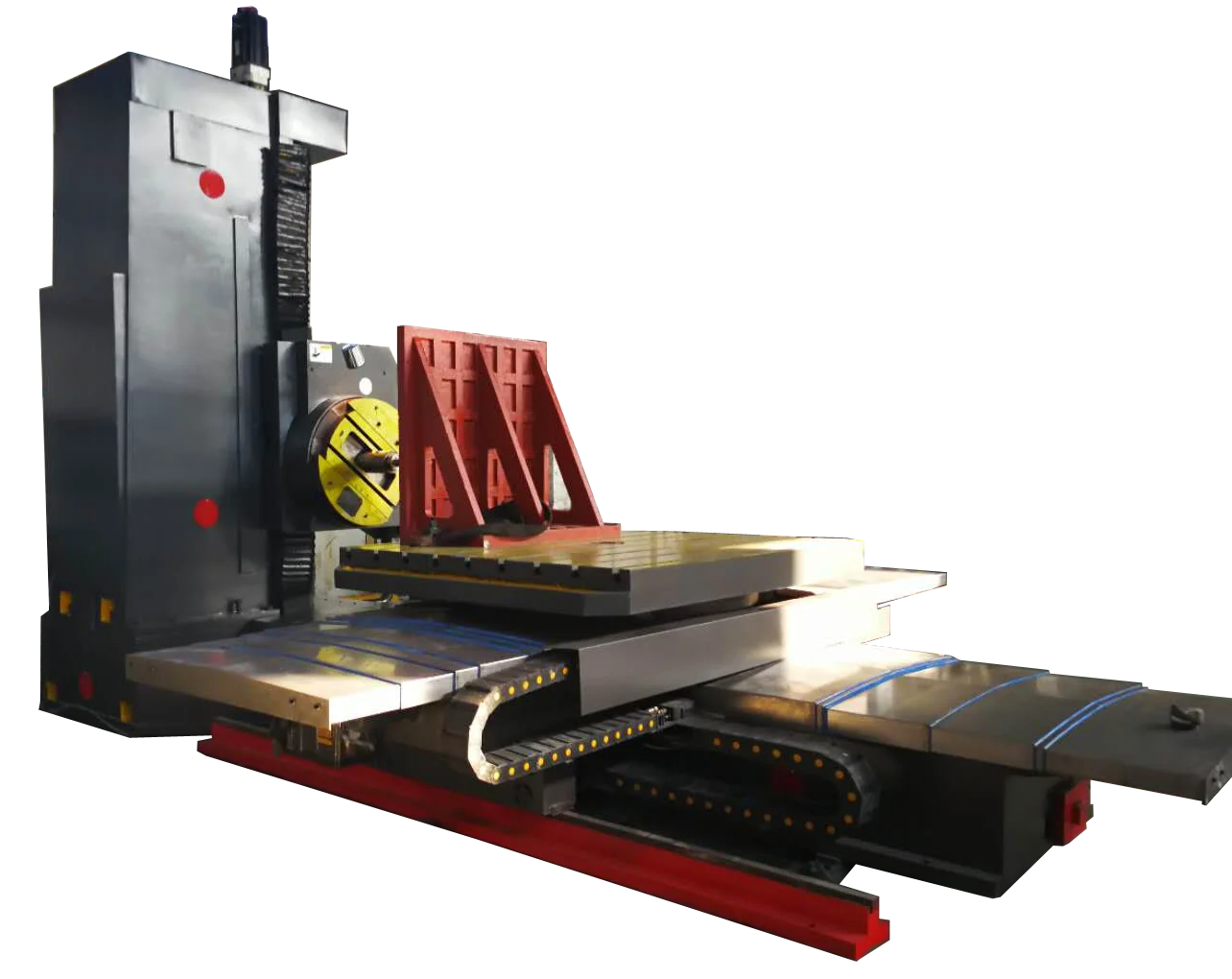

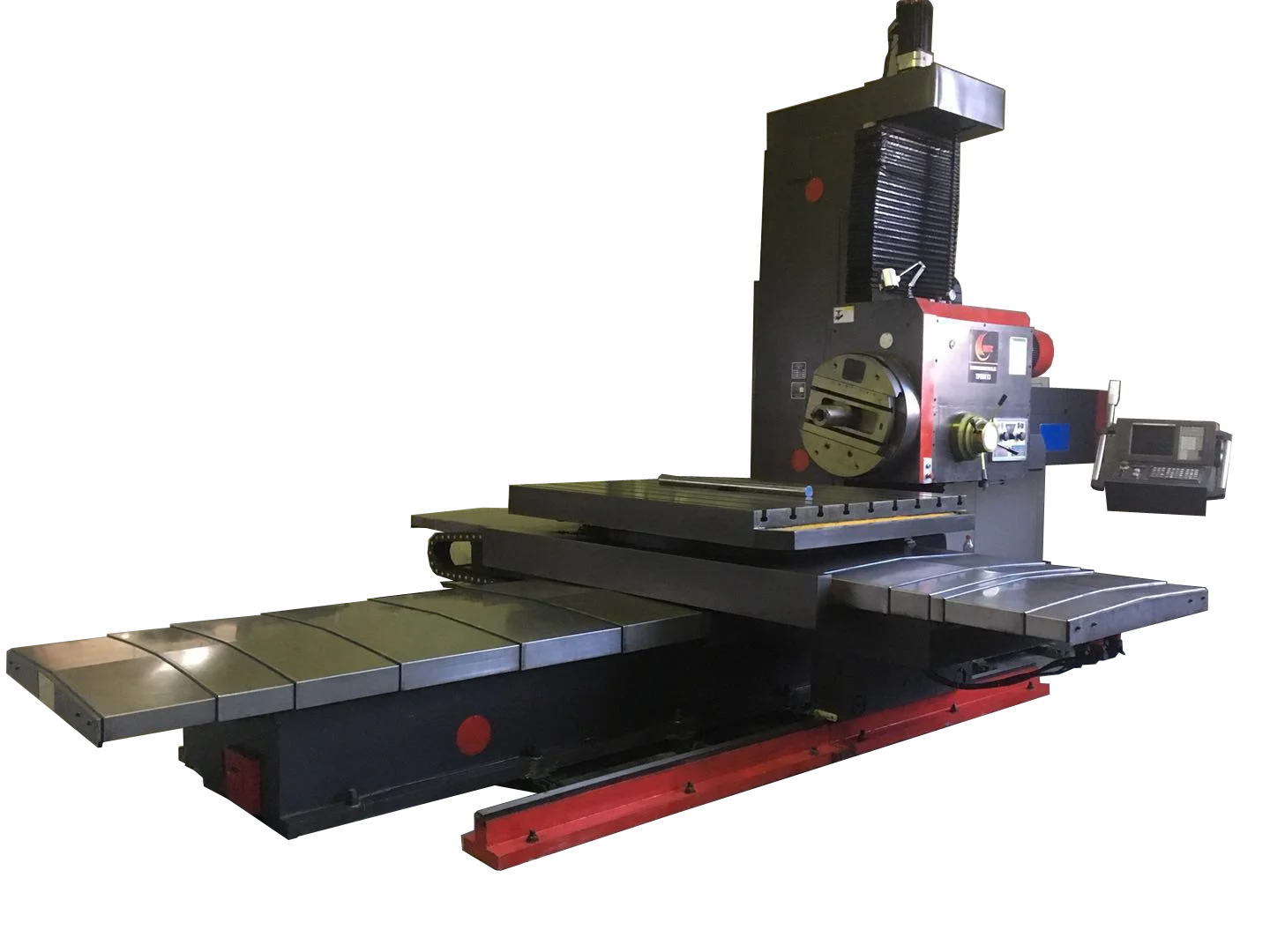

TPK6111B/3 110MM Spindle Bore CNC Boring Machine with CE

  • 1 - 1 Sets
    $90,000.00
  • >=2 Sets
    $89,000.00
Model Number:
TPK6111B/3
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$90,000.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Table Travel (X) (mm):
1600 mm
Table Travel (Y) (mm):
1300 mm
Table Travel (Z) (mm):
1400 mm
Number of Axes:
6
Max. Table Load(kg):
3000
Travel (W-axis) (mm):
600 mm
Positioning Accuracy (X axis) mm:
0.005
Positioning Accuracy (Y axis) mm:
0.005
Positioning Accuracy (Z axis) mm:
0.005
No. of Spindles:
Single
Range of Spindle Speed(r.p.m):
1000 r.p.m
Spindle Motor Power(kW):
15
Type:
Horizontal
Condition:
New
CNC or Not:
CNC
Production Capacity:
10sets/month
Place of Origin:
Liaoning, China
Brand Name:
DMTC
Voltage:
380v50hz 30has
Dimension(L*W*H):
5016*3149*2788MM
Weight (T):
17 T
Certification:
ISO9001&CE&BV
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Key Selling Points:
Competitive Price
After Warranty Service:
Spare parts
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Local Service Location:
Philippines
Showroom Location:
Viet Nam
Product type:
Boring machine
Boring shaft diameter:
7:24 (BT50)
Boring shaft taper bore:
110mm
Functions:
Auto Maintenance Machinery
Usage:
Reboring Automobile Cylinders
Application:
Construction Machine Repairing
Color:
Meet Customer's Requirement
Machine type:
Boring Machine Spindle Diameter 110mm
Precision:
High Precision Floor
Drive type:
Servo Motor
Table Size (mm):
1300*1600
Supply Ability
Supply Ability:
40 Set/Sets per Month boring machine
Packaging & Delivery
Packaging Details
1.Suitable for sea transport
2.Plastic cloth for the first layer, canvas for the second layer, and packing with wooden case at last, together with pallet on the bottom of wooden box.
Port
Dalian PORT
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 60 75 To be negotiated
Video Description
Product Description

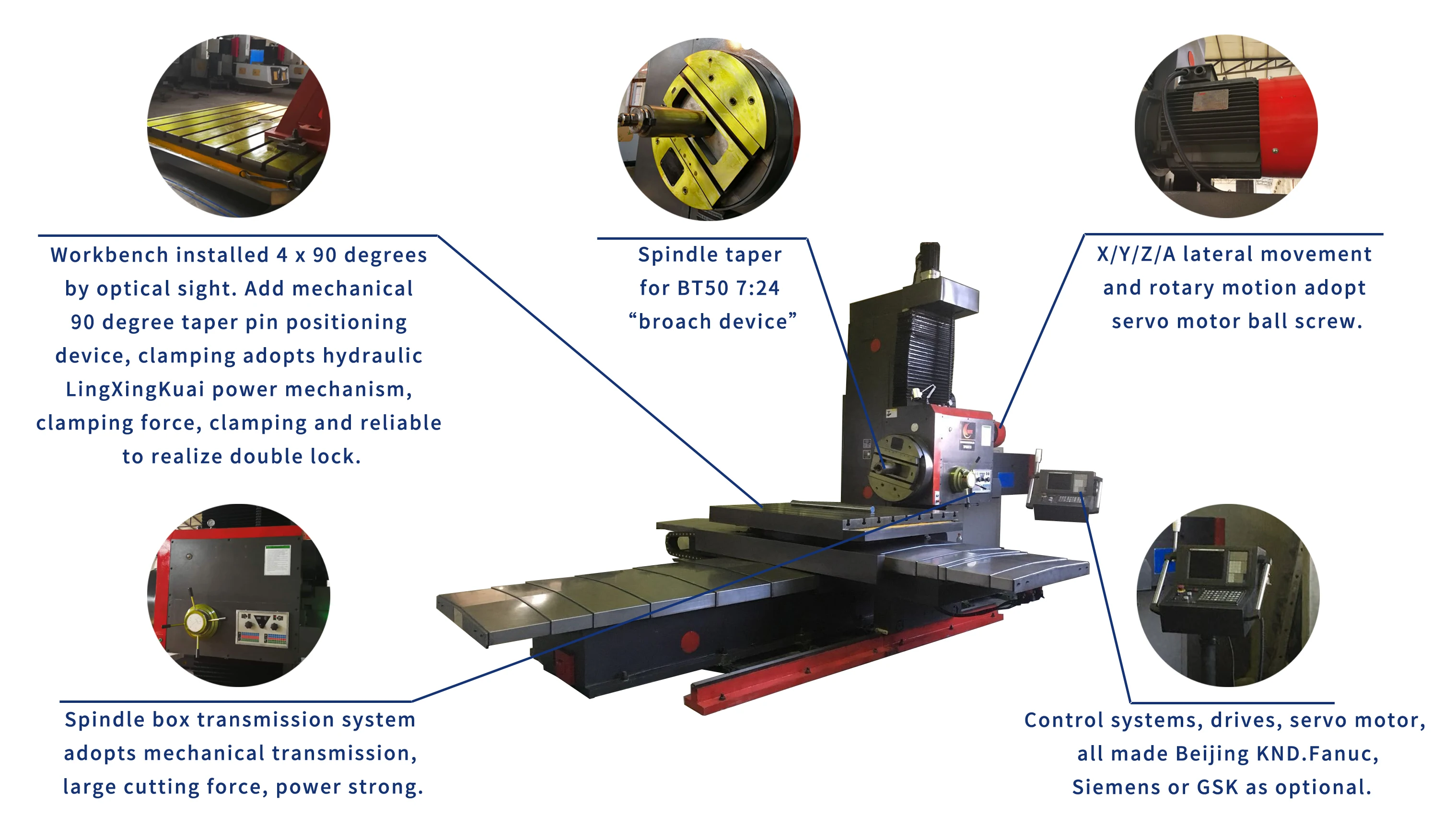

1. Boring machine main parts—Lathe Bed, Column, Up and down sliding seat. Guide way grinder, grinding, guide rail, high hardness and good precision. Yin guide adopts plastic processing, better wear resistance, longer life. 2. Spindle box transmission system adopts mechanical transmission, large cutting force, power strong. 3. Control systems, drives, servo motor, all made Beijing KND. 4. Table size 1.3 m X1.6 m, lower workbench face stick plastic processing. 5. Worktable Load—3t
NO.
ITEM
TPK6111B/3
TPK6113
1
Spindle diameter
110mm
130mm
2
Spindle taper
7:24 (BT50)
7:24 (BT50)
3
Spindle speed step
Continuously Variable
24 steps
4
Spindle speed range
0-1000rpm
8-1000rpm
5
Spindle box vertical travel(Y)
1300mm
1500mm
6
Worktable rotational angle(W)
360°
360°
7
Worktable longitudinal travel(Z)
1600mm
2000mm
8
Worktable size(L×W)
1600*1300mm
1800*1600mm
9
Worktable cross travel(X)
1400mm
1800mm
10
Max. capacity of worktable
3000KG
8000KG
11
Spindle motor power
15Kw
15Kw
Detailed Images
Guide rail & Sliding Seat
The guide rail of the bed and the sliding seat adopts the full enclosed stainless steel protection board, which protects the guide rail, and the appearance is pleasant. The large upright column is equipped with a latin-type protective cover.

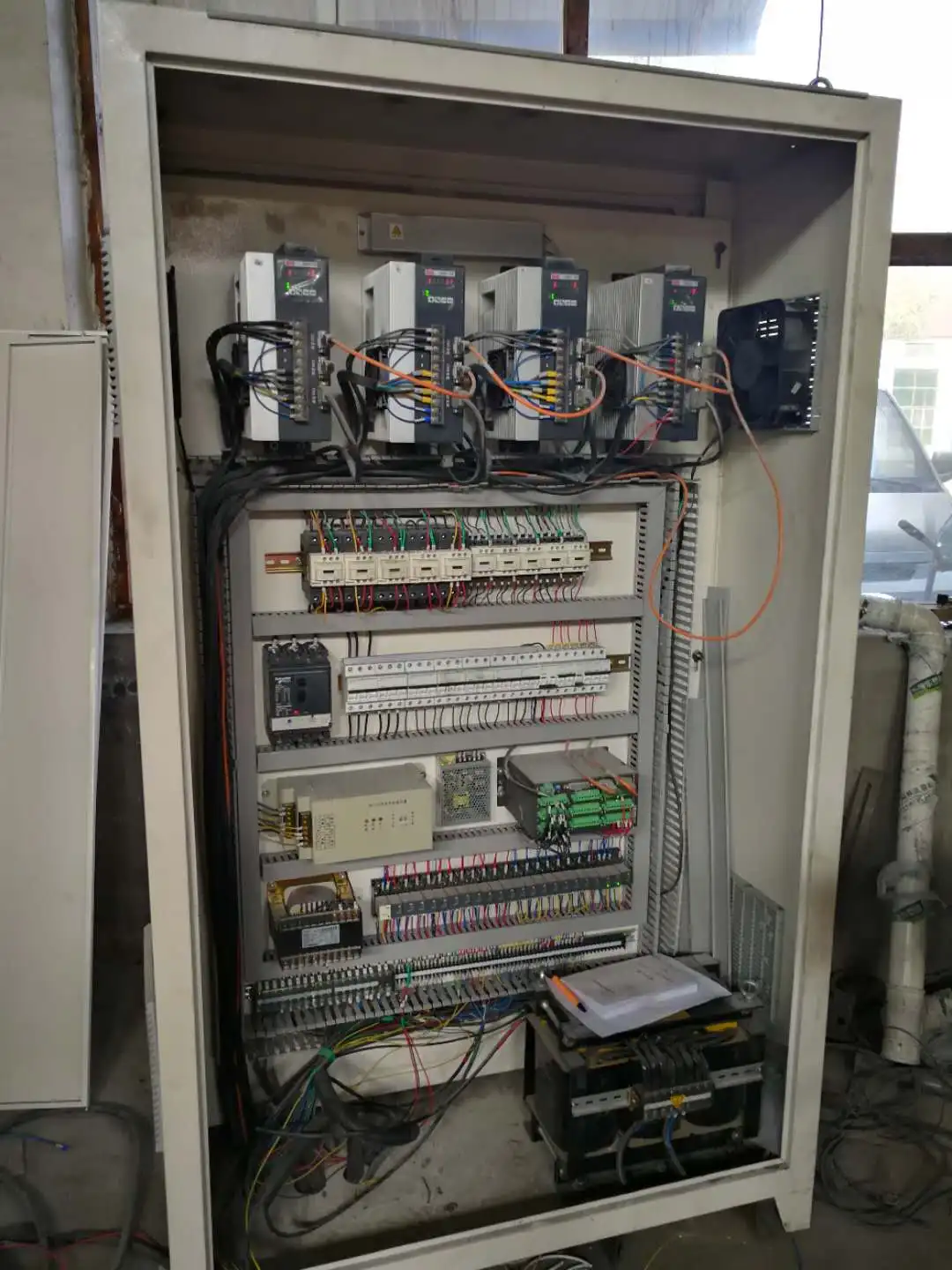

Electrical System

X/Y/Z/A Horizontal/Crosswise movement and rotary motion adopt servo motor drag ball screw. From K2000M CNC system centralized control. Action is rapid, reliable and efficient.
Worktable
Worktable installed 4 x 90 degrees, using an optical sight. Worktable Crosswise travel 1.6m, Horizontal travel 1.4m (Without rear column)
Machine Spindle Box
The headstock gear comes from SMTCL. At the same time, the bearings are selected from domestic high-quality suppliers, and imported bearings can also be selected. The headstock is the core component of the machine. We will provide customers with the best configuration to satisfy customers.
Certificate
Certificate Introduction
Certificate Introduction
Certificate Introduction
Packing&Shipping
Company Introduction
Dalian Dahui Machinery Equipment Co., Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like: CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.

Our Services & Strength

Our service: DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service. With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects. Our advantage: Advantage 1: CE, ISO certification. Advantage 2: Full production tracking. Advantage 3: Engineers stationed in the factory guarantee the highest quality. Advantage 4: More suppliers as alternatives, guarantee your lowest price. Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions. Advantage 6: Engineers traveling around the world to ensure after-sales service. Advantage 7: OEM, ODM production, to meet customer needs in all aspects. Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds. Advantage 9: Low MOQ for only 1 unit. Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
