TRUSUS Brand Cement Sandwich Panel

FOB Reference Price:Get Latest Price
$9.60 - $19.00 / Square Meters | 190 Square Meter/Square Meters (Min. Order)
Type:
EPS Sandwich Panels
Lead Time:
Quantity(Square Meters) 1 - 300 >300
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1000 Square Meters)
Customized packaging (Min. Order: 1000 Square Meters)

More

Graphic customization (Min. Order: 1000 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
TRUSUS OR OEM
Model Number:
TR980
Panel Material:
Nonmetal
Certificate:
ISO/SGS/CE
Sample:
Free
Customs Clearance:
PVOC/SONCAP/CIQ/COC...
Certificate of origin:
CO/FORM E/FORM A/ FORM F
Thickness:
50/75/90/100/125/150mm
Advantage:
Light Weight and Fireproof
Face Panel:
Calcium silicate board
Core:
EPS, cement, sand, fly ash, etc.
Service Life:
At least 70 years
Product Name:
TRUSUS Brand Cement Sandwich Panel
Supply Ability
Supply Ability:
200000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Packing with wooden pallet and wrapped with film and wedge protect
Port
FUZHOU/QINZHOU/WUHAN
Lead Time :
Quantity(Square Meters) 1 - 300 >300
Est. Time(days) 15 To be negotiated
Video Description
Product Description

TRUSUS EPS (Expanded polystyrene board) wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing light-weight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramsite, polystyrene beads & cement.

We can also produce these products, click product name for more details

or visit our website: www.trusus.com

Fiber Cement Board
Calcium Silicate Board
Colored Fiber Cement Board
Fiber Cement Siding Board



Main Features
1) Energy-saving, lightweight, and environmental protection
2) Plystyrene granule in board has good heat-insulation effect and heat lost ratio is far below the other brick wall building
3) Energy-saving effects of the building is greatly improved
4) Raw materials do not include harmful substances
5) Environmental products, it is highly recommended by the government
6) Capacity: 650kg/m3, just one sixth of the brick building
7) Comparison of inner wall panel 75 and 120mm it will increase 12m practical area, for 100m2 house, it will increase 4.16m2
8) Waterproof and damp resistant
9) With fireproof feature

Application
Interior wall, exterior wall,roof and floor on steel or concrete structure. For various buildings, additions or renovations.

Specification:

Thickness(mm)
60
75
90
100
120
125
150
Length(mm)
2440
Width(mm)
610
Density(kg/m2)
48±5
55±5
60±5
65±5
72±5
75±5
88±5
Fire endurance (h)
1
2
3
3
4
4
4
Can be customized according to the needs of users processing.

Technical Data:

Item
60mm
70mm
90mm
100mm
120mm
125mm
150mm
Anti-impact Capacity/times
≥5
≥5
≥5
≥5
≥5
≥5
≥5
Anti-Bending damage load/times over deadweight
≥1.5
≥1.5
≥1.5
≥1.5
≥1.5
≥1.5
≥1.5
Compressive strength/Mpa
≥3.5
≥3.5
≥3.5
≥3.5
≥3.5
≥3.5
≥3.5
Softening coefficient
≥0.8
≥0.8
≥0.8
≥0.8
≥0.8
≥0.8
≥0.8
Surface density(kg/m2)
≤70
≤70
≤90
≤90
≤110
≤110
≤110
Moisture rate (%)
≤12/10/8
Drying shrinkage alue(mm/m)
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
≤0.6
Hang force(N)
≥1000
≥1000
≥1000
≥1000
≥1000
≥1000
≥1000
Sound insulation capacity in the air(dB)
≥30
≥30
≥35
≥35
≥40
≥40
≥40
Fire endurance (h)
≥1
≥1
≥1
≥1
≥1
≥1
≥1
Heat transfer coefficient(w/m2.k)
_
_
_
_
≤2.0
≤2.0
≤2.0
Inner radiation index
≤1
≤1
≤1
≤1
≤1
≤1
≤1
Outer radiation index
≤1
≤1
≤1
≤1
≤1
≤1
≤1
Frost resistance(shall show no visible cracks and surface without change)
_
_
shall show no visible cracks and surface without change
The combustion properties of (A1 / A2)
_
_
A1 or A2

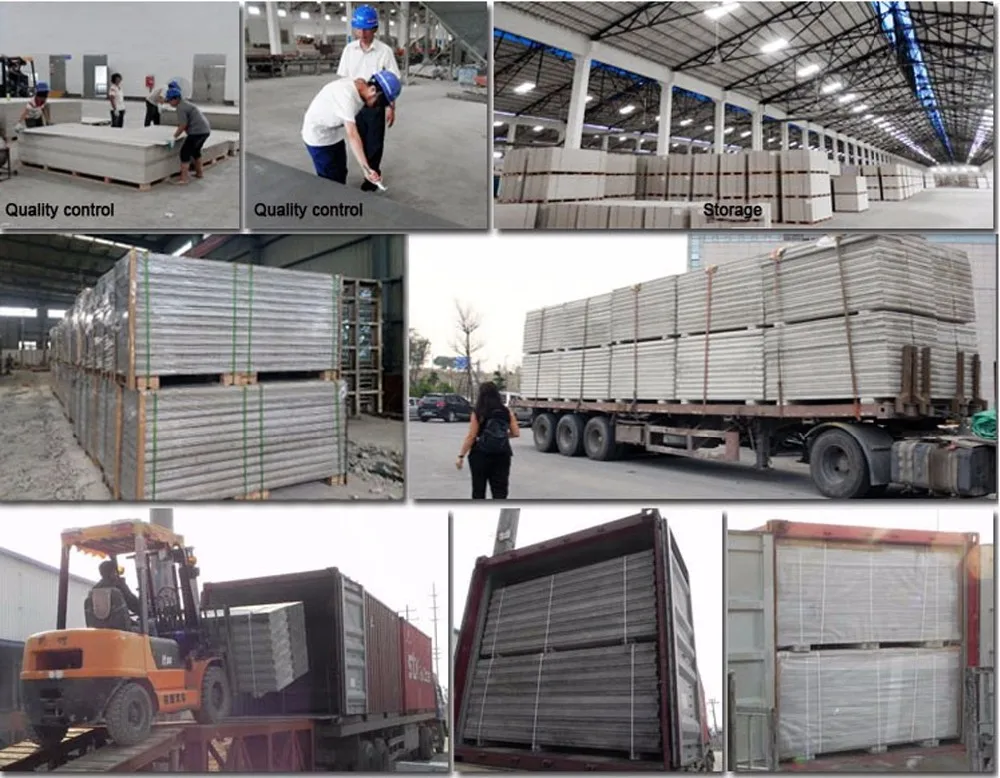

Packing & Delivery

SHIPPING TIME:  7-20 working days after receiving your advance payment, some specifications are in stock

Installation

1. lift plate

In the wall and floor mounting portion projectile base or bottom end of the beam perpendicular to the baseline, to ensure that the installation wall verticality and flatness, and identifies the position of the door opening; rear wall to enter the scene, or using the machine according to the plate thickness of the plate is carried mounted on the wall portion.

2. Saws

The specifications for the wall entire board width 610mm, length 2440mm. When the end panels is less than a width or height of the entire board should be used up plate, with a hand-held unit according to claim any cutting, and the length of the wall to adjust the width of the wall panels loss rate. groove brush with water and wet wallboard, and then the polymer mortar caulking professional wallboard groove flooring inside the baseline.

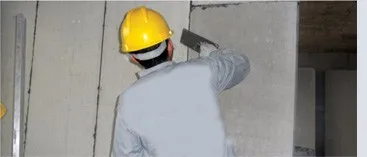

3. Sizing

Professional installation with water in proportion to the sealing paste was slurried, then wiped clean with a damp cloth dust wall surface irregularities grooves, tongue.

4. Plates

After the mortar wall moving means Shanghao fight like bit position, standing vertically on good baseline, with a crowbar to pry from the bottom wall, so that the force against the plate between the plate and the polymer mortar from a seam extruded and then scraped wall panel projecting a slurry, the slurry must ensure that the seam between the plate and the plate is full, and finally by temporarily fixing the wedge.

5. Proofreading

After initially siding assembled good, use a crowbar professional conduct tone correction, with smooth straight by foot inspection, verticality of 2M.

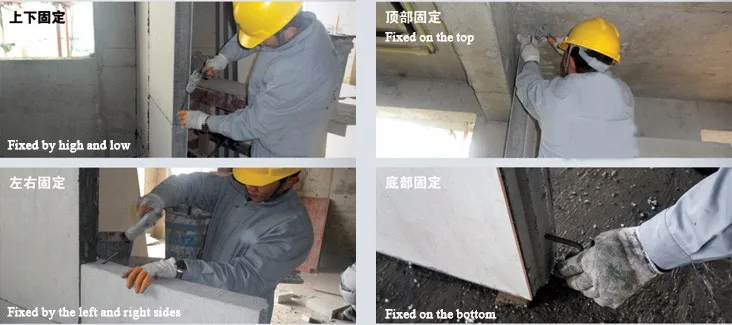

6. Fixed

After installation calibration, with temporary fixing wedge wall, and floor (bottom and top), in addition to the adhesive polymer cement mortar two panels, vertical panels connected to adjacent like, but also the application of 200 ~ ○ 250mm length 6 8 as reinforcement or strengthening treatment (reinforced inserted inside wall should be greater than 100mm). 125mm or more thick steel slab must into two.

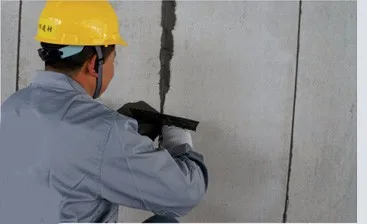

7. Pointing processing

After installing the panels with the above joint materials, joint mortar scrape convex wall panel, and a seam tick mouth, generally not less than board 4 ~ 5mm, this stepis for seaming wall panels and consider.

8. Grouting

Wall mounting process will start seven days after the completion of maintenance of good professional slurry filling the wall with polymer, the joint between the board and the board and the slits, and the original pull wedge filled with mortar.
1, Preceded remove dust filling the joint surface, then the blade caulking materials are triggered by full embedded wallboard joint port; A step of processing in order to start the joint.

2, Wait 6 to 8 hours to complete the slurry.

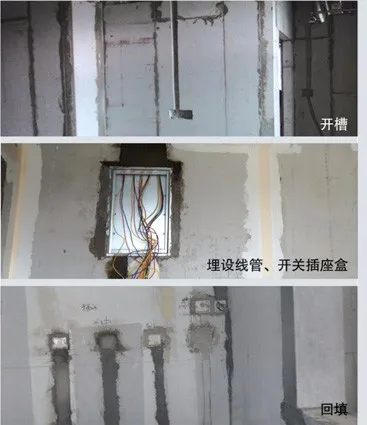

9. Buried conduit

Buried conduit inner wall, the switch socket box,the installation of water depending on design requirements disposable unit shown in the wallboard all strong, weak, and all kinds of water supply and drainage ducts line, box, cartridge position, not at the same at the same time slot position on both sides of the opening hole, and the conservation of the wall should be carried out after a minimum of three days. In cases where the same position on both sides of the wall while the wiring pipe, casing, switch boxes, should be shifted in a horizontal direction or a height direction of 100mm or more, so as not to reduce the sound insulation wall. When the slot, the width should be good to play the slot size, and with a (small) cut out border Portable cutting machine, and then the artificial light gouges, rigorous violence slotted openings, generally not more than the depth of gouges wall thickness 2/3 of the width of not more than 400mm. Embedding mode and Line Pipe Specification perform the requirements, to the level of the conduit should not exceed 350mm, polymer cement mortar stratified slab according to backfill the processing line handling the well pipe burial.

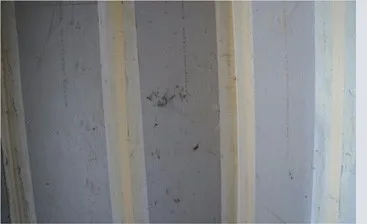

10. A joint (crack tape joining) process

Process should be conducted after the seam doors,window frames, pipe installation (not less than 7 days). First clean the seam area, fill up the pore damaged, clean surface, and then paste the seams crack with construction, and follow these steps:

1, should remove dust attached to the front surface of the joint with crack;
2, the maintenance and the like grout slurry was completely dry, with more than 50mm wide crack fiber mesh tape stuck on the white latex paste slit, and compacted with a scraper along the seams, scrape excess white latex;
3, fiber mesh Once dry, then more than 100mm wide crack fiber mesh or perforated paper with white tape attached to stick to the slit latex, and compacted with a scraper along the seams, scrape excess white latex and removing bubbles taken off the grid;
4, the mesh belt after the other joints (punched tape) completely dry, can be according to design requirements (e.g. plaster) of the wall construction of the surface finish.

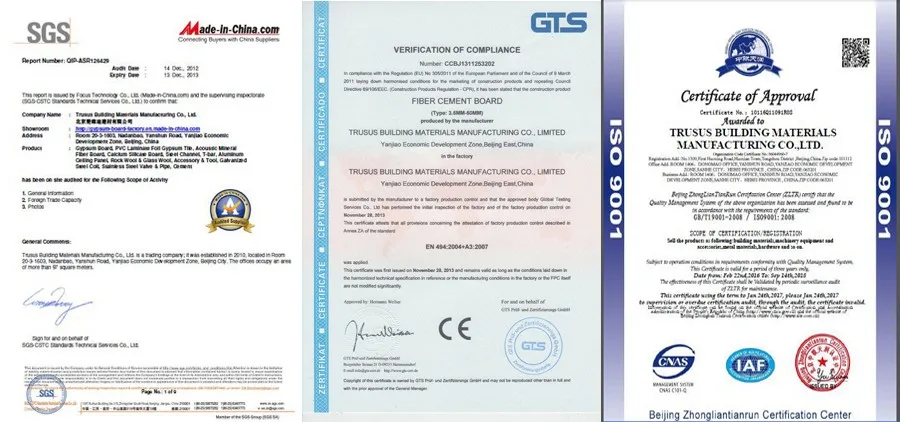

Certifications
Attended fairs

MYANBUILD 2014             Edifica 2015               Vietbuild 2016             Excon 2016              Big5 2016
2014.12 Myanmar             2015.10--Chile           2016.6-Vietnam          2016.10-Peru           2016.11-Dubai

Our Company

TRUSUS BUILDING MATERIALS MANUFACTURING CO., LTD is an 'AUDITED SUPPLIER' presented by SGS, which is a large enterprise with 6 factories in China, and integrates research & development, production and sales. It covers an area of approximate 140, 000sqm. Has a great number of professional and advanced production technology and equipment.

Customer visit:

Feel free to contact us if you would like to know more details, we will reply you within 2 hours!
Thanks a lot ! Welcome to visit our factory!
